Upgrading The Computer

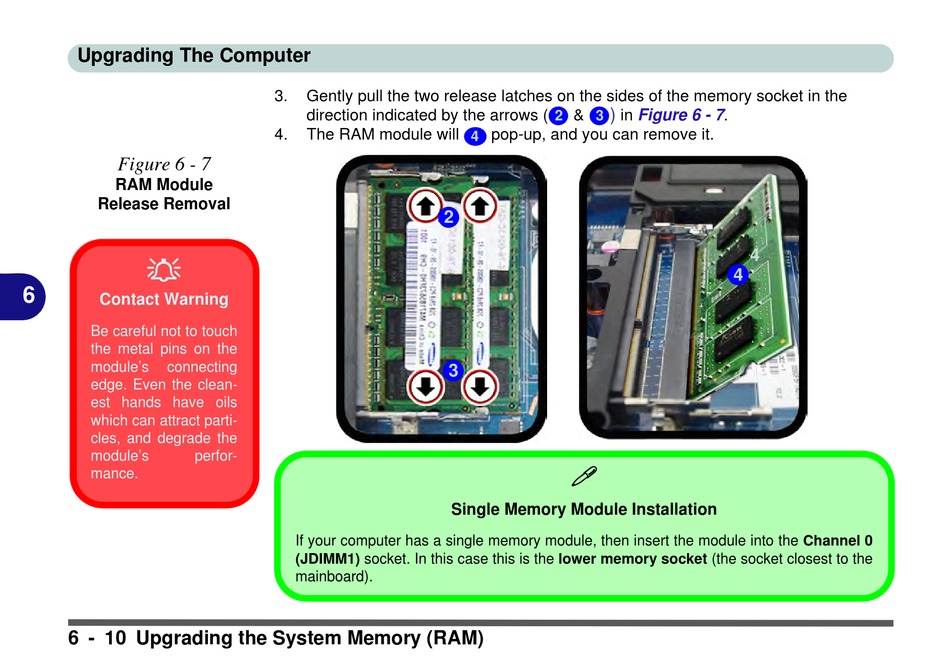

Figure 6 - 7
RAM Module
Release Removal

6
Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module's perfor-
mance.
6 - 10 Upgrading the System Memory (RAM)
3. Gently pull the two release latches on the sides of the memory socket in the
direction indicated by the arrows (
4. The RAM module will
2
3
Single Memory Module Installation
If your computer has a single memory module, then insert the module into the Channel 0
(JDIMM1) socket. In this case this is the lower memory socket (the socket closest to the
mainboard).
)
& in Figure 6 -
2 3
pop-up, and you can remove it.
4

7.
4
4
