Page 1: Operating Instructions

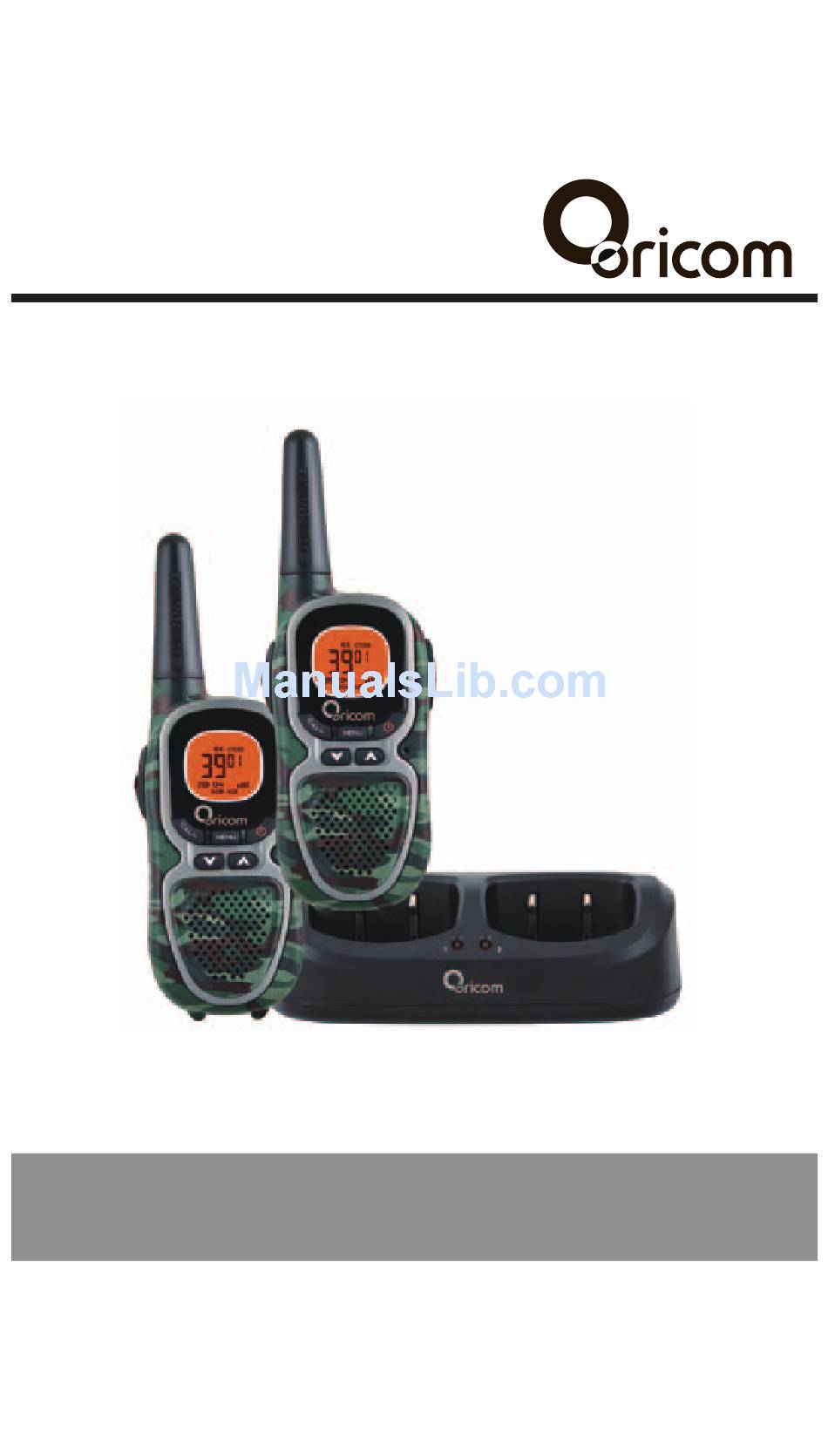

® Operating Instructions PMR1200 40 Channel UHF 2 Way Citizen Band Radio... - Page 2 ®...
-
Page 3: Table Of Contents
Table of contents Safety Information and Warnings ........4 Getting Started .............. 8 Oricom PMR1200 instructions........12 Operation ..............13 UHF channels and frequencies ........22 Warranty information (Australia) ........24 Customer support ............26 This unit complies with all relevant Australian and New Zealand approval requirements including radio communications (Electromagnetic Radiation Human Exposure) standard 2003. -
Page 4: Safety Information And Warnings
Safety Information and Warnings Safety Information and Warnings Information on Safe Operation Read This Information Before Using Your Oricom Radio. WARNING Radio Antenna Do not use any radio that has a damaged antenna. If a damaged antenna comes in contact with the skin, a minor burn may result. - Page 5 “blasting area” or in areas posted: “Turn off the two way radio.” Obey all signs and instructions. Exposure to Radio Frequency Energy Your Oricom two-way radio complies with Australian Communications Authority Radio communications (Electromagnetic Radiation-Human Exposure) Standard, 2003. To assure optimal radio performance and make sure...
- Page 6 Safety Information and Warnings Radio Operation and EME Exposure Unauthorized antennas, modifications, or attachments WARNING could damage the radio and violate compliance. Do NOT hold the antenna when the radio is “IN USE.” Holding the antenna reduces the effective range. Do not use the radio if the antenna is damaged.
- Page 7 Safety Information and Warnings Medical Devices - Pacemakers The Advanced Medical Technology Association WARNING recommends that a minimum separation of 6 inches (15cm) be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with the independent research by and recommendations of the U.S.
-
Page 8: Getting Started
Getting Started Installation Removing the Belt Clip Pull the Belt Clip latch forward (away from the unit) Belt Clip latch While pulling the Belt Clip latch, push up the Belt Clip as shown in Figure1. Installing the Belt Clip Slide the Belt clip into the slot as shown in Figure2. -
Page 9: Charging The Battery Pack
Getting Started Important Read these Safety Warnings before you charge the batteries. When placing the radio in the charger, use only the power supplies listed in the user instructions supplied with the unit. Don’t try to recharge non-rechargeable batteries. Make sure the battery compartment cover is securely locked in place when you are charging the batteries. -
Page 10: Battery Meter
When the battery level reaches it minimum level, the unit will emit two beep tones and automatically it will power off. Your PMR1200 can detect the battery charge in 4 levels; Battery charge at high level. Battery charge at medium level. -
Page 11: Battery Life
For in vehicle charging the accessory kit SM5100 contains 2 car chargers and 2 shoulder speaker mics. These can be purchased from your re-seller or online at www.oricom.com.au Transmitting range The talk range depends on the environment and terrain. The radio can reach (up to about 7km) in wide open spaces, without obstructions such as hills or buildings. -
Page 12: Oricom Pmr1200 Instructions
Oricom PMR1200 instructions Oricom PMR1200 2 Way CB Radio Antenna Receiver LED - lights up when you Are LCD Screen receiving signals. - Displays the current channel s e l e c t i o n a n d o t h e r r a d i o symbols. -
Page 13: Operation
Press and hold the POWER button until the LCD screen turns blank. Changing Channels The PMR1200 has 40 available channels, to communicate with other radio’s, it must have your radio tuned to the same channel. a. Press the MENU button once, the current channel number flashes on the LCD Screen. -
Page 14: Transmitting And Receiving
The PMR1200 transmission is SIMPLEX “one way-at- a-time.” While you are speaking, you can not receive a transmission. The PMR1200 is an open-license band. Always identify yourself when transmitting on the same channel. IMPORTANT: Before transmitting on a UHF channel listen to ensure... - Page 15 Operation Transmitting (sending speech) The unit is continuously in the Receive mode when the unit is turned ON and not transmitting. When a signal is received on the current channel, “RX” icon will be displayed on the LCD screen and the receiver LED will light up.
- Page 16 A VOX headset is also available under part number KESP-300-0. This can be purchased from your re-seller on online at www.oricom.com.au Activating the Auto Channel Scan Channel scan perform searches for active signals in an endless loop for all 40 channels, 38 CTCSS codes and all 83 DCS codes.
- Page 17 (if applicable) will hear the Call-ring tone. Selecting a Call- Ring tone Your PMR1200 is equipped with 10 different types of Call-Ring tones. a. Press the MENU button 8 times, the “C A” icon will display and flash on the LCD Screen.
- Page 18 Operation Setting the Key Tone ON or OFF This feature allows your radio unit to emit a confirmation tone after pressing each button. a. Press the MENU button 10 times, the “ON” icon is flashing on the LCD Screen. b. Press the UP or DOWN button to select Key tone On/Off. c.
- Page 19 Operation http://www.oricom.com.au/support/repeater or visit http://www.tropinet.com/uhf-repeaters/ For example, if you wish to access a repeater station in your area which operates on channel 2 you only need to set the Duplex access on this Channel. So, if you are in the range of a local repeater which transmits on...
- Page 20 Auxiliary Features Key Lock The Key Lock feature allows the user to disable the UP, DOWN and MENU buttons so that the PMR1200 settings could not be changed accidentally. a. To activate the key Lock feature, press and hold the MENU button until key lock “...
- Page 21 Operation LCD Screen Back Light Every time the Power/Vol button is activated (except PTT and CALL button), the LCD Screen back light will illuminate for 5 seconds. Microphone/Earphone/Charge Jack Your radio is equipped with an auxiliary microphone, earphone, and charge jack located at the opposite side of the PTT button.
-
Page 22: Uhf Channels And Frequencies
UHF channels and frequencies IMPORTANT NOTE: The operation of your PMR1200 radio in Australia and New Zealand is subject to conditions in the following licenses: In Australia the ACMA Radio communications (Citizen Band Radio Stations) and in New Zealand the General User Radio License for Citizen Band Radio. - Page 23 UHF channels and frequencies 476.775 Simplex 476.800 Simplex 476.825 Simplex 476.850 Simplex 476.875 Simplex 476.900 Simplex 476.925 Simplex 476.950 No Use 476.975 No Use 477.000 Simplex 477.025 Simplex 477.050 Simplex 477.075 Simplex 477.100 Simplex 477.125 Simplex 477.150 Simplex 477.175 Duplex TX/Simplex 477.200 Duplex TX/Simplex 477.225...
-
Page 24: Warranty Information (Australia)
2. the operation outside the normal use of the product; 3. by the use of parts not manufactured or sold by Oricom; or 4. by modification or service by anyone other than: (a) Oricom; or (b) an Oricom authorised service provider. - Page 25 Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom is not liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental or consequential damages.
-
Page 26: Customer Support
- Online Frequently Asked Questions - www.oricom.com.au - Email our customer support team on support@oricom.com.au - Contact Oricom Customer Support team on 1300 889 785 or 02 4574 8888 (Monday to Friday 9am to 5pm EST) Please retain your purchase receipt and attach to the back page of this user guide. - Page 27 ®...
- Page 28 Customer Support Australia Email: support@oricom.com.au Oricom International Pty Ltd Web: www.oricom.com.au Locked Bag 658 Phone: 1300 889 785 South Windsor, NSW 2756 Fax: (02) 4574 8898 ®...
