5.1 Ostia Menus

The Ostia menu bar consists of
several parts: The main menu (File,
Find, View, GPS and Setup), and the
GPS indicator. As shown in Figure 4.
The GPS indicator has three
changeable faces to indicate the
different operating status of the
receiver. By clicking the indicator
you can get more information.
Blue arrow keys on the map allow
you to shift the viewable portion of
map currently open.

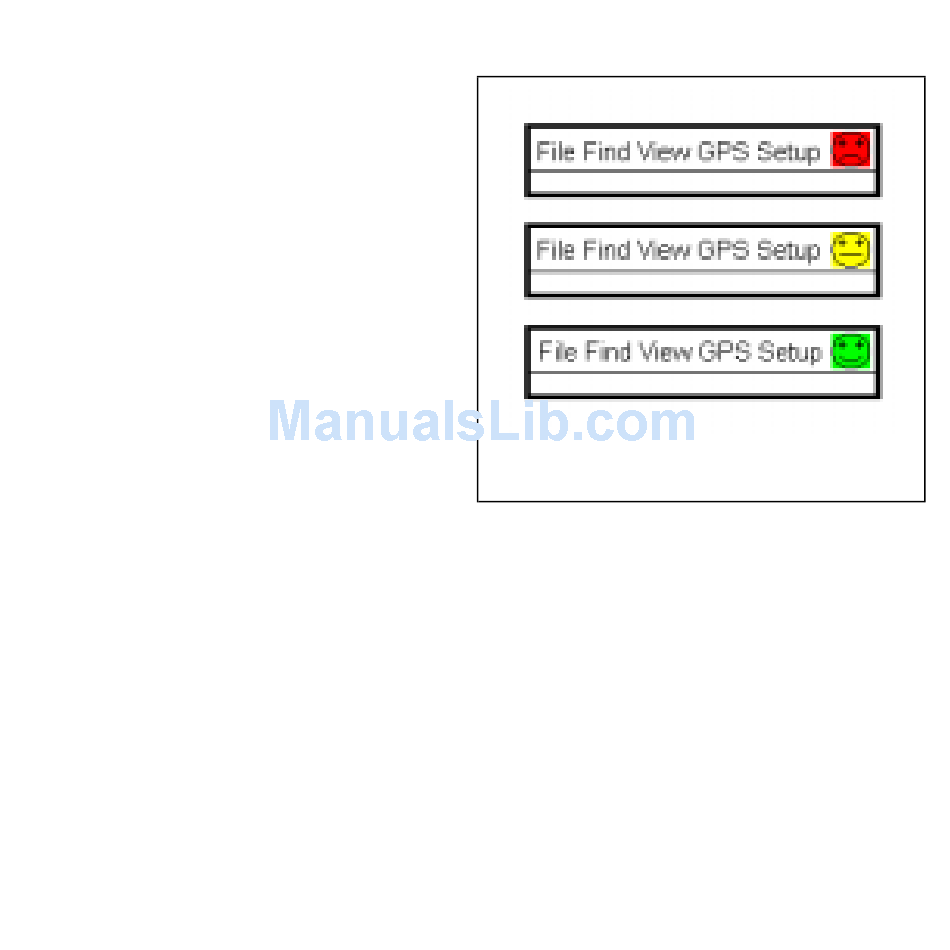

Figure 4
The red sad-face of the indicator tells that the receiver is either
not powered properly or not enabled (top, Figure 4); the yellow
calm-face shows that the receiver is in the process of
determining your position (middle, Figure 4) and the green
happy-face shows that the receiver is successfully tracking the
position. (bottom, Figure 4). The menu items are described in
the following tables.
Page 45
