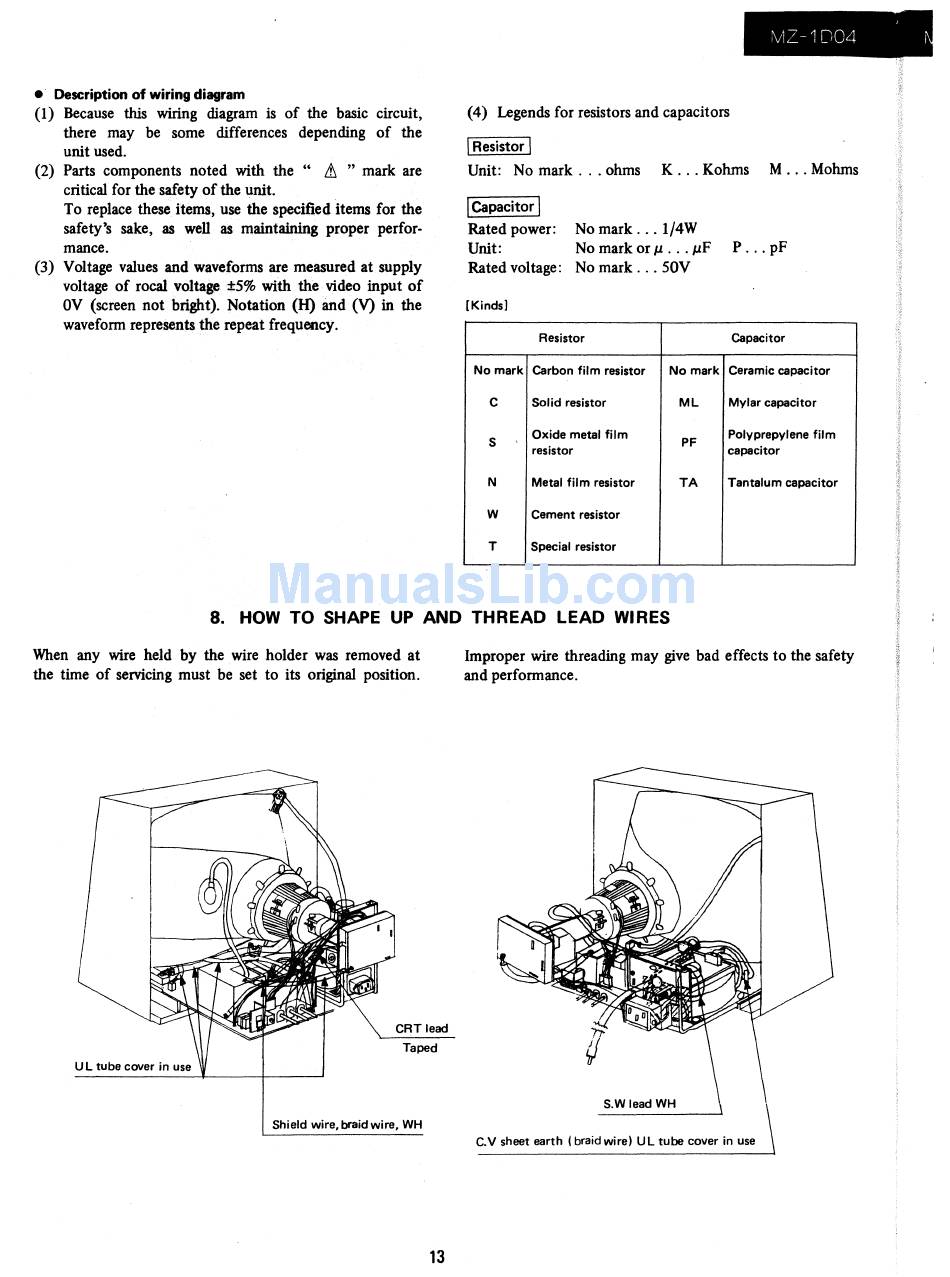

Sharp mz-1d04 Service Manual page 12

•. Description of wiring diagram
(1) Because this wiring diagram is of the basic circuit,
there may be some differences depending of the
unit used.
(2) Parts components noted with the "
Lt "
mark are
critical for the safety of the unit.
To replace these items, use the specified items for the
safety's sake,as well as maintaining proper perfor-
mance.
(3) Voltage values and waveforms are measured at supply
voltage of lOcal voltage ±S%
with the video input of
OV (screen not bright). Notation (H) and (V) in the
waveform represents the repeat frequency.
,
iv1Z-1 D04
I
(4) Legends for resistors and capacitors
I
Resistor
I
Unit: No mark
0 0 .
ohms K ... Kohms M ... Mohms
I
Capacitor
I
Rated power: No mark
0 • •
1/4W
Unit: No mark or
Il.
0 •
oll.F
P.
0 0
pF
Rated voltage: No mark ... SOV
[Kinds)
Resistor Capacitor
No mark Carbon film resistor
No mark Ceramic capacitor
C Sol id resistor ML Mylar capacitor
S
Oxide metal film
PF
Polyprepylene film
resistor capacitor
N
Metal film resistor TA Tantalum capacitor
W
Cement resistor
T
Special resistor
8. HOW TO SHAPE UP AND THREAD LEAD WIRES
When any wire held by the wire holder was removed at
the time of servicing must be set to its original position.
CRT lead
Taped
U L tube cover in use
Shield wire, braid wire, WH
13
Improper wire threading may give bad effects to the safety
and performance.
SoW lead WH
C.V sheet earth (braidwire) UL tube cover in use
