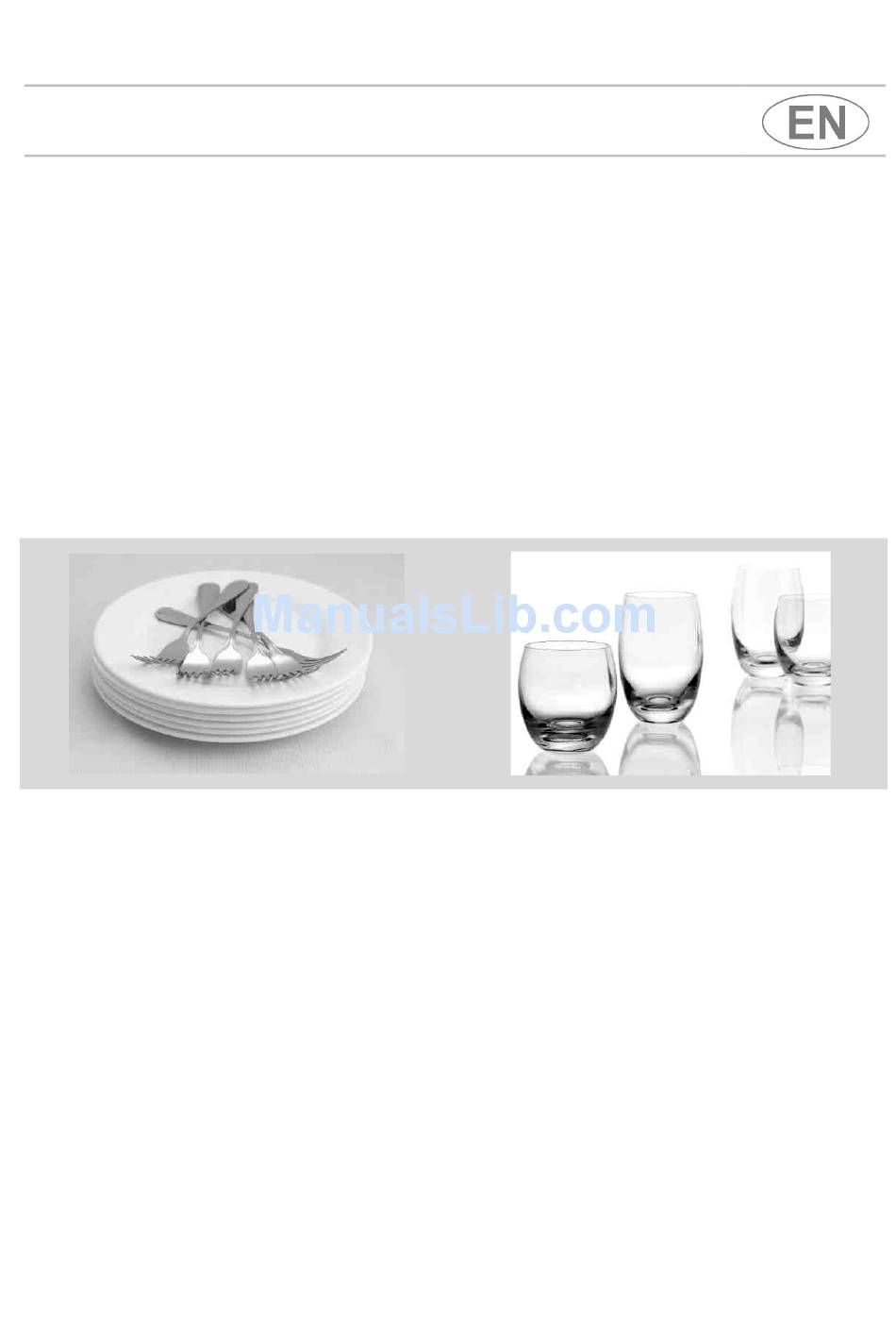

INSTRUCTION MANUAL
G
G
U
U
I
I
D
D
E
E
F
F
O
O
R
R
U
U
S
S
I
I
N
N
G
G
T
T
H
H
E
E
D
D
I
I
S
S
H
H
W
W
A
A
S
S
H
H
E
E
R
R
A
A
N
N
D
D
T
T
H
H
E
E
W
W
A
A
S
S
H
H
I
I
N
N
G
G
P
P
R
R
O
O
G
G
R
R
A
A
M
M
S
S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWAFI4510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smeg DWAFI4510

Summary of Contents for Smeg DWAFI4510

  • Page 1 INSTRUCTION MANUAL...

  • Page 3: Table Of Contents

    Contents Safety and operating instructions ___________________________ 2 Installation and hook-up __________________________________ 5 Description of the controls ________________________________ 9 Operating instructions ___________________________________ 14 Cleaning and maintenance _______________________________ 23 Troubleshooting _______________________________________ 28 Thank you for choosing one of our products. You are advised to read this manual carefully; it contains all the information you need about the right conditions for the proper, safe use of your dishwasher.

  • Page 4: Safety And Operating Instructions

    Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE.
  • Page 5 Contents WARNING: SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE. THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED. AVOID CONTACT WITH THE SKIN AND EYES AND KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS OPEN. CHECK THAT THE DETERGENT RECEPTACLE IS EMPTY AFTER COMPLETION OF THE WASH CYCLE.

  • Page 6: Safety Instructions

    Safety instructions DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK. NEVER LEAVE THE DISHWASHER DOOR OPEN;...

  • Page 7: Installation And Hook-Up

    Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.

  • Page 8: Installation Instructions

    Installation instructions Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance.
  • Page 9 Installation instructions Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
  • Page 10 Installation instructions FOR GREAT BRITAIN ONLY: THIS APPLIANCE MUST BE EARTHED. Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A.

  • Page 11: Description Of The Controls

    User instructions 3. Description of the controls Upper panel All the dishwasher controls are grouped on the upper panel. Switching on, programming, switching off, etc. are only possible when the door is open. The panel shown is given as example: the form of the lights and buttons may vary depending on the model.

  • Page 12: User Instructions

    User instructions PROGRAMS TABLE DURATION CONSUMPTION PROGRAMME LOAD CROCKERY AND PROGRAM NUMBER CUTLERY PROGRESS MINUTES POWER WATER & SYMBOL KWh (1) LITRES 1 SOAK Pans and dishes awaiting 0,02 Cold prewash completion of the load 2 NORMAL Cold prewash ECO (*) Crockery and cutlery Wash at 50°...
  • Page 13 User instructions 3.2 Wash programs Before starting a wash program check that: • The water supply tap is open. • The softener container contains regenerating salt. • The correct amount of detergent has been added to the dispenser. • The baskets have been correctly loaded. •...
  • Page 14 User instructions TO SAVE ON ENERGY!…AND PROTECT THE ENVIRONMENT • Always use the dishwasher with a full load. • Do not wash the dishes in running water. • Use the washing program that is most appropriate for each type of load.
  • Page 15 User instructions ENERGY MANAGEMENT After 5 minutes of inactivity (wash cycle completed, stopped or set but not started), the dishwasher switches to standby mode to reduce energy consumption. In this mode, the dishwasher indicator panel (lights or display depending on model) functions more slowly (switch-on once every 5 seconds). REMOVING THE DISHES At the end of the wash program, wait at least 20 minutes before removing the dishes, to allow them to cool.

  • Page 16: Operating Instructions

    User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare it for use as follows: • Add rinse aid and detergent 4.1 Using the rinse aid and detergent dispensers detergent rinse dispensers are situated on the inner part of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right.
  • Page 17 User instructions ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. It is possible to change this setting by turning the dispenser selector to the required position: the amount of rinse aid dispensed depends on the selector position.
  • Page 18 User instructions • When a program with hot prewash is selected (see program table), extra detergent must be placed in the cavity G/H (depending on model). • Use only detergents specially formulated for dishwashers. For optimal washing results it is important to use a good quality detergent.
  • Page 19 User instructions 4.2 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types and loading. There are generally no constraints on washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. Before loading the dishes into the baskets it is necessary to: •...
  • Page 20 User instructions WARNING! • Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the wash cycle. • Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the pump.
  • Page 21 User instructions 4.3 Using the baskets The dishwasher has a capacity of 10 place-settings, including serving dishes. LOWER BASKET Used for items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces exposed to the water jets coming from the bottom.
  • Page 22 User instructions BOTTOM BASKET INSERTS Some models are equipped with bottom basket inserts which improve the drying of dishes. The inserts are supplied in the accessories bag; to use them, simply fit them into place as shown. CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket, with the handles pointing downwards.
  • Page 23 User instructions UPPER BASKET It is recommended to load the upper basket with small or medium-sized items such as glasses, small plates and saucers, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only lightly soiled.
  • Page 24 User instructions ADJUSTING THE UPPER BASKET The height of the upper basket can be according to requirements and the size of the dishes in the lower basket. Pull-out adjustment system: • Turn the retainer E on both runners, right and left, through 90° •...

  • Page 25: Cleaning And Maintenance

    User instructions 5. Cleaning and maintenance Before carrying out any work, always unplug the appliance from the electrical supply or turn off the dual-pole dedicated switch. General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft, damp cloth or with a normal detergent suitable for painted surfaces.
  • Page 26 User instructions CLEANING THE OSCILLATING BOTTOM SPRAY ARM ● Take hold of the bottom spray arm unit and pull it upward to release. ● Separate the oscillating arm A from the spray arm B. ● Turn the oscillating arm A upside down to release the toothed wheel C by pressing the teeth D and turning them anticlockwise.
  • Page 27 User instructions CLEANING THE FILTER UNIT • The central filter should be cleaned regularly. To remove it, pull the spray arm assembly upwards. • Turn the microfilter M anticlockwise to release and extract it, then lift the stainless steel filter F. •...
  • Page 28 User instructions PROLONGED DISUSE: • Run the soak program twice in succession. • Unplug the power cord from the socket. • Leave the door slightly open in order to prevent the formation of unpleasant odours inside the wash tank. • Fill the rinse aid dispenser.
  • Page 29 User instructions If the dishes fail to dry or remain dull, check that: • The rinse aid container is not empty • The rinse aid dispenser setting is correct • The detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open) If the dishes show signs of streaking, staining etc., check that:...

  • Page 30: Troubleshooting

    User instructions 6. Troubleshooting The dishwasher is capable of signalling a number of faults by the simultaneous illumination of multiple indicator lights; the meanings are given below: FAULT DESCRIPTION Aquastop failure The anti-flooding system has activated (relevant models only). The system trips in case of water leaks. Contact the after-sales service.
  • Page 31 User instructions FAULT DESCRIPTION Turbine flow-regulator malfunction (relevant models only) The intake water quantity is not being measured accurately. Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the wash cycle. If the problem persists, contact the after-sales service.
  • Page 32 User instructions TECHNICAL DATA 497 ÷ 499 mm Width Depth measured flush with the 550 mm outer edge of the control panel Height (depending on models) from 820 mm to 870 mm Capacity 10 Standard place settings Water supply pressure min.
