REMOVING OF MAJOR PARTS

Service Manual
[1] REMOVING OF MAJOR PARTS

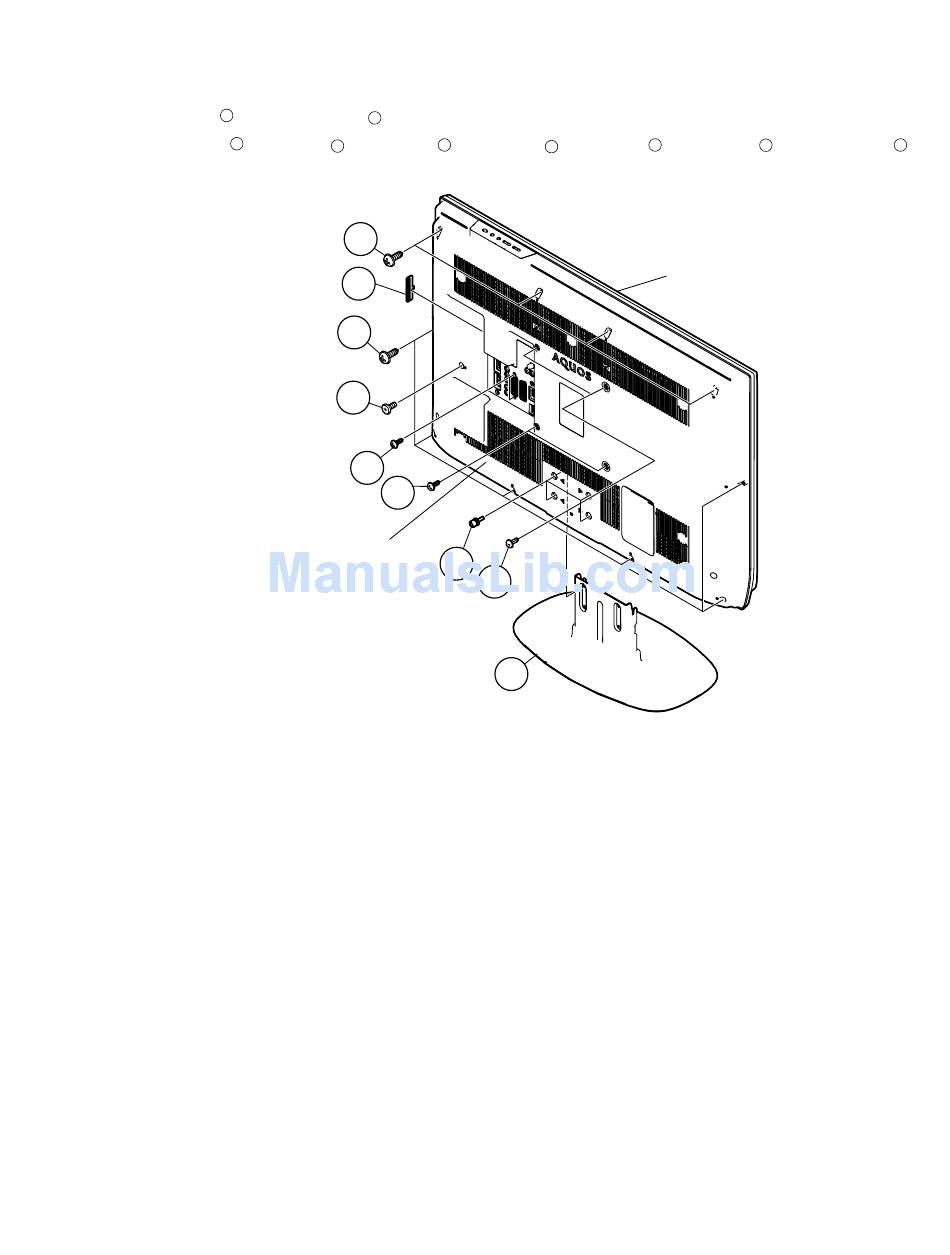

1. Remove the 4 lock screws and detach the Stand .
1
2
2. Remove the PC Card Cover , 1 lock screw , 2 lock screws , 6 lock screws ,4 lock screws , 2 VESA Caps and 2 lock screws
3
5 7 8 9
4
6
and detach the Rear Cabinet.
7

Front Cabinet

PC Card Cover
3
6
4
5
9

Rear Cabinet

1
8
Stand 2
