LC-37D44E/S/RU-BK/GY

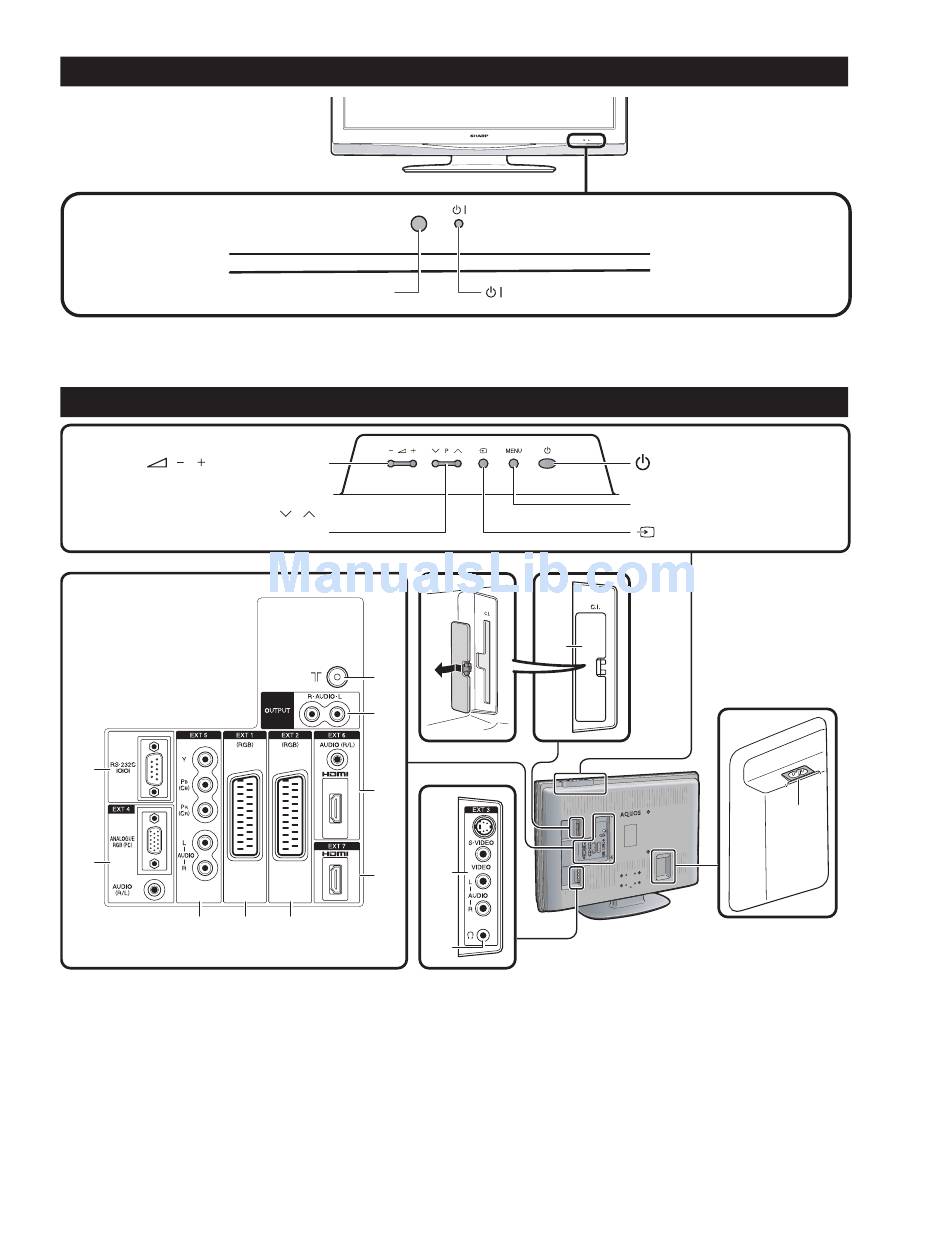

TV (Front view)

TV (Rear view)

( / ) (Volume buttons)
(Programme [channel] buttons)
1
2
3
1 RS-232C terminal
2 EXT 4 (ANALOGUE RGB/AUDIO)
terminals
3 EXT 5 (COMPONENT) terminals
4 EXT 1 (RGB) terminal
5 EXT 2 (RGB) terminal
6 Antenna input terminal
(DVB-T 5V=/80 mA)
NOTE
• Only if you use an active terrestrial antenna, select "On (5V)" under "Supply Voltage".
Remote control sensor
P ( / )
6
7
8
9
4 5
7 OUTPUT (AUDIO) terminals
8 EXT 6 (HDMI/AUDIO) terminals
9 EXT 7 (HDMI) terminal
10 COMMON INTERFACE slot
11 EXT 3 terminals
12 Headphone jack
13 AC INPUT terminal
(Standby/On) indicator
10
11
12
1 – 3
(Power button)
MENU button
(Input Source) button
13
WARNING:
Make sure that the volume is turned
down before using or connecting
earphones and headphones.
Listen to audio at moderate levels.
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
