MOVING WASH 36x8Z
36x RGBW QUAD 8W LED
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOVING WASH 36x8Z and is the answer not in the manual?

Questions and answers

Related Manuals for Evolite MOVING WASH 36x8Z

Summary of Contents for Evolite MOVING WASH 36x8Z

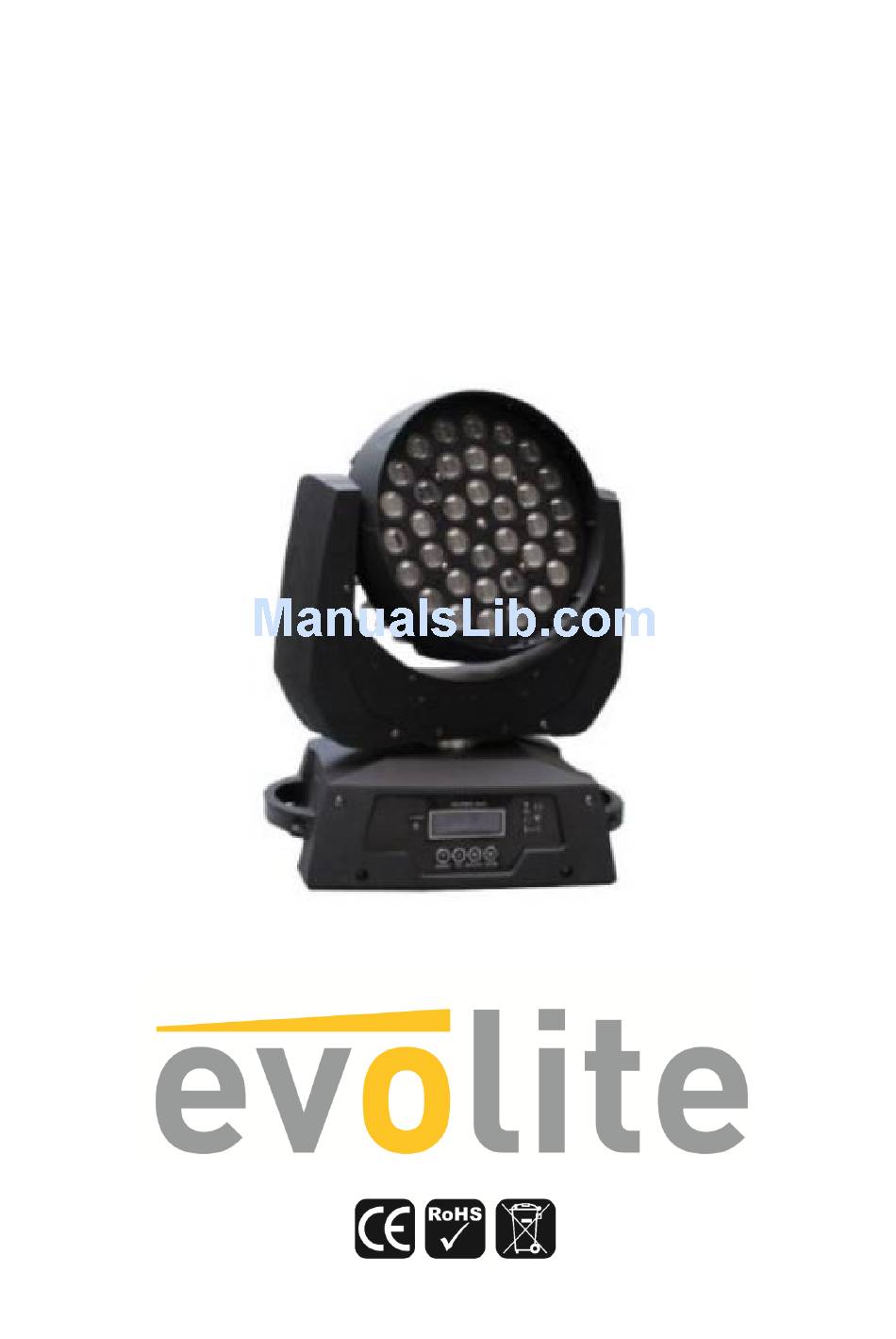

  • Page 1 MOVING WASH 36x8Z 36x RGBW QUAD 8W LED User manual...
  • Page 2 WARNING ! Before use, and before installing this fixture, read carefully user manual, and follow the safety precautions listed on this page. WARNING ! Very high level light output. DO NOT LOOK INTO THE BEAM. DANGER ! Hazardous voltage. Risk of electric shock! ALWAYS disconnect the fixture from power for servicing, for cleaning or installing.
  • Page 3 DANGER ! Safety Hazard. Risk of injury. This evolite unit must be installed by professional people. If suspended, make sure the structure and the hardware used for this suspension is secured. This Hardware must support at least 10 times the weight of the device suspended.

  • Page 4: Device Description

     Introduction Thank you for selecting this professio nal fixture from evolite This new intelligent Moving Wash will provide you reliability, latest features, and professional lighting effects for a long period of time. This evolite fixture is complying with European standards: EN60598- 1:2008+A11:2009 EN60598-2-17:1989+A2:1991 et RoHs.
  • Page 5 o DMX 512 Connection The wires must not come into contact with each other, otherwise the fixture will not work at all or properly. Please note the starting address depends upon which controller is being used. Only use a DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture to another Connection with the mains.
  • Page 6 DM X- pr oto col 11 DMX channel mode Value Function Channel Dimmer 0-255 0~100% dimmer 0-255 0-100% Red Green 0-255 0-100% Green Blue 0-255 0-100% Blue White 0-255 0-100% White Customs dimmer 0-255 0-255 Pan movement 0~540 Tilt 0-255 Tilt movement 0~270 Pan Fine 0-255...
  • Page 7 221-215 R255 G255 B90 W255 226-230 R255 G255 B118 W255 231-235 R255 G255 B132 W255 236-240 R255 G255 B151 W255 241-245 R255 G255 B171 W255 246-250 R255 G255 B185 W255 251-255 R255 G255 B197 W255 R255 G255 B234 W255 ID effect No function 10-19 ID 1...
  • Page 8 www.evolite-pro.com...
