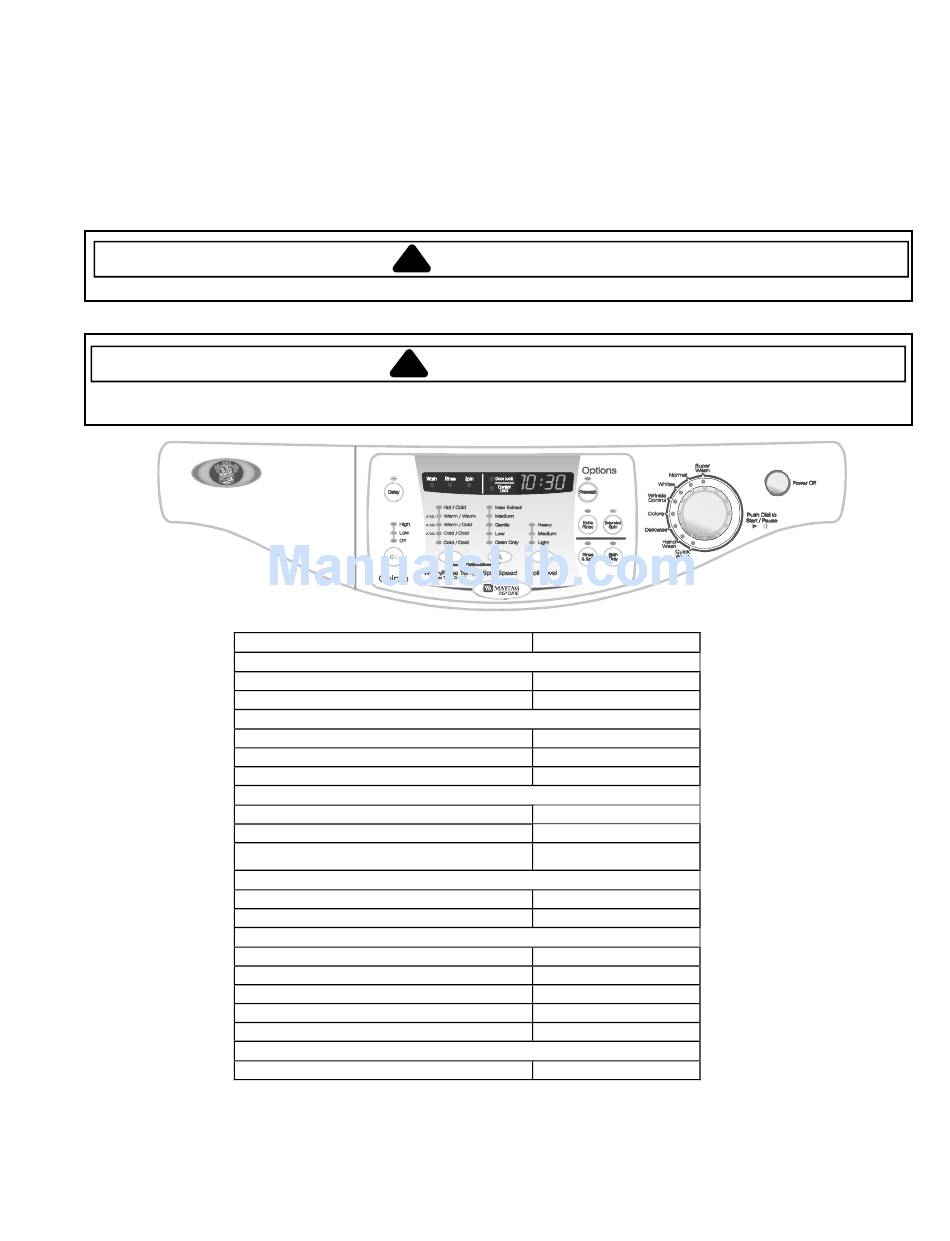

27" Front Load Washer - Technical Information
MAH8700A*
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• Refer to Service Manual 16026126 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
All safety information must be followed as provided in Service Manual 16026126.
To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless
testing requires power.
Model
Power Source @ 120VAC
Amperage
Frequency
Cabinet Dimensions
Height
Width
Depth
Features
Wash Cycles
Water Temperatures
Water Level
Tumble Pattern
Normal
Hand Wash
Spin Speed
Max Extract Plus
Medium
Gentle
Low
Drain Only
Weight lbs.
Uncrated
June 2006
©2006 Maytag Services
!
CAUTION
!
WARNING
MAH8700A*
35 per minute
5 per minute
1
10 Amp
60 Hz
38"
27"
30.75"
26
6
™
Intellifill
1100
800
600
400
0
191
16026882
RPL 16026127
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Maytag MAH8700A
Summary of Contents for Maytag MAH8700A
- Page 1 • Refer to Service Manual 16026126 for detailed installation, operating, testing, troubleshooting, and disassembly instructions. All safety information must be followed as provided in Service Manual 16026126. To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Model...
-
Page 2: Component Testing Procedures
Component Testing Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. NOTE: See “Machine Control Board” on next page for pin and connector locations. Illustration Component Thermistor Door Switch... - Page 3 Component Testing Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Machine Control Board CN10 MEMS Sensor Motor Normal resistance is approximately 3.0 Ω between any 2 pins (1,2 or 3) on motor June 2006 ©2006 Maytag Services...
-
Page 4: Troubleshooting Procedures
Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Will Not Start • Plug cord into live electrical outlet. Check for proper voltage. • Check fuse or reset circuit breaker. - Page 5 Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Tub Full of Suds • Check for restricted drain system. See Will Not Drain and Will Not Spin.
- Page 6 Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Vibration/Walking/Noise • Check for proper load size and distribution. • Check for proper installation. • Verify unit has new motion sensor / control board.
- Page 7 Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Service Mode Service Mode enables service personnel to verify the operation of the washing machine and diagnose problems.
- Page 8 Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Quick Spin Test While in Service Mode, press Delay and Rinse & Spin keys to start a Quick Spin Test.
- Page 9 Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Board Input Test While in Service Mode, pressing the Spin Only key will begin the Board Input Test. This test turns on a specified output after a key press.
- Page 10 Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Board Output Test While in Service Mode, pressing the Spin Speed key will begin the Board Output Test.
-
Page 11: Diagnostic Codes
Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Display Diagnostic Codes The diagnostic code display can be toggled ‘ON’ and ‘OFF’ from Service Mode by pressing the Rinse &... - Page 12 Troubleshooting Procedures To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. Diag. Description Trigger Code A key is sensed to be pressed more than 30 Stuck Key seconds, the key will be assumed to be stuck.
-
Page 13: Wiring Schematics
Wiring Schematics To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless testing requires power. do not have connector CN11 or MEMS PCB originally. NOTE: Series 10 – 11 Series 12 June 2006 ©2006 Maytag Services...
