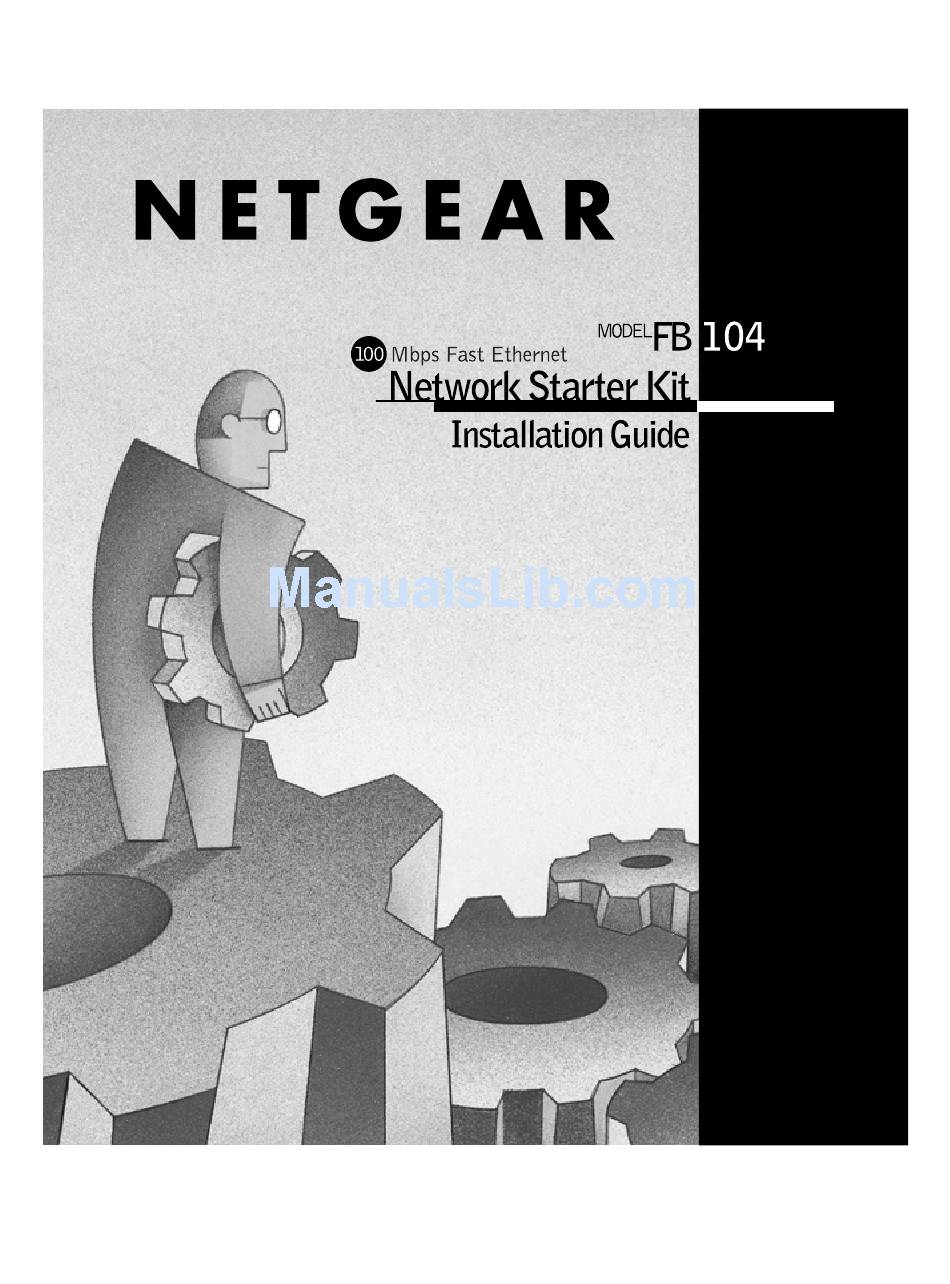

NETGEAR FB 104 Installation Manual
  1. Manuals
  2. Brands
  3. NETGEAR Manuals
  4. Network Hardware
  5. FB 104
  6. Installation manual
NETGEAR FB 104 Installation Manual

NETGEAR FB 104 Installation Manual

100 mbps fast ethernet network starter kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FB 104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NETGEAR FB 104

Summary of Contents for NETGEAR FB 104

  • Page 2: Start Here

    100 Mbps hub to connect additional PCs. It is important to remember that all networked PCs must have 100 Mbps network cards (such as the NETGEAR Model FA310TX) installed. These five easy steps provide information for installing and using your network: 1.

  • Page 3: Install The Hub

    Install the Hub Set the hub on a flat surface or mount it on a wall and choose a location that is close to an electrical outlet, exposes the front and rear panels to allow connection of the network cables and easy monitoring of the LEDs, and places the hub and PCs close enough to connect the network cables.

  • Page 4: Install A Network Card In Each Pc

    Install a Network Card in Each PC Note: Touch a grounded metal object to free yourself of static electricity before you handle the network card. Turn the power off and unplug the power cord from your computer. Remove the PC cover. Choose an available PCI slot (PCI slots are the shorter slots) and remove the corresponding back plate from the PC chassis.

  • Page 5: Connect The Network Cables

    Connect the Network Cables Using the UTP cables that are supplied, connect any port on the hub to the port on a network card in each PC. Note: Set the Normal/Uplink push button on the Model FE104 hub to Normal when connecting port 4 on the hub to either a PC or the network card.
  • Page 6 Install the Windows 95 Network Driver This guide provides you with instructions for installing the Windows 95 Network Driver. All versions of Windows 95 might not respond with the same screens. Therefore, windows that are different than those shown in these instructions might open but prompt you for the same information, and windows might open in a different order than the order of the steps in these instructions.
  • Page 7 Windows found the following updated driver for this device: NETGEAR FA310TX Fast Ethernet PCI Adapter If you want to use this driver, click Finish. If this is not the correct driver and you want to search for a different driver manually, click Other Locations.
  • Page 8 Copying Files... The file NDIS2DOS\NGRPCI.dos on Windows 95 CD-ROM could not be found. Cancel Insert Windows 95 CD-ROM into the drive selected below, and click OK. Skip File Details... Copy files from: Type A:\ in the “Copy files from” entry field and click on “OK.” Remove the Drivers and Diagnostics Disk from the floppy drive, remove the Windows 95 CD-ROM from the CD drive (if you have inserted it), and then click on “Yes.”...

  • Page 9: Verify Installation

    Verify Installation Double-click on “My Computer” on the desktop, double-click on “Control Panel,” and then double-click on “System.” Click on “Device Manager.” Model FB104 100 Mbps Network Starter Kit Installation Guide...
  • Page 10 Double-click on “Network adapters.” If there is a problem with the installation of the driver, an exclamation point appears next to “NETGEAR FA310TX Fast Ethernet PCI Adapter.” If there is an exclamation point, double-click on “NETGEAR FA310TX Fast Ethernet PCI Adapter.” The “Properties”...

  • Page 11: Technical Specifications

    Technical Specifications Model FA310TX Model FE104 Network Card Ethernet Hub Standards NetWare tested and approved ® Compatibility Microsoft Windows, Windows 95, Windows NT compatible IEEE 802.3u 100BASE-TX IEEE 802.3u 100BASE-TX Fast Ethernet, Fast Ethernet IEEE 802.3i 10BASE-T Ethernet, Autosensing PCI Plug-and-Play 2.1 compatible Power DC operating voltage...
  • Page 12 Information is subject to change without notice. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice.
  • Page 13 (00800-0-NETGEAR) (00800-0-NETGEAR) United Kingdom 020-7216-0014 Hong Kong 001-800-1233-4566 United States 1-888-NETGEAR Japan 0120-66-5402 All Other Countries +1 801-236-8499 Internet/World Wide Web The NETGEAR Web page is at http://www.NETGEAR.com Defective or damaged merchandise can be returned to your point-of-sale representative. *M-FB104NA-3*...
