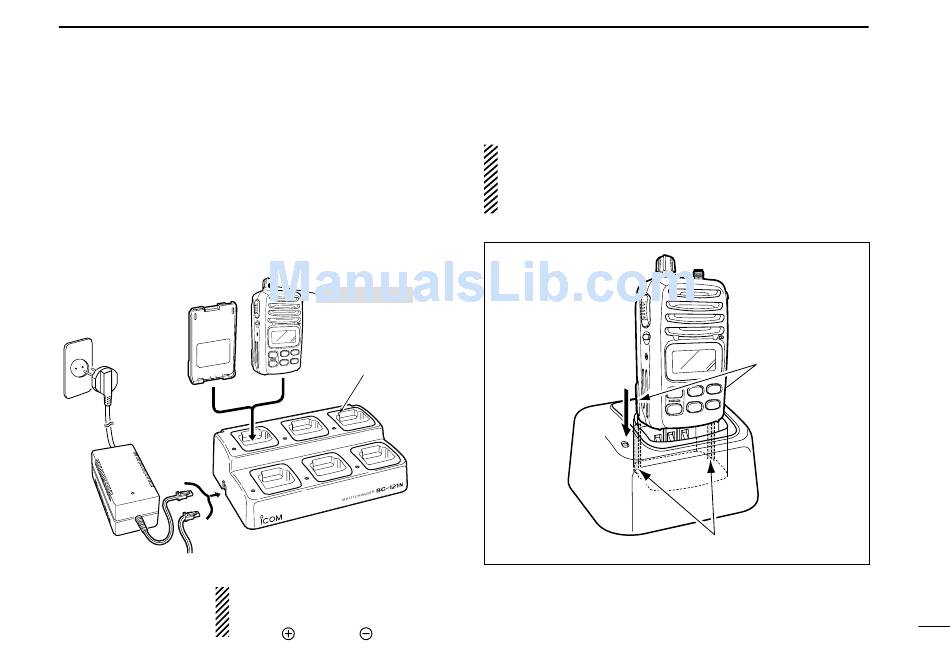

D Rapid charging with the BC-121N+AD-100
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously.
The following items are additionally required.
• Six AD-100 charger adapters
• An AC adapter (BC-157S) or the DC power cable OPC-656,
supplied with the BC-121N.
Battery pack
DC power cable (OPC-656*)
AC adapter
( Connect with the DC power
(Purchase
supply; 13.8 V/ at least 7 A)
separately.)
CAUTION: NEVER connect the OPC-
*
656 to a power source using reverse po-
larity. This will ruin the battery charger.
Red line:
Transceiver
Turn power OFF
AD-100 charger
adapters are installed
in each slot.
Black line :
BATTERY CHARGING
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-119N.)
9
Tabs
Guide rail
