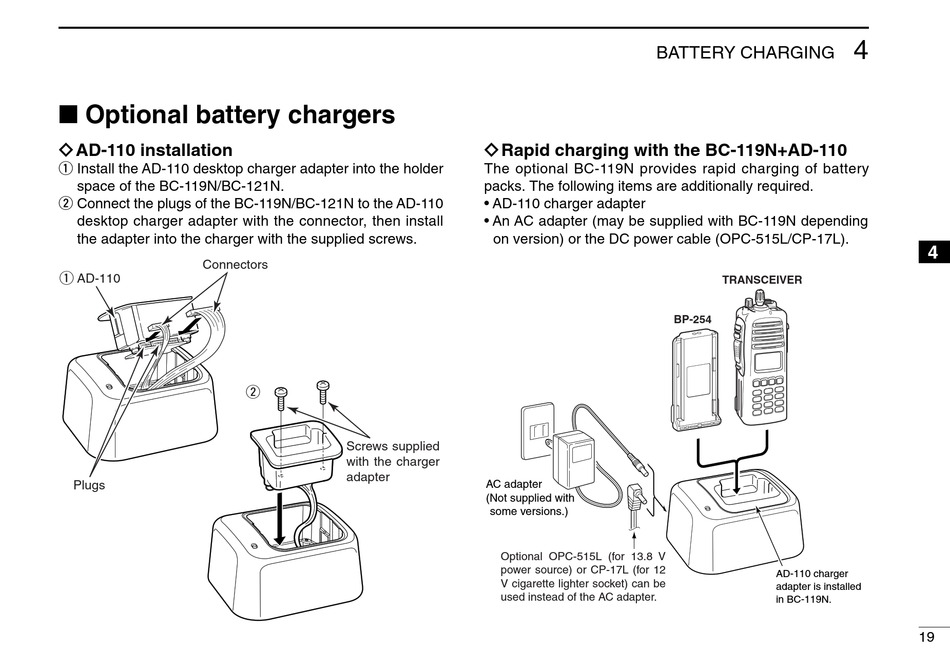

I Optional battery chargers

ï AD-110 installation
q Install the AD-110 desktop charger adapter into the holder
space of the BC-119N/BC-121N.
w Connect the plugs of the BC-119N/BC-121N to the AD-110
desktop charger adapter with the connector, then install
the adapter into the charger with the supplied screws.
Connectors
q
AD-110
Plugs
w
Screws supplied
with the charger
adapter
BATTERY CHARGING
ï Rapid charging with the BC-119N+AD-110
The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.
• AD-110 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-17L).
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L (for 13.8 V
power source) or CP-17L (for 12
V cigarette lighter socket) can be
used instead of the AC adapter.
TRANSCEIVER
BP-254
AD-110 charger
adapter is installed
in BC-119N.
4
4
19
