9
BATTERY CHARGING

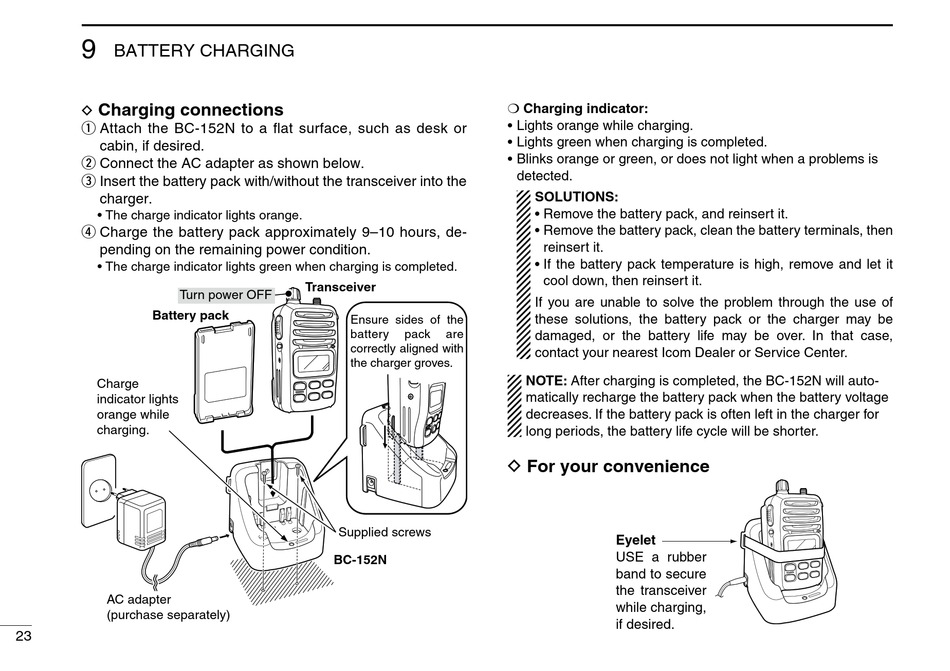

Charging connections

D
q Attach the BC-152N to a flat surface, such as desk or
cabin, if desired.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights orange.
r Charge the battery pack approximately 9–10 hours, de-
pending on the remaining power condition.
• The charge indicator lights green when charging is completed.
Turn power OFF
Battery pack
Charge
indicator lights
orange while
charging.
AC adapter
(purchase separately)
23
Transceiver
Ensure sides of the
battery pack are
correctly aligned with
the charger groves.
Supplied screws
BC-152N
❍ Charging indicator:
• Lights orange while charging.
• Lights green when charging is completed.
• Blinks orange or green, or does not light when a problems is
detected.
SOLUTIONS:
• Remove the battery pack, and reinsert it.
• Remove the battery pack, clean the battery terminals, then
reinsert it.
• If the battery pack temperature is high, remove and let it
cool down, then reinsert it.
If you are unable to solve the problem through the use of
these solutions, the battery pack or the charger may be
damaged, or the battery life may be over. In that case,
contact your nearest Icom Dealer or Service Center.
NOTE: After charging is completed, the BC-152N will auto-
matically recharge the battery pack when the battery voltage
decreases. If the battery pack is often left in the charger for
long periods, the battery life cycle will be shorter.
D For your convenience
Eyelet
USE a rubber
band to secure
the transceiver
while charging,
if desired.
