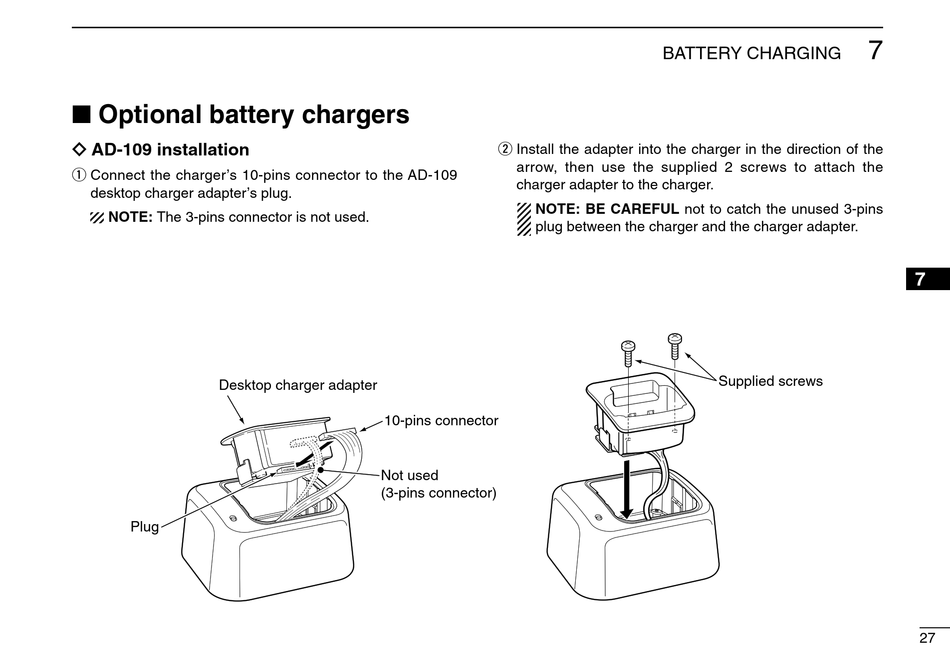

I Optional battery chargers
ï AD-109 installation
q Connect the charger's 10-pins connector to the AD-109
desktop charger adapter's plug.
NOTE: The 3-pins connector is not used.
Desktop charger adapter
Plug
w Install the adapter into the charger in the direction of the
arrow, then use the supplied 2 screws to attach the
charger adapter to the charger.
NOTE: BE CAREFUL not to catch the unused 3-pins
plug between the charger and the charger adapter.
10-pins connector
Not used
(3-pins connector)
BATTERY CHARGING
Supplied screws
7
7
27
