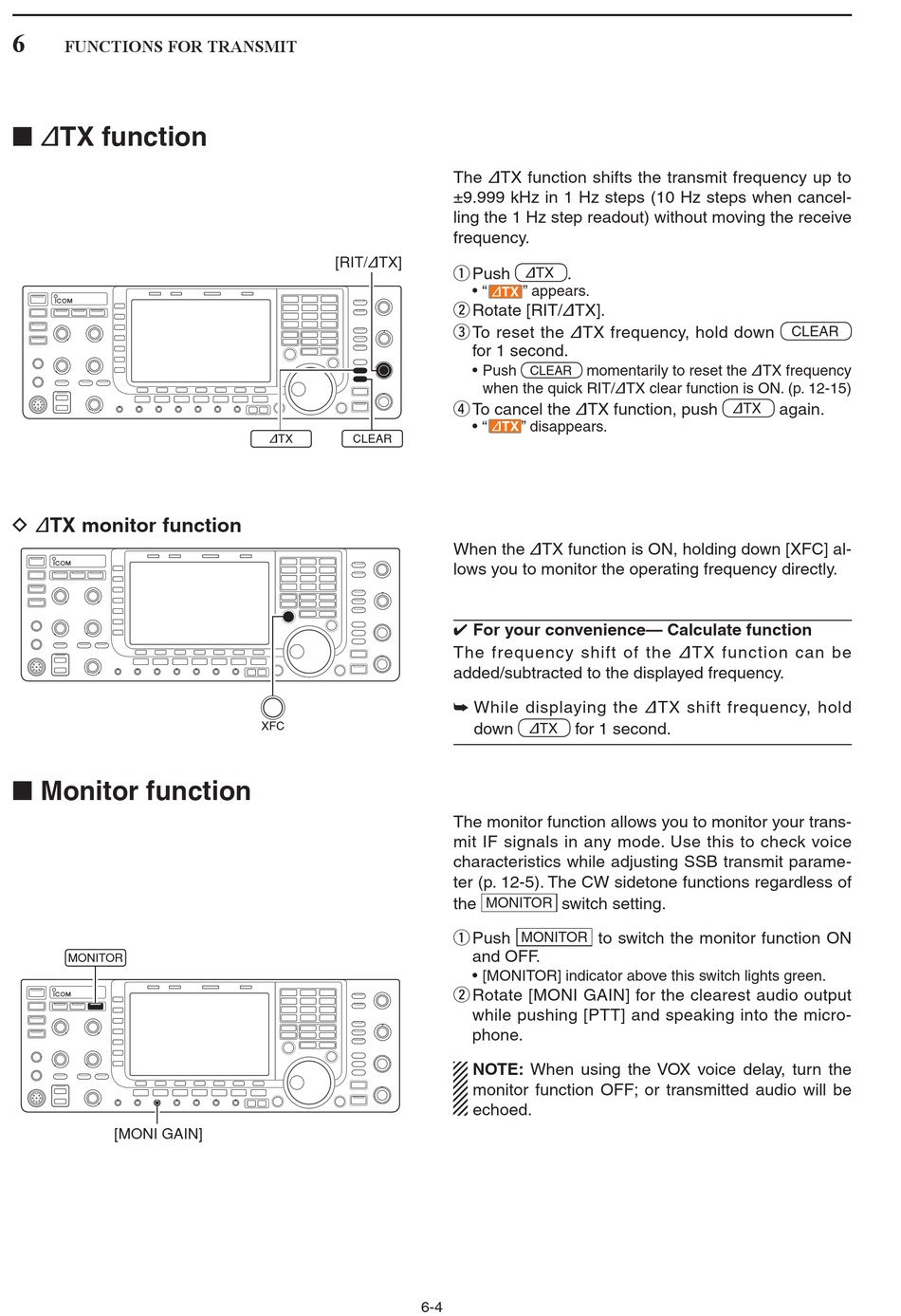

FUNCTIONS FOR TRANSMIT
■ ∂TX function
D ∂TX monitor function

■ Monitor function

MONITOR
[MONI GAIN]
[RIT/∂TX]
CLEAR
∂TX
XFC
6-4
The ∂TX function shifts the transmit frequency up to
±9.999 kHz in 1 Hz steps (10 Hz steps when cancel-
ling the 1 Hz step readout) without moving the receive
frequency.
q Push .
∂TX
• " " appears.
∂TX
w Rotate [RIT/∂TX].
e To reset the ∂TX frequency, hold down
for 1 second.
• Push momentarily to reset the ∂TX frequency
CLEAR
when the quick RIT/∂TX clear function is ON. (p. 12-15)
r To cancel the ∂TX function, push
• " " disappears.
∂TX
When the ∂TX function is ON, holding down [XFC] al-
lows you to monitor the operating frequency directly.
✔ For your convenience— Calculate function
The frequency shift of the ∂TX function can be
added/subtracted to the displayed frequency.
➥ While displaying the ∂TX shift frequency, hold
down for 1 second.
∂TX
The monitor function allows you to monitor your trans-
mit IF signals in any mode. Use this to check voice
characteristics while adjusting SSB transmit parame-
ter (p. 12-5). The CW sidetone functions regardless of
the switch setting.
MONITOR
q Push to switch the monitor function ON
MONITOR
and OFF.
• [MONITOR] indicator above this switch lights green.
w Rotate [MONI GAIN] for the clearest audio output
while pushing [PTT] and speaking into the micro-
phone.
NOTE: When using the VOX voice delay, turn the
monitor function OFF; or transmitted audio will be
echoed.
CLEAR
again.
∂TX
