D PSK decode set mode

Ω ≈
F-3
∫ √
F-1 F-2
PSK FFT Scope Averaging
Select the FFT scope waveform averaging function
from 2 to 4 and OFF. (default: OFF)
PSK FFT Scope Waveform Color
Set the color for the FFT scope waveform.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
PSK AFC Range
Select the AFC (Automatic Frequency Control) func-
tion operating range from ±15 Hz (default) and ±8
Hz.
PSK Time Stamp
Turn the time stamp (date, transmission or reception
time) display ON or OFF.
PSK Time Stamp (Time)
Selects the clock display for time stamp usage.
NOTE: The time won't be displayed when "OFF"
is selected in "PSK Time Stamp" as shown
above.
WIDE
F-7
Main dial
EXIT/SET
DEF
F-4

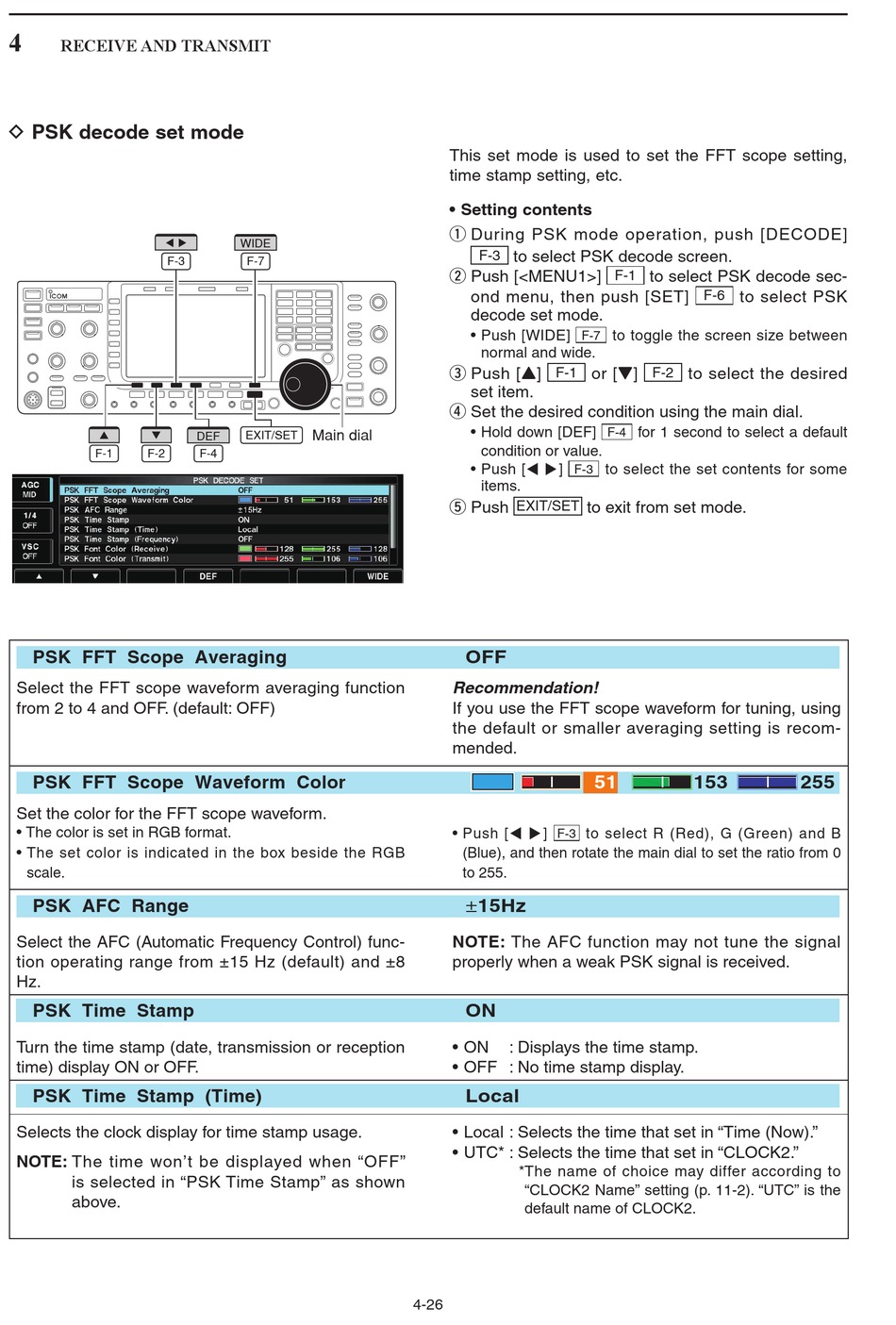

This set mode is used to set the FFT scope setting,
time stamp setting, etc.
• Setting contents
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
F-3
w Push [<MENU1>]
ond menu, then push [SET]
decode set mode.
• Push [WIDE]
F-7
normal and wide.
e Push [Y]
F-1
set item.
r Set the desired condition using the main dial.
• Hold down [DEF]
condition or value.
• Push [t u]
F-3
items.
t Push
EXIT/SET
OFF
Recommendation!
If you use the FFT scope waveform for tuning, using
the default or smaller averaging setting is recom-
mended.
• Push [t u]
F-3
(Blue), and then rotate the main dial to set the ratio from 0
to 255.
±15Hz
NOTE: The AFC function may not tune the signal
properly when a weak PSK signal is received.
ON
• ON : Displays the time stamp.
• OFF : No time stamp display.
Local
• Local : Selects the time that set in "Time (Now)."
• UTC* : Selects the time that set in "CLOCK2."
* The name of choice may differ according to
"CLOCK2 Name" setting (p. 11-2). "UTC" is the
default name of CLOCK2.
4-26
to select PSK decode sec-
F-1
F-6 to select PSK
to toggle the screen size between
or [Z] to select the desired
F-2
for 1 second to select a default
F-4
to select the set contents for some
to exit from set mode.
51 153
to select R (Red), G (Green) and B
255
