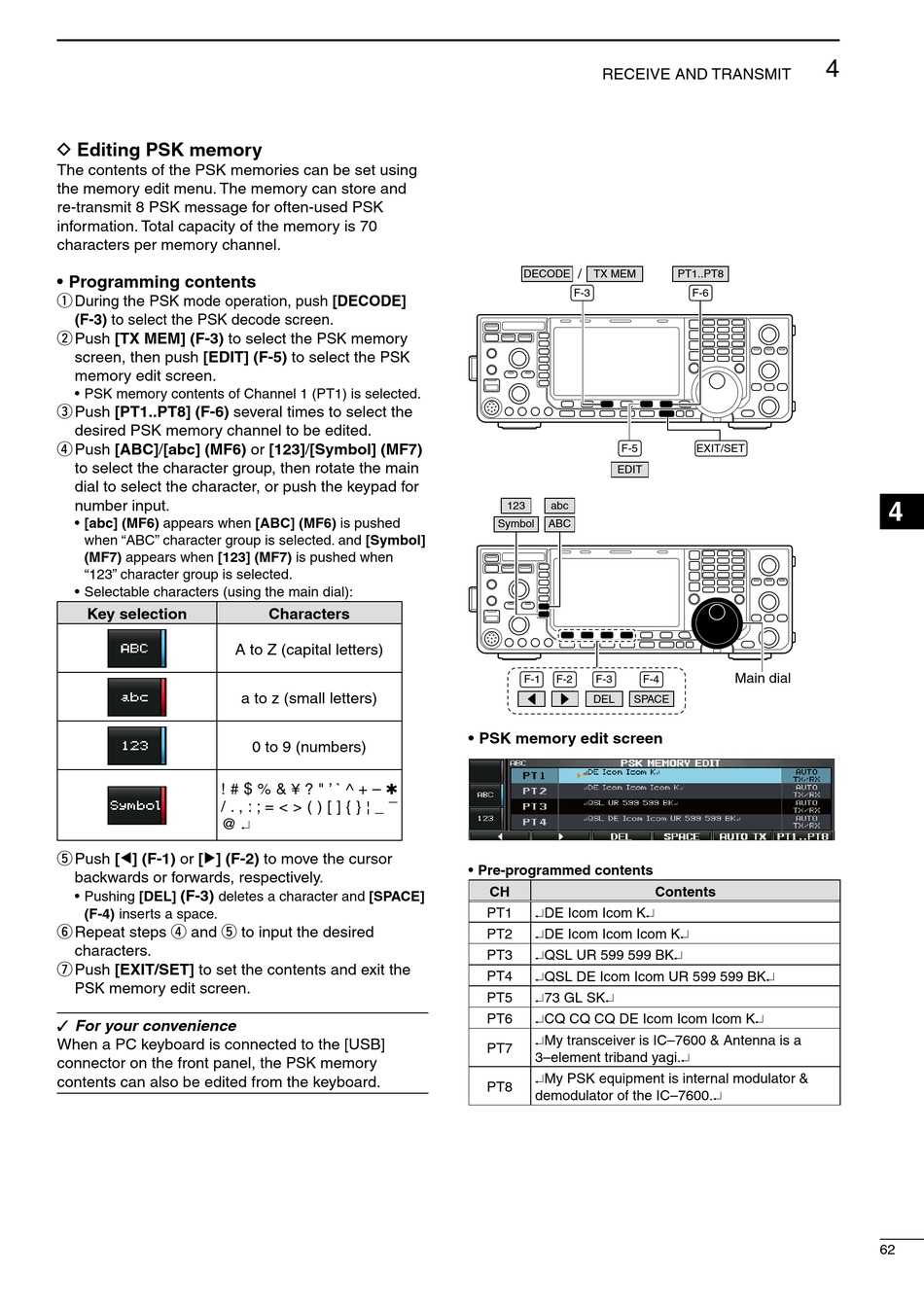

D Editing PSK memory

The contents of the PSK memories can be set using
the memory edit menu. The memory can store and
re-transmit 8 PSK message for often-used PSK
information. Total capacity of the memory is 70
characters per memory channel.
• Programming contents
q During the PSK mode operation, push [DECODE]
(F-3) to select the PSK decode screen.
w Push [TX MEM] (F-3) to select the PSK memory
screen, then push [EDIT] (F-5) to select the PSK
memory edit screen.
• PSK memory contents of Channel 1 (PT1) is selected.
e Push [PT1..PT8] (F-6) several times to select the
desired PSK memory channel to be edited.
r Push [ABC]/[abc] (MF6) or [123]/[Symbol] (MF7)
to select the character group, then rotate the main
dial to select the character, or push the keypad for
number input.
• [abc] (MF6) appears when [ABC] (MF6) is pushed
when "ABC" character group is selected. and [Symbol]
(MF7) appears when [123] (MF7) is pushed when
"123" character group is selected.
• Selectable characters (using the main dial):
Key selection
! # $ % & ¥ ? " ' ` ^ + – ✱
/ . , : ; = < > ( ) [ ] { } ¦ _
@
t Push [Ω] (F-1) or [≈] (F-2) to move the cursor
backwards or forwards, respectively.
(F-3)
• Pushing [DEL] deletes a character and [SPACE]
(F-4) inserts a space.
y Repeat steps r and t to input the desired
characters.
u Push [EXIT/SET] to set the contents and exit the
PSK memory edit screen.
For your convenience
✓
When a PC keyboard is connected to the [USB]
connector on the front panel, the PSK memory
contents can also be edited from the keyboard.
Characters
A to Z (capital letters)
a to z (small letters)
0 to 9 (numbers)
_
↵
RECEIVE AND TRANSMIT
/
DECODE TX MEM
F-3
F-5
EDIT
123 abc
Symbol ABC
F-1 F-2 F-3 F-4
DEL SPACE
• PSK memory edit screen
• Pre-programmed contents
CH
PT1 ↵DE Icom Icom K↵
↵DE Icom Icom Icom K↵
PT2
↵QSL UR 599 599 BK↵
PT3
↵QSL DE Icom Icom UR 599 599 BK↵
PT4
↵73 GL SK↵
PT5
↵CQ CQ CQ DE Icom Icom Icom K↵
PT6
↵My transceiver is IC–7600 & Antenna is a
PT7
3–element triband yagi.↵
↵My PSK equipment is internal modulator &
PT8
demodulator of the IC–7600.↵
