Page 1: Operating Instructions

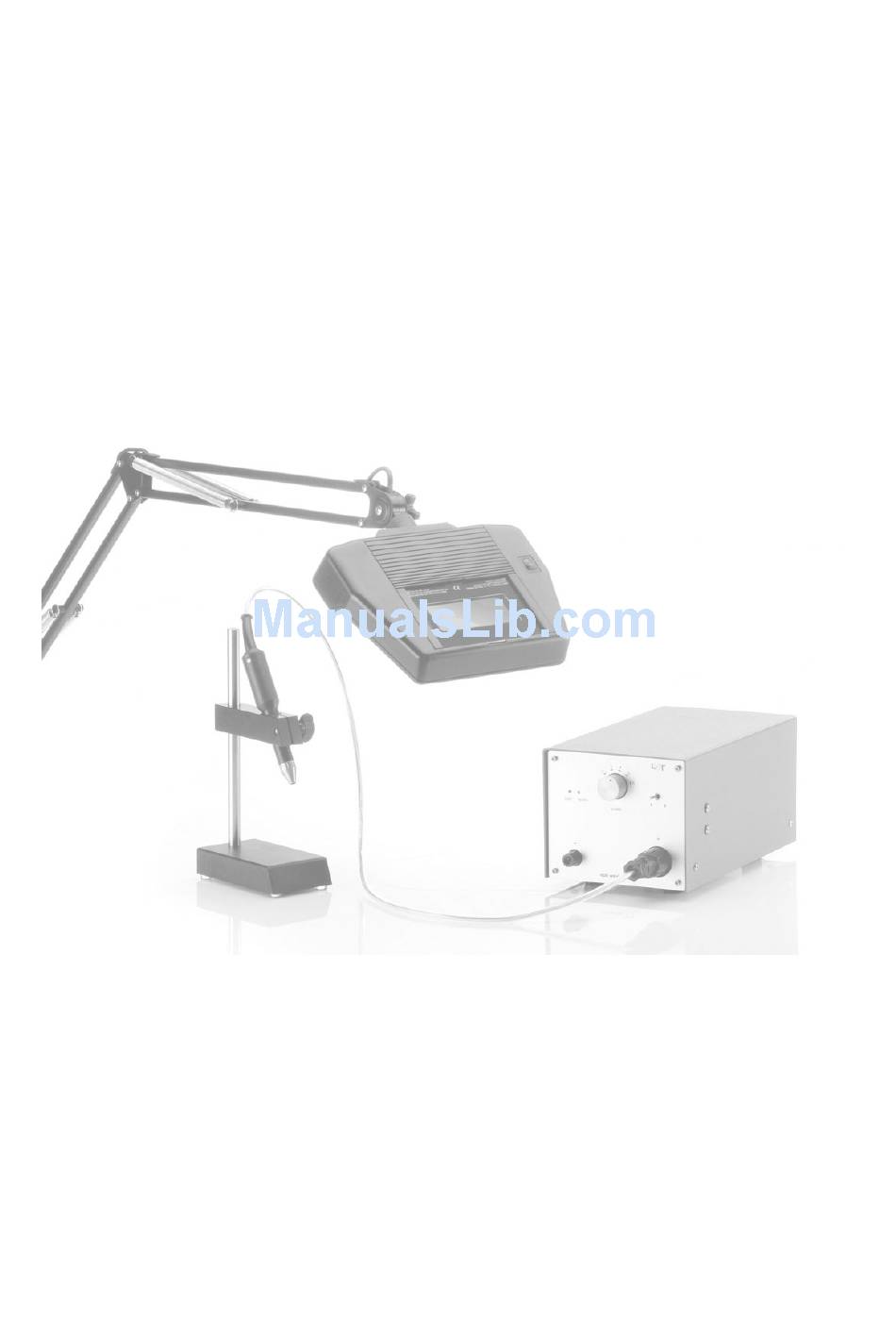

Operating Instructions Precision Welding Device “optiwelder T1” PUK - Optic Device Lampert Werktechnik GmbH 230V... - Page 2 „opti-welder T1“. It is in your Note best interest to read this manual thoroughly, and to This device manufactured by „Lampert Werktechnik follow the instructions conscientiously. You will avoid GmbH“ meets all conformity requirements of the CE malfunctioning as a result of operating errors.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION 1 – FIELD OF APPLICATION SECTION 2 – INTRODUCTION SECTION 3 – SAFETY RULES 3-1. General safety rules 3-2. Personal body protection and dangers SECTION 4 – INSTALLATION 4-1. Set-up rules 4-2. Operations elements front side 4-3. -
Page 4: Section 3 - Safety Rules
SECTION 3 – SAFETY RULES 3-1.GENERAL SAFETY RULES • the device no longer can operate Only a professional may open the device. Remove the • power plug and make certain that the device is Please note the relevant safety precautions during completely unplugged. - Page 5 4-2. DESCRIPTION OF THE OPERATING ELEMENTS FRONT SIDE (Illus. 1) CHARGE LIGHT (1) Glows orange during charging OPERATION LIGHT (2) Glows yellow when ready for welding WELD POWER DIAL (3) 6 level adjustable welding power IMPULSE LENGTH SWITCH (4) CONNECTOR JACK FOR HAND PIECE (5) JACKS (6) For connecting the contact elements such as welding table, clamps and holding pliers...
-
Page 6: Starting Up
Illus. 3) 4-4. STARTING UP • • Set up the device on a level and stable as well as Attach the pressure hose with help of the fast screws insulated surface, such as a workbench. onto the pressure gauge as well as onto the gas •... -
Page 7: In General And Pointers
5-2. IN GENERAL AND POINTERS PLEASE NOTE! Always work with sharpened electrodes! This is the best way to achieve maximum results. Make sure the work piece has enough contact to the clamp. If contact problems occur, make certain the clamp is in contact with a metallic blank location. Never weld „hands free“, this means;... -
Page 8: Technical Data
SECTION 6 – TECHNICAL DATA 6-1. TECHNICAL DATA • Device is suitable for spot and precision welding in dry environments • Main Voltage ~230 V / 50-60 Hz +/-15% • Mains fuse T 2,5 A • Power input 500 VA •... -
Page 9: Section 7 – Trouble Shooting
SECTION 7 – TROUBLE SHOOTING ERROR CAUSE SOLUTION 1. No welding power Power connection interrupted Check power connection and main Main power switch on, ready for voltage operation lamp does not light up 2. No welding power Welding cable connection interrupted Check connectors Power main switch on. -
Page 10: Section 9 – Eg-Conformity Declaration
Welding current sources for arc hand welding in limited operation: DIN VDE 0543 (VDE 0543) Protective housing type (IP Code): DIN EN 60529 (VDE 0470-1) Electro-magnetic compatibility (EMV): EN50199 Werneck, September 5th, 2002 Lampert Werktechnik GmbH Andrea Bauer – Lampert (President and CEO) - Page 12 Rules“ and „Personal Body Protection“ carefully LAMPERT WERKTECHNIK GMBH before you start up the device. January 2004 Note: The devices manufactured by „Lampert Werktechnik GmbH“ meet all conformity demands of the CE emblem and are manufactured in accordance with the VDE -...
- Page 13 INDEX Intended Use Introduction General Safety Rules Personal Body Protection Start Up and Instructions Description of Operating Elements Care and Maintenance Technical Data THE INTENDED USE FOR THE PUK-Welding Shield: Observation of welding procedures through the view Usages other than described are prohibited. ...
- Page 14 START UP AND INSTRUCTIONS Insert the welding shield into the lamp holder (3) Keep a minimum distance of 15 cm between the illumination and/or the work piece and welding Install the illumination bulb (max. 9W) into the table.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE The welding shield needs under ordinary circumstances Regularly check the power plug, power cable and a minimum of care and maintenance. It is essential connector plug for damage. though, you pay attention to a few points to guarantee Occasionally clean the view window with a soft cloth proper function and to ensure you will have this device ready for operation for years to come.
