english

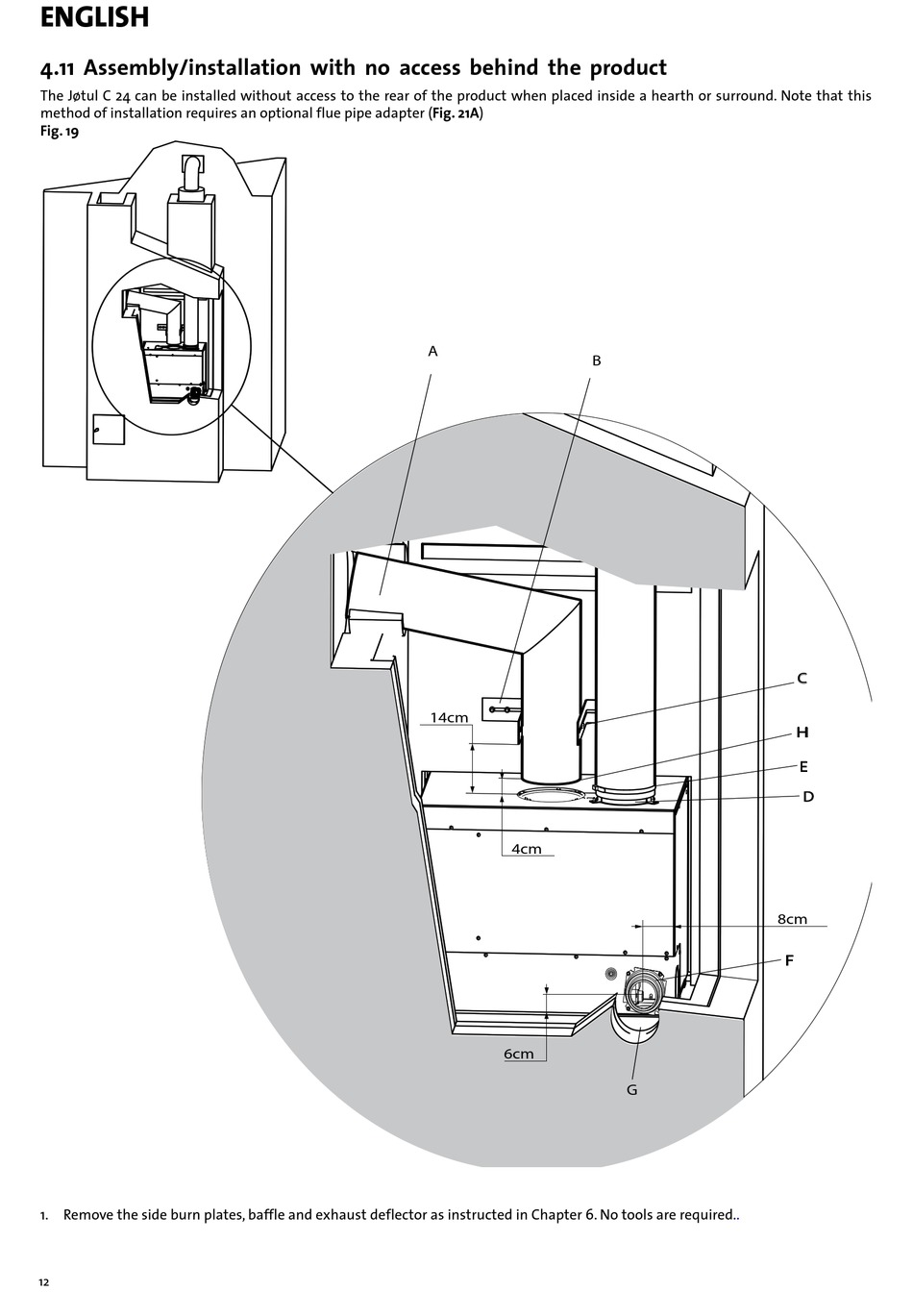

4.11 Assembly/installation with no access behind the product
The Jøtul C 24 can be installed without access to the rear of the product when placed inside a hearth or surround. Note that this
method of installation requires an optional flue pipe adapter (Fig. 21A)
Fig. 19
A
B
C
14cm
H
E
D
4cm
8cm
F
6cm
G
1. Remove the side burn plates, baffle and exhaust deflector as instructed in Chapter 6. No tools are
required..
12
