Selcall (Selective Calling); Calling; Tx Code Channel Selection; To Select A Tx Code Channel - Icom ic-450 Instruction Manual

8

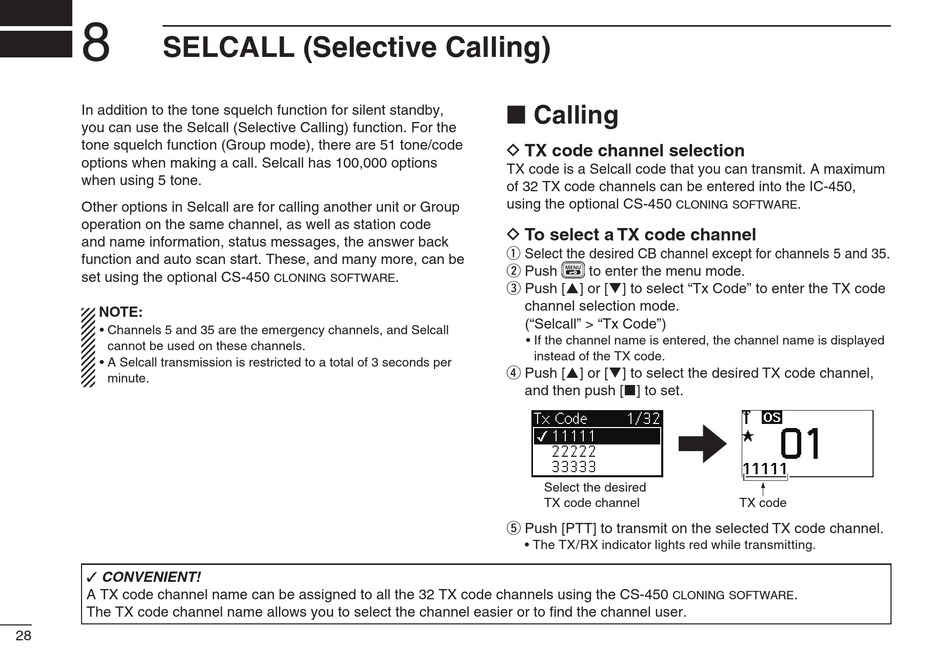

SELCALL (Selective Calling)

In addition to the tone squelch function for silent standby,
you can use the Selcall (Selective Calling) function. For the
tone squelch function (Group mode), there are 51 tone/code
options when making a call. Selcall has 100,000 options
when using 5 tone.
Other options in Selcall are for calling another unit or Group
operation on the same channel, as well as station code
and name information, status messages, the answer back
function and auto scan start. These, and many more, can be
set using the optional cs-450
NOTE:
• Channels 5 and 35 are the emergency channels, and Selcall
cannot be used on these channels.
• A Selcall transmission is restricted to a total of 3 seconds per
minute.
✓ CONVENIENT!
A TX code channel name can be assigned to all the 32 TX code channels using the CS-450
The TX code channel name allows you to select the channel easier or to find the channel user.
28
.
cloning software

■ Calling

D TX code channel selection
TX code is a Selcall code that you can transmit. A maximum
of 32 TX code channels can be entered into the IC-450,
using the optional CS-450
cloning software
D To select a TX code channel
q Select the desired CB channel except for channels 5 and 35.
Push to enter the menu mode.
w
Push [ ] or [] to select "Tx Code" to enter the TX code
e
channel selection mode.
("Selcall" > "Tx Code")
• If the channel name is entered, the channel name is displayed
instead of the TX code.
Push [ ] or [] to select the desired TX code channel,
r
and then push [] to set.
Select the desired
TX code channel
Push [PTT] to transmit on the selected TX code channel.
t
• The TX/RX indicator lights red while transmitting.
cloning software
.
TX code
.
