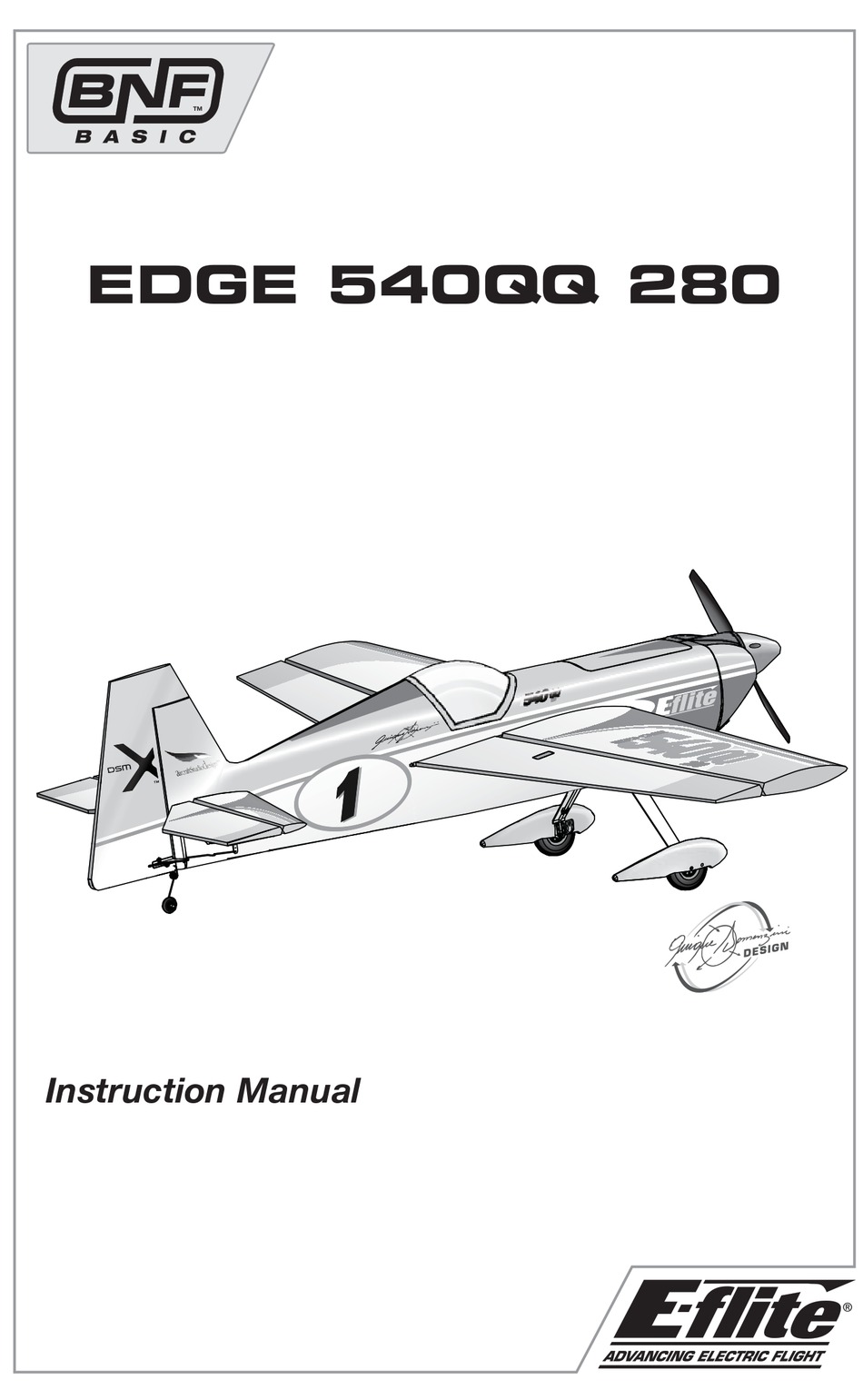

- Page 1 EDGE 540QQ 280 Instruction Manual...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
® he E-fl ite Edge 540QQ 280 BNF Basic, designed by world champion Quique Somenzini, has been specifi cally built to provide exceptional precision scale and 3D aerobatic performance so that you can fl y from practically anywhere, such as a park or small fi eld. Beyond the advanced composite-reinforced foam construction, you’ll appreciate how its expert-approved control and power system components are... -
Page 4: Low Voltage Cutoff (Lvc)
Low Voltage Cutoff (LVC) Prefl ight Checklist When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft’s ESC protects the fl ight battery from over-discharge using Low Voltage Cutoff (LVC). 1. Charge fl ight battery. Once the battery discharges to 3V per cell, the LVC will 2. -
Page 5: Installing The Flight Battery
Installing the Flight Battery 1. Remove the battery hatch from the nose of the aircraft. 2. Apply the included strip of hook and loop tape to the bottom of your battery near the battery leads. This position allows easier battery installation and removal. 3. -
Page 6: Arming The Esc
Arming the ESC Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl ight battery requires the steps below. Tip: If the ESC sounds a continuous double beep after the fl ight battery is connected, recharge or replace the battery. -
Page 7: Installing The Wing
Installing the Wing 1. Slide the wing tube into the right wing. 2. Insert the right wing with the wing tube (A) into the round hole in the wing slot of the fuselage while connecting the right aileron control. NOTICE: When disconnecting the servo connectors, do not pull on the servo wires. -
Page 8: Control Direction Test
Control Direction Test You should bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. Make sure the tail linkages move freely and that paint or decals are not adhered to them. -
Page 9: Dual Rates And Expos
Dual Rates and Expos High Rate Low Rate We recommend using a DSM radio capable of dual rates and expo. The settings below are Aileron 25mm 15mm recommended starting settings for intermediate Elevator 35mm pilots. Adjust according to individual preferences after the initial fl... -
Page 10: Adjusting Center Of Gravity (Cg)
Adjusting Center of Gravity (CG) The CG location is 40-42mm back from the leading The battery cavity is oversized to allow for Center edge of the wing at the root. of Gravity adjustment. Start by placing the battery fully forward against the fi rewall with the connectors facing the rear of the aircraft. -
Page 11: Removing The Landing Gear
Removing the Landing Gear 1. Remove the 4 screws (A), fairings (B) and covers (C) from the fuselage. 2. Push the landing gear struts together and pull away from the fuselage to remove the landing gear. Assemble in reverse order. -
Page 12: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a location to fl y your aircraft. We recommend fl ying your E-fl ite ® 540 Edge outside in no greater than moderate winds. Always avoid fl ying near houses, trees, wires and buildings. -
Page 13: Service Of Power Components
Service of Power Components Disassembly CAUTION: Always disconnect the battery before handling or adjusting the propeller or motor. Failure to do so could result in personal injury. Propeller 1. Remove the 2 screws (A) from the spinner (B). Carefully separate the spinner from the back plate (C). -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Aircraft will ESC did not arm because throttle stick and/or Lower throttle stick and throttle trim to lowest not respond to throttle trim too high setting throttle but re- Throttle channel is reversed Reverse throttle channel on transmitter sponds to other controls Motor disconnected from ESC... -
Page 15: Limited Warranty
Limited Warranty What this Warranty Covers or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon Hobby, Inc. (“Horizon”) warrants to the original Horizon to better answer your questions and service purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship at the you in the event that you may need any assistance. -
Page 16: Warranty And Service Information
Warranty and Service Information Country of Horizon Hobby Address Phone Number/Email Address Purchase Horizon Service Center 4105 Fieldstone Rd 877-504-0233 (Electronics and Champaign, Illinois Online Repair Request visit: United States engines) 61822 USA www.horizonhobby.com/service of America Horizon Product 4105 Fieldstone Rd 877-504-0233 Support (All other Champaign, Illinois... -
Page 17: Replacement Parts
Numéro • Codice Fuselage with rud- E-fl ite Edge 540 QQ : Fuselage avec dérive : Fusoliera con timone: der: EDGE 540QQ Rumpf mit Ruder EDGE 540QQ 280 BNF EDGE 540QQ 280 BNF EFL625001 280 BNF Basic Basic Basic Wing Set: EDGE E-fl... -
Page 18: Parts Contact Information
– Optional Parts and Accessories – – Optionale Bauteile und Zubehörteile – – Pièces optionnelles et accessoires – – Parti opzionali e accessori – Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Charger Lead with E-fl ite Ladekabel m/ Câble de charge Cavo di carica con EFLA230... - Page 19 © 2012 Horizon Hobby, Inc. E-fl ite, Celectra, DSM, DSM2, ModelMatch, and Bind-N-Fly are trademarks or registered trademarks of Horizon Hobby, Inc. DSMX is a trademark of Horizon Hobby, Inc., registered in the U.S. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Futaba is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
