Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

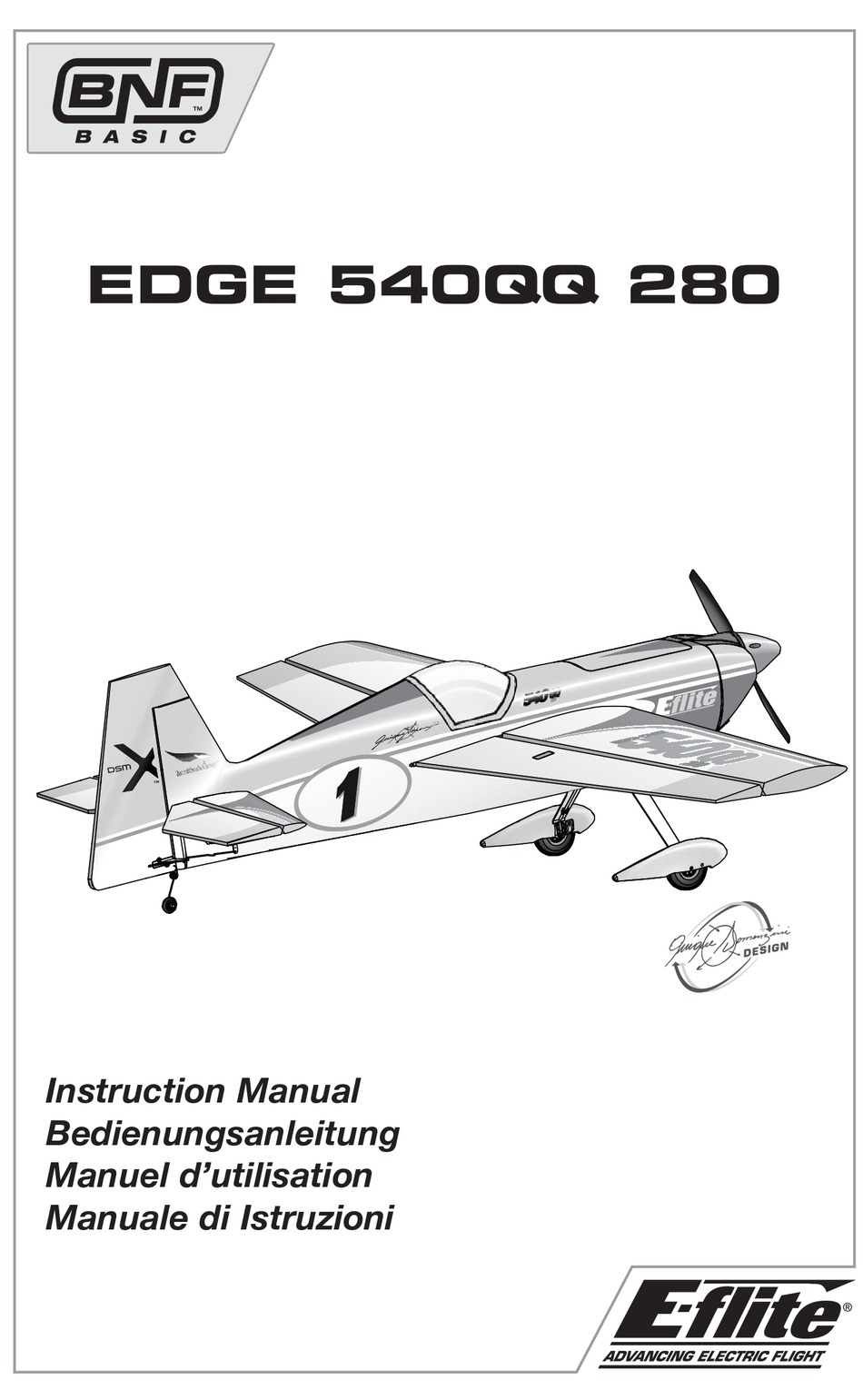

® he E-fl ite Edge 540QQ 280 BNF Basic, designed by world champion Quique Somenzini, has been specifi cally built to provide exceptional precision scale and 3D aerobatic performance so that you can fl y from practically anywhere, such as a park or small fi eld. Beyond the advanced composite-reinforced foam construction, you’ll appreciate how its expert-approved control and power system components are...
Low Voltage Cutoff (LVC) Prefl ight Checklist When a Li-Po battery is discharged below 3V per cell, it will not hold a charge. The aircraft’s ESC protects the fl ight battery from over-discharge using Low Voltage Cutoff (LVC). 1. Charge fl ight battery. Once the battery discharges to 3V per cell, the LVC will 2.
Installing the Flight Battery 1. Remove the battery hatch from the nose of the aircraft. 2. Apply the included strip of hook and loop tape to the bottom of your battery near the battery leads. This position allows easier battery installation and removal. 3.
Arming the ESC Arming the ESC also occurs after binding as previously described, but subsequent connection of a fl ight battery requires the steps below. Tip: If the ESC sounds a continuous double beep after the fl ight battery is connected, recharge or replace the battery.
Installing the Wing 1. Slide the wing tube into the right wing. 2. Insert the right wing with the wing tube (A) into the round hole in the wing slot of the fuselage while connecting the right aileron control. NOTICE: When disconnecting the servo connectors, do not pull on the servo wires.
Control Direction Test You should bind your aircraft and transmitter before doing these tests. Move the controls on the transmitter to make sure the aircraft control surfaces move correctly and in the proper direction. Make sure the tail linkages move freely and that paint or decals are not adhered to them.
Dual Rates and Expos High Rate Low Rate We recommend using a DSM radio capable of dual rates and expo. The settings below are Aileron 25mm 15mm recommended starting settings for intermediate Elevator 35mm pilots. Adjust according to individual preferences after the initial fl...
Adjusting Center of Gravity (CG) The CG location is 40-42mm back from the leading The battery cavity is oversized to allow for Center edge of the wing at the root. of Gravity adjustment. Start by placing the battery fully forward against the fi rewall with the connectors facing the rear of the aircraft.
Removing the Landing Gear 1. Remove the 4 screws (A), fairings (B) and covers (C) from the fuselage. 2. Push the landing gear struts together and pull away from the fuselage to remove the landing gear. Assemble in reverse order.
Flying Tips and Repairs Consult local laws and ordinances before choosing a location to fl y your aircraft. We recommend fl ying your E-fl ite ® 540 Edge outside in no greater than moderate winds. Always avoid fl ying near houses, trees, wires and buildings.
Service of Power Components Disassembly CAUTION: Always disconnect the battery before handling or adjusting the propeller or motor. Failure to do so could result in personal injury. Propeller 1. Remove the 2 screws (A) from the spinner (B). Carefully separate the spinner from the back plate (C).
Troubleshooting Guide Problem Possible Cause Solution Aircraft will ESC did not arm because throttle stick and/or Lower throttle stick and throttle trim to lowest not respond to throttle trim too high setting throttle but re- Throttle channel is reversed Reverse throttle channel on transmitter sponds to other controls Motor disconnected from ESC...
INCLUDING, WITHOUT LIMITATION, THE IMPLIED accepted at our facility. An Online Service Request is WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY available at Horizon Hobby Service Center. If you do not AND FITNESS FOR A PARTICULAR PURPOSE. THE have internet access, please contact Horizon Product...
Horizon Hobby SAS 77127 Lieusaint infofrance@horizonhobby.com Room 506, No. 97 Changshou Rd. +86 (021) 5180 9868 China Horizon Hobby – China Shanghai, China, 200060 info@horizonhobby.com.cn Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2012081902...
25337 Elmshorn, Germany service@horizonhobby.de 11 Rue Georges Charpak +33 (0) 1 60 18 34 90 France Horizon Hobby SAS 77127 Lieusaint infofrance@horizonhobby.com Room 506, No. 97 Changshou Rd. +86 (021) 5180 9868 China Horizon Hobby – China Shanghai, China, 200060 info@horizonhobby.com.cn...
