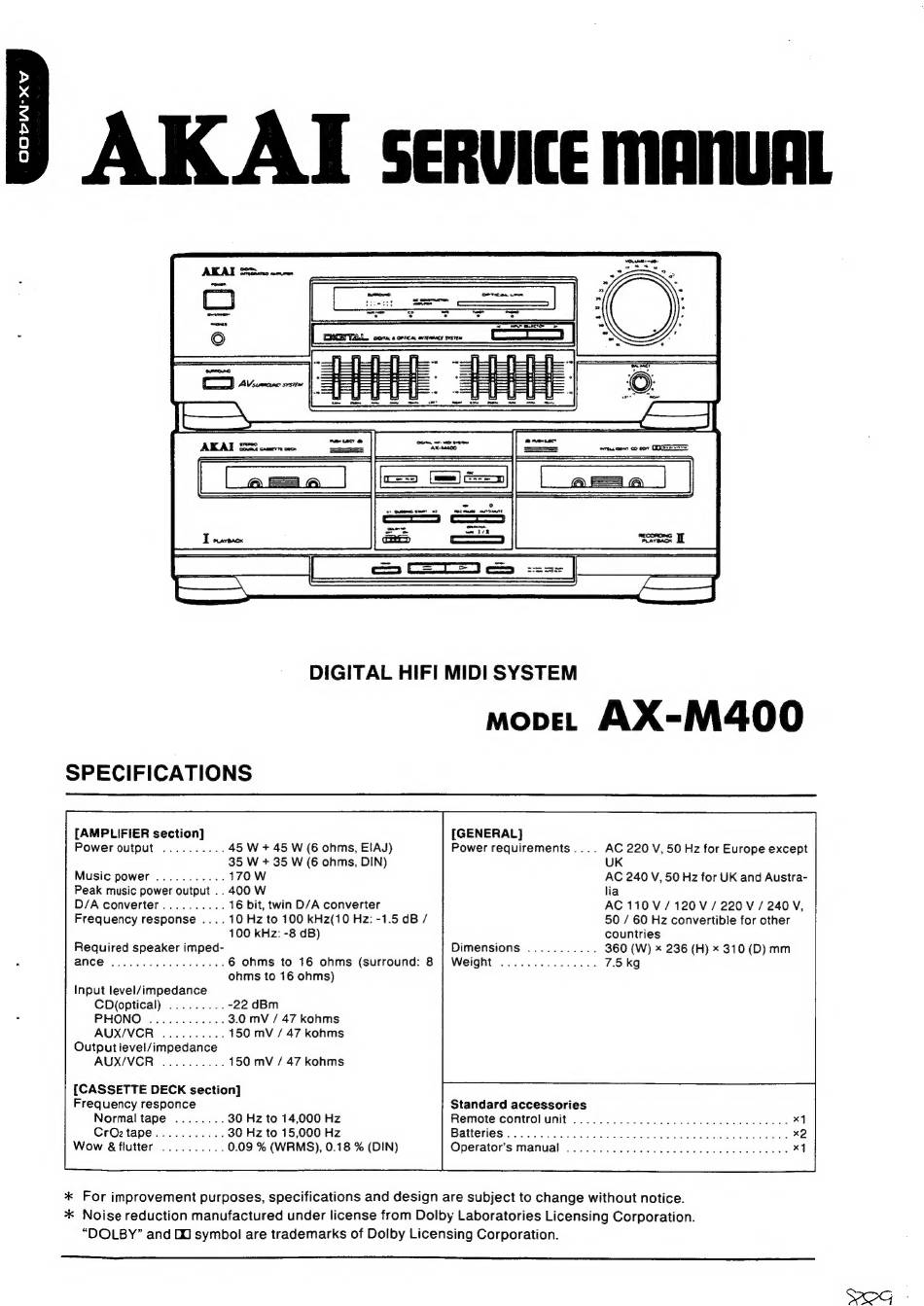

Akai AX-M400 Service Manual

AKAT Servite manual

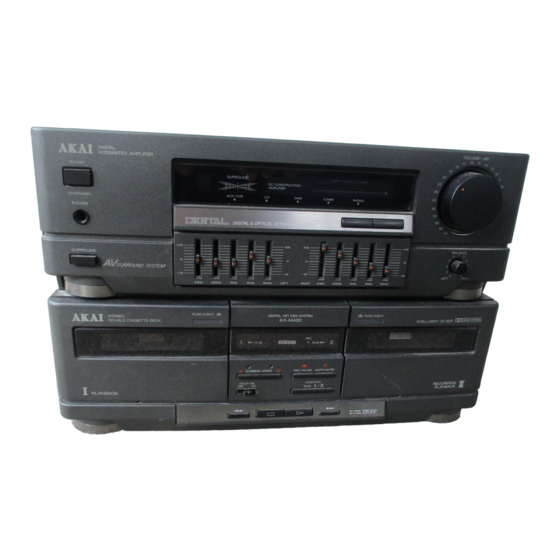

DIGITAL HIF! MIDI SYSTEM
move. AX-M400
SPECIFICATIONS
[AMPLIFIER section]
Power output
[GENERAL]
45 W + 45 W (6 ohms, EIAJ)
35 W + 35 W (6 ohms, DIN)
Music power
Peak music power output .. 400 W
D/A converter 16 bit, twin D/A converter
Frequency response ....10 Hz to 100 kHz(10 Hz: -1.5 dB /
100 kHz: -8 dB)
Required speaker imped- Dimensions
6 ohms to 16 ohms (surround:
ohms to 16 ohms)
Input level/impedance
CD(optical)
PHONO
AUX/VCR
Output level/impedance
AUX/VCR
3.0 mV / 47 kohms
150 mV / 47 kohms
150 mV / 47 kohms
[CASSETTE DECK section]
Frequency responce
Normal tape
CrQz tape
Wow & flutter
30 Hz to 14,000 Hz
30 Hz to 15,000 Hz
0.09 % (WRMS), 0.18 % (DIN)
Power requirements...
Standard accessories
AC 220 V, 50 Hz for Europe except
UK
AC 240 V, 50 Hz for UK and Austra-
lia
AC 110V/120V/ 220 V/ 240 V,
50 / 60 Hz convertible for other
countries
360 (W) x 236 (H) x 310(D) mm
* For improvement purposes, specifications and design are subject to change without notice.
* Noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
"DOLBY" and 10 symbol are trademarks of Dolby Licensing Corporation.
