Igmp Configuration - Comtech EF Data CMR-5995 Installation And Operation Manual

Digicast Media Router S2 Receiver CMR-5995 (MR-S2-ASI)
Device Management via User Interfaces
4.2.9

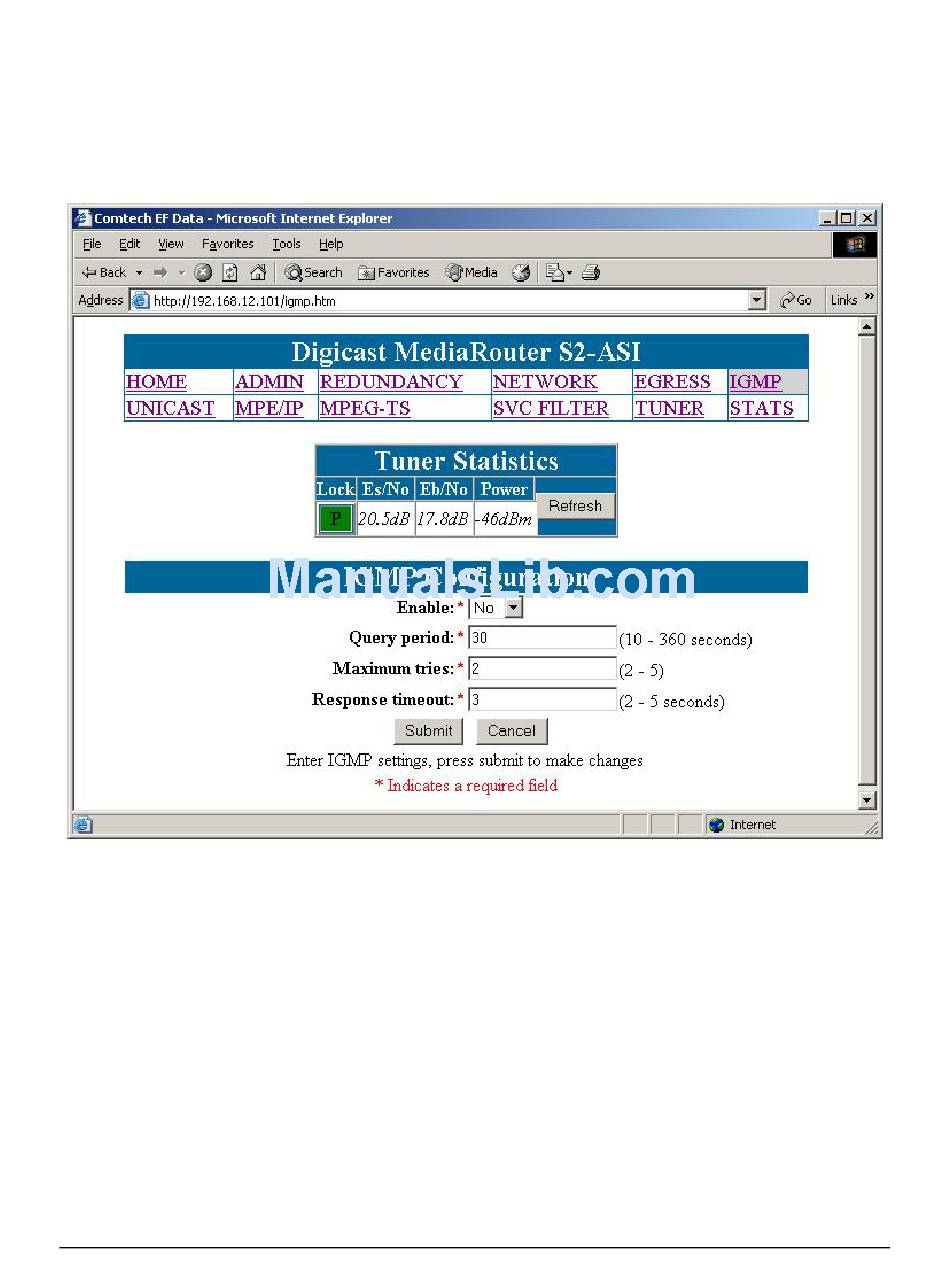

IGMP Configuration

Select the IGMP menu item to access the IGMP Configuration parameters.
Enable
Select the Boolean if IGMP is to be supported. If the Boolean is not selected, all received
Multicast IP is forwarded to the Ethernet, but if support is enabled, no Multicast IP will be
forwarded to the Ethernet, until a subscriber has joined the Multicast group.
Query Period
How often a solicitation is made for Multicast subscribers.
Maximum Tries
The maximum number of attempts the CMR-5995 will make for soliciting for Multicast
subscribers before the Multicast stream is pruned off.
Response Timeout
The maximum amount of time the CMR-5995 will wait for a Multicast Subscribers before the
Multicast stream is pruned off.
4-14
Revision 1
MN-CMR5995-IOM
