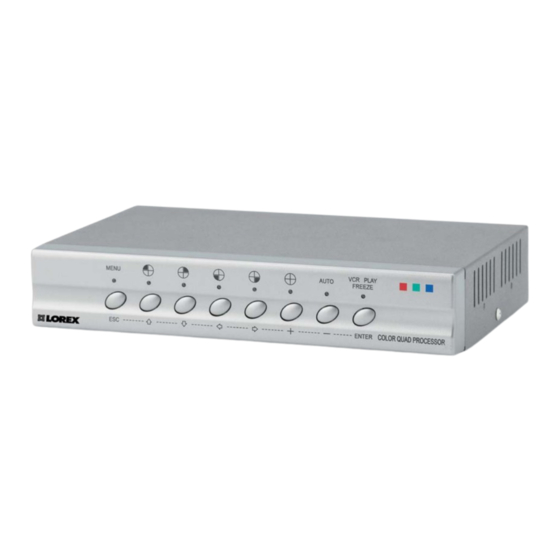

- Page 1 COLOR QUAD PROCESSOR Instruction Manual English Version1.0 Please be sure to read carefully and follow all the safety information. Keep the manual in a safe place for future reference. MODEL: SGQ4160 www.lorexcctv.com Copyright © 2005 Strategic Vista International Inc...
- Page 2 INTRODUCTION Congratulations on your purchase of the Color Quad Processor from Lorex. The Color Quad Processor turns any monitor into a Quad monitor with security features. Connect up to four cameras to the Quad Splitter and view all four locations simultaneously in Real-Time (30 fps). The Quad Processor is an ideal security solution for small to medium sized commercial enterprises as it allows you to use an existing monitor as a 4 Channel Observation System.
- Page 3 SAFETY WARNING All the safety and operating instructions should be read before the appliance is operated. The improper operation may cause irreparable damage to the appliance. • Please lift and place this equipment gently. • Do not expose this equipment under to direct sunlight. •...
-
Page 4: Table Of Contents
11. APPENDIX #1 – TYPICAL CONFIGURATION -------------------------------------------- 12. APPENDIX #2 – CONNECTION TO A PIR MOTION SENSOR ---------------------- 13. APPENDIX #3 – CONNECTION TO A LOREX TIME LAPSE VCR FOR ALARM RECORDING ---------------------------------------------- 14. APPENDIX #4 – PIN CONFIGURATIONS FOR CONNECTION TO PC ------------... -
Page 5: System Includes
SYSTEM INCLUDES 12V DC Power Supply 9 Pin Alarm Color Quad Splitter Connector Owner’s Manual CHECK YOUR PACKAGE TO MAKE SURE THAT YOU RECEIVED THE COMPLETE SYSTEM, INCLUDING THE COMPONENTS SHOWN ABOVE. FRONT PANEL CONTROLS MENU / ESC Pressing this button performs the following functions: 1) Accesses the Menu screen;... -
Page 6: Led Indicators
QUAD / ( + ) Pressing this button goes to Quad display. It is also used to increase values when making selections in Menu mode. AUTO / ( - ) Pressing this button initiates automatic sequencing between four all camera locations, in the following screen order: QUAD CH1 …….. -
Page 7: Menu Controls
MENU CONTROLS Pressing the MENU button brings up the Menu screen. Outlined below are the buttons used for navigation when using the Menu. ▲and ▼: Scroll up and down through menu options; change values. ◄ and ►: Scroll sideways within a menu option that has been selected + and - : Increase or reduce a value of a menu option when editing it (when it is blinking). -
Page 8: Back Panel
Camera Title Setup – Change the title for each camera that appears in the On Screen Display. Use ▲/ ▼buttons to select channel, ◄ / ►buttons to move positions, and +/- buttons to change the number or character. Alternatively, press the “Enter” button to disable the camera ID display. Event List –... -
Page 9: Alarm And Video Loss
ALARM AND VIDEO LOSS When an Alarm occurs, you will see the icon appear on the channel where motion detection is taking place. If you have set the Internal Audible Alarm to ON, then you will also hear a Buzzer. A Channel that does not have a camera connected will show the icon, EVENT YY/MM/DD TIME... -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM REMEDY Unable to view cameras • If you are using a TV as a slave monitor, you may need to set the channel as AUX (or sometimes referred to as “TV / Video”). • Please check if the wiring between the monitor and the Quad Processor is correct. -
Page 11: Appendix #1 - Typical Configuration
APPENDIX #1 – TYPICAL CONFIGURATION DC 12V 500 mA MONITOR QUAD ALARM VIDEO INPUT THE COLOR QUAD HAS BNC JACKS TO CONNECT TO OTHER VIDEO SOURCES. BNC COUPLERS AND VIDEO CABLES ARE NOT INCLUDED. Note: If using a TV as a slave monitor, it may have to be set in AUX mode (sometimes referred to as TV/Video) -
Page 12: Appendix #2 - Connection To A Pir Motion Sensor
APPENDIX #2 – ALARM BLOCK CONNECTION to PIR MOTION SENSOR Wires from the PIR Motion Sensors must be soldered to the terminal of the 9 Pin Alarm Connector. Each PIR Sensor connects via 2 wires: 1 to a specific Channel and the other to the Ground input. For descriptions of each contact on the 9 Pin Connector of the Quad Processor, please refer to Appendix #4. -
Page 13: Appendix #3 - Connection To A Lorex Time Lapse Vcr For Alarm Recording
In addition to connecting up to 4 PIR Motion Sensors, connect the 9 Pin Alarm Connector to a security recorder such as the Lorex Time Lapse VCR shown below for Alarm Recording upon motion detection. For descriptions of each contact on the 9 Pin Connector of the Quad Processor, please refer to Appendix #4. -
Page 14: Appendix #4 - Pin Configurations For Connection To Pc
APPENDIX #4 – PIN CONFIGURATIONS FOR CONNECTION TO A COMPUTER 25 PIN COM PORT 9 PIN COM PORT... - Page 15 It’s all on the web Product Information Specification Sheets User Manuals Software Upgrades Quick Start Guides Firmware Upgrades V I S I T w w w . l o r e x c c t v . c o m www.lorexcctv.com Strategic Vista International Inc.
