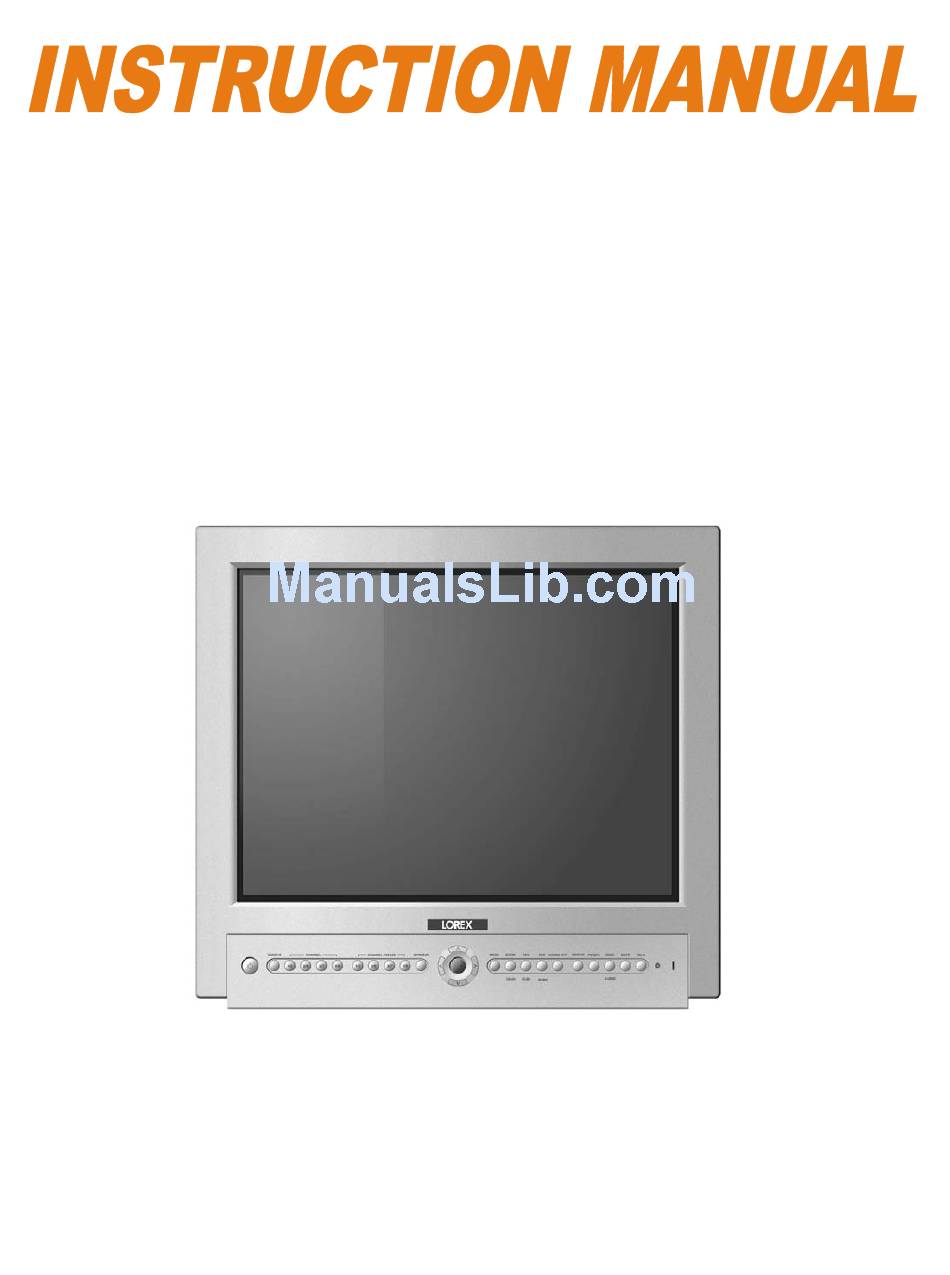

- Page 1 21” 2 PAGE /8 CHANNEL COLOR QUAD OBSERVATION SYSTEM with INTERNET REMOTE SECURITY MONITORING SG21281UQ-A / SG21284UQ-A FOR MORE INFORMATION WWW.STRATEGICVISTA.COM BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THROUGHLY AND RETAIN IT FOR FUTURE REFERENCE...
- Page 2 MANUAL THROUGHLY AND RETAIN IT FOR FUTURE Thank you for purchasing the 21” 2 Page/8 Channel Color Quad Observation system w/Internet Remote Security Monitoring. LOREX is committed to providing our customers with a high quality, reliable security product that customers have come to expect from us.
- Page 3 NOTE This equipment has been certified and found to comply with the limits regulated by FCC, EMC and LVD. Therefore, it is designed to provide reasonable protection against interference and will not cause interference with other appliance usage. However, it is imperative that user follows this manual's guidelines to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard or injury.
-
Page 4: General Precautions
GENERAL PRECAUTIONS: Read Instructions All of the safety and operating instructions should be read and understood before the product is used. Retain Instructions The safety and operating instructions should be retained for future reference. Heed Warnings All warnings on the product and the instruction manual should be followed. -
Page 5: Table Of Contents
11. APPENDIX A – CONNECTING MONITOR TO A STANDARD VCR ------------------------------------------------------------------------------- 12. APPENDIX B - CONNECTING TO A SLAVE MONITOR ----------------------------- 13. APPENDIX C - CONNECTING TO A LOREX TIME LAPSE VCR FOR ALARM RECORDING ------------------------------------------------------------------- 14. LOREX PRODUCT WARRANTY ------------------------------------------------------------... -
Page 6: Cautions And Features
CAUTIONS: 1. All the warnings and instructions of this manual should be followed 2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use water damped cloth for cleaning 3. Do not use this unit in very humid and wet places 4. -
Page 7: System
: To increase the life of the CRT and to help prevent “burn in” on 1 OR 4- 1/4” CCD COLOR PIR CAMERAS WITH METAL STAND AND 57 FT CABLE (4 CAMERAS INCLUDED WITH MODEL SG21284 / SG21284UQ-A. 1 CAMERA INCLUDED WITH MODEL SG21281 / SG21281UQ-A. -
Page 8: Monitor Controls - Front Panel
MONITOR CONTROLS - FRONT PANEL: will turn the power ON. The master power switch, which controls the monitor is located at the back of the unit. Note: The monitor (Standby Switch) can be turned off while recording, provided the master switch is ON. second time displays the second Quad screen. - Page 9 9. Channel Freeze 3/7 - This button Freezes camera 3 or 7 when the monitor is set to full screen mode or in Quad mode. An “F” will appear in the On-Screen Display to indicate that the Freeze option is ON. 10.
- Page 10 4) To exit Zoom Mode, press the Zoom button once again. Note: the Zoom function is available in PIP/POP mode by holding the Zoom button for 3 seconds. b) Main - Another function of the Zoom/Main button that is used in PIP/POP mode. Refer to the PIP/POP section below for an explanation.
- Page 11 19. PIP Sequence – Pressing this button initiates Sequencing in Single PIP mode. Pressing this button a second time changes the channel of the fixed screen in PIP Sequencing. To exit PIP Sequencing, press the PIP/POP button. You can program whether the Main picture or the Sub picture switches during PIP Sequencing via the Menu.
-
Page 12: Main Menu Control
MAIN MENU CONTROL The Main Menu is pulled up by pressing the Menu button. Scroll up and down through the eight options by pressing the where the highlighted scroll bar is located. To exit the Main Menu, scroll down to the Exit option and press Menu. - Page 13 Alarm on a camera, change the setting to N.O (Normally Open). Note: some non-Lorex PIR motion sensors have a default setting of N.C (normally closed). In order to activate the alarm on such a PIR motion sensor, change the setting to N.C.
- Page 14 BLANK COLOR: Choose between blue, gray or black as the background screen color in Menu Mode. VCR OUT: When set to [ACTUAL], the system will output what is shown on the monitor to a VCR. When set to [QUAD], the VCR will record Quad mode, regardless of what’s appearing on the screen.
-
Page 15: Monitor Controls - Back Panel
MONITOR CONTROLS - BACK PANEL: 1. AC Input - This button is used to connect the supplied power cord from the monitor to an electrical outlet 2. Power - This button controls power to the entire unit . Depress the side with the ‘I’, to turn power ON. -
Page 16: Remote Control
REMOTE CONTROL: Features of the Remote Control. For more details on specific remote control features, refer to the Monitor features Cuts off the sound from the camera Turns Power to monitor ON/OFF Allows user to select individual cameras Quad 1/2 Sets monitor to Quad mode (P1/P2) FRZ 1/5 Freezes the Full-Screen of either Ch 1 or 5... -
Page 17: Standard Wired Camera & Camera Installation
STANDARD WIRED CAMERA: Camera Lens – Delivers high quality image by using a 1/4” CCD Image Sensor Microphone – Picks up sound around the camera Camera Inputs – Connects cable to monitor PIR Sensor – Detects movement/motion Speaker – Delivers sound from the monitor to the camera Bracket –... -
Page 18: Monitor Connections & Trouble Shooting
MONITOR CONNECTIONS: 1. Camera 1 Input Connect one end of the supplied 65ft cable to the first wired camera, the other end to camera Input 1 2. Camera 2 – 8 Inputs Connect optional additional cameras to the camera 2-8 inputs using either the DIN or BNC camera inputs TROUBLE SHOOTING: If the system does not function properly, please check the following points. -
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS: MONITOR Picture Tube Horizontal resolution Camera Capable Quad Speed Camera Input Alarm Inputs/Outputs Input signal Power Source Power Consumption Operating Temperature Weight Dimensions: Color STANDARD CAMERA Image Device Resolution Shutter control Power requirement Illumination Operating Temperature Weight: Dimensions: Housings: Because our product are subject to continuous improvement, SVC reserves the right to modify product design and specifications without notice and without incurring any obligation. -
Page 20: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available to add to your existing system. CABLE Extends viewing length from Camera to monitor. Available In 65, 100 and 250 ft lengths OBSERVATION CAMERAS Accessory PIR motion sensor observation system camera TO ORDER THESE ACCESSORY ITEMS OR FOR A COMPLETE LINE OF ACCESSORIES TIME LAPSE VCR Used to record key events. -
Page 21: Appendix A - Connecting Monitor To Astandard Vcr
APPENDIX - A CONNECTING MONITOR TO A STANDARD VCR: PLEASE SEE THE DIAGRAM BELOW FOR CONNECTING YOUR VCR TO THE MONITOR. NOTE: Ensure the Standard VCR’s channel is set to A/V Mode in order to ensure reception. Consult your VCR’s Owners Manual to set the VCR to this setting. •... -
Page 22: Appendix B - Connecting To A Slave Monitor
APPENDIX - B CONNECTING TO A SLAVE MONITOR: Connections to another monitor (e.g. Slave Monitor) can be made through “MONITOR OUT” As show in the diagram below. -19-... -
Page 23: Appendix C - Connecting To A Lorex Time Lapse Vcr For Alarm Recording
APPENDIX - C CONNECTING TO A LOREX TIME LAPSE VCR FOR ALARM RECORDING: -20-... -
Page 24: Lorex Product Warranty
This warranty is invalidated if other than Lorex accessories are or have been used in or in connection with the Product or in any modification or repair is made to the Product be other than a service depot authorized by Lorex. -
Page 25: Care And Maintenance
CARE AND MAINTENANCE: Please follow the following instructions to ensure proper care and maintenance of this system Keep your monitor and camera dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme temperatures can shorten the life of the electronic devices.
