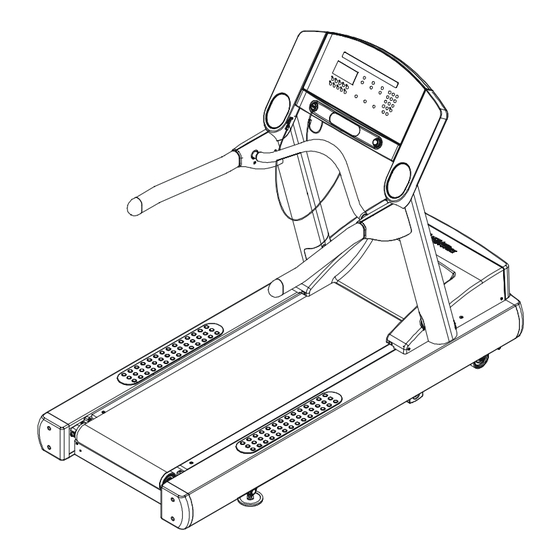

Summary of Contents for Life Fitness Treadmill 93T

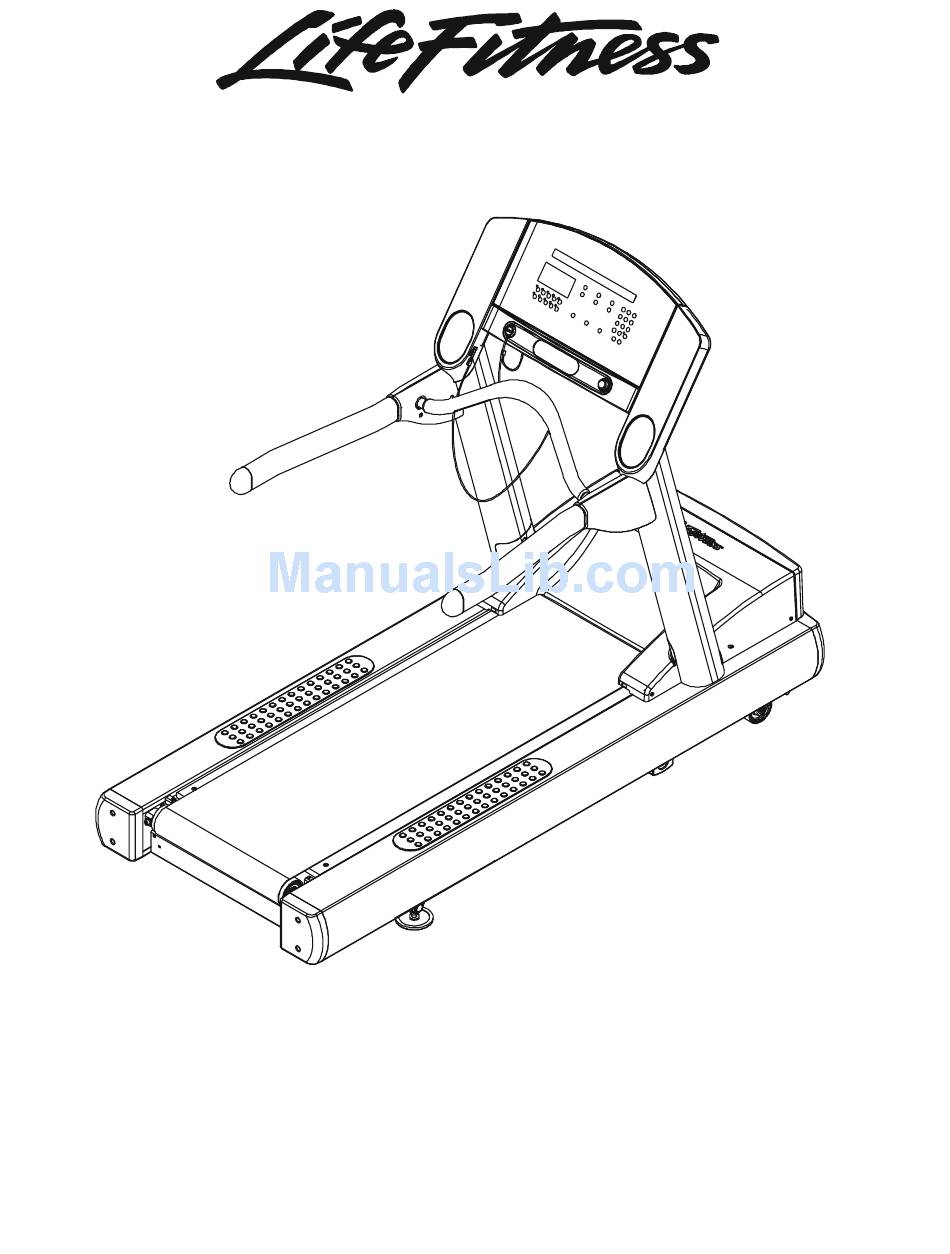

- Page 1 Arctic Silver 93T Treadmill Customer Support Services PARTS MANUAL rev. 29 Mar 2007...
- Page 2 ARCTIC SILVER 93T REFERENCES OPERATION MANUAL SERVICE MANUAL HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN INSTALLATION VIDEO SERVICE VIDEO S/N ATS100000 and up M051-00K58-A173 M051-00K58-A159 AK58-00227-0000 0017-00008-0204 0017-00008-0205 0017-00008-0206 M051-00K58-A160 M051-00K58-A161 93T-0XXX-03...
-
Page 3: Table Of Contents
ARCTIC SILVER 93T 93T-0XXX-03 CONTENTS S/N ATS100000 and up Page REAR ENDCAPS AND CUP HOLDERS ...3 SCUFF PAD, TINSEL AND FRAME TAG BOARD ...4 CONSOLE AND RELATED COMPONENTS...5 UPRIGHTS, HAND RAILS AND ERGO BAR ...6 MOTOR COVER, FRONT COVER AND ENDCAPS ...7 BELT, DECK AND REAR ROLLER...8 LIFT FRAME AND MOTOR ...9 WAX/LIFT ASSEMBLY...10... -
Page 4: Rear Endcaps And Cup Holders
ARCTIC SILVER 93T Rear End Caps and Cup Holders Cup Holder, LT AK58-00247-0002 Rear End Cap 0K58-01268-0000 Screws (4) 0017-00101-1772 Decal - LF Logo 0K60-01193-0000 Rear End Cap 0K58-01268-0000 93T-0XXX-03 S/N ATS100000 and up Cup Holder, RT AK58-00247-0001... -
Page 5: Scuff Pad, Tinsel And Frame Tag Board
ARCTIC SILVER 93T Scuff Pad, Tinsel and Frame Tag Bd. Anti-Static Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Anti-Scuff Pad 0K58-01376-0000 (2) S/N ATS100000 and up Frame Tag PCB B084-92187-D000 93T-0XXX-03... -
Page 6: Console And Related Components
ARCTIC SILVER 93T Console and Related Components PCB Mounting Screw (8) 0017-00101-1275 PCB Assembly A084-92184-A004 See Table Magnet Disc 0K40-01070-0000 See Table Tether Stop Assy AK58-00322-0000 CD Tray, Rubber Pad 0K58-01359-0000 Console Assembly Overlay/Bezel/Switch Assy. AK58-00405-0001 AK58-00204-0001 AK58-00405-0002 AK58-00204-0001 AK58-00405-0003 AK58-00204-0003 AK58-00405-0004 AK58-00204-0004... -
Page 7: Uprights, Handrails And Ergo Bar
ARCTIC SILVER 93T Uprights, Handrails and Ergo Bar Handrail Mounting Screw (4) Console Mounting 0017-00101-1774 Screw (4) 0017-00101-1773 Top LT Handrail Boot 0K58-01303-0002 Handrail Tube Cap (2) Upright, LT 0K58-01323-0000 AK58-00310-0004 Upright Tube Cap (2) 0K58-01302-0000 Upright Tube Cap Screw (2) 0017-00101-1772 ERGO Bar Assembly AK58-00190-0000... -
Page 8: Motor Cover, Front Cover And Endcaps
ARCTIC SILVER 93T Motor Cover, Front Cover and Front End Caps Motor Cover Screws (4) 0017-00101-1772 Felt Strip - 28” 0017-00081-0294 Front Cover 0K58-01266-0000 Screws (4) 0017-00101-1771 S/N ATS100000 and up Motor Shroud Assy. AK58-00398-0000 Front End Cap (2) 0K58-01267-0000 End Cap Screws (4) 0017-00101-1772 Bug Medallion Assembly... -
Page 9: Belt, Deck And Rear Roller
ARCTIC SILVER 93T Belt, Deck and Rear Roller Striding Belt 0K58-01400-0000 Deck Mounting Screws (4) 0017-00101-1775 Deck 0K58-01091-0002 TECSPAK Mounting Screw (8) 0017-00101-1652 TECSPAK Spring (8) 0K40-01026-0002 TECSPAK Tinnerman Clip (8) 0017-00103-0198 Washer (8) 0017-00104-0072 Screw 0017-00101-1776 Round Grommet 0017-00042-0326 Washer 0017-00104-0043 Square Grommet... -
Page 10: Lift Frame And Lift Motor
ARCTIC SILVER 93T Lift Frame and Lift Motor IEC Receptacle 0017-00003-0949 Retainer Bracket w/Screw 0017-00042-1145 Frame Screws 0017-00101-1723 Lift Frame End Cap 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel 0K58-01071-0000 Phillips Screw 0017-00101-1612 Washer 0017-00104-0189 Hex Screw (2) 0017-00101-1777 Flat Washer (2) 0017-00104-0259 Bronze Sleeve (2) 0K58-01089-0000... -
Page 11: Wax/Lift Assembly
ARCTIC SILVER 93T Wax/Lift Assembly–AK58-00243-0000 Pin Collar Spacer (3) 0017-00042-1070 Wax Lift Mounting Screw (3) 0017-00101-1641 Wax/Lift PCB A084-92261-A001 Spacer (3) Locking Nut (3) 0017-00042-1149 0017-00103-0052 Mounting Bracket 0K58-01316-0000 93T-0XXX-03 S/N ATS100000 and up Motor Capacitor PCB Mounting Screw (4) 0017-00101-1253 Motor Capacitor PCB Assembly... -
Page 12: Motor Controller Assembly
ARCTIC SILVER 93T Motor Controller Assembly AK60-00171-0000 (100-120V) W/O FERRITE AK60-00171-0001 (200-240V) W/O FERRITE AK60-00171-0002 (100-120V) WITH FERRITE AK60-00171-0003 (200-240V) WITH FERRITE S/N ATS100000 and up 93T-0XXX-03... -
Page 13: Drive Motor Assembly
ARCTIC SILVER 93T Drive Motor Assembly Poly-V Pulley 0K58-01057-0001 Locking Nut (4) 0017-00103-0027 Washer (4) 0017-00104-0409 Insulating Shoulder Washer (4) 0K58-01255-0000 Drive Motor Assembly Number AK58-00172-0000 AK58-00172-0002 Motor w/Caution Label AK58-00171-0000 (SN ATS 100000 - ATS100845) AK58-00171-0001 (SN ATS 100846 - ATS100...) Slotted Hex Screw (2) 0017-00101-0975 Insulating Pad (2) -
Page 14: Idler Arm Assembly And Static Brush
ARCTIC SILVER 93T Idler Arm Assembly and Static Brush Idler Arm Assembly AK58-00053-0002 Anti Static Brush 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Grommet 0017-00042-0326 Drive Belt 0K58-01114-0000 Idler Pulley 0K26-01731-0000 Threaded Idler Shaft 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Wire Clamp Limit Switch 0017-00042-1072 0017-00032-0195 Screw... -
Page 15: Leg Leveler Assembly
ARCTIC SILVER 93T Leveler Assembly – AK58-00370-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1652 S/N ATS100000 and up Bracket Leveler 0K58-01083-0000 Pivot Pin 0K58-01098-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 93T-0XXX-03... -
Page 16: Front Roller Assembly
ARCTIC SILVER 93T Front Roller Assy.–AK58-00066-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 Flat Washer 0017-00104-0330 93T-0XXX-03 S/N ATS100000 and up 3.5” Front Roller 0K58-01001-0001... -
Page 17: Power Components Schematic
ARCTIC SILVER 93T Power Components Schematic Line Cord (Plug End Changes) 0017-00003-0996 240v+ AUS 0017-00003-0974 Domestic 0017-00003-0948 12’ 220v 0017-00003-0915 RT Angle Plug 0017-00003-0781 220v/60Hz 0017-00003-0696 Continental 0017-00003-0890 240v/50Hz UK Xformer Bracket Assembly (foreign units only) AK58-00210-0000 MOV/Filter Cable Assy. AK58-00224-0001 5”... -
Page 18: Cables
ARCTIC SILVER 93T Wax/Lift Power Supply 120V 240V 220/230V 200V 100V POLAR +12VDC BUS_REQ +8VDC +8VDC LI N E CHART *CLEAR *BLACK *BLACK LEFT *CLEAR *BLACK *RED *BLACK *RED *WHIT *WHITE *WHITE SENSE REED BLACK BLACK +12VDC WHITE BUS_RE GRAY GRAY GREEN GREEN...
