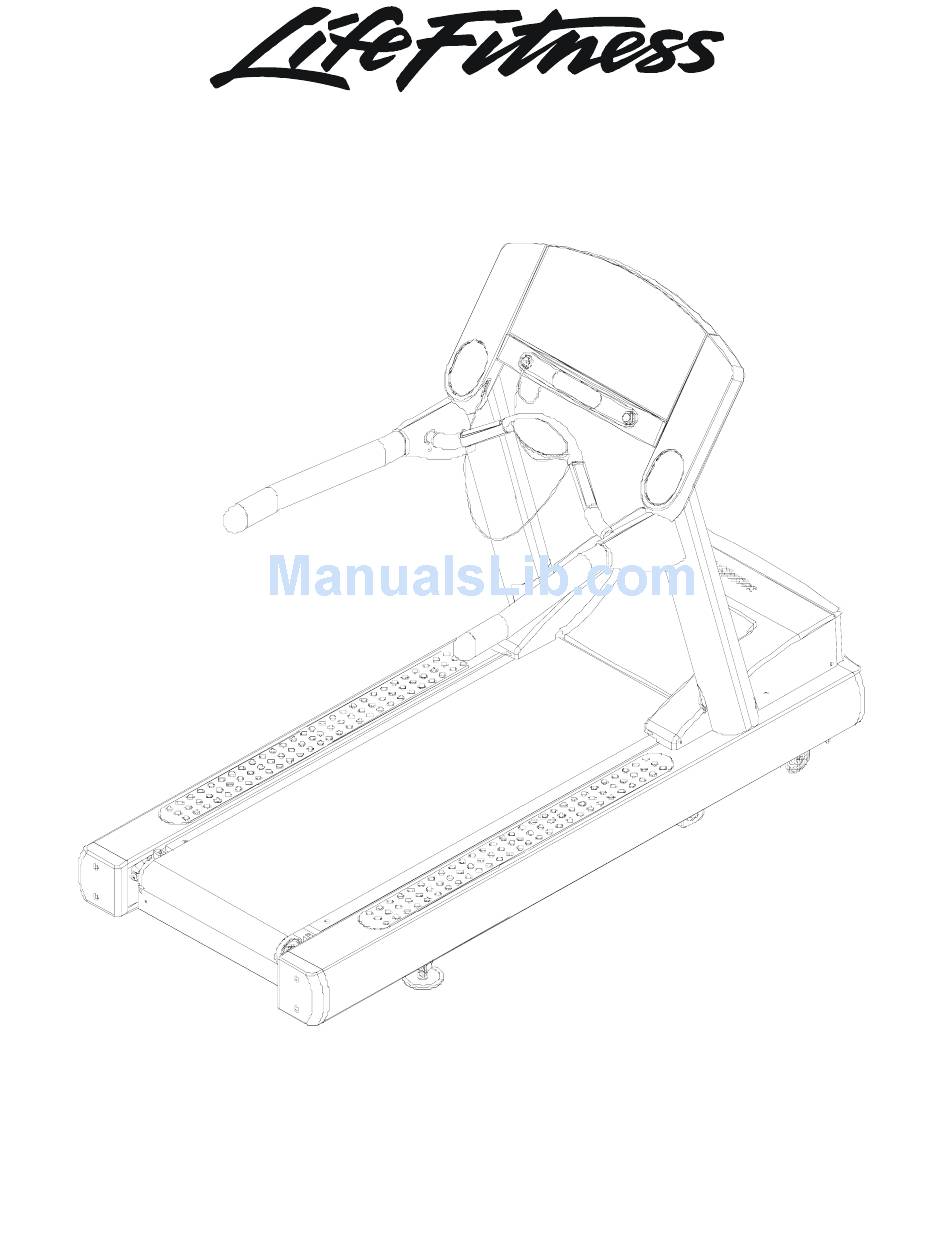

- Page 1 ARCTIC SILVER 93T-XXXX-09 TREADMILL Customer Support Services PARTS MANUAL revised 12 Mar 2008...
-
Page 2: Table Of Contents
ARCTIC SILVER 93T 93T-XXXX-09 Contents S/N TTL100000 and up Miscellaneous ...3 Console, Overlay Assembly, and Overlay...4 Console Components...5 Uprights and Handrails ...6 Ergo Bar with Heart Rate Assembly ...7 Rear End Caps, and Cup Holders...8 Motor Cover, Front Cover, End Caps, and Tinsel...9 On-off Switch, Access Plate, and Grommets ... -
Page 3: Miscellaneous
NOTE: When this model is ordered with an attachable LCD TV, it becomes a model 93TER-XXXX-09. See Entertainment parts list LCD-0XXX-02 for the part numbers and descriptions for the attachable LCD TV, remote, and hardware for this product. Model 93T-XXXX-09 comes with both Lifepulse sensors and telemetry for reading heart rate. -
Page 4: Console, Overlay Assembly, And Overlay
AK58-00481-0004 JAPANESE AK58-00481-0006 FRENCH AK58-00481-0007 ITALIAN AK58-00481-0008 DUTCH AK58-00481-0009 PORUGUESE AK58-00481-0010 Part No. Overlay/Bezel Console Assembly AK58-00526-0001 AK58-00526-0001 AK58-00526-0003 AK58-00526-0004 AK58-00526-0006 AK58-00526-0007 AK58-00526-0008 AK58-00526-0009 AK58-00526-0010 93T-XXXX-09 S/N TTL100000 and up Overlay 0K58-01432-0001 0K58-01432-0001 0K58-01432-0003 0K58-01432-0004 0K58-01445-0006 0K58-01432-0007 0K58-01432-0008 0K58-01432-0009 0K58-01432-0010... -
Page 5: Console Components
DISC MAGNET 0K40-01070-0000 DECAL: CONSOLE; REAR 0K58-01357-0000 CASE: CONSOLE; REAR 0K58-01272-0000 STOP-SW & TETHER ASSY AK58-00322-0000 93T-XXXX-09 S/N TTL100000 and up POLAR PCB W/HEADER AK39-00064-0000 6-19X 6 PHL PAN PLT G5 ZN B (13) 0017-00101-1275 PCB-ASSY: H/R; (JAP only) SIDE-CONSOLE B... -
Page 6: Uprights And Handrails
0K58-01304-0002 Handrail-Assy: Boxed AK58-00256-0000 Handrail Boot Screws (6) 0017-00101-1770 Handrail Tube Caps (2) 0K58-01396-0000 Upright Plugs (2) 0K58-01305-0002 93T-XXXX-09 S/N TTL100000 and up Handrail Hex Nuts (4) 0017-00103-0327 Top RT Handrail Boot 0K58-01303-0001 Handrail Screws (2) 0017-00101-1773 Upright, RT AK58-00311-0003... -
Page 7: Ergo Bar With Heart Rate Assembly
6-18 x 16 PHL PAN HLS ST ZN B 0017-00101-1277 Heart Rate Sensor Kit KIT: SERV; MFG; ELECTRODES; LARGE GK20-00002-0005 93T-XXXX-09 S/N TTL100000 and up 8-16X18 PHL PAN PLT ST BO B (2) 0017-00101-0824 VMI WSH 8 171-,375-052 FL-D ST BZ B... -
Page 8: Rear End Caps And Cup Holders
ARCTIC SILVER 93T Rear End Caps and Cup Holders CUP-COVER ASSY, LT AK58-00247-0002 ENDCAP: REAR 0K58-01268-0000 10-16X 8 PHL PAN B ST ZS B Qty needed: 4 0017-00101-1772 ENDCAP: REAR 0K58-01268-0000 93T-XXXX-09 S/N TTL100000 and up CUP-COVER ASSY, RT AK58-00247-0001... -
Page 9: Motor Cover, Front Cover, End Caps, And Tinsel
B ST ZS B (4) 0017-00101-1772 10-16X 8 PHL PAN B ST ZS B (4) 0017-00101-1772 MEDALLION-ASSY: PURCH;LF-BUG B AK58-00245-0000 TINSEL: 0K58-01102-0001 93T-XXXX-09 S/N TTL100000 and up GUARD-ASSY: MFG; LT; 3.50 B AK58-00360-0002 MOTOR-SHROUD ASSY: MFG; 93Ti CLASSIC AK58-00625-0000 ENDCAP: FRONT 0K58-01267-0000... -
Page 10: On-Off Switch, Access Plate, And Grommets
(see service bulletin GN05032101N ) CLAMP: WIRE; 5/8" 0017-00042-1072 BACK VIEW GROMMETS: NYLON; SCREW ( 2 ) 0017-00042-1147 93T-XXXX-09 S/N TTL100000 and up DECAL: FRAME; LF-LOGO 0K60-01193-0000 GROMMET: PLASTI; . 130/.005 S/C#13-B ( 2 ) 0017-00042-0326 GROMMETS: PLASTI; . -
Page 11: Belt, Deck And Rear Roller
255-.562-046 VMI WSH 390-, 880-120 (2) FL-0 ST BZ B 0017-00104-0334 Rear Roller Adjusting Bolt (2) 3/8 -16X48 HEX SOC L CS ST SS B 0017-00101-1880 93T-XXXX-09 S/N TTL100000 and up LBL: BELT-LIMIT; LT. M051-00K58-A101 LBL: CAUTION; HI-VOLT;ENG+FRN B M051-00K58-A014 LBL: BELT-LIMIT;... -
Page 12: Lift Frame, Lift Motor, And Iec Receptacle
IEC Receptacle * 0017-00003-0949 Frame Screws * 0017-00101-1723 Lower Receptacle Brkt 0K58-01420-0000 Clevis Pin 0017-00007-0214 Lift Motor Hex Bolt 0017-00101-1021 93T-XXXX-09 S/N TTL100000 and up * RECEPTACLE-ASSY: MFG; RECESS B AK58-00514-0000 Line-Cord Socket Brkt * 0K58-01419-0000 Cotter Pin 0017-00007-0208 Lift Motor... -
Page 13: Idler Arm Assembly
Idler Pulley 0K26-01731-0000 Limit Switch Wire Clamp 0017-00032-0195 0017-00042-1072 Limit Switch Cable Screw AK58-00027-0000 0017-00101-1193 93T-XXXX-09 S/N TTL100000 and up Idler Pin 0017-00007-0248 Circuit Breaker, 2 amp 0017-00003-0626 Circuit Breaker, 4 amp 0017-00003-0095 Circuit Breaker Clip 0017-00003-0671 Plug (for units without... -
Page 14: Leg Leveler Assembly
Leg Leveler Assembly Leg Leveler Assembly AK58-00370-0000 Flat Washers (4) 0017-00104-0190 Lock Washers (4) 0017-00104-0333 3/8-16x20 UNS HEX CS G5 BZ B 0017-00101-1627 Bracket Leveler 0K58-01083-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 93T-XXXX-09 S/N TTL100000 and up Pivot Pin 0K58-01098-0000... -
Page 15: Front Roller Assembly
Front Roller Assembly Front Roller Assembly AK58-00066-0000 Poly-V Pulley, 8-inch 0K58-01105-0000 Lock Washer (3) 0017-00104-0005 Hex Bolts (3) 0017-00101-1632 Flat Washer 0017-00104-0043 Lock Washer 0017-00104-0006 Flat Washers (3) 0017-00104-0330 93T-XXXX-09 S/N TTL100000 and up Mounting Bolt 0017-00101-0974 ROLLER: FRONT; 3.5" 0K58-01001-0001... -
Page 16: Drive Motor Assembly
0017-00104-0409 Insulating Shoulder Washers (4) 0K58-01255-0000 Insulating Pads (2) 0K58-01256-0001 The key is part of the drive motor only (not available separately). Tapered Shaft Drive Motor Assembly AK58-00171-0002 Flywheel, Cast Iron 0K58-01092-0004 Flywheel Bolt 0017-00101-1885 93T-XXXX-09 S/N TTL100000 and up... -
Page 17: Dsp Controller Assembly
Part Description KIT: SERV; MFG; DSP CONTROLLER 100-120; LED KIT: SERV; MFG; DSP CONTROLLER 200-240; LED VMI 10-32x8 PHL PANS TT ST ZN B 0017-00101-1781 DSP Controller Assembly Voltage 100-120 200-240 93T-XXXX-09 S/N TTL100000 and up Part No. GK58-00002-0118 GK58-00002-0120... -
Page 18: Line Cords And Line Cord Options
LINE-CORD: R/A; 220V; USA 0017-00003-0696 LINE-CORD: R/A; CEE7; 103" 10A 250V D 0017-00003-0890 LINE-CORD: U.K; R/A 0017-00003-0996 LINE-CORD: IEC; AUSTRALIAN; 230/50 C Optional Line Cords Length Part No. (feet) 0017-00003-0947 0017-00003-0915 0017-00003-0980 7.5' 0017-00003-0981 0017-00003-0948 93T-XXXX-09 S/N TTL100000 and up Part No. -
Page 19: Block Diagrams
4POS.MIC R OFIT.C ON N . 10POS.R ALIF.C ON N . 12POS.R ALIF.C ON N . CBL-ASSY: H/R SENSORS AK58-00041-0001 CBL-ASSY: POLAR/E-STOP AK58-00237-0000 93T-XXXX-09 S/N TTL100000 and up CBL-ASSY: SIDE-CONSOLE AK58-00031-0000 DISPLAY USED ON 97Ti & 93/95T-0705 JAP & SIDE CONSOLE... - Page 20 ARCTIC SILVER 93T Block Diagram - Continued S/N TTL100000 and up 93T-XXXX-09...
- Page 21 FILTER: LINE; 20A 0017-00003-1015 FILTER: LINE; 10A 0017-00003-0898 GRN/YLW LINE FILTER CBL-ASSY: JUMPER; WHT; 6" AK58-00082-0000 93T-XXXX-09 S/N TTL100000 and up to secure ground cable to frame: 10-X6 UNS HXWL B ST GR B 0017-00101-0883 CBL-ASSY: GRN/YLW JUMPER; BLK; 4"...
