Life Fitness 97Ti How-To

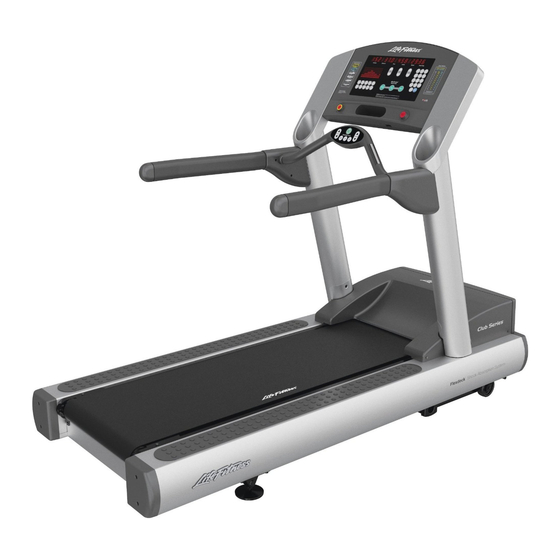

Life Fitness Model 97Ti, 95Ti, 93T, 97Te, and 95Te Treadmills
How To... Tension the Striding Belt
Special Tools Required: NONE
1. Center the new Striding Belt between
the Front and Rear Rollers.
2. Adjust the Tensioning Bolts equally in
¼ turn increments, until the slack is
taken out of the belt.
3. Place two pieces of tape, 50" apart,
on the right and left side edges of the
Striding Belt.
4. Continue to tighten the
Tensioning Bolts (see Step 2)
until the distances between the
tapes are increased to 50.25".
At this point, the belt is stretched
to proper tension.
5. Re-assemble remaining
components in reverse order of
removal.
6. Adjust the Striding Belt
Tracking. See How To...Adjust
Striding Belt Tracking in this
section.
7. Refer to Diagnostics Section to Log Maintenance Repair of the Striding Belt.
9
Tape
50"
Tape
50.25"
