Life Fitness 93T Assembly Instruction Manual
Hide thumbs
Also See for 93T:
- Operation manual (46 pages) ,
- Parts manual (18 pages) ,
- General assembly (16 pages)
Table of Contents
Advertisement
Quick Links
Treadmill 93T
General Assembly
Handrail Assembly
Belt, Deck, Rear Roller
Frame Assembly
Rear End Cap
0K58-01268-0000
Screws (4)
0017-00101-1772
Console
Assembly
Cup Holder, LT
AK58-00247-0002
Rear End Cap
0K58-01268-0000
Touch-Up Paint
Color
0017-00008-0196
Silver Bullet
0017-00008-0197
Silver Bullet
0017-00008-0198
Stealth Gray
0017-00008-0199
Stealth Gray
Manual/Video
Operation Manual, Eng
Service Manual
Installation Video
Service Video
1Page 1 of 16
Power
Components
Schematic
Cup Holder, RT
AK58-00247-0001
Covers, End Caps,
Hardware
Access Panel Cover (2)
0K58-01279-0000
Screw (4)
0017-00101-1771
Leveler
Assembly
Container
Bottle
Spray Can
Bottle
Spray Can
Part Number
M051-00K58-A081
M051-00K58-A097
M051-00K58-A098
M051-00K58-A099
93T-0XXXX-02
S/N TTD100000
Wax/Lift Power Supply
Access Panel Decal, RT
0K58-01336-0001
Access Panel Decal, LT
0K58-01336-0002
Advertisement
Table of Contents
Related Manuals for Life Fitness 93T
Summary of Contents for Life Fitness 93T

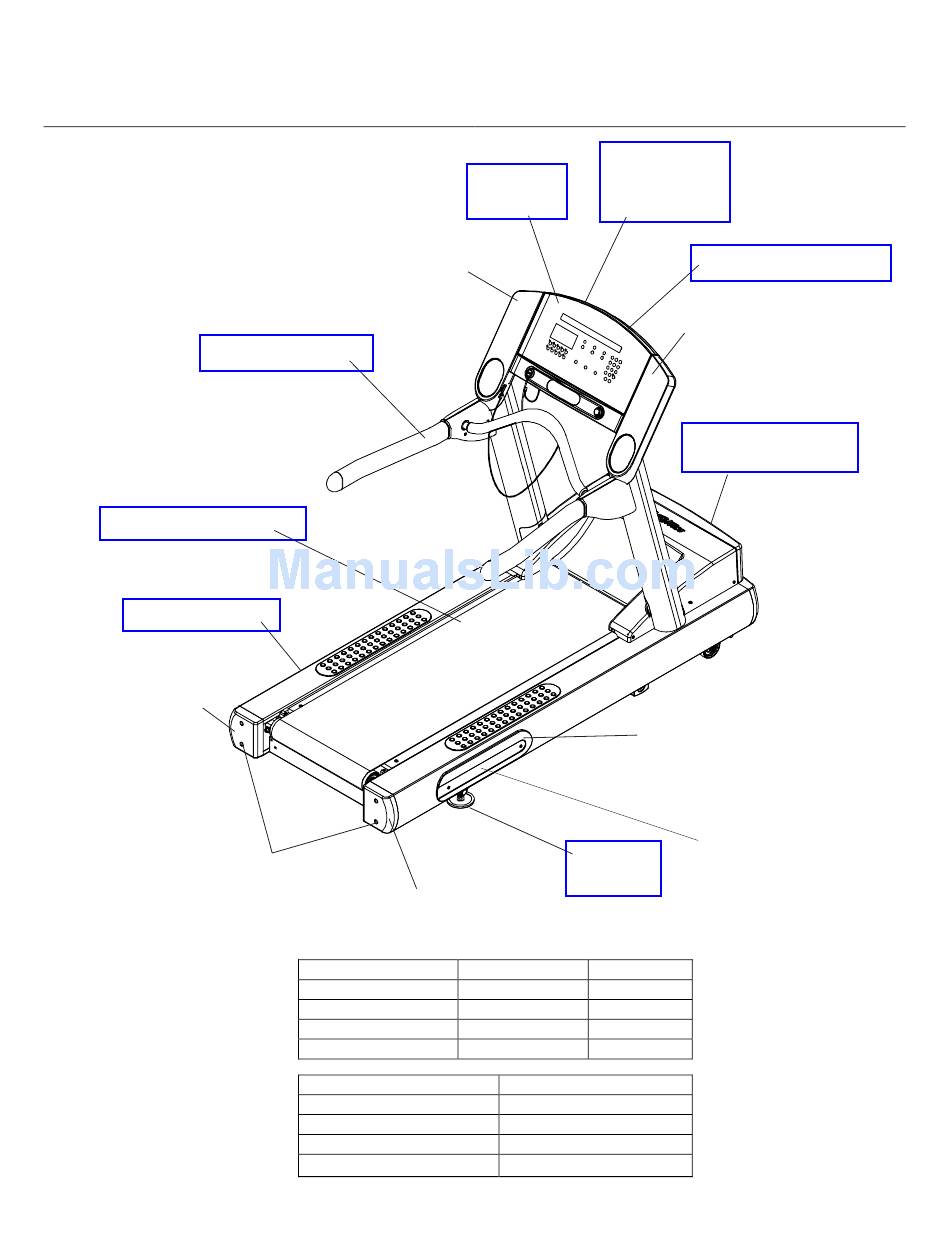

- Page 1 Treadmill 93T 93T-0XXXX-02 General Assembly S/N TTD100000 Power Console Components Assembly Schematic Cup Holder, LT Wax/Lift Power Supply AK58-00247-0002 Cup Holder, RT AK58-00247-0001 Handrail Assembly Covers, End Caps, Hardware Belt, Deck, Rear Roller Frame Assembly Rear End Cap 0K58-01268-0000 Access Panel Cover (2)
- Page 2 Treadmill 93T 93T-0XXXX-02 Frame Assembly S/N TTD100000 Anti-Static Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Anti-Scuff Pad 0K58-01306-0000 (2) Static Brush Idler Arm Assembly Wax Components Drive Motor Assembly Front Roller Assembly Lift Motor and Frame Frame Tag PCB B084-92187-0000 Motor Controller...
-
Page 3: Console Assembly
Treadmill 93T 93T-0XXXX-02 Console Assembly S/N TTD100000 Rear Console Decal 0K58-01357-000 Rear Console Case Console Screw (8) 0K58-01272-0000 0017-00101-1288 PCB Mounting Screw (8) 0017-00101-1275 PCB Assembly A084-92184-A004 See Table Switch Membrane 118E-00001-0128 Console Accessory Magnet Disc Cover 0K40-01070-0000 0K58-01280-0000 See Table... -
Page 4: Handrail Assembly
Treadmill 93T 93T-0XXXX-02 Handrail Assembly S/N TTD100000 Hardware Bag Assembly AK58-00227-0000 ERGO Bar Assembly Console/Cup Holder AK58-00190-0000 Mounting Screw (8) ERGO Bar Gasket (2) 0017-00101-1780 0K58-01347-0000 Bottom RT Handrail Boot Handrail Hex Nut (4) 0K58-01304-0001 Handrail Mounting 0017-00103-0327 Screw (4) -
Page 5: Covers, End Caps, Hardware
Treadmill 93T 93T-0XXXX-02 Covers, End Caps, Hardware S/N TTD100000 Motor Cover Screws (4) Motor Cover 0017-00101-1772 AK58-00228-0000 Felt Strip - 28” 0017-00081-0294 Flex Deck Decals(2) 0K58-01365-0000 Front End Cap (2) 0K58-01267-0000 End Cap Screws (4) 0017-00101-1772 Front Cover 0K58-01266-0000 Screws (4) -
Page 6: Belt, Deck, Rear Roller
Treadmill 93T 93T-0XXXX-02 Belt, Deck, Rear Roller S/N TTD100000 Striding Belt 0K58-01180-0000 Belt Limit Label, LT M051-00K58-A101 Deck Mounting Screws (4) 0017-00101-1775 Deck 0K58-01091-0001 TECSPAK Mounting Screw (8) Caution Label 0017-00101-1652 M051-00K58-A014 TECSPAK Spring (8) 0K40-01026-0002 Belt Limit Label, RT... -
Page 7: Lift Motor And Frame
Treadmill 93T 93T-0XXXX-02 Lift Motor and Frame S/N TTD100000 IEC Receptacle 0017-00003-0949 Retainer Bracket w/Screw Lift Motor Hex Bolt 0017-00042-1145 0017-00101-1021 Frame Screws 0017-00101-1723 Lock Nut Lift Frame End Cap 0017-00103-0025 0017-00042-1076 Vinyl Cap Line Cord Clip 0017-00042-1075 0017-00042-0840 Lift Frame... -
Page 8: Wax/Lift Assembly
Treadmill 93T 93T-0XXXX-02 Wax/Lift Assembly S/N TTD100000 Spacer (3) Locking Nut (3) 0017-00042-1149 0017-00103-0052 Pin Collar Spacer (3) 0017-00042-1070 Motor Capacitor PCB Mounting Screw (4) 0017-00101-1253 Motor Capacitor PCB Assembly Wax Lift Mounting Screw (3) B084-92241-A000 0017-00101-1641 Mounting Bracket 0K58-01316-0000... - Page 9 Treadmill 93T 93T-0XXXX-02 Motor Controller Assembly S/N TTD100000 AK58-00242-0000 (100-120v) AK58-00242-0001 (200-240v) 9Page 9 of 16...
-
Page 10: Drive Motor Assembly
Treadmill 93T 93T-0XXXX-02 Drive Motor Assembly S/N TTD100000 Motor w/Caution Label AK58-00171-0000 Poly-V Pulley 0K58-01097-0001 Slotted Hex Screw (2) 0017-00101-0975 Speed Sensor Assembly AK58-00073-0001 Sensor Wheel Locking Nut (4) Mounting Screw (3) 0017-00103-0027 0017-00101-1631 Washer (4) 0017-00104-0409 Sensor Wheel 0K58-01094-0000... -
Page 11: Wax Components
Treadmill 93T 93T-0XXXX-02 Wax Components S/N TTD100000 Wax Pump AK58-00187-0000 Tube Reducer Connector 0017-00021-2188 Replacement Hose Hose Clamp AK58-00148-0000 0017-00042-0842 PVC Tube - 22” 0017-00041-0830 Phillip Screws 0017-00101-0658 Tie Straps 0017-00042-0622 Spray Nozzle Assembly AK58-00046-0000 Brass Spray Tip 0017-00009-0842 Extrusion... - Page 12 Treadmill 93T 93T-0XXXX-02 Idler Arm Assembly & Static Brush S/N TTD100000 Motor Pulley Idler Arm Assembly 0K58-01057-0001 AK58-00053-0002 Tinsel Bracket Allen Screw 0K58-01263-0001 0017-00101-0333 Idler Pin Tinsel Bracket Screw(2) 0017-00007-0248 0017-00101-1193 Grommet 0017-00042-0326 Plug 0017-00042-1053 (For units not Drive Belt...
- Page 13 Treadmill 93T 93T-0XXXX-02 Leveler Assembly AK58-00052-0000 S/N TTD100000 Bracket Leveler 0K58-01083-0000 Pivot Pin 0K58-01098-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1253 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 13Page 13 of 16...
- Page 14 Treadmill 93T 93T-0XXXX-02 Front Roller Assy AK58-00066-0000 S/N TTD100000 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 Polley V Pulley 8” 0K58-1105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Flat Washer 0017-00104-0330 14Page 14 of 16...
-
Page 15: Power Components Schematic
Treadmill 93T 93T-0XXXX-02 Power Components Schematic S/N TTD100000 Xformer Bracket Assembly (foreign units only) AK58-00210-0000 On/Off switch 0017-00032-0198 Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v 10 Amp Line Filter 0017-00003-0923 Domestic units with 220v or lower 0017-00003-0948 12’ 220v... -
Page 16: Wax/Lift Power Supply
Treadmill 93T 93T-0XXXX-02 Wax/Lift Power Supply S/N TTD100000 16Page 16 of 16...
