5.9 Media Spindle

Description
Intermec EasyCoder PC41—Service Manual
The media spindle holds the media roll during printing. It is snap-locked
between the two crescent-shaped extensions on the base frame moulding
on either side of the media supply cavity.

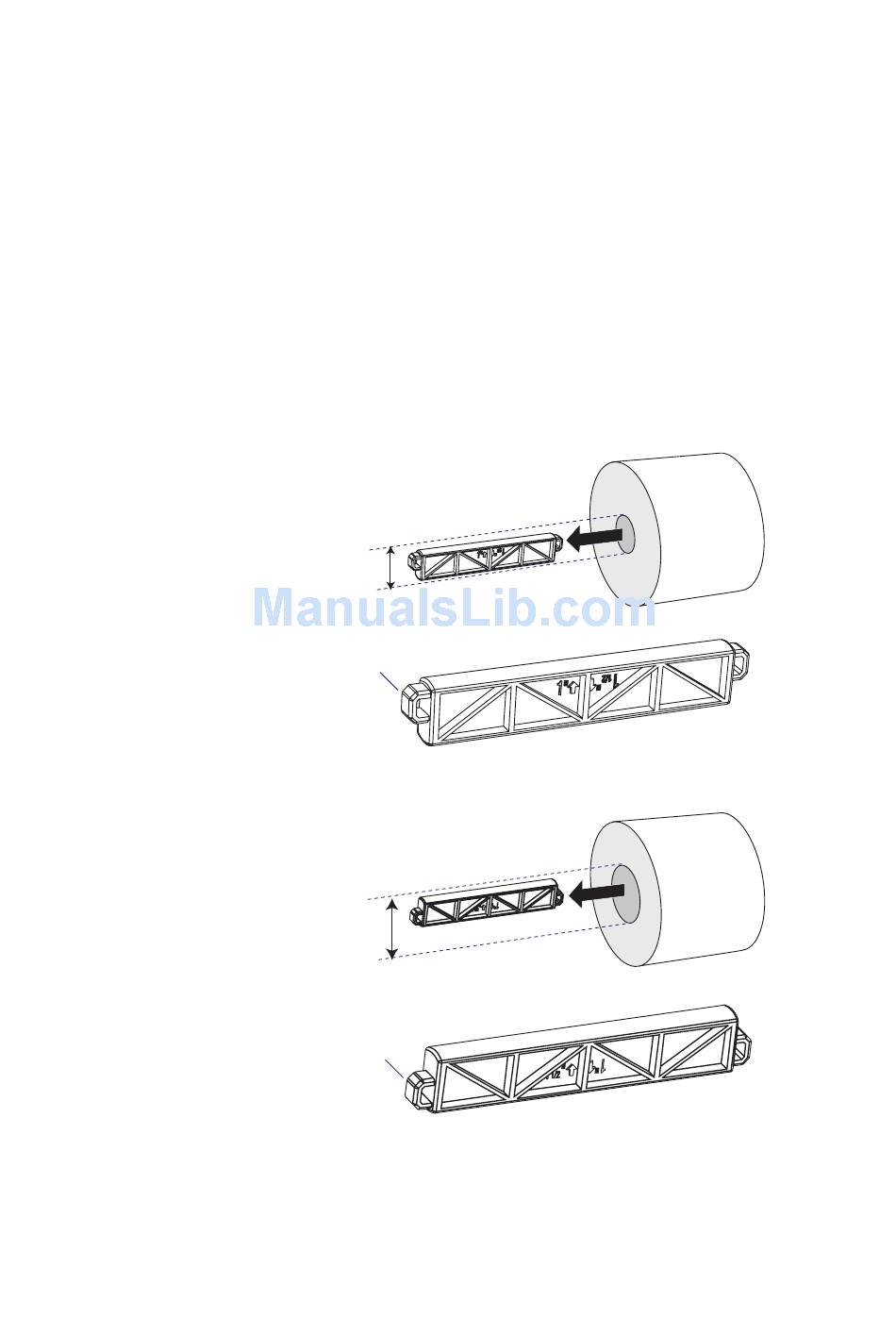

The media spindle can be rotated to fit media cores with an inner diam-
eter of either 25.4 mm (1 inch) or 38.1 mm (1.5 inches). Text and arrows
moulded into the spindle indicate core size in millimeters on one side and
inches on the other.
As an alternative to using a media supply roll on the spindle, fan-folds or
similar can be routed from an external supply behind the printer and into
the media cavity through a slot in above the printer's rear plate.
!
!
1 inch
25.4 mm
1.5 inch
38.1 mm
