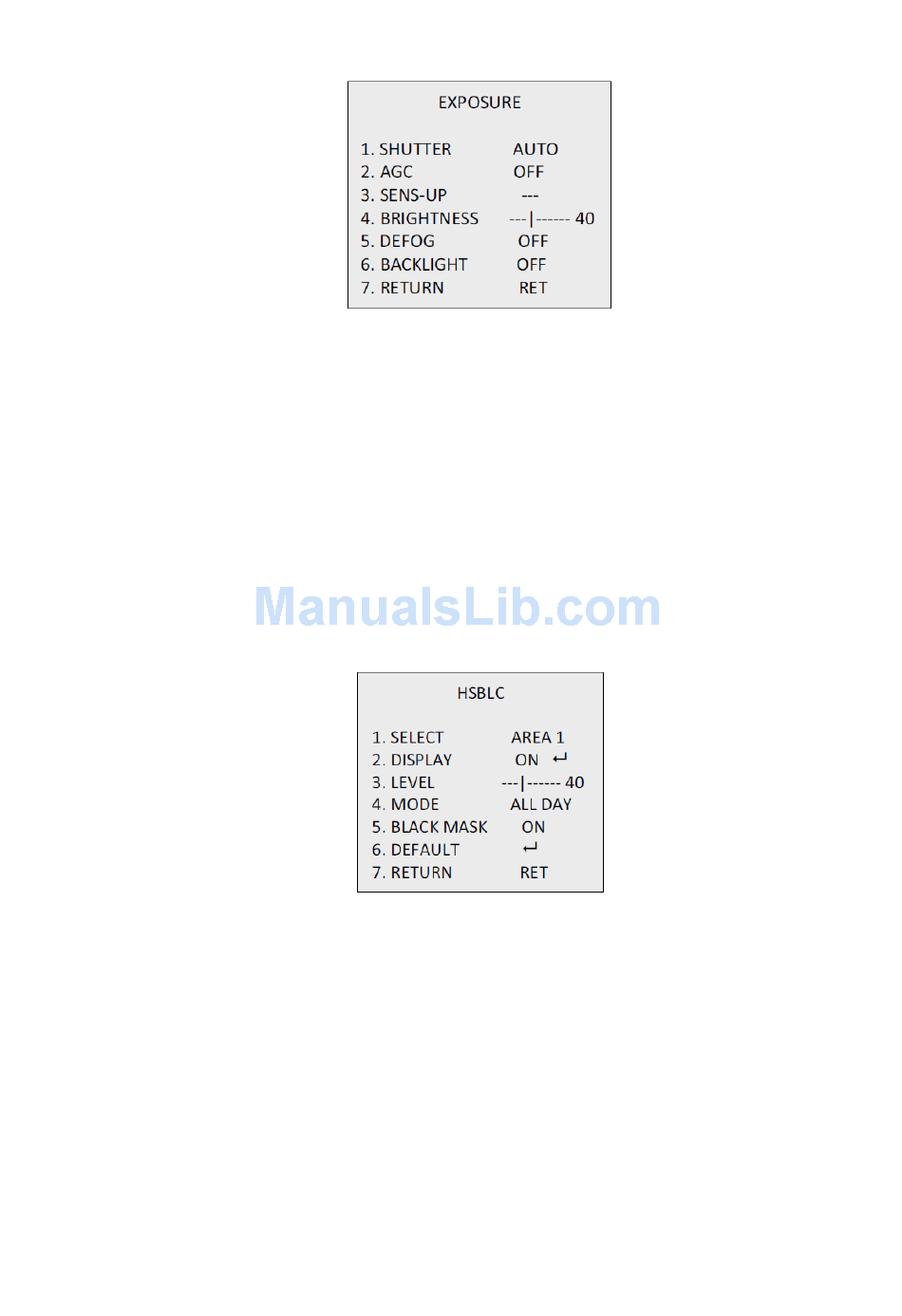

Exposure

SHUTTER: AUTO, 1/25, 1/50, FLK, 1/200, 1/400, 1/1k, 1/2k, 1/5k, 1/10k, 1/50k,
x2, x4, x6, x8, x10 and x15 are selectable.
AGC: Set the AGC value from 0 to 15.
SENS-UP: Set the SENS-UP to OFF or AUTO.
BRIGHTNESS: Set the brightness value between 1 and 100.
D-WDR: Set the D-WDR to ON to improve the image quality or to OFF to disable
the function.
DEFOG: Set the defog function to ON to enable the function. Position, size, and
defog gradation are configurable.
Backlight Compensation (BLC)
GAIN: Set the BLC gain to High, Middle, or Low.
AREA: Press the up/down/left/right buttons to define the BLC position and size.
Select RET or AGAIN to go back to the BLC menu or redefine the BLC area.
Default: Restore the BLC settings to default.
HSBLC: Select an HSBLC area. Set the DISPLAY status to ON. Press the
up/down/left/right buttons to define the area position and size. Set the HSBLC
LEVEL between 0 and 100. Select ALL DAY or Night for the HSBLC mode. Set
the BLACK MASK status to ON or OFF.

White Balance (WB)

Select INDOOR, OUTDOOR, MANUAL, ATW (Auto-tracking White Balance), or
AWC→SET.
TruVision High Definition TVI Camera Configuration Manual 5
