Page 1: Bullet Camera Installation

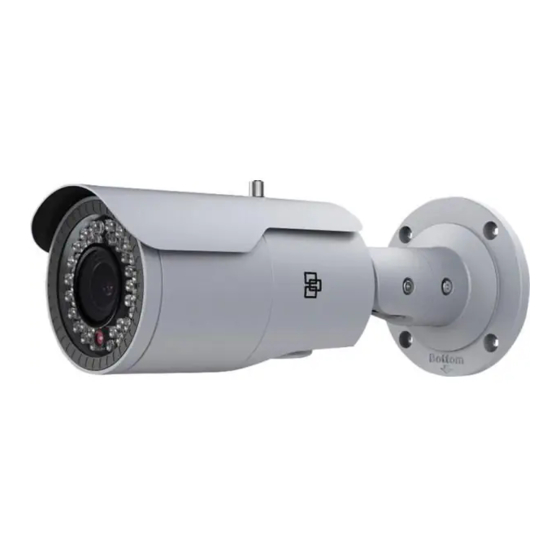

TruVision High Definition TVI Bullet Camera Installation Guide TVB-2402/TVB-4402 TVB-2404/TVB-4404 P/N 1072938-EN • REV A • ISS 10MAR15... -
Page 3: Table Of Contents
Contents Product overview 2 Camera description 4 Installation 6 Programming 9 Setup menus 13 Specifications 15 Legal and regulatory information 16 Installation Guide... -
Page 4: Product Overview
Product overview This is the TruVision High Definition TVI Bullet Camera Installation Guide for models TVB- 2402/TVB-4402 and TVB-2404/TVB-2404. This guide describes a standard installation. Package contents: Camera with power 4 screws and 4 and video output anchors for wall or cables ceiling installation Screws M4.8 ×... -
Page 5: Installation Guide
Template Hex wrench Ceiling Mounting 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base • WEEE and Battery Disposal Installation Guide... -
Page 6: Camera Description
Camera description CVBS output cable Sun shield (black) Lens cover TVI output cable Mounting bracket (grey) Back box Power cable Camera body Note: Please check the camera output settings before setting up a system. The TVI video output can be only connected to DVR with TVI signal input. - Page 7 CVBS output supports the standard monitor, test monitor, encoder and DVR. For TVB-2402 / TVB-4402, the CVBS and TVI output can not be performed at the same time, you can use the built-in DIP switch to select the camera video output.
-
Page 8: Installation
Installation To install the camera: Using the template, place it level against the mounting surface and mark the position of the mounting holes. Ceiling Mounting 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base Following all local codes, drill and prepare the mounting holes. - Page 9 Route the cables to the cable hole and connect the corresponding cables. Using a 75-ohm coaxial video cable, connect the camera TVI video output and a TVI DVR, and connect a 12 VDC or 24 VAC power supply to the power cable.
- Page 10 Loosen the three screws and adjust the camera according to the figure below to get an optimum angle. Tighten the screw after completing the adjustment. Installation Guide...
-
Page 11: Programming
360° 90° 360° Loosen the three screws and adjust the camera according to the figure below to get an optimum angle. Tighten the screw after completing the adjustment. Programming Programming on TVI output: Once the camera hardware has been installed, you can configure the camera settings on the TVI DVR. - Page 12 Select PTZ protocol as TruVision Coax and click menu button to call up the camera menu. For more details, please see the TVI DVR user manual. Programming on CVBS output: The camera can then be configured by using the built-in OSD button or a TVS-C200 controller (purchase separately).
- Page 13 CVBS TVB-2402/TVB-4402 The camera has CVBS and TVI selectable video output. Set the built-in DIP switch to CVBS for viewing the program on a standard monitor. The TVI is blocked out until you finish the settings and change the DIP switch back to TVI.
- Page 14 Please set the built-in DIP switch to CVBS for viewing the program on a standard monitor. When the programing is finished, you may change the DIP to WDR to enable the WDR feature. In such case, the CVBS output will be blocked out. If the DIP is set as CVBS, the WDR feature will be disabled, and the camera has CVBS and TVI output available at the same time...
-
Page 15: Setup Menus
Setup menus TVB-2402/TVB-4402 Installation Guide... - Page 16 TVB-2404/TVB-4404 Installation Guide...
-
Page 17: Specifications
Specifications Power supply 12 VDC / 24 VAC Current TVB-2402 / TVB-4402: 12 VDC: Max. 333 mA 24 VAC: Max. 250 mA TVB-2404/TVB-4404: 12 VDC: Max. 420 mA 24 VAC: Max. 250 mA TVB-2402/TVB-4402: Power consumption 12 VDC: Max. 4W 24 VAC: Max. -
Page 18: Legal And Regulatory Information
Legal and regulatory information Copyright: © 2015 United Technologies Corporation, Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved. Trademarks and patents: Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. -
Page 19: Contact Information
For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Contact information: For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu Installation Guide...
