Interlogix NX-182xx NetworX User Reference Manual

NX-182xx NetworX
Touchscreen Keypad
User Reference Guide
P/N 230245 • REV C • ISS 02JUL14
Disarming the security system.
To disarm the security system, tap the "Off icon",
a pin pad will display, enter a valid pin code.
Partition Ready
Partition is ready to arm

Overview.

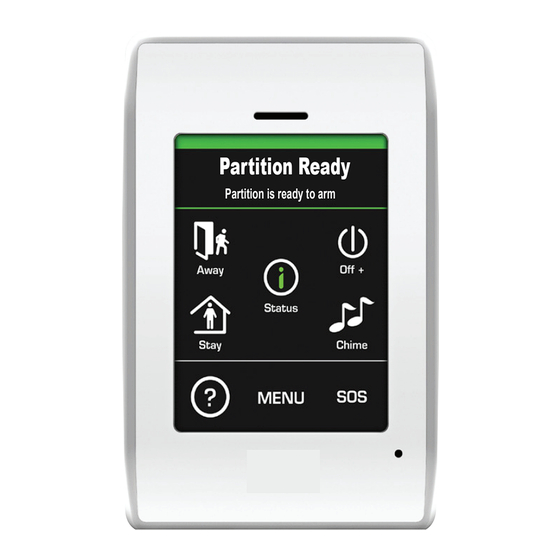

The NX-182xx is an intuitive graphical touch
screen interface for users of the NetworX
security system. Offering simple fingertip control,
via its clear 3.5" touch screen with easy to
to understand graphic icons.
Speaker
Partition Ready
Partition is ready to arm
System
Away Arm
System
Stay Arm
Help Menu Emergency
Main Menu

Chime mode.

Chime allows sensors to sound a "beep" at the
NX-182xx whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the "Chime Icon" to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
Partition Ready
Partition is ready to arm
Away Arming the security system.
Whilst the status bar is displaying the message
"Partition Ready" tap the "Away Icon"; this will arm
the security system fully. The system will not arm
if the status bar is displaying "Not Ready"; all
sensors must be closed.
Partition Ready
Status Bar
Partition is ready to arm
System
Disarm
Chime
ON / Off

SOS (Emergency keys)

Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Partition Ready
Partition is ready to arm

Stay Arming the security system.

Whilst the status bar is displaying the message
"Partition Ready" tap the "Stay Icon"; this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
Partition Ready
Partition is ready to arm
Fire Key – When touched for two seconds,
this key will sound the audible fire alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a fire report could be sent.
Medical Key – When touched for two
seconds, this key will sound the NX-182xx's
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre; check with your
security provider on how your system has been
configured.
To acknowledge / cancel an alarm, tap the Off
icon and enter your user pin code.
