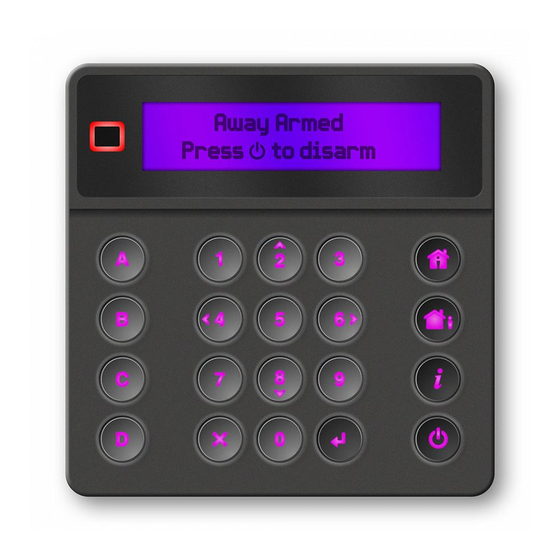

- Page 1 NXG-183x Series Keypad Installation Sheet LAN+ LAN- © 2020 UTC Fire & Security Americas Corporation, Inc. P/N 466-5560-EN • REV A • ISS 04MAY20 1 / 4...
- Page 2 DIP switch The DIP switch (Figure 5, item 2) is used to enable the xGen bus termination. • DIP switch 1: 120 Ω xGen bus termination switch • DIP switch 2: For future use To install the keypad, follow these steps: Loosen the bottom screw.
- Page 3 Minimal (all lights off) NXG-1830, NXG-1831: TBD NXG-1832, NXG-1833: 65 mA max. at 12 VDC Contact information Maximum NXG-1830, NXG-1831: TBD firesecurityproducts.com or www.interlogix.com NXG-1832, NXG-1833: 220 mA max. at 12 VDC Wiring xGen 4-wire bus Frequency band 13.553 to 13.567 MHz 42 dBμA/m...
- Page 4 P/N 466-5560-EN • REV A • ISS 04MAY20 4 / 4...
