DVR, and connect a 12 VDC or 24 VAC power supply to
the power cable.
5.

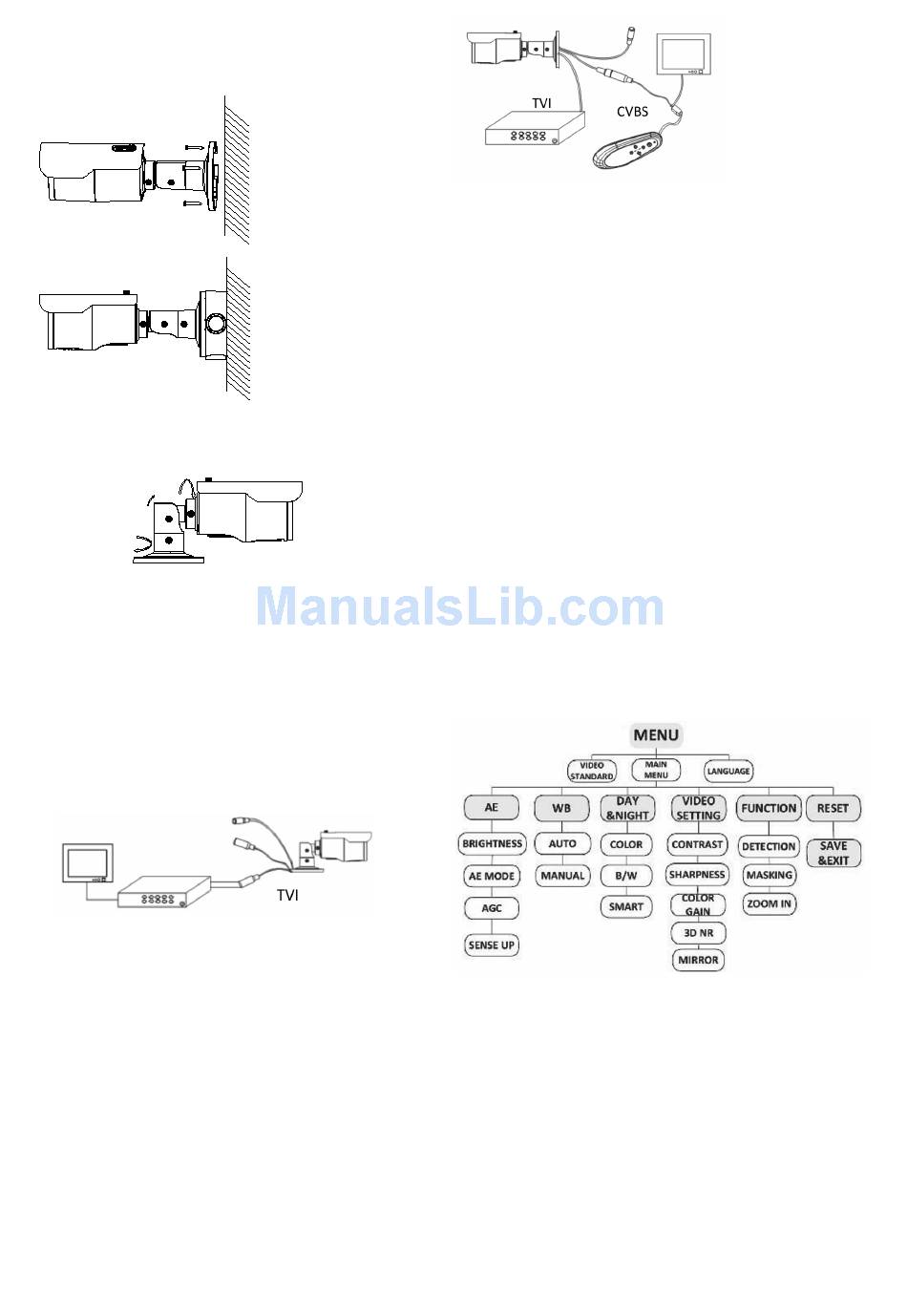

Secure the camera to the ceiling or wall with the screws.
6.
Loosen the three screws and adjust the camera according
to the figure below to get an optimum angle. Tighten the
screw after completing the
360°
90°
360°
7.
Loosen the three screws and adjust the camera according
to the figure below to get an optimum angle. Tighten the
screw after completing the
Programming
Programming on TVI output:
Once the camera hardware has been installed, you can
configure the camera settings on the TVI DVR.
Select PTZ protocol as
TruVision Coax
to call up the camera menu.
For more details, please see the TVI DVR user manual.
Programming on CVBS output:
The camera can then be configured by using the built-in OSD
button or a TVS-C200 controller (purchase separately).
Please connect a monitor and the TVS-C200 (if needed)
controller as following system figure.
2 / 3
adjustment.
adjustment.
and click menu button
TVB-2402/TVB-4402
The camera has CVBS and TVI selectable video output. Set
the built-in DIP switch to CVBS for viewing the program on a
standard monitor.
The TVI is blocked out until you finish the settings and change
the DIP switch back to TVI.
TVB-2404/TVB-4404
The camera has the CVBS and TVI dual video output. The
built-in DIP switch is for WDR/CVBS selection.
Please set the built-in DIP switch to CVBS for viewing the
program on a standard monitor.
When the programing is finished, you may change the DIP to
WDR to enable the WDR feature. In such case, the CVBS
output will be blocked out.
If the DIP is set as CVBS, the WDR feature will be disabled,
and the camera has CVBS and TVI output available at the
same time
Setup menus
TVB-2402/TVB-4402
P/N 1072938-EN • REV A • ISS 26MAR15
