4.

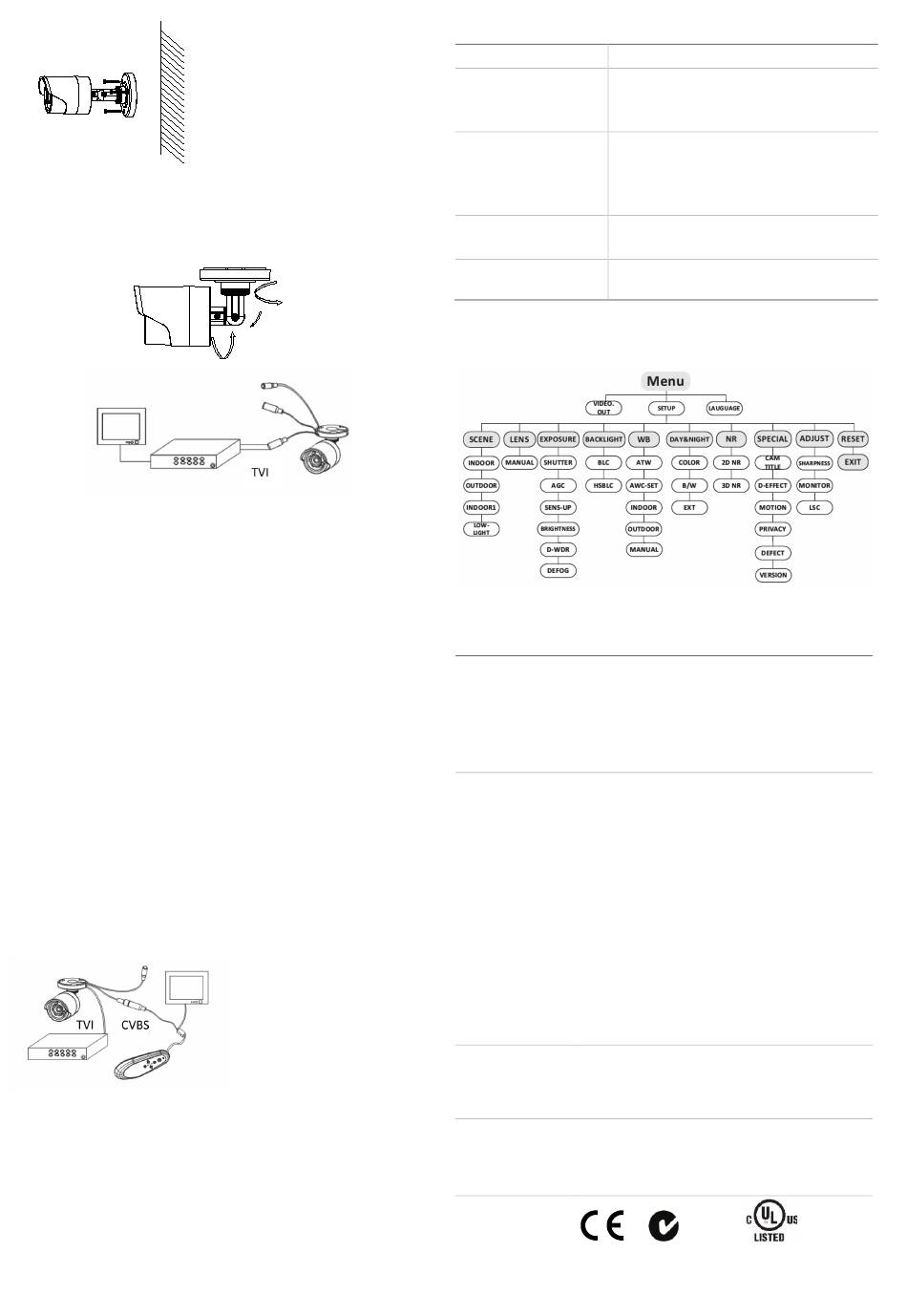

Using a 75-ohm coaxial video cable, connect the camera
TVI video output and a TVI DVR, and connect a 12 VDC
power supply to the camera power cable.
5.
Adjust the camera position and angle as required.
Programming
Programming on TVI output:
Programming on TVI output is available for TVB-2403/TVB-
4403 only.
Once the camera hardware has been installed, you can
configure the camera settings on the TVI DVR.
Select PTZ protocol as
TruVision Coax
to call up the camera menu.
For more details, please see the TVI DVR user manual.
Programming on CVBS output:
Programming on CVBS output is available for TVB-2403/TVB-
4403 only.
Programming on CVBS output, you need to connect a monitor
and a TVS-C200 controller (purchase separately) as following
system figure.
The TVS-C200 has one male BNC output and a female output.
Please connect the male output to camera's CVBS output and
female output to a monitor.
2 / 3
360°
90°
360°
and click menu button
Specifications
Power supply
12 VDC
Current
TVB-2401/TVB-4401: Max.300mA
TVB-2403/TVB-4403:
Max. 330mA
Power consumption
TVB-2401/TVB-4401:
Max. 3.5 W
TVB-2403/TVB-4403:
Max.4 W
Weight
TVB-2401/TVB-4401: 0.64 lb. (291 g)
TVB-2403/TVB-4403: 0.68 lb. (309 g)
Dimensions
2.76 x 5.89 in. (70 x 149.5 mm)
(Ø × L)
Setup menu
Regulatory information
Manufacturer
Interlogix.
2955 Red Hill Avenue, Costa Mesa, CA 92626
5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
FCC compliance
Class A: This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
ACMA compliance
Notice! This is a Class A product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures.
Canada
This Class A digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe A est
conforme à la norme NMB-0330 du Canada.
Certification
P/N 1072936-EN • REV A • ISS 26MAR15
N4131
