Interlogix TruVision TVD-N210V-2-N(-P) User Manual

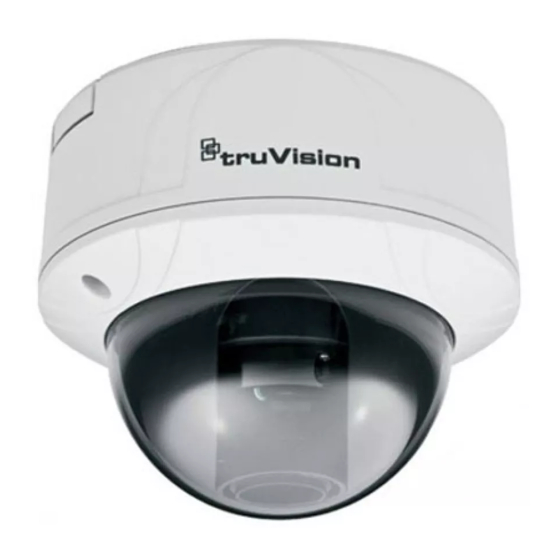

Ip dome camera
Hide thumbs Also See for TruVision TVD-N210V-2-N(-P):
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
TruVision IP Dome Open-
Standards User Manual
P/N 1076511A-EN • REV 1.0 • ISS 07OCT11

Advertisement

Table of Contents
loading

Related Manuals for Interlogix TruVision TVD-N210V-2-N(-P)

Summary of Contents for Interlogix TruVision TVD-N210V-2-N(-P)

  • Page 1 TruVision IP Dome Open- Standards User Manual P/N 1076511A-EN • REV 1.0 • ISS 07OCT11...
  • Page 2 © 2011 UTC Fire & Security. All rights reserved. Copyright Interlogix, TruVision names and logos are trademarks of Trademarks and UTC Fire & Security. patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    Content Chapter 1 Introduction 1 Product overview 1 Features 1 Chapter 2 Installation 3 Installation environment 3 Package contents 4 Cable requirements 4 Camera dimensions 5 Setting up the camera 5 Connecting the devices 6 Accessing the SDHC card 8 Mounting the dome cameras on a ceiling 9 Mounting the wedge dome cameras on a ceiling 11 Using the camera with TVR 60/ TVN 20/ TVN 40/ LNVR and other...
  • Page 4 Rebooting the camera 45 Chapter 6 Camera operation 47 Logging on and off 47 Live mode 47 Playing back recorded video 48 Searching event logs 50 Archiving recorded files 52 Using presets 53 Appendix A Specifications 55 TruVision IP Dome Open-Standards cameras 55 IP wedge dome cameras 56 Appendix B Pin definitions 57...

  • Page 5: Introduction

    Chapter 1 Introduction Product overview This is the user manual for TruVision IP dome open-standard camera models:  TruVision IP dome: TVD-N210V-2-N(-P) (VGA) TVD-M1210V-2-N(-P) (1.3 megapixel) TVD-M2210V-2-N(-P) (2 megapixel) TVD-M3210V-2-N(-P) (3 megapixel)  TruVision IP IR dome: TVD-N245V-2-N(-P) (4CIF WDR, D/N) TVD-M1225V-2-N(-P) (1.3 megapixel, D/N) TVD-M2225V-2-N(-P)
  • Page 6 0BChapter 1: Introduction  Live viewing over the network  50/60 Hz selectable flicker control  Mono and bi-directional audio  Digital pan/tilt/zoom (PTZ)  Supports remote upgrades and maintenance  H.264 video compression with dual capability  Supports full HD, HD, 4CIF, 2CIF, CIF and QCIF ...

  • Page 7: Installation

    Chapter 2 Installation This chapter provides information on how to install the TruVision IP dome and wedge dome cameras. Installation environment When installing your product, consider these factors: • Electrical: Install electrical wiring carefully. It should be done by qualified service personnel.

  • Page 8: Package Contents

    1BChapter 2: Installation Package contents Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit; contact the supplier immediately. If the unit is returned, it must be shipped back in its original packaging.

  • Page 9: Camera Dimensions

    1BChapter 2: Installation Camera dimensions Figure 1: IP dome and IR dome cameras Figure 2: IP wedge dome camera Setting up the camera If the light source where the camera is installed experiences rapid, wide- Note: variations in lighting, the camera may not operate as intended. To quickly put the dome camera into operation: 1.

  • Page 10: Connecting The Devices

    1BChapter 2: Installation 3. Mount the camera to the ceiling using the appropriate fasteners. See “Mounting the dome cameras on a ceiling ” on page 11. 4. Set up the camera’s network and streaming parameters so that the camera can be controlled over the network. See “Chapter 3 Network and streaming configuration”...
  • Page 11 1BChapter 2: Installation Dome and IR dome camera connections Note: Do not attempt to extend the power/data cable connection using RJ45 couplers and Cat5 cable. Only use the data cable connection provided. Note: Use 12 VDC or PoE. Figure 3: Connections on the base of the dome and IR dome cameras 1.

  • Page 12: Accessing The Sdhc Card

    1BChapter 2: Installation Figure 4: External alarm output Wedge dome camera connections Figure 5: Wedge dome camera connections 1. Power input connector 4. Power LED Connect +12 VDC power supply. 5. Lens positioning screws 2. Ethernet RJ45 PoE connector 6. Network status LEDs Connect to the network devices.

  • Page 13: Mounting The Dome Cameras On A Ceiling

    1BChapter 2: Installation Figure 6: SDHC card location in the dome cameras SDHC card slot Mounting the dome cameras on a ceiling Mount the dome cameras on a ceiling. They are not recommended for mounting on a wall. Note: If required, cables can be feed through the sides of the dome housing by removing the tabs (1) using a pliers (see Figure 7 below).
  • Page 14 1BChapter 2: Installation 4. If needed, seal all mounting holes so that no moisture can leak into the mounting surface. 5. Insert the fixation pins of the dome camera housing into the fixation slots in the mounting plate (1). 6. Rotate the camera enclosure (2) so that the pins are held in place in the fixation slots.

  • Page 15: Mounting The Wedge Dome Cameras On A Ceiling

    1BChapter 2: Installation Video cable for testing RCA video output connector (supplied) Lens adjustment screw 10. Remove the temporary video cable and reattach the camera cover. Tighten the fixed screws. Ensure that the camera is firmly attached to the mounting bracket.
  • Page 16 1BChapter 2: Installation 3. Pull the camera’s cabling through the ceiling hole and connect to the devices and power. If needed, seal all mounting holes so that no moisture can leak into the mounting surface. 4. Adjust the camera’s angle of view while watching the image on a monitor. Loosen the lens positioning screws (1).

  • Page 17: Using The Camera With Tvr 60/ Tvn 20/ Tvn 40/ Lnvr And Other Systems

    1BChapter 2: Installation Using the camera with TVR 60/ TVN 20/ TVN 40/ LNVR and other systems Please refer to the head-end user manuals for instructions on connecting and operating the camera with these systems. Using the camera with TruVision Navigator A camera must be connected to a TVR 60/ TVN 20/ TVN 40 in order to be operated by TruVision Navigator.
  • Page 18 1BChapter 2: Installation TruVision IP Dome Open-Standards User Manual...

  • Page 19: Network And Streaming Configuration

    Chapter 3 Network and streaming configuration This chapter explains how to configure the camera network settings. The cameras can be configured and controlled using an internet browser such as Microsoft Internet Explorer (IE). The procedures described use Microsoft Internet Explorer (IE) web browser. The steps are similar with other browsers. You must have administrator rights on your PC in order to configure the cameras over the internet.
  • Page 20 2BChapter 3: Network and streaming configuring 4. Change the options to and click OK. ActiveX controls and plug-ins Enable - or - Under Settings, click the security level for the whole zone in Reset Custom the Reset To box, and select Low. Click Reset. Then click to the Internet Options Security tab screen.

  • Page 21: Windows Vista And 7 Users

    2BChapter 3: Network and streaming configuring Windows Vista and 7 users Internet Explorer for Windows Vista and Windows 7 operating systems have increased security measures to protect your PC from any malicious software being installed. To have complete functionality of the Web browser interface with Windows Vista and Windows 7, do the following: •...

  • Page 22: Overview Of The Camera Web Browser

    2BChapter 3: Network and streaming configuring 3. Click OK. The Web browser screen appears in live mode. You can stop and start live view by clicking the Start/stop live view Note: button on the bottom of the screen. Overview of the camera Web browser The camera Web browser lets you view, record, and play back recorded videos as well as manage the camera from any PC with Internet access.
  • Page 23 2BChapter 3: Network and streaming configuring Figure 8: Web browser interface Item Name Description PTZ controls For future use. Live view Click to view live video. Playback Click to play back video. Click to search for event logs. There are four main information types: All, Alarm, Notification and Operation The Playback and Log functions are only available Note:...

  • Page 24: Configuring The Camera's Network Settings

    2BChapter 3: Network and streaming configuring Item Name Description Video image settings Click the required icon in the pop-up window and then slide the bar to adjust video image settings such as brightness, contrast, saturation, hue and exposure time (exposure time is equivalent to shutter speed).

  • Page 25: Local Configuration

    2BChapter 3: Network and streaming configuring Figure 9: Example of a configuration screen (Local configuration shown) Configuration panel Menu screen Current user displayed Exit system Save changes There are two main folders in the configuration panel:  Local configuration  Remote configuration Local configuration Use the Local menu to manage the network type, display mode and local storage paths.
  • Page 26 2BChapter 3: Network and streaming configuring Parameters Description Save captured picture as Specifies the directory for saving snapshot files. The default directory is C:\Program Data\Web\BMPCaptureFiles. Save playback captured Specifies the directory for saving playback files. The default picture as directory is C:\Program Data\Web\PlaybackFiles. Save download file as Specifies the directory for downloaded files.

  • Page 27: Information About The Camera

    2BChapter 3: Network and streaming configuring Configuration folders Description Serial settings Defines the RS-485 and RS-232 communication settings. See “Serial port settings” on page 25. Alarm parameters Defines how the camera handles alarms such as input type, notification of alarms, and response schedules and duration. See “Alarm parameters”...
  • Page 28 2BChapter 3: Network and streaming configuring Figure 11: Network subfolder screen (to be updated - no NFS) Table 4: Network parameters Parameters Description Network NIC type: Specifies the NIC type. Default is 10M/100M Auto. Other options include: 10M half-dup, 10M full-dup, 100M half-dup and 100M full-dup and 10M/100M auto.

  • Page 29: Serial Port Settings

    2BChapter 3: Network and streaming configuring To define the network parameters: 1. In the “Network Parameters” folder click the subfolder to Network setting open its screen. From the NIC Type drop-down list, select the required value. Enter the values for the IP address, subnet mask, gateway, DNS server and HTTP port. Click to save changes.
  • Page 30 2BChapter 3: Network and streaming configuring Figure 12: RS-485 setting menu When a parameter is modified in either of these menus, the camera will Note: prompt you to save and reboot. Table 5: RS-232 and RS-485 settings Item Description Bits per second Default baud rate value for the RS-232 port is 9600.

  • Page 31: Camera Configuration

    Chapter 4 Camera configuration This chapter explains how to configure the cameras through a Web browser. You must have administrator rights on your PC in order to configure the cameras over the internet. Camera parameters This section describes how to configure the camera settings from the Channel Parameter screen.

  • Page 32: Defining How Information Is Displayed On Screen

    3BChapter 4: Configuring the camera All changes made apply only to the camera being configured. Parameters cannot be copied to another camera. When schedule parameters are modified, the camera will prompt you to Note: reboot after the changes are saved. Figure 13: Channel parameters folder (Display setting menu shown) Defining how information is displayed on screen...

  • Page 33: Defining The System Time

    3BChapter 4: Configuring the camera 5. Select the time format from the list box. Formats include: 24- Time format hour and 12-hour. 6. Select a display mode for the camera from the list box. Display OSD Status modes include: • Non-Flashing.

  • Page 34: Alarm Parameters

    3BChapter 4: Configuring the camera 4. Click to save changes. Save Alarm parameters Use this menu to select how external alarm inputs and alarm outputs should be handled. Figure 14: Alarm input screen To set up an external alarm input: 1.

  • Page 35: Events Scheduling

    3BChapter 4: Configuring the camera 5. Click to save change Save The camera will prompt you to reboot in order for the schedule changes to ote: take effect. To set up an alarm relay output: 1. In the “Alarm Parameters” folder open the screen.

  • Page 36: Defining Recording Parameters

    3BChapter 4: Configuring the camera Figure 15: Deployment time menu To define an event schedule: 1. Click the “Deployment” folder to open its screen. 2. Under “Event type” select the option to be scheduled from the dropdown list. There are five options: Motion detection, input port 1, input port 2, output port 2 and output port 2.
  • Page 37 3BChapter 4: Configuring the camera Figure 16: Video setting menu Parameter Description Channel name Name of the camera Encoding parameters Specifies the dual streaming method used. Options include: Main stream and sub stream. Default is Main. Stream type Specifies the stream type you wish to record. Select Video to record video stream only.

  • Page 38: Defining A Recording Schedule

    3BChapter 4: Configuring the camera Parameter Description Frame rate Specifies the frame rate for the selected resolution. The frame rate is the number of video frames that are shown or sent per second. Default value is 25 (PAL)/ 30 (NTSC). I frame interval A video compression method.

  • Page 39: Motion Detection Alarms

    3BChapter 4: Configuring the camera • Motion detection • Alarm record • Motion or alarm • Motion and alarm 5. If you selected “Section recording”, click the day of the week required and then for section (period) 1 set the start and end times during which you want the camera to begin and end recording.
  • Page 40 3BChapter 4: Configuring the camera You can define the area on screen where the motion is detected, the level of sensitivity to motion, the schedule when the camera is sensitive to detecting motion as well as which methods are used to alert you to a motion detection alarm.
  • Page 41 3BChapter 4: Configuring the camera 1. In the Channel Parameters folder click the subfolder to Motion detection open its screen. 2. Check the box. Enable Motion Detection Deselect the “Enable Motion Detection” option to disable the motion Note: detection alarm. 3.

  • Page 42: Adding Extra On-Screen Text

    3BChapter 4: Configuring the camera 7. Click to save changes. Save Adding extra on-screen text You can add up to four lines of text on screen. This option can be used, for example, to display emergency contact details. Each text line can be positioned anywhere on screen.
  • Page 43 3BChapter 4: Configuring the camera Figure 18: Camera image settings menu (4CIF camera screen shown) Parameter Description Brightness Modifies the different elements of picture quality by adjusting Video saturation the position of the values for each of parameter. Sharpness Shutter The shutter speed controls the length of time that the aperture is open to let light into the camera through the lens.
  • Page 44 3BChapter 4: Configuring the camera Parameter Description WDR level 1 4CIF camera models only. WDR level 2 When enabled, this feature (wide dynamic range) allows you to see details of objects in shadows or details of objects in bright areas of frames that have high contrast between light and dark areas.

  • Page 45: Camera Management

    Chapter 5 Camera management This chapter describes how to use the camera once it is installed and configured. The camera is accessed through a Web browser. User management This section describes how to manage users from the “User Management” screen. You can: ...

  • Page 46: Adding And Deleting Users

    4BChapter 5: Camera management Note: Keep the admin password in a safe place. If you should forget it, contact technical support. You can control who can connect to a camera by the user IP and physical (MAC) addresses entered for a user. Setting up a user with a MAC address from the user’s computer prohibits access to the camera from other computers.

  • Page 47: Modifying User Information

    4BChapter 5: Camera management 6. Select the type of user from the drop-down list. The options are Viewer and Operator. 7. Click to save the changes and return to the main “User management” screen. To delete a user: 1. Click the folder to open its screen.

  • Page 48: Restoring Default Settings

    4BChapter 5: Camera management To format the SDHC card: 1. Click the folder to open its screen. HDD Management 2. Click in the HDD Number column to select the SDHC card. Only Select All one HDD option is listed. 3. Click Format. A screen appears showing the formatting status. Restoring default settings Use the Default menu to restore default settings to the camera.

  • Page 49: Rebooting The Camera

    4BChapter 5: Camera management To upgrade the firmware through the Web browser: 1. Download on to your computer the latest firmware from our web site at: www.utcfssecurityproductspages.eu/videoupgrades/ 2. In the “Remote configuration” folder select the subfolder “Remotely upgrade” to open the “Remotely upgrade” screen. 3.
  • Page 50 4BChapter 5: Camera management TruVision IP Dome Open-Standards User Manual...

  • Page 51: Camera Operation

    Chapter 6 Camera operation This chapter describes how to use the camera once it is installed and configured. Logging on and off You can easily login and out of the camera browser screen by clicking the Login button on the menu toolbar. You will be asked each time to enter your user name and password when logging in.

  • Page 52: Adjusting The Image Quality

    5BChapter 6: Camera operation Adjusting the image quality Click the image quality button in the live mode screen to get a pop-up window that lets you adjust video image settings such as brightness, contrast, saturation, hue and exposure time (see Figure 8 on page 19). Changes appear immediately and are also applied to the settings in the menu “Camera image settings”...
  • Page 53 5BChapter 6: Camera operation Figure 21: Playback screen Item Name Description Playback button Click to open the Playback screen. Full screen Click to view as full screen. Current status Displays recording type currently being played. Search calendar Click the day required to search. You cannot search by particular criteria such as alarm type or time.

  • Page 54: Searching Event Logs

    5BChapter 6: Camera operation Item Name Description Recording type The color code displays the recording type. Recording types are schedule recording, alarm recording and manual recording. The recording type name is also displayed in the current status window. Archive functions Click these buttons for the following archive actions: Capture a snapshot image of the playback video.
  • Page 55 5BChapter 6: Camera operation Figure 22: Log screen 1. Logs type 4. Start search 2. Date search 5. Export log. Save selected logs to your computer desktop. 3. Start and end search times You can search for recorded logs by the following criteria: Log type: There are three types of logs: Alarm, Notification and Operation.

  • Page 56: Archiving Recorded Files

    5BChapter 6: Camera operation To search logs by type: 1. Click in the menu toolbar to display the Log screen. 2. In the Log Type drop-down list select the desired option. 3. Click to start your search. The results appear in the screen. Search To search logs by date and time: 1.

  • Page 57: Using Presets

    5BChapter 6: Camera operation 2. Repeat step 1 to create additional segments. You can generate up to 30 additional segments. The video segments are saved onto your computer desktop. Using presets This function is for future use. TruVision IP Dome Open-Standards User Manual...
  • Page 58 5BChapter 6: Camera operation TruVision IP Dome Open-Standards User Manual...

  • Page 59: Specifications

    Appendix A Specifications TruVision IP Dome Open-Standards cameras Electrical Voltage input 12 VDC, PoE (IEEE 802.3af) Power consumption 4.5 W max. TVD-N210V-2-N(-P), TVD-M2210V-2-N(-P), TVD-M2215V-2-N(-P), TVD-M3210V-2-N(-P), TVD-M3215V-2-N(-P) 5 W max. TVD-M5225V-4-N(-P) 5.5 W max. TVD-N245V-2-N(-P) 7.5 W max. TVD-M1210V-2-N(-P), TVD-M1225V-2-N(-P), I/O connection DC jack flying lead, RJ45 flying lead Network Protocols...

  • Page 60: Ip Wedge Dome Cameras

    6BAppendix A: Specifications PC requirements Intel-based PC 1 GHz or faster Memory I GB RAM Operating system Windows® XP, Vista or Windows 7 Direct X 9.0 or later Browser Microsoft Internet Explorer 6.0 or later IP wedge dome cameras Electrical Voltage input 12 VDC, PoE (IEEE 802.3af) Power consumption...

  • Page 61: Appendix B Pin Definitions

    Appendix B Pin definitions There are eight wires on a standard UTP/STP cable and each wire is color- coded. The following shows the pin allocation and color of straight and crossover cable connection: Figure 23: Straight-through cable White/Orange White/Orange Orange Orange White-Green White-Green...
  • Page 62 7BAppendix B: Pin definitions Please make sure your connected cables have the same pin assignment and color as above before deploying the cables in your network. TruVision IP Dome Open-Standards User Manual...

  • Page 63: Warranty Information

    (Monday through Friday, excluding holidays). Note: Please be ready at the equipment before calling. Table 7: Technical support Europe, Middle East, and Africa Select Contact Us at www.utcfssecurityproducts.eu North America +1 855.286.8889 techsupport@interlogix.com Australia security.tech.support@interlogix.com.au TruVision IP Dome Open-Standards User Manual...
  • Page 64 8BAppendix C: Warranty and contact information TruVision IP Dome Open-Standards User Manual...
  • Page 65 Index set up, 28 Alarm configuration, 30 response method, 30 E-mail setup Alarm inputs configuration, 30 alarm response method, 30 Alarm outputs configuration, 30 configuring, 25 Alarm settings Events alarm relay output, 31 searching logs, 50 Alarm types Events schedule motion detection, 35 defining, 31 Archived files...
  • Page 66 Index Mounting dome cameras, 9 main/sub setup, 21 Mounting mini-wedge camera, 11 System time set up, 29 Network parameters, 23 Network protocol Text setup, 21 adding extra lines of text on screen, 38 Network settings Text display on-screen configuring, 20, 24 appearance, 28 overview of local camera parameters, 21 Time format set up, 28...
