Basic Operation
This chapter provides a quick description of how to
operate the 960L. Chapter 4, Operations in Detail,
provides a more complete description of all available
functionality.
PROGRAM
REGISTER
EDIT
PROGRAMS**
EDIT
CLEAR ALL
DELETE
INSERT/
WRT OVR
HOME
END
SAVE (IF
BANK)
Dedicated control keys shown with square corners, soft buttons with rounded corners,
and Option soft buttons with dashed outlines. Controls with ** in their labels initiate no action.
STORE
EDIT
FLOPPY
REGISTER REGISTER
EDIT
EDIT
NAME
NAME
INFO INFO
CANCEL

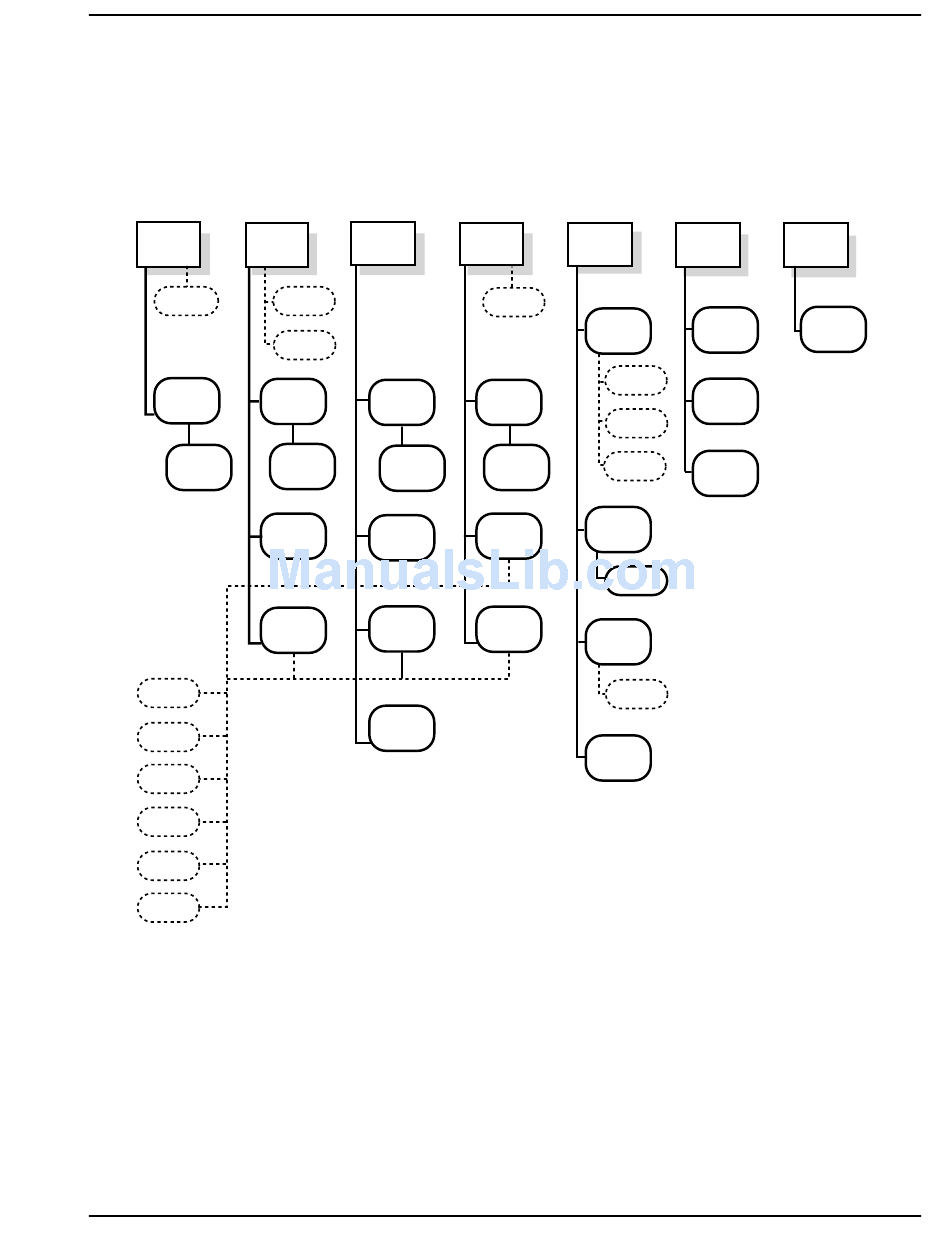

Figure 3-1 — Overview of 960L control system.

An Overview of the Controls

Figure 3-1 is a general map to the LARC2's control keys
and the ways they take you through the 960L's user
interface.
EDIT
BANK
EDIT (IF
REGISTER)
ALGRITHM
SELECT
(ALG)
PROGRAM
OR
REGISTER
V-PAGE
EDIT (IF
J-STICK
REGISTER)
INPUT
NAME (IF
REGISTER)
J-STICK
INFO (IF
REGISTER)
OUTPUT
J-STICK
V-PAGE
