Indoor Unit
5.1
RAV-134C-PE
RAV-134TU-PE
Strainer

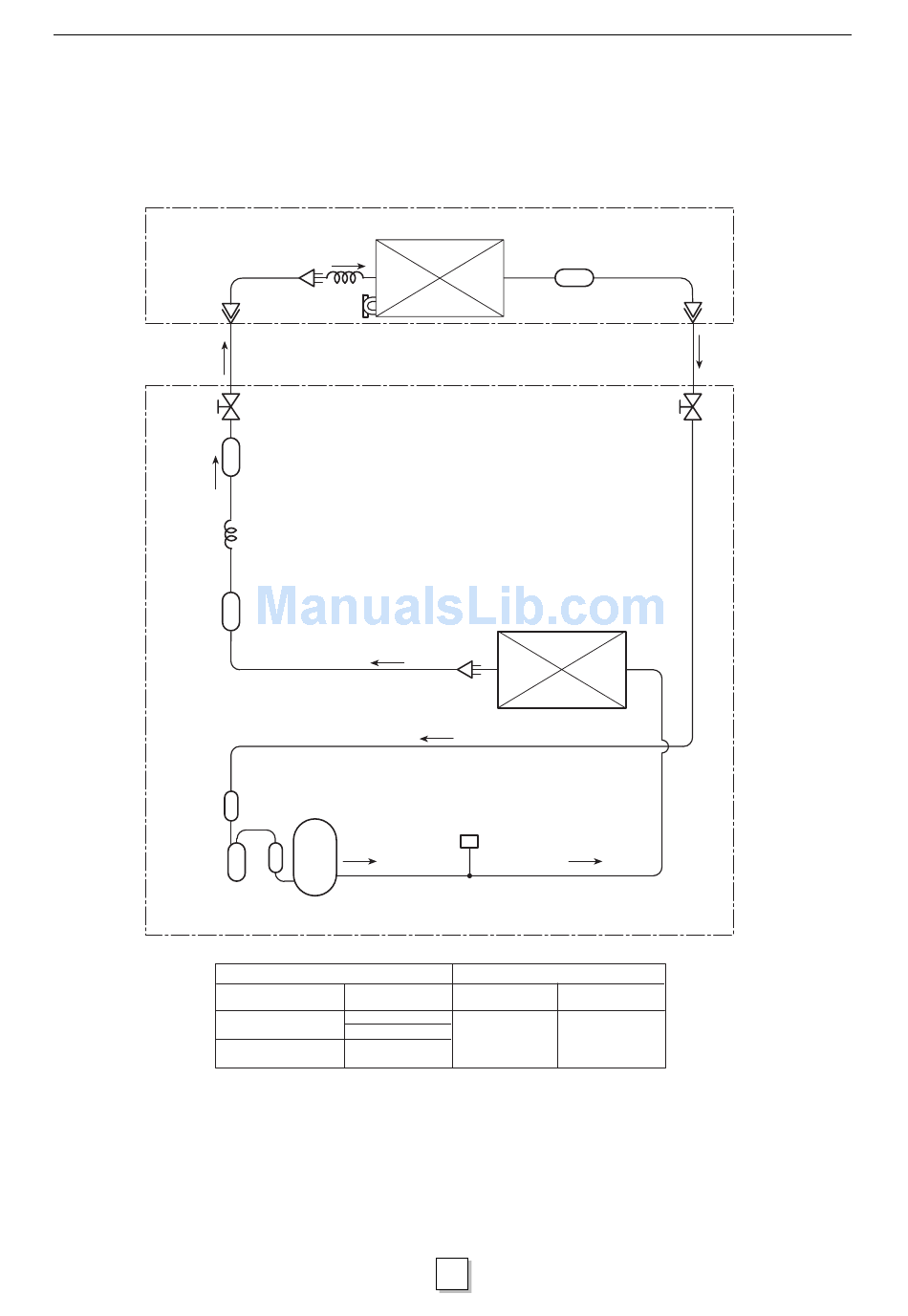

5. REFRIGERANT PIPING DIAGRAMS

Outdoor Unit
RAV-134A-PE
Distributor strainer
& capillary tube
TC Sensor
Refrigerant pipe (Smaller side)
¿6.4mm (1/4")
Packed valve
Liquid tank
Capillary tube
Dryer
Compressor
Accumulator
INDOOR UNIT
Capillary
Model
ID¿2.0x300Lx2P
RAV-134C-PE
ID¿2.0x200Lx2P
RAV-134TU-PE
ID¿2.4x300Lx2P
Indoor unit
Heat exchanger
Strainer
Refrigerant pipe (Larger side)
Heat exchanger
Distributor
Pressure switch
Outdoor unit
OUTDOOR UNIT
Model
RAV-134A-PE ID¿2.6x400Lx1P
41
¿12.7mm (1/2")
Packed valve
Main
Capillary
