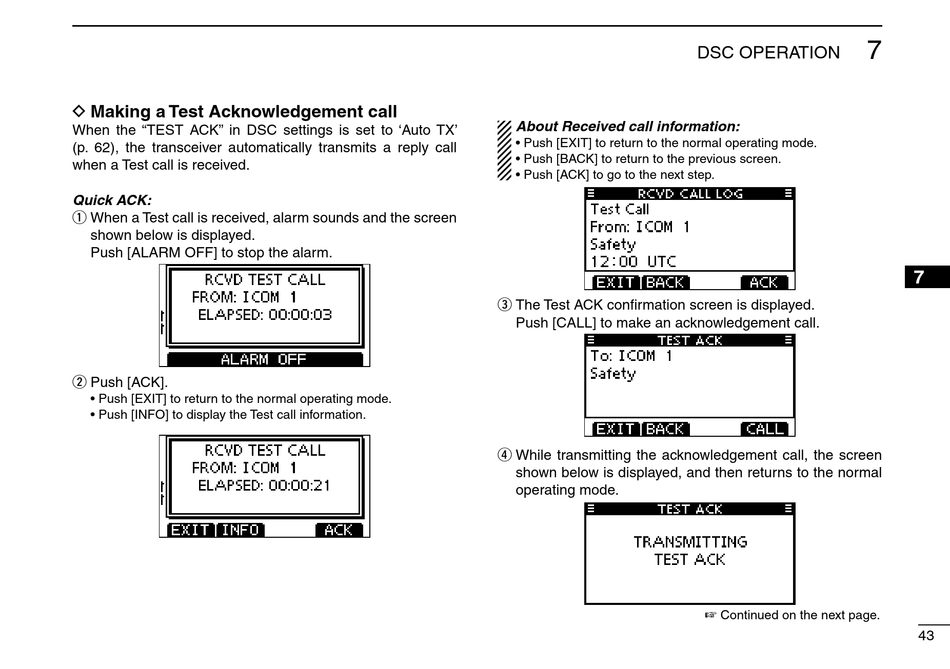

Icom IC-M323 Instruction Manual page 53

D Making a Test Acknowledgement call
When the "TEST ACK" in DSC settings is set to 'Auto TX'
(p. 62), the transceiver automatically transmits a reply call
when a Test call is received.
Quick ACK:
When a Test call is received, alarm sounds and the screen
q
shown below is displayed.
Push [ALARM OFF] to stop the alarm.
Push [ACK].
w
• Push [EXIT] to return to the normal operating mode.
• Push [INFO] to display the Test call information.
About Received call information:
• Push [EXIT] to return to the normal operating mode.
• Push [BACK] to return to the previous screen.
• Push [ACK] to go to the next step.
The Test ACK confirmation screen is displayed.
e
Push [CALL] to make an acknowledgement call.
While transmitting the acknowledgement call, the screen
r
shown below is displayed, and then returns to the normal
operating mode.
7
DSC OPERATION
+ Continued on the next page.
