Personal Panic Device Installation Sheet
Description
The Personal Panic Device is a wireless
device that can be used to activate police or
auxiliary alarms throughout the premises.

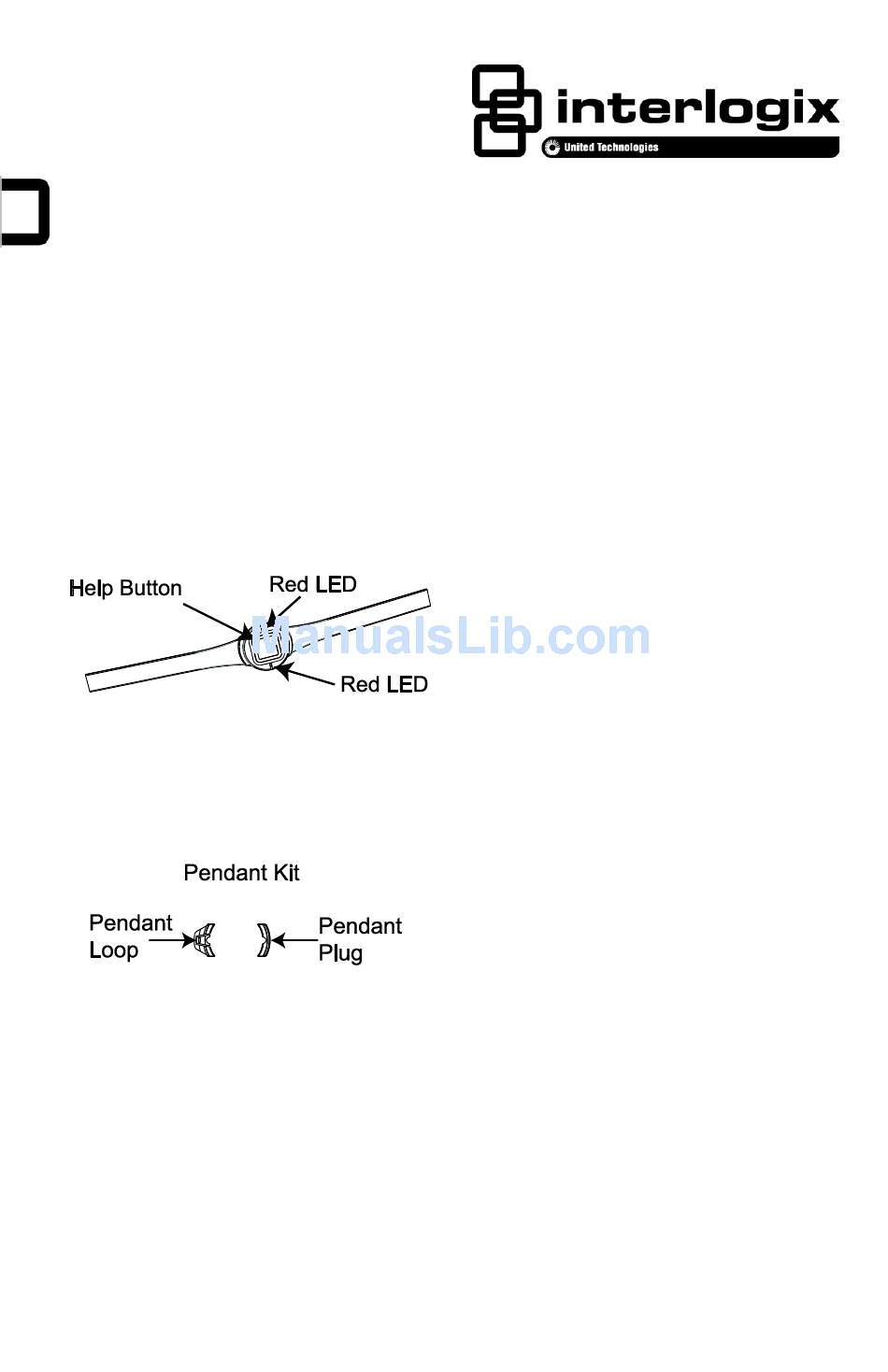

When the help button is pressed, both red
LEDs flash and information is transmitted.
The transmitted signal includes alarm and
battery status information. When the help
button is released, an alarm-restore-all
message is sent. Note: To activate, press
and hold the help button until the red LEDs
stop flashing, then release the button.
The Personal Panic Device is shipped with
a watch type wristband installed. A pendant
adaptor kit and lanyard are also included for
an optional necklace arrangement. The
pendant kit includes a pendant loop and a
pendant plug (shown below).
The Personal Panic Device is water
resistant and has been tested in water at
three meters for one hour.
P/N 466-4431 • REV B • 14FEB14
Installation
Assembly Guidelines
•
Program the Personal Panic Device
into the appropriate panel groups.
Refer to the "Programming" section for
more information.
•
The transmitter on the Personal Panic
Device has a maximum range of 375
feet. Test the device at the outer limits
of the installation to ensure it works
properly. The outer limits may vary due
to different environments that may
affect the range. Refer to the "Testing"
section for more information.
•
Verify the user can activate the help
button by pressing it with their thumb
or finger.
•
When worn as a pendant, it is
important that the user does not
activate the help button by pressing it
against their chest. This may reduce
the signal's effective range.
Watch Style Wristband
Adjust the length of the wristband by
measuring and cutting the band in the
following manner:
1. Position the wristband tightly around
the wrist and in the intended position
as shown in Step 2.
2. Using a washable marker, place a
mark on the edge of each strap, near
the center of the wrist.
