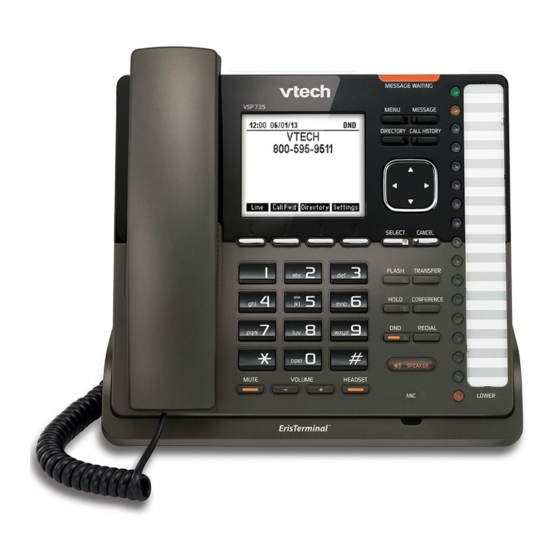

VTech VSP735 Quick Start Manual

Sip endpoint deskset
Hide thumbs Also See for VSP735:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Administrator and Provisioning Manual, User Manual
Quick Start Guide
VSP735
SIP Endpoint Deskset

Advertisement

Table of Contents
loading

Related Manuals for VTech VSP735

Summary of Contents for VTech VSP735

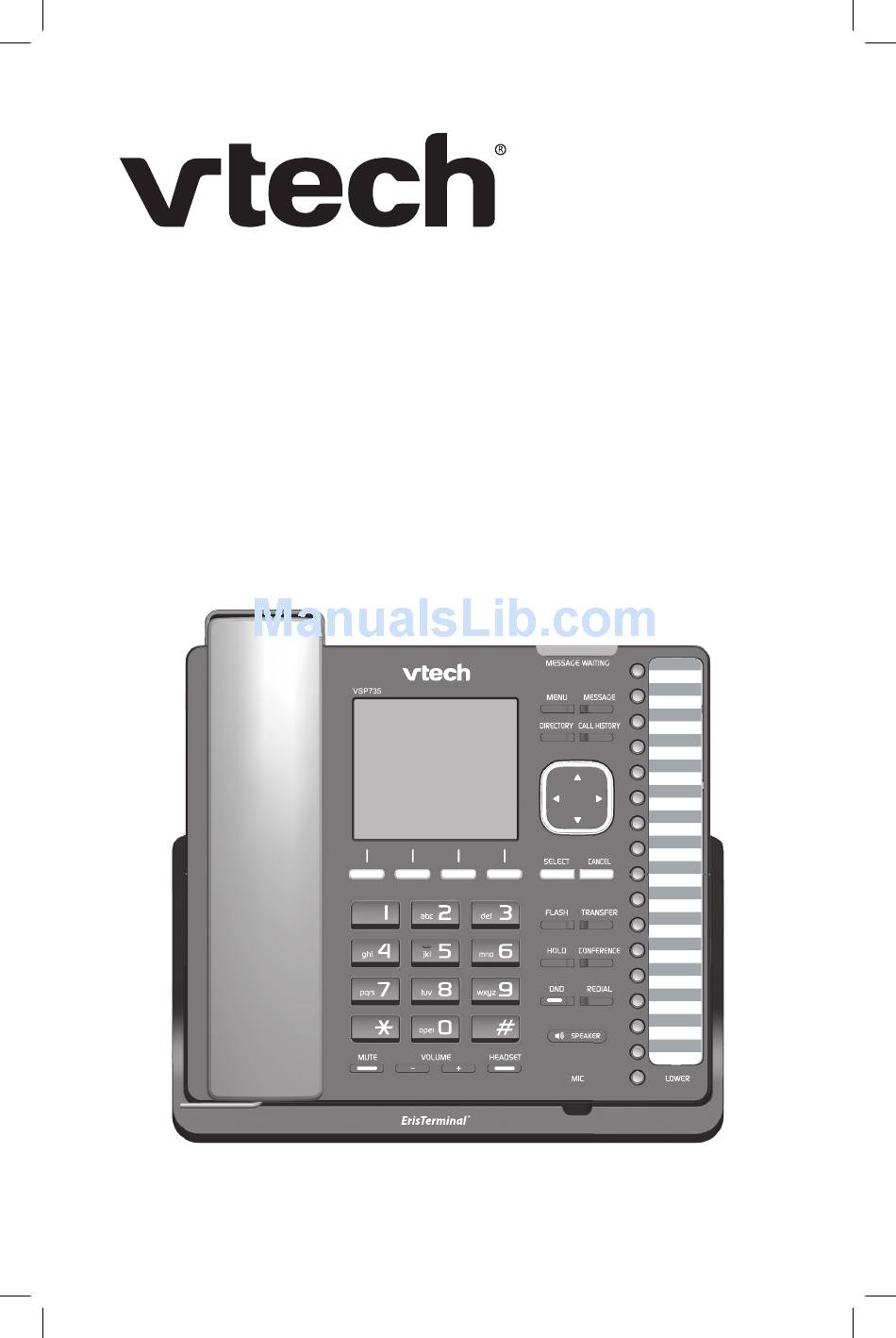

  • Page 1 Quick Start Guide VSP735 SIP Endpoint Deskset...

  • Page 2: Important Safety Information

    Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the...
  • Page 3 12. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the telephone base or handset other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used.
  • Page 4 19. Use only the power cord indicated in this manual. 20. In wall mounting position, make sure to mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone base down on both mounting studs until it locks into place. Refer to the full instructions in Deskset Installation in the User Guide.
  • Page 5 Compliance FCC part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: About This Guide

    About this Guide This quick start guide provides a reference for the external features of the phone and basic installation instructions. Please refer to the VSP735 Deskset User Guide for complete installation and operation instructions. You can download the guide from businessphones.vtech.com For customer service or product information, visit our website at businessphones.vtech.com...

  • Page 7: Quick Reference Guide

    Quick Reference Guide MENU SCREEN Press to display Displays call information, the deskset menu. soft key labels, and deskset menus. MESSAGE WAITING indicator Flashes when you have a new voice message. MESSAGE Press to display the message menu. CALL HISTORY Press to view caller ID information.
  • Page 8 Quick Reference Guide External Features Programmable keys Perform various functions and access various features. For example: • Press to access a line to make a call. • Press to dial a monitored extension or a quick-dial number. • Press to answer a ringing call on any line or monitored extension.

  • Page 9: Deskset Installation

    This section assumes that your network infrastructure is established and that your IP PBX phone service has been ordered and configured for your location. For more information about installation options and phone setup, see the VSP735 Deskset User Guide and the VSP735 Deskset Administrator and businessphones.vtech.com Provisioning Manual, available at You can power the phone using the supplied power adapter or using Power over Ethernet (PoE) from your network.
  • Page 10 Installing the phone Make sure you plug in the Ethernet cable before powering up the phone. 1. Attach the stand. a. Lift the kickstand and flip it back. Let it rest at its maximum angle. b. Snap the stand onto the two snap points on the deskset base. 2.
  • Page 11 IMPORTANT INFORMATION 1. Use only the power adapter supplied with this product. To order a replacement power adapter, visit our website at businessphones.vtech.com 1 (888) 370-2006 or call 2. The power adapter is intended to be correctly oriented in a vertical or floor mount position.
  • Page 12 If there is a networked computer and no extra Ethernet wall ports near the phone, then the phone and PC can share the same network connection. To share a network connection with a PC: 1. Plug a Cat.-5 Ethernet cable into the PC port on the phone (marked by 2.
  • Page 13 6. Align the upper wall mounting hole on the back of the phone with the upper tab of the standard wall plate. Make sure the lower wall mounting hole on the mounting bracket also aligns with the lower tab of the standard wall plate. Push the phone down until it clicks securely in place.

  • Page 14: Maintenance

    Maintenance Taking care of your telephone • Your telephone base contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the corded handset down gently. • Save the original packing materials to protect your telephone base if you ever need to ship it.
  • Page 16 VTECH COMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications Inc., Beaverton, Oregon 97008. VTech is a registered trademark of VTech Holdings Limited. Copyright © 2014 for VTECH COMMUNICATIONS LTD. All rights reserved.
