Axis 2100 User Manual

Network camera
Hide thumbs Also See for 2100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

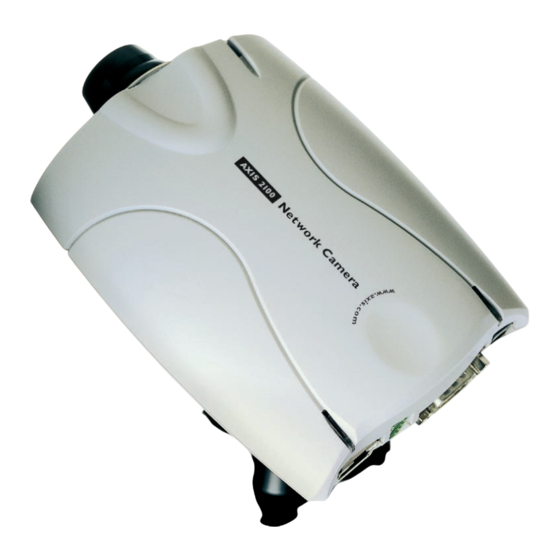

A X I S 2 1 0 0
N E T W O R K
C A M E R A
Live web
images unleashed.

Advertisement

Table of Contents
loading

Related Manuals for Axis 2100

Summary of Contents for Axis 2100

  • Page 1 A X I S 2 1 0 0 N E T W O R K C A M E R A Live web images unleashed.
  • Page 2 Follow the instructions below to quickly install the AXIS 2100 on an Ethernet network. If you do not have a network and intend to use a modem with your AXIS 2100, please refer to the UsingYour Camera with a Modem section of this User’s Guide.
  • Page 3 AXIS 2100 Network Camera User’s Guide...

  • Page 4: About This Document

    Every care has been taken in the preparation of this manual; if you This document is intended for administrators and users of the detect any inaccuracies or omissions, please inform your local Axis AXIS 2100 Network Camera, and is applicable for software office.

  • Page 5: Table Of Contents

    Checking the Hardware Inventory ..........9 Connecting the AXIS 2100 to a Mounting Assembly ......9 Choosing Your Application .

  • Page 6: Overview

    AXIS 2100 User’s Guide Overview The AXIS 2100 is a digital TCP/IP network camera that includes all of the required networking connectivity for distributing images or live video over an intranet, or the Internet. With its own built-in Web server, it allows high-quality remote surveillance images to be viewed directly from any browser on the network, and provides full Web-based control of the various management and configuration functions.

  • Page 7: Features And Benefits

    High Compression and Sensitivity - The fully configurable compression features afforded by the AXIS ARTPEC chip allow a normal quality image to be compressed to around 8 kbytes. Actual file sizes vary according to lighting conditions; although the product works well even in dark environments - right down to 3 lux.
  • Page 8 Compression and Performance - With an adaptive frame rate dependent on the prevailing lighting conditions, the AXIS 2100 delivers Motion-JPEG images at up to 10 images per second, as well as single JPEG images that feature user-defined compression levels. See also Picture frequency for Networking Applications, on page 11.

  • Page 9: Physical Description

    • red - the indicator will display red only if a problem with the AXIS 2100 has occurred. Refer to Appendix A - Troubleshooting. Note: The Status indicator also displays orange when re-setting to the factory default settings, as described in Reinstating the Factory Default Settings, on page 40.

  • Page 10: Rear Panel

    - or alarm based - events. The connector can also be utilized as an alternative connection point for DC supply to the unit. Note: The power supply supplied with your AXIS 2100 is country specific. Please check that the type of power supply you are using is correct. See page 9.

  • Page 11: Assembling Your Camera

    Fasten the AXIS 2100 to the mounting assembly and position it appropriately for your application; three holes in the base unit allow the product to be securely fastened to any wall or ceiling. Note: If you need to mount your camera upside-down, the AXIS 2100 can be easily configured to flip images through 180...

  • Page 12: Choosing Your Application

    If you have access to a local Ethernet connection at your chosen point of installation, you only need to plug the AXIS 2100 onto your LAN/WAN and set the IP Address to instantly view the images from any desktop on your network.
  • Page 13 AXIS 2100 User’s Guide Choosing Your Application Picture frequency for Networking Applications When used in a TCP/IP networking environment, the AXIS 2100 delivers up to 10 images/second; where the actual image frequency is typically limited by: • your Web browser/computer •...
  • Page 14 Configure your AXIS 2100 for viewing images over a network as follows: 1. Connect the AXIS 2100 to your local network. Refer to Installing Your Camera on a Network, on page 20. 2. Open the Home Page in your browser and start the Installation Wizard. Complete the Wizard to establish the standard Security, Date and Time, Image General Layout and TCP/IP Network settings - selecting network as your chosen method of connection in the Modem or Network dialog.
  • Page 15 Configure the AXIS 2100 to actively upload images to an FTP server as follows: 1. Connect the AXIS 2100 to your local network. Refer to Installing Your Camera on a Network, on page 20. 2. Open the Home Page in your browser and start the Installation Wizard. Complete the Wizard to establish the standard Security, Date and Time, Image General Layout and TCP/IP Network settings - selecting network as your chosen method of connection in the Modem or Network dialog.
  • Page 16 You configure the AXIS 2100 to upload Pre and/or Post Alarm images, as follows: 1. Connect the AXIS 2100 to your local network. Refer to Installing Your Camera on a Network, on page 20. 2. Open the Home Page in your browser and start the Installation Wizard. Complete the Wizard to establish the standard Security, Date and Time, Image General Layout and TCP/IP Network settings - selecting network as your chosen method of connection in the Modem or Network dialog.

  • Page 17: Modem Applications

    V.90 modems that do not work with the product. • When the AXIS 2100 is dialing out it will obviously not be possible to dial-in to it. If you configure an interval during which the camera will not be dialling out, this will allow you to dial-in and make any necessary changes etc.
  • Page 18 Ideal for remote surveillance, industrial control, and process monitoring applications, you can quickly configure the AXIS 2100 for a direct installation to your serial modem. This is suitable for a wide range of remote applications that can be viewed from anywhere, from the comfort of the computer at home, or the office.
  • Page 19 7. Disconnect the camera from the network or Null Modem Cable and connect it directly to your modem. 8. Your application is now complete. You should now verify the installation by remotely accessing the AXIS 2100 Web pages from your browser via the connected modem.
  • Page 20 ISP. Notes: •By configuring the AXIS 2100 to accept incoming calls, you can at any time refine or amend the product configuration remotely via a Dial-up connection - or locally, either from the Ethernet network or via a computer connected via the supplied Null Modem Cable.
  • Page 21 ISP. Notes: •By configuring the AXIS 2100 to accept incoming calls, you can at any time refine or amend the product configuration remotely via a Dial-up connection - or locally, either from the Ethernet network or via a computer connected via the supplied Null Modem Cable.

  • Page 22: Installing Your Camera On A Network

    Installing Your Camera on a Network Important! To install the AXIS 2100 to a modem, see Using Your Camera with a Modem, on page 26. Quick Installation Procedure Follow the instructions below to quickly install the AXIS 2100 onto an Ethernet network: Important! •...
  • Page 23 Network Indicator flashes intermittently. Network Indicator Power Indicator Exit ping and check the installation The installation is now complete, and you are ready to access the AXIS 2100 from your Web browser, as described in the next section...

  • Page 24: Verifying The Installation From Your Browser

    Axis' ActiveX component onto your workstation. How- ever, if your computer environment restricts or prohibits the installation of additional software compo- nents, you can alternatively set your AXIS 2100 to use a Java applet for updating the images. This is done from Image settings.

  • Page 25: Alternative Methods Of Assigning The Ip Address

    This root pass- word must, however, be changed as soon as possible, to enable the security function. Furthermore, all Axis products are shipped with the same password as default. For further information, refer to System Security, on page 39.
  • Page 26 2. Restart your AXIS 2100 by disconnecting the power supply and then reconnecting it. 3. Select the serial number of your AXIS 2100 from the list. The serial number is identical to the unit’s Ethernet address, found on the underneath of the unit.
  • Page 27 3. If it is not already running, start the BOOTP daemon. This is typically done using the command bootpd 4. Restart the AXIS 2100 to download the IP address, default router address, and subnet mask. Mapping a Host Name to the IP Address If you are using host names, you can also map a unique host name to the acquired IP address.

  • Page 28: Using Your Camera With A Modem

    AXIS 2100 User’s Guide Using Your Camera with a Modem The information in this section describes how to set up the AXIS 2100 for use with a serial modem for transmitting images over a standard Dial-up connection. Before You Begin Before you can set up and access a modem-connected AXIS 2100 from a Web browser, you must first create a local connection to it.
  • Page 29 AXIS 2100 User’s Guide Using Your Camera with a Modem 4. Start your Dial-up Networking session, and enter any URL: the AXIS 2100 emulates a DNS server and will respond to this regardless. 5. Start the Installation Wizard and Administration Tools to further configure the product, as...
  • Page 30 Windows Dial-up Networking and TCP/IP must be correctly installed prior to commencing with the modem cable connection. Detailed information on how to check this is provided in the Microsoft Windows Help. Follow the steps below to configure a serial modem connection for your AXIS 2120: Connect the supplied Null...
  • Page 31 AXIS 2100 User’s Guide Using Your Camera with a Modem Creating a Dial-up Networking Connection... Follow the steps below to create a dedicated Dial-up networking connection to your AXIS 2100: Double-click My Computer and then double-click the Dial-Up Networking icon.
  • Page 32 Using Your Camera with a Modem AXIS 2100 User’s Guide Refining the Dial-up Networking Properties... Having created the Dial-up connection for your AXIS 2100, follow the steps below to refine the connection properties: From the Dial-up Networking dialog, right click the...
  • Page 33 Dial-Up connection. Verifying the Modem Connection... Having initiated your Dial-up connection, as described above, you can quickly check the connection by accessing the AXIS 2100 with a standard Web browser; such as Netscape or Internet Explorer as follows: abc.xyz...

  • Page 34: Adjusting The Camera Focus

    Good Rotational Focus Control The lens provided with the AXIS 2100 has rotational focus control that allows the focal length of the lens to be adjusted manually. The lens is used to establish the basic level of focus when the image is stable, that is, when there is little or no movement.
  • Page 35 Control Button 1.0mm max. Paper clip The Focus Assistant is now enabled with the Status Indicator set to Focus Mode; the AXIS 2100 simultaneously initiates a focusing algorithm that regularly calculates the quality of focus within the camera's field of view.

  • Page 36: Replacing The Lens

    Although the lens supplied with your camera can be replaced with any CS-type lens, a C-type lens must first be fitted with an adaptor for it to work with your AXIS 2100. This adaptor effec- tively moves the lens 5mm farther from the camera.

  • Page 37: Configuring Your Camera

    All Axis products are shipped with the same password as default. For further information, refer to System Security, on page 42.

  • Page 38: The Administration Tools

    The Web-based Administration Tools are used for configuring and managing your AXIS 2100. After initially setting up the AXIS 2100 with the Installation Wizard, these tools are ideal for use by more advanced users when reviewing and refining the configuration.
  • Page 39 Follow the instructions below to access the Administration Tools using a standard Web browser: 1. Start the Web browser and enter the name or Internet address of the AXIS 2100 (or any DNS name if you are accessing the unit via the Null Modem Cable) in the location/address field.
  • Page 40 Configuring Your Camera AXIS 2100 User’s Guide 3. The Administration Tools are now presented as links in the margin of the Administration Page. Simply click the relevant link for the parameters you want to configure. As an Administrator, you configure and modify the system directly from this page.

  • Page 41: System Security

    Links directly to the Home Page of your application. System Security To prevent any unauthorized use of the AXIS 2100, the AXIS 2100 supports multi-user password protection and access is strictly restricted to defined users only. The system Administrator(s) has exclusive access to the camera’s Administration Tools and can determine the registration, and access...

  • Page 42: Reinstating The Factory Default Settings

    All Axis products are shipped with the same password as default. • By default, the AXIS 2100 is set for anonymous user access, which means that anybody on the Inter- net/intranet can view the video images from a Web browser. To restrict open access, simply register a single authorized user with viewing rights.

  • Page 43: Appendix A - Troubleshooting

    Q: Can I set up my camera to run as a PC-cam on my computer? A: No. The AXIS 2100 is a network camera for use only on Ethernet networks or with a modem. Q: Do I have to use the Wizards whenever I want to make changes? A: No.

  • Page 44: Pinging Your Ip Address

    1. Disconnect your AXIS 2100 from the network. 2. Start a DOS window. 3. Type , where x.x.x.x is the IP address of the AXIS 2100. ping x.x.x.x The subsequent replies as shown in the table below will provide an explanation as to the cause of...

  • Page 45: Problems, Possible Causes And Remedial Actions

    - you should then proceed as follows: In Windows 95/98 or Windows NT/2000, check that the IP address for your AXIS 2100 is on the same subnet as your workstation: 1. Click "Start", "Settings", "Control Panel" and "Network".
  • Page 46 Incorrect use of the cable. The null modem cable is not intended for use as a serial connection for the AXIS 2100, i.e. it cannot be used to run the AXIS 2100 as a "PC camera". The Power indicator is not Faulty power supply.
  • Page 47 AXIS 2100 in a more shaded location immediately. bright. This can happen Note: damage caused to the AXIS 2100 through over expo- e.g. with sunlight reflexes. sure to direct sunlight or halogen light is not covered under the product warranty.

  • Page 48: Appendix B - Updating The Software

    New software can be simply loaded into the AXIS 2100 over the network. Obtaining Updated Software The latest version of the AXIS 2100 software is available free of charge from the Axis Website at www.axis.com, or from your local distributor.

  • Page 49: Appendix C - The Unit Connectors

    This section provides a detailed overview of the two supported product connectors: the Serial Connector and the IO Connector. It also includes connection diagrams for simple door switch and an LED output, as well as a more complete schematic diagram describing how the AXIS 2100 is connected for a typical application.

  • Page 50: Digital Input

    As a power input it can be used for remote applications to supply the AXIS 2100 via an external direct current source; for example, a 9-15V DC battery supply. Used as a power output, it can drive the photo coupled input or other equipment;...
  • Page 51 AXIS 2100 User’s Guide The Unit Connectors Connection Diagram for a Simple Door Switch Door Switch DC Power AXIS 2100...
  • Page 52 The Unit Connectors AXIS 2100 User’s Guide Connection Diagram for an LED indicator Output LED Indicator Output DC Power Resistor AXIS 2100...
  • Page 53 AXIS 2100 User’s Guide The Unit Connectors Schematic Connection Diagram of the I/O and RS232 Connector AXIS 2100 Internal 3.3V Switch PS-D Mode 9 VA Power Supply Infrared Sensor Appliance Main Power GND PIN 5 COM 1 GND. Pins 1 and 2 are connected to the derived DC power for the unit, and can be used as an external power feed for external equipment;...

  • Page 54: Appendix D - High Speed Services

    Ideally, your ISP (Internet Service Provider) will provide you with several external static IP addresses - in which case you can assign any one of these to your AXIS 2100 to make it fully accessible over the internet. However, if your service provider supplies you with only one IP number - which is often the case - this IP number is normally assigned to your PC - leaving no connection available for your AXIS 2100.
  • Page 55 TCP/IP. For more advanced users, the WinGate 3.0 Standard and Pro versions also allow the administrator to change the IP bindings so that external requests may be routed specifically to your AXIS 2100 - running behind the WinGate software.

  • Page 56: Appendix E - Technical Specifications

    System Requirements - TCP/IP on Windows 95, 98, NT and 2000, as well as Linux, UNIX, Mac and several others. Microsoft Internet Explorer 4.x, or higher (used with Axis’ ActiveX component AXIS Camera Control), or Netscape 4.x or higher. Network Connection - RJ45 twisted pair cable, or remote connection using any standard serial modem.

  • Page 57: Index

    AXIS 2100 User’s Manual Index Focus Mode 32 Index Focus Quality 32 Home page 22 Access rights 40 HTTP 5 Admin 40 Dial-in 40 View 40 I/O Connector 8 Administration Tools 37 Internet address 43 Anonymous user access 40 ARP 43...
  • Page 58 Index AXIS 2100 User’s Manual RS232 connector 8 diagram 47 Serial number 7 SMTP 5 Status Indicator 32 technical specifications 54 triggering images 48 troubleshooting 41, 47 WinGate 53 xDSL 52...

  • Page 59: Glossary Of Terms

    IP-address for your product. PPP - Point-to-Point Protocol. A method allowing one computer to ARTPEC - Axis Real Time Picture Encoder - used for image connect to another, usually via a modem over a phone line. compression.
