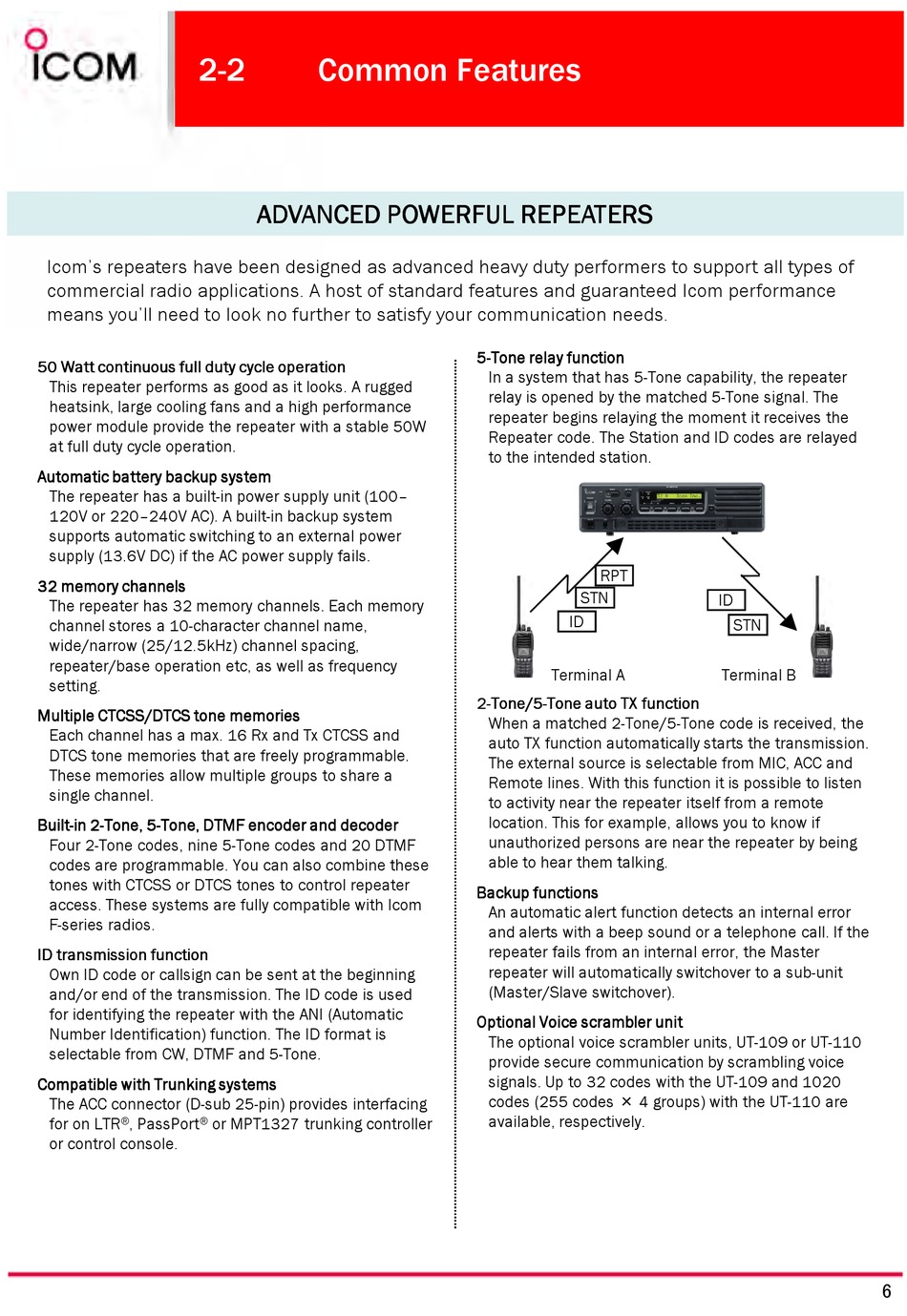

Common Features - Icom IC-FR3000 Series Sales Handbook

2-2
Icom's repeaters have been designed as advanced heavy duty performers to support all types of
commercial radio applications. A host of standard features and guaranteed Icom performance
means you'll need to look no further to satisfy your communication needs.
50 Watt continuous full duty cycle operation 50 Watt continuous full duty cycle operation 50 Watt continuous full duty cycle operation 50 Watt continuous full duty cycle operation
This repeater performs as good as it looks. A rugged
heatsink, large cooling fans and a high performance
power module provide the repeater with a stable 50W
at full duty cycle operation.
Automatic battery backup system Automatic battery backup system Automatic battery backup system Automatic battery backup system
The repeater has a built-in power supply unit (100–
120V or 220–240V AC). A built-in backup system
supports automatic switching to an external power
supply (13.6V DC) if the AC power supply fails.
32 memory channels 32 memory channels
32 memory channels 32 memory channels
The repeater has 32 memory channels. Each memory
channel stores a 10-character channel name,
wide/narrow (25/12.5kHz) channel spacing,
repeater/base operation etc, as well as frequency repeater/base operation etc, as well as frequency
setting.
Multiple CTCSS/DTCS tone memories Multiple CTCSS/DTCS tone memories Multiple CTCSS/DTCS tone memories Multiple CTCSS/DTCS tone memories
Each channel has a max. 16 Rx and Tx CTCSS and
DTCS tone memories that are freely programmable.
These memories allow multiple groups to share a
single channel.
Built- - - - in 2 Built Built Built in 2- - - - Tone, 5 in 2 in 2 Tone, 5- - - - Tone, DTMF encoder and decoder Tone, 5 Tone, 5 Tone, DTMF encoder and decoder Tone, DTMF encoder and decoder Tone, DTMF encoder and decoder
Four 2-Tone codes, nine 5-Tone codes and 20 DTMF
codes are programmable. You can also combine these
tones with CTCSS or DTCS tones to control repeater
access. These systems are fully compatible with Icom
F-series radios.
ID transmission function ID transmission function
ID transmission function ID transmission function
Own ID code or callsign can be sent at the beginning
and/or end of the transmission. The ID code is used
for identifying the repeater with the ANI (Automatic
Number Identification) function. The ID format is
selectable from CW, DTMF and 5-Tone.
Compatible with Trunking systems Compatible with Trunking systems Compatible with Trunking systems Compatible with Trunking systems
The ACC connector (D-sub 25-pin) provides interfacing
for on LTR ® , PassPort ®
or control console.

Common Features

ADVANCED POWERFUL REPEATERS ADVANCED POWERFUL REPEATERS
ADVANCED POWERFUL REPEATERS ADVANCED POWERFUL REPEATERS
or MPT1327 trunking controller
5 5 5 5 - - - - Tone relay function Tone relay function
Tone relay function Tone relay function
In a system that has 5-Tone capability, the repeater
relay is opened by the matched 5-Tone signal. The
repeater begins relaying the moment it receives the
Repeater code. The Station and ID codes are relayed
to the intended station.
RPT
STN
ID
Terminal A
2 2 2 2 - - - - Tone/5 Tone/5 Tone/5 Tone/5- - - - Tone auto TX function Tone auto TX function Tone auto TX function Tone auto TX function
When a matched 2-Tone/5-Tone code is received, the
auto TX function automatically starts the transmission.
The external source is selectable from MIC, ACC and
Remote lines. With this function it is possible to listen
to activity near the repeater itself from a remote
location. This for example, allows you to know if
unauthorized persons are near the repeater by being
able to hear them talking.
Backup functions Backup functions
Backup functions Backup functions
An automatic alert function detects an internal error
and alerts with a beep sound or a telephone call. If the
repeater fails from an internal error, the Master
repeater will automatically switchover to a sub-unit
(Master/Slave switchover).
Optional Voice scrambler unit Optional Voice scrambler unit Optional Voice scrambler unit Optional Voice scrambler unit
The optional voice scrambler units, UT-109 or UT-110
provide secure communication by scrambling voice
signals. Up to 32 codes with the UT-109 and 1020
codes (255 codes × 4 groups) with the UT-110 are
available, respectively.
ID
STN
Terminal B
6
