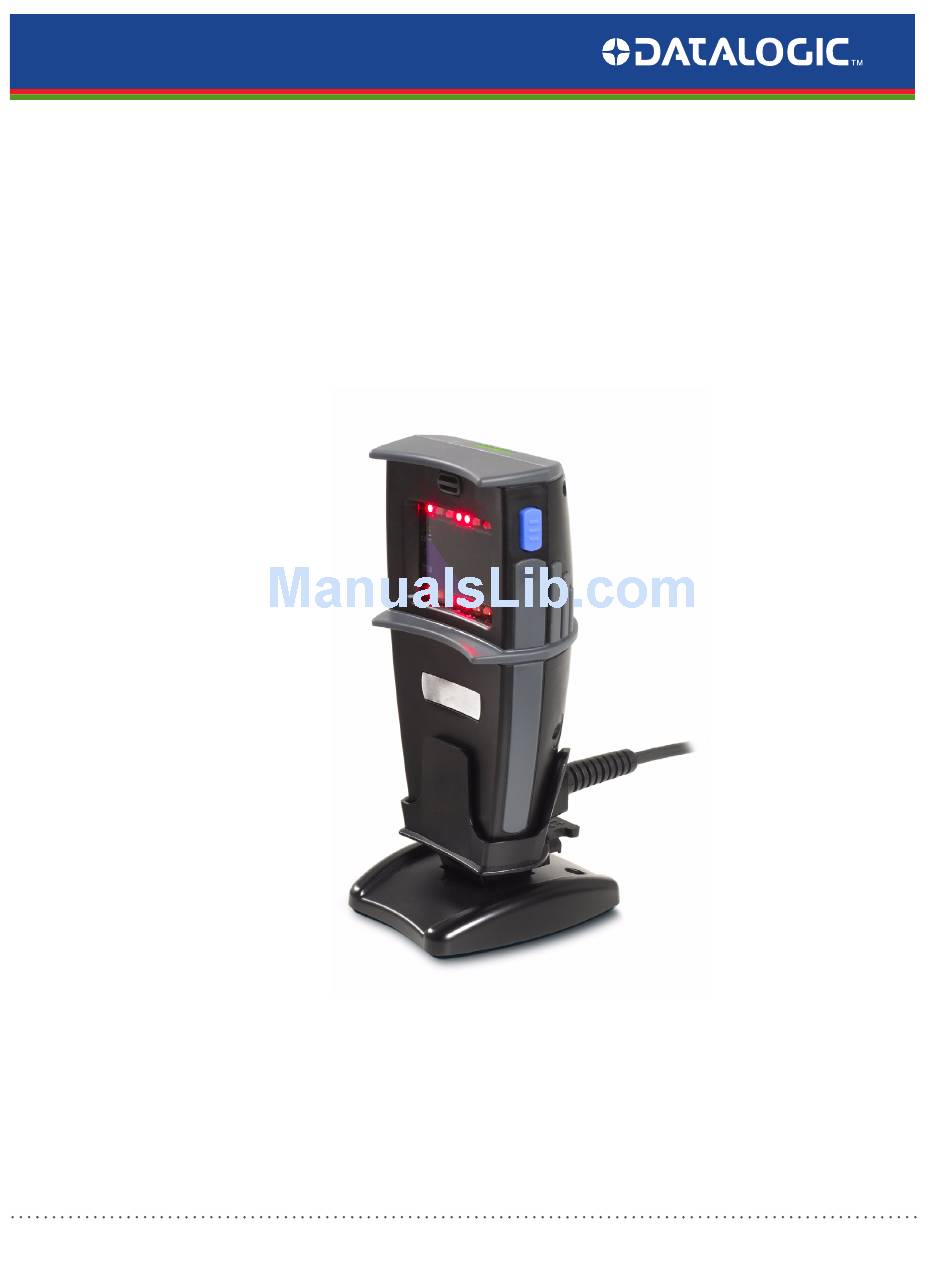

Page 1 ® Magellan 1400i Omni-Directional Imaging Scanner Product Reference Guide...
Page 2 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic"...
Page 3: Table Of Contents
Table of Contents About This Manual ....................... 1-1 Manual Conventions ....................... 1-1 Connecting the Scanner ....................... 1-2 Programming ........................1-3 Using the Programming Bar Codes ................... 1-3 Resetting the Standard Product Defaults ................1-3 LED and Beeper Indicators ....................1-4 Error Codes ........................
Page 4 Expand UPC/EAN to GTIN ....................5-8 EAN-13 ..........................5-9 Disable/Enable EAN-13 ....................5-9 Check Digit Transmission ....................5-9 EAN-13 Flag 1 Character ....................5-10 ISBN .......................... 5-10 Minimum Reads ......................5-11 EAN-8 ..........................5-12 Disable/Enable EAN-8 ....................5-12 Check Digit Transmission ....................5-12 Minimum Reads ......................
Page 5 Disable/Enable Codabar ....................5-45 Check Character Verification ..................5-45 Check Character Transmit ....................5-46 Length Control ......................5-47 Codabar Length 1, Length 2 Programming Instructions ............5-48 Start/Stop Character Type .....................5-49 Start/Stop Character Transmission ..................5-49 Start/Stop Character Match ...................5-50 Codabar Stitching ......................5-50 Minimum Reads ......................5-51 Code 93 ..........................5-52 Disable/Enable Code 93 ....................5-52 Length Control ......................5-53...
Page 6 NOTES ® Magellan 1400i...
Page 7: Getting Started
Chapter 1 Getting Started ® The Magellan 1400i Omni-Directional Imaging Scanner offers hands-free scanning for small, easily handled items and handheld scanning for bulkier items. Its aggressive imaging perfor- mance and intuitive operation reduces user training and speeds checkout for better customer service.
Page 8: Connecting The Scanner
Getting Started Connecting the Scanner The scanner kit you ordered to match your interface should provide a compatible cable for your installation. Use the appropriate instructions below to connect the scanner to the terminal, PC or other host device. Upon completing the connection via the appropriate interface instructions below, proceed to section of this manual and scan the barcode to select the correct Interface Related Features interface type.
Page 9: Programming
Programming Wand Emulation Connection — Connect the scanner to the appropriate port on the termi- nal/PC via a decoder using the correct cable for the interface type you ordered. Reference Figure 2 IBM Connection — Connect the scanner to the IBM port on the terminal/PC using the cor- rect IBM cable.
Page 10: Led And Beeper Indicators
Getting Started LED and Beeper Indicators The scanner’s beeper sounds and its green LED illuminates to indicate various functions or errors on the scanner. The tables below list these indications. One exception to the behaviors listed in the tables is that the scanner’s functions are programmable, and may or may not be turned on.
Page 11: Error Codes
Error Codes Error Codes Upon startup, if the scanner flashes its indicator LED or sounds an unexpected series of beep tones (other than normal power-up indications), this means the scanner has not passed its auto- matic Selftest and has entered FRU isolation mode.
Page 12 Getting Started NOTES Magellan ® 1400i...
Page 13: 1D Double Read Timeout
Chapter 2 General Features 1D Double Read Timeout The Double Read Timeout feature sets a time limit that determines how much time must pass before reading the same label again (e.g. two identical items in succession). START / END PROGRAMMING BAR CODES 0.1 Second 0.2 Second 0.3 Second...
Page 14: 1D Label Gone Timeout
General Features 1D Double Read Timeout — cont. START / END PROGRAMMING BAR CODES 0.7 Second 0.8 Second 0.9 Second 1 Second 1D Label Gone Timeout This feature sets the time after the last label segment is seen before the scanner prepares for a new label.
Page 15: Sleep Mode
Sleep Mode Sleep Mode This feature specifies the amount of time with no bar code reads before the scanner enters sleep mode. START / END PROGRAMMING BAR CODES 15 Seconds DEFAULT 30 Seconds 1 Minute 2 Minutes 3 Minutes 4 Minutes 5 Minutes Product Reference Guide...
Page 16 General Features Sleep Mode — cont. START / END PROGRAMMING BAR CODES 6 Minutes 7 Minutes 8 Minutes 9 Minutes 10 Minutes DEFAULT 12 Minutes 15 Minutes 30 Minutes 1 Hour ® Magellan 1400i...
Page 17: Led And Beeper Indicators
LED and Beeper Indicators LED and Beeper Indicators Power On Alert Disables or enables the indication (a single beep) that the scanner has finished all its power up tests and is now ready for operation. START / END PROGRAMMING BAR CODES Disable Enable DEFAULT...
Page 18: Good Read: When To Indicate
General Features Good Read: When to Indicate This feature specifies when the scanner will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
Page 19: Good Read Beep Control
LED and Beeper Indicators Good Read Beep Control This feature enables/disables the scanner’s ability to beep upon a successful decode of a bar code. START / END PROGRAMMING BAR CODES Disable Enable DEFAULT Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below.
Page 20: Good Read Beep Length
General Features Good Read Beep Length Specifies the duration of a good read beep. START / END PROGRAMMING BAR CODES 60msec DEFAULT 80msec 100msec 120msec 140msec 160msec 180msec 200msec ® Magellan 1400i...
Page 21: Good Read Beep Volume
Productivity Index Reporting (PIR) Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. START / END PROGRAMMING BAR CODES Medium High DEFAULT Productivity Index Reporting (PIR) When PIR is enabled, label quality data is appended to decoded data before being presented to the POS.
Page 22: Scanning Features
General Features Scanning Features Aiming Pointer This feature enables/disables the Aiming Pointer for all symbologies. START / END PROGRAMMING BAR CODES Disable DEFAULT Enable always on Targeted Scanning Mode Upon pressing the button, the scanner will project an aiming pattern to assist in centering over the bar code.
Page 23 Scanning Features Target Mode: Active Time Specifies the time duration the scanner attempts to decode labels while in the targeted mode of operation. START / END PROGRAMMING BAR CODES Extra Short Duration Short Duration Medium Duration DEFAULT Long Duration Product Reference Guide 2-11...
Page 24 General Features Target Mode: Linger Time Specifies the time duration the scanner remains in the targeted mode of operation after reading a bar code or after has expired, before reverting to Omni-directional Target Mode: Active Time Mode. The linger timer starts upon a good read or upon timeout of Target Mode: Active Time whichever is earliest.
Page 25: Wake Up Intensity
Scanning Features Wake Up Intensity This feature indicates the percentage of ambient light change which will trigger the scanner to wake up from Sleep Mode. Lower settings provide greater sensitivity. START / END PROGRAMMING BAR CODES DEFAULT ³ 3 B 8 Product Reference Guide 2-13...
Page 26 General Features Wake Up Intensity — cont. START / END PROGRAMMING BAR CODES ® 2-14 Magellan 1400i...
Page 27: Interface Related Features
Chapter 3 Interface Related Features At the time of this writing, the Scanner supports the interfaces listed in . Select the desired inter- face type from the table, then reference the page number given for the customizable features sec- tion associated with each interface. See for a description of each Keyboard Wedge interface type (A through Y as listed).
Page 28 Interface Related Features . Keyboard Wedge Interface Reference I/F Type PCs Supported PC/XT w/Alternate Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key Encoding PS/2 25 and 30 w/Alternate Key Encoding PC/XT w/Standard Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...
Page 29: Interface Selection
Interface Selection Interface Selection START / END PROGRAMMING BAR CODES RS-232 Standard RS-232 Wincor-Nixdorf IBM 4683 Port 5B IBM 4683 Port 9B IBM 4683 Port 17 USB-OEM USB Keyboard USB RS-232 Wand Emulation Keyboard Wedge A Product Reference Guide...
Page 30 Interface Related Features Interface Selection — cont. START / END PROGRAMMING BAR CODES Keyboard Wedge B Keyboard Wedge C Keyboard Wedge D Keyboard Wedge E Keyboard Wedge F Keyboard Wedge G Keyboard Wedge H Keyboard Wedge I Keyboard Wedge J ®...
Page 31 Interface Selection Interface Selection — cont. START / END PROGRAMMING BAR CODES Keyboard Wedge K Keyboard Wedge L Keyboard Wedge M Keyboard Wedge N Keyboard Wedge O Keyboard Wedge P Keyboard Wedge Q Keyboard Wedge R Keyboard Wedge S Product Reference Guide...
Page 32 Interface Related Features Interface Selection — cont. START / END PROGRAMMING BAR CODES Keyboard Wedge T Keyboard Wedge U Keyboard Wedge V Keyboard Wedge W Keyboard Wedge X Keyboard Wedge Y ® Magellan 1400i...
Page 33: Interface Features
Interface Features Interface Features Obey/Ignore Host Commands When set to ignore host commands, the scanner will ignore all host commands except for the minimum set necessary to keep the interface active and transmit labels For normal operation of the interface, select Obey Host Commands. START / END PROGRAMMING BAR CODES Obey Host Commands...
Page 34 Interface Related Features Interface Features — cont. Host Transmission Buffers Specifies the number of host transmission(s) that may be buffered. By buffering data from a bar- code, the scanner can continue to read a new barcode while the old one is being transmitted to the host.
Page 35: Rs-232 Interface Features
Interface Features RS-232 Interface Features START / END PROGRAMMING BAR CODES 1200 Baud 2400 Baud 4800 Baud 9600 Baud DEFAULT 19200 Baud 38400 Baud 57600 Baud 115200 Baud Product Reference Guide...
Page 36 Interface Related Features RS-232 Interface Features — cont. START / END PROGRAMMING BAR CODES 7 Data Bits 8 Data Bits DEFAULT 1 Stop Bit DEFAULT 2 Stop Bits Parity = None DEFAULT Parity = Even Parity = Odd ® 3-10 Magellan 1400i...
Page 37 Interface Features RS-232 Interface Features — cont. Hardware Flow Control Disable Hardware Control— The scanner transmits to the host regardless of any activity on the CTS line. Enable CTS Flow Control— The CTS signal controls transmission of data to the host. Enable CTS Scan Control—...
Page 38 Interface Related Features RS-232 Interface Features — cont. Intercharacter Delay This delay is inserted after each data character transmitted. If the transmission speed is too high, the system may not be able to receive all characters. You may need to adjust the delay to make the system work properly.
Page 39 Interface Features Intercharacter Delay — cont. START / END PROGRAMMING BAR CODES Interchar Delay = 80 msec Interchar Delay = 90 msec Software Flow Control Disables/Enables software control using XON/XOFF characters. START / END PROGRAMMING BAR CODES Disable Software Flow Control DEFAULT Enable Software Flow Control Product Reference Guide...
Page 40 Interface Related Features RS-232 Interface Features — cont. Host Echo When enabled, this feature passes all data through the scanner to the host as it comes in. This feature is used for applications where “daisy chaining” of RS-232 devices onto the same cable is necessary.
Page 41 Interface Features RS-232 Interface Features — cont. Host Echo Quiet Interval This setting specifies the time interval of RS-232 channel inactivity which must transpire before the scanner will break the host echo loop to transmit the barcode data that has just been scanned to the host.
Page 42 Interface Related Features Host Echo Quiet Interval — cont. START / END PROGRAMMING BAR CODES Host Echo Quiet Interval = 80msec Host Echo Quiet Interval = 90msec Host Echo Quiet Interval = 100msec Signal Voltage: Normal/TTL Specifies whether the RS-232 interface provides TTL levels on the output pins TxD and RTS. START / END PROGRAMMING BAR CODES Signal Voltage: Normal RS-232...
Page 43 Interface Features RS-232 Interface Features — cont. RS-232 Invert Enables/disables inversion of RS-232 TXD and RXD signals. START / END PROGRAMMING BAR CODES Disable RS-232 Invert DEFAULT Enable RS-232 Invert Beep on ASCII BEL Enables/disables ability of scanner to beep (sound a good read tone) on receiving an ASCII BEL (07 hex).
Page 44 Interface Related Features RS-232 Interface Features — cont. Beep on Not on File Select for the host to beep (or not) when a not-on-file (host command) condition is detected by the host. START / END PROGRAMMING BAR CODES Disable Beep on Not On File Enable Beep on Not On File DEFAULT ®...
Page 45 Interface Features RS-232 Interface Features — cont. ACK NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Selections for this option are: •...
Page 46 Interface Related Features RS-232 Interface Features — cont. ACK Character START / END PROGRAMMING BAR CODES Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits with zeros, as in “005”.
Page 47 Interface Features RS-232 Interface Features — cont. Retry on ACK NAK Timeout Enables/disables retry after the configurable ACK NAK Timeout Value (set in the following fea- ture) has expired. START / END PROGRAMMING BAR CODES Disable Retry on ACK NAK Timeout Enable Retry on ACK NAK Timeout DEFAULT ACK NAK Timeout Value...
Page 48 Interface Related Features RS-232 Interface Features — cont. ACK NAK Retry Count START / END PROGRAMMING BAR CODES This feature sets the number of times for the scanner to retry a label transmission under a retry condition. 000 = No retry 001 - 254 = Retry for the specified number of times 255 = Retry forever To configure this feature, scan the “START/END”...
Page 49: Ack Nak Error Handling
Interface Features RS-232 Interface Features — cont. ACK NAK Error Handling This item specifies the method the scanner will use to handle errors detected while waiting to receive the ACK character from the host. Errors include unrecognized host commands and com- munication errors such as parity or framing errors.
Page 50: Usb-Oem Interface Features
Interface Related Features RS-232 Interface Features — cont. Transmission Failure Indication Enables/disables bad-label indication upon transmission failure. START / END PROGRAMMING BAR CODES Disable Transmission Error Indication Enable Transmission Error Indication DEFAULT USB-OEM Interface Features USB-OEM Device usage The USB-OEM protocol allows for the scanner to be identified as one of two different types of barcode scanners.
Page 51: Ibm
Interface Features IBM Transmit Labels in Code 39 Format This feature enables/disables scanner's ability to set a symbology identifier for a specified label to Code 39 before transmitting that label data to an IBM host. This applies to: Code 128, Codabar and Code 93 for USB-OEM;...
Page 52: Wand Emulation
Interface Related Features Wand Emulation Supported Symbologies The Wand Emulation interface will transmit barcode data as a wand device would. This inter- face will transmit the following barcode symbologies: • UPC/EAN • UPC/EAN with addons • Code 39 • Full ASCII Code 39 •...
Page 53 Interface Features Wand Emulation — cont. Bar/Space Polarity Low/High — Black will be transmitted as a low voltage level (0 to +0.7V) and space as high level (+2.4 to +5.25V). High/Low — Black will be transmitted as a high voltage level (+2.4 to +5.25V) and space as low level (0 to +0.7V).
Page 54 Interface Related Features Wand Emulation — cont. Signal Speed The speed of the transmission can be set. This selects the width of the minimum narrow bar. 330 microseconds 660 microseconds START / END PROGRAMMING BAR CODES Signal Speed = 330mS Signal Speed = 660mS DEFAULT Transmit Trailing Noise...
Page 55 Interface Features Wand Emulation — cont. Transmit Leading Noise The transmission of noise pulses before the barcode may be enabled or disabled. START / END PROGRAMMING BAR CODES Disable Leading Noise Enable Leading Noise DEFAULT Symbology Conversion Wand Emulation can convert all barcodes to a single symbology. Choices are: No Conversion Convert to Code 39 Convert to Code 128...
Page 56: Keyboard Wedge
Interface Related Features Keyboard Wedge USB Keyboard As a keyboard interface, the scanner supports most popular PCs and IBM terminals. The instal- lation of the wedge is a fairly simple process that doesn’t require any changes of software or hard- ware.
Page 57 Interface Features Keyboard Wedge — cont. START / END PROGRAMMING BAR CODES Italy Norway Portugal Spain Sweden Switzerland Japan 106 Key Hungary Czech Product Reference Guide 3-31...
Page 58 Interface Related Features Keyboard Wedge — cont. START / END PROGRAMMING BAR CODES Slovakia Romania Croatia Poland Caps Lock State Specifies the format in which the scanner sends character data. START / END PROGRAMMING BAR CODES Disable Caps Lock DEFAULT Caps Lock “ON”...
Page 59 Interface Features Keyboard Wedge — cont. Power-On Simulation This feature does not apply to the USB Keyboard interface. NOTE All PCs check the keyboard status during the power-on Selftest. It is recommended that you enable this function if you are working without a keyboard installation. It simulates keyboard timing and passes the keyboard status to the PC during power-on.
Page 60 Interface Related Features Keyboard Wedge — cont. Control Characters Specifies how the scanner transmits ASCII control characters to the host. Choices are: • Disable Control Characters • Enable transmission of control characters to host • Send characters between 00H and 1FH according to a special function-key mapping table.
Page 61 Interface Features Keyboard Wedge — cont. Wedge Quiet Interval This feature does not apply to the USB Keyboard interface. NOTE Quiet Interval is the amount of time to look for keyboard activity before the scanner breaks the keyboard connection in order to transmit data to the host. START / END PROGRAMMING BAR CODES Selectable from 000 (no interval) to 255 in 10 msec increments.
Page 62 Interface Related Features Keyboard Wedge — cont. Intercharacter Delay This feature does not apply to the USB Keyboard interface. NOTE START / END PROGRAMMING BAR CODES One-half of the delay specified below is inserted between scancodes within each character. If the transmission speed is too high, the system may not be able to receive all characters.
Page 63: Data Editing Overview
Chapter 4 Data Editing Data Editing Overview It is not recommended to use these features with IBM or Wand Emulation interfaces. CAUTION When a barcode is scanned, additional information can be sent to the host computer along with the barcode data. This combination of barcode data and supplementary user-defined data is called a “message string.”...
Page 64: Global Prefix/Suffix
Data Editing • Enter prefixes and suffixes in the order in which you want them to appear on the output. Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the barcode data) and/ or as a suffix (in a position following the barcode data) as indicated in Figure 4-2 Figure 4-2.
Page 65 Global Prefix/Suffix Global Prefix/Suffix — cont. START / END PROGRAMMING BARCODES Sets up to 20 characters each from the set of ASCII characters or any hex value from 0 to FF. To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then the “Set Prefix” or “Set Suffix,” followed by the digits from the Alphanumeric table in representing your desired character(s).
Page 66: Aim Id
Data Editing AIM ID AIM (Automatic Identification Manufacturers) label identifiers are assigned from a globally standardized list — as opposed to custom label ID characters you select yourself — and can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...
Page 67: Label Id
Label ID Label ID A Label ID is a customizable code of up to two ASCII characters (00-FF hex), used to identify a barcode (symbology) type. See , for a listing for common symbolo- Appendix D, Default Settings gies. It can be appended previous to or following the transmitted barcode data depending upon how this option is enabled.
Page 68 Data Editing Label ID — cont. START / END PROGRAMMING BARCODES Label ID Transmission: Disable Label ID Position: Before Bar Code Data DEFAULT Label ID Position: After Bar Code Data Set UPC-A Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex) Set UPC-A w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex) Set UPC-A w/P5 Addon Label ID Character(s)
Page 69 Label ID Label ID — cont. START / END PROGRAMMING BARCODES Set UPC-E w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set UPC-E w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set UPC-E w/C128 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set EAN-8 Label ID Character(s)
Page 70 Data Editing Label ID — cont. START / END PROGRAMMING BARCODES Set EAN-13 w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set EAN-13 w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set EAN-13 w/C128 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set ISBN Label ID Character(s)
Page 71 Label ID Label ID — cont. START / END PROGRAMMING BARCODES Set GTIN w/C128 addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: G8 (4738 hex) Set GS1 DataBar Ominidirectional Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: R4 (5234 hex) Set GS1 DataBar Expanded Label ID Character(s) ³...
Page 72 Data Editing Label ID — cont. START / END PROGRAMMING BARCODES Set Codabar Label ID Character(s) ³ DEFAULT SETTING FOR THIS FEATURE: % (25 hex) Set Code 93 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: & (26 hex) Set Code 11 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: @ (40 hex) Set MSI/Plessey Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: @ (40 hex)
Page 73: Case Conversion
Case Conversion Case Conversion This feature can convert scanned barcode data to either all lower case (a through z) or all upper case (A through Z) characters. Case conversion affects ONLY scanned barcode data, and does not affect Label ID, Prefix, Suffix, or other appended data.
Page 74: Character Conversion
Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the charac- ter to convert in a pair is FF, then no conversion is done.
Page 75: Upc-A
Chapter 5 Symbologies The scanner supports the following symbologies (barcode types). Options for each symbology are included in this chapter. ·UPC-A ·Pharmacode 39 ·UPC-E ·Transmit Function Characters ·EAN-13 ·Interleaved 2 of 5 ·EAN-8 ·Codabar ·GS1 DataBar Omnidirectional / ·Code 93 Stacked Ominidirectional ·GS1 DataBar Expanded / ·MSI/Plessey...
Page 76: Check Digit Transmission
Symbologies UPC-A — continued Check Digit Transmission Enable this option to transmit the check digit along with UPC-A barcode data. START / END PROGRAMMING BAR CODES Don’t Send Check Digit Send Check Digit DEFAULT Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the sym- bology ID to match those required for EAN-13.
Page 77: Number System Transmission
UPC-A UPC-A — continued Number System Transmission This feature enables/disables transmission of UPC-A System Number. START / END PROGRAMMING BAR CODES Disable Number System Transmission Enable Number System Transmission DEFAULT UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as a good read.
Page 78: Upc-A In-Store Minimum Reads
Symbologies UPC-A — continued UPC-A In-store Minimum Reads This feature specifies the minimum number of consecutive times an in-store printed label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads...
Page 79: Upc-E
UPC-E UPC-E The following options apply to the UPC-E symbology. Disable/Enable UPC-E When disabled, the scanner will not read UPC-E barcodes. START / END PROGRAMMING BAR CODES Disable UPC-E Enable UPC-E DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with UPC-E barcode data. START / END PROGRAMMING BAR CODES Don’t Send Check Digit...
Page 80: Number System Digit
Symbologies UPC-E — continued Number System Digit The Number System Digit (NSD) which is always a zero (0) in the leading position can be optionally included (or not) with scanned barcode data. START / END PROGRAMMING BAR CODES Exclude Number System Digit DEFAULT Include Number System Digit Expand UPC-E to UPC-A...
Page 81: Expand Upc-E To Ean13
UPC-E UPC-E — continued Expand UPC-E to EAN13 Enables/disables expansion of UPC-E labels to EAN-13. Selecting this feature also changes the symbology ID to match those required for EAN-13. START / END PROGRAMMING BAR CODES Don’t Expand UPC-E to EAN-13 DEFAULT Expand UPC-E to EAN-13 Minimum Reads...
Page 82: Gtin
Symbologies GTIN The following options apply to the GTIN label data format. Expand UPC/EAN to GTIN When this feature is enabled, the scanner will translate UPC/EAN labels to the 14 digit GTIN format. START / END PROGRAMMING BAR CODES Don’t Expand to GTIN DEFAULT Expand to GTIN ®...
Page 83: Disable/Enable Ean-13
EAN-13 EAN-13 The following options apply to the EAN-13 symbology. Disable/Enable EAN-13 When disabled, the scanner will not read EAN-13 barcodes. START / END PROGRAMMING BAR CODES Disable EAN-13 Enable EAN-13 DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with EAN-13 barcode data. START / END PROGRAMMING BAR CODES Don’t Send Check Digit...
Page 84: Ean-13 Flag 1 Character
Symbologies EAN-13 — continued EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. START / END PROGRAMMING BAR CODES Don’t Transmit EAN-13 Flag 1 Char Transmit EAN-13 Flag 1 Char DEFAULT ISBN When enabled, this feature truncates the leading three digits from labels that contain ISBN (International Standard Book Number) and appends an ISBN check character to the end of the label.
Page 85: Minimum Reads
EAN-13 EAN-13 — continued Minimum Reads This feature specifies the minimum number of consecutive times an EAN-13 label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads...
Page 86: Disable/Enable Ean-8
Symbologies EAN-8 The following options apply to the EAN-8 symbology. Disable/Enable EAN-8 When disabled, the scanner will not read EAN-8 barcodes. START / END PROGRAMMING BAR CODES Disable EAN-8 Enable EAN-8 DEFAULT Check Digit Transmission Enable this option to transmit the check Digit along with EAN-8 barcode data. START / END PROGRAMMING BAR CODES Don’t Send Check Digit...
Page 87: Minimum Reads
EAN-8 EAN-8 — continued Expand EAN-8 to EAN-13— Expands EAN-8 data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. START / END PROGRAMMING BAR CODES Don’t Expand to EAN-13 DEFAULT Expand to EAN-13 Minimum Reads...
Page 88: Enable Ean Two-Label
Symbologies Enable EAN Two-Label Enables/disables the ability of the scanner to decode EAN two-label pairs. START / END PROGRAMMING BAR CODES Disable EAN Two-Label Enable EAN Two-Label Enable EAN Two-Label Combined Enables/disables the transmitting of an EAN two label pair as one label. START / END PROGRAMMING BAR CODES Disable EAN Two-Label Combined...
Page 89: Add-Ons
Add-ons Add-ons Add-ons (or supplemental characters) are commonly added to the end of UPC/EAN barcodes. The scanner will read the add-ons if they are enabled and in the field of view. Three add-on types are supported: 2-digit, 5-digit and Code 128 add-ons. Supported options are: None—...
Page 90 Symbologies Add-ons — continued START / END PROGRAMMING BAR CODES Disable Optional 2-Digit Add-ons DEFAULT Enable Optional 2-Digit Add-ons Disable Optional 5-Digit Add-ons DEFAULT Enable Optional 5-Digit Add-ons Disable Optional Code 128 Add-ons DEFAULT Enable Optional Code 128 Add-ons ® 5-16 Magellan 1400i...
Page 91: Gs1 Databar Omnidirectional / Stacked Ominidirectional
GS1 DataBar Omnidirectional / Stacked Ominidirectional GS1 DataBar Omnidirectional / Stacked Ominidirectional The following options apply to the GS1 DataBar Omnidirectional symbology. Disable/Enable GS1 DataBar Omnidirectional When this feature is disabled, the scanner will not read GS1 DataBar Omnidirectional barcodes. START / END PROGRAMMING BAR CODES Disable GS1 DataBar Omnidirectional...
Page 92: Minimum Reads
Symbologies GS1 DataBar Omnidirectional / Stacked Ominidirectional — continued Minimum Reads This feature specifies the minimum number of consecutive times a GS1 DataBar Omnidirec- tional label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT...
Page 93: Gs1 Databar Expanded / Expanded Stacked
GS1 DataBar Expanded / Expanded Stacked GS1 DataBar Expanded / Expanded Stacked The following options apply to the GS1 DataBar Expanded symbology. Disable/Enable GS1 DataBar Expanded When this feature is disabled, the scanner will not read GS1 DataBar Expanded barcodes. START / END PROGRAMMING BAR CODES Disable GS1 DataBar Expanded...
Page 94: Length Control
Symbologies GS1 DataBar Expanded / Expanded Stacked — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 95: Gs1 Databar Expanded Length 1, Length 2 Programming Instructions
GS1 DataBar Expanded / Expanded Stacked GS1 DataBar Expanded / Expanded Stacked — continued GS1 DataBar Expanded Length 1, Length 2 Programming Instructions 1. Scan the START/END barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3.
Page 96: Minimum Reads
Symbologies GS1 DataBar Expanded / Expanded Stacked — continued Minimum Reads This feature specifies the minimum number of consecutive times an GS1 DataBar Expanded label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT Minimum = 2 Reads...
Page 97: Coupon Read Control
GS1 DataBar Expanded / Expanded Stacked GS1 DataBar Expanded / Expanded Stacked — continued Coupon Read Control This feature controls coupon reading. START / END PROGRAMMING BARCODES Disable coupon filtering Enable UPCA coupon decoding Disable GS1 DataBar coupon decoding DEFAULT Enable GS1 DataBar coupon decoding Disable UPCA coupon decoding Product Reference Guide...
Page 98: Gs1 Databar Limited
Symbologies GS1 DataBar Limited The following options apply to the GS1 DataBar Limited symbology. Disable/Enable GS1 DataBar Limited When this feature is disabled, the scanner will not read GS1 DataBar Limited barcodes. START / END PROGRAMMING BAR CODES Disable GS1 DataBar Limited DEFAULT Enable GS1 DataBar Limited ®...
Page 99: Gs1 Databar Limited 128 Emulation
GS1 DataBar Limited GS1 DataBar Limited — continued GS1 DataBar Limited 128 Emulation When enabled, GS1 DataBar Limited barcodes will be translated to the GS1 128 label data for- mat. START / END PROGRAMMING BAR CODES Disable GS1 DataBar Limited 128 Emulation DEFAULT Enable GS1 DataBar Limited 128 Emulation Minimum Reads...
Page 100: Code 39
Symbologies Code 39 The following options apply to the Code 39 symbology. Disable/Enable Code 39 When this feature is disabled, the scanner will not read Code 39 barcodes. START / END PROGRAMMING BAR CODES Disable Code 39 Enable Code 39 DEFAULT Check Character Calculation When enabled, the scanner will calculate the check character of the labels.
Page 101: Check Character Transmit
Code 39 Code 39 — continued Check Character Transmit Enable this option to transmit the check character with scanned barcode data. START / END PROGRAMMING BAR CODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT Start/Stop Characters Enables/disables transmission of Code39 start and stop characters. START / END PROGRAMMING BAR CODES Don’t Transmit Start/Stop Characters...
Page 102: Code 39 Full Ascii
Symbologies Code 39 — continued Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters START / END PROGRAMMING BAR CODES Disable Code 39 Full ASCII DEFAULT Enable Code 39 Full ASCII ® 5-28 Magellan 1400i...
Page 103: Length Control
Code 39 Code 39 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 104: Code 39 Length 1, Length 2 Programming Instructions
Symbologies Code 39 — continued Code 39 Length 1, Length 2 Programming Instructions 1. Scan the START/END barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.
Page 105: Code 39 Stitching
Code 39 Code 39 — continued Code 39 Stitching Enables/disables stitching for Code 39 labels. When parts of a Code 39 barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s soft- ware, and the data will be decoded if all barcode proofing requirements are met.
Page 106: Pharmacode 39
Symbologies Pharmacode 39 The following options apply to the Pharmacode 39 symbology. Disable/Enable Pharmacode 39 When this feature is disabled, the scanner will not read Pharmacode 39 barcodes. START / END PROGRAMMING BAR CODES Disable Pharmacode 39 DEFAULT Enable Pharmacode 39 Start/Stop Characters Enables or disables transmission of Pharmacode 39 start/stop characters.
Page 107: Check Character Transmit
Pharmacode 39 Pharmacode 39 — continued Check Character Transmit Enable this option to transmit the check character with scanned barcode data. START / END PROGRAMMING BAR CODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT Product Reference Guide 5-33...
Page 108: Code 128 And Ucc/Ean 128
Symbologies Code 128 and UCC/EAN 128 The following options apply to the Code 128 and EAN 128 symbologies. Code 128— When this feature is disabled, the scanner will not read Code 128 barcodes. UCC/EAN 128— Enables/disables ability of scanner to translate UCC/EAN 128 labels to the EAN 128 data format.
Page 109: Transmit Function Characters
Code 128 and UCC/EAN 128 Code 128 and UCC/EAN 128 — continued Transmit Function Characters Enables/disables transmission of Code128 function characters 1, 2, 3, and 4. Function codes are transmitted as follows: • FNC1 = 80 hex • FNC2 = 81 hex •...
Page 110: Length Control
Symbologies Code 128 and UCC/EAN 128 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 111: Code 128 Length 1, Length 2 Programming Instructions
Code 128 and UCC/EAN 128 Code 128 and UCC/EAN 128 — continued Code 128 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.
Page 112: Code 128 Stitching
Symbologies Code 128 and UCC/EAN 128 — continued Code 128 Stitching Enables/disables stitching for Code 128 labels. When parts of a Code 128 barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 113: Interleaved 2 Of 5
Interleaved 2 of 5 Interleaved 2 of 5 The following options apply to the Interleaved 2 of 5 (I 2 of 5) symbology. Disable/Enable Interleaved 2 of 5 When this feature is disabled, the scanner will not read Interleaved 2 of 5 barcodes. START / END PROGRAMMING BAR CODES Disable Interleaved 2 of 5...
Page 114: Check Digit Transmit
Symbologies Interleaved 2 of 5 — continued Check Digit Transmit Enable this option to transmit the check digit with scanned barcode data. START / END PROGRAMMING BAR CODES Disable Check Digit Calculation DEFAULT Enable Check Digit Calculation ® 5-40 Magellan 1400i...
Page 115: Length Control
Interleaved 2 of 5 Interleaved 2 of 5 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 116: Interleaved 2 Of 5 Length 1, Length 2 Programming Instructions
Symbologies Interleaved 2 of 5 — continued Interleaved 2 of 5 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation For Interleaved 2 of 5 barcodes, lengths must be...
Page 117: Interleaved 2 Of 5 Stitching
Interleaved 2 of 5 Interleaved 2 of 5 — continued Interleaved 2 of 5 Stitching Enables/disables stitching for Interleaved 2 of 5 labels. When parts of an Interleaved 2 of 5 bar- code are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 118: Minimum Reads
Symbologies Interleaved 2 of 5 — continued Minimum Reads This feature specifies the minimum number of consecutive times an Interleaved 2 of 5 label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT Minimum = 2 Reads...
Page 119: Codabar
Codabar Codabar The following options apply to the Codabar symbology. Disable/Enable Codabar When this feature is disabled, the scanner will not read Codabar barcodes. START / END PROGRAMMING BAR CODES Disable Codabar DEFAULT Enable Codabar Check Character Verification When enabled, the scanner will verify the check character of the labels. START / END PROGRAMMING BAR CODES Disable Check Char Verification...
Page 120: Check Character Transmit
Symbologies Codabar — continued Check Character Transmit Enable this option to transmit the check character with scanned barcode data. START / END PROGRAMMING BAR CODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT ® 5-46 Magellan 1400i...
Page 121: Length Control
Codabar Codabar — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 122: Codabar Length 1, Length 2 Programming Instructions
Symbologies Codabar — continued Codabar Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.
Page 123: Start/Stop Character Type
Codabar Codabar — continued Start/Stop Character Type Codabar has four pairs of Start/Stop patterns. Select one pair to match your application. START / END PROGRAMMING BAR CODES Start/Stop Type: ABCD/TN*E Start/Stop Type: ABCD/ABCD Start/Stop Type: abcd/tn*e Start/Stop Type: abcd/abcd DEFAULT Start/Stop Character Transmission The transmission of start and end characters of Codabar is selected below.
Page 124: Start/Stop Character Match
Symbologies Codabar — continued Start/Stop Character Match This feature enables/disables the requirement that start and stop characters match START / END PROGRAMMING BAR CODES Disable Start/Stop Char Match DEFAULT Enable Start/Stop Char Match Codabar Stitching Enables/disables stitching for Codabar labels. When parts of a Codabar label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s soft- ware, and the data will be decoded if all barcode proofing requirements are met.
Page 125: Minimum Reads
Codabar Codabar — continued Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads...
Page 126: Code 93
Symbologies Code 93 The following options apply to the Code 93 symbology. Disable/Enable Code 93 When this feature is disabled, the scanner will not read Code 93 barcodes. START / END PROGRAMMING BAR CODES Disable Code 93 DEFAULT Enable Code 93 ®...
Page 127: Length Control
Code 93 Code 93 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 128: Code 93 Length 1, Length 2 Programming Instructions
Symbologies Code 93 — continued Code 93 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.
Page 129: Code 93 Stitching
Code 93 Code 93 — continued Code 93 Stitching Enables/disables stitching for Code 93 barcodes. When parts of a Code 93 label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s soft- ware, and the data will be decoded if all barcode proofing requirements are met.
Page 130: Msi/Plessey
Symbologies MSI/Plessey The following options apply to the MSI/Plessey symbology. Disable/Enable MSI/Plessey When this feature is disabled, the scanner will not read MSI/Plessey barcodes. START / END PROGRAMMING BAR CODES Disable MSI/Plessey DEFAULT Enable MSI/Plessey Check Digit Verification This feature specifies whether one or two check digits are to be calculated and verified. START / END PROGRAMMING BAR CODES Disable Check Digit Verification...
Page 131: Check Digit Transmit
MSI/Plessey MSI/Plessey — continued Check Digit Transmit When this option is enabled, the scanner will transmit one-digit or two-digit check digits, depending upon the setting for check digit verification. START / END PROGRAMMING BAR CODES Disable Check Digit Transmission Enable Check Digit Transmission DEFAULT Number of Check Characters Specifies number of MSI/Plessey check characters to be calculated and verified...
Page 132: Length Control
Symbologies MSI/Plessey — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 133: Msi/Plessey Length 1, Length 2 Programming Instructions
MSI/Plessey MSI/Plessey — continued MSI/Plessey Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.
Page 134: Msi/Plessey Stitching
Symbologies MSI/Plessey — continued MSI/Plessey Stitching Enables/disables stitching for MSI/Plessey barcodes. When parts of an MSI/Plessey label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met. Only functions when is enabled.
Page 135: Minimum Reads
MSI/Plessey MSI/Plessey — continued Minimum Reads This feature specifies the minimum number of consecutive times an MSI/Plessey label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads...
Page 136: Standard 2 Of 5
Symbologies Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Disable/Enable Standard 2 of 5 When this feature is disabled, the scanner will not read Standard 2 of 5 barcodes. START / END PROGRAMMING BAR CODES Disable Std 2 of 5 DEFAULT Enable Std 2 of 5...
Page 137: Check Digit Transmit
Standard 2 of 5 Standard 2 of 5 — continued Check Digit Transmit When this option is enabled, the scanner will transmit the check digit. START / END PROGRAMMING BAR CODES Disable Check Digit Transmission Enable Check Digit Transmission DEFAULT Product Reference Guide 5-63...
Page 138: Length Control
Symbologies Standard 2 of 5 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 139: Standard 2 Of 5 Length 1, Length 2 Programming Instructions
Standard 2 of 5 Standard 2 of 5 — continued Standard 2 of 5 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.
Page 140: Standard 2 Of 5 Stitching
Symbologies Standard 2 of 5 — continued Standard 2 of 5 Stitching Enables/disables stitching for Standard 2 of 5 barcodes. When parts of a Standard 2 of 5 label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met.
Page 141: Minimum Reads
Standard 2 of 5 Standard 2 of 5 — continued Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as a good read. START / END PROGRAMMING BAR CODES Minimum = 1 Read DEFAULT...
Page 142 Symbologies ® 5-68 Magellan 1400i...
Page 143 2D Symbologies & Advanced Decoding Features The features in this section are available ONLY for models with 2D features activated. NOTE Product Reference Guide...
Page 144: 2D Symbologies
2D Symbologies & Advanced Decoding Features 2D Symbologies The scanner supports the following 2D symbologies (barcode types): PDF 417 Datamatrix Options for each symbology are included in this addendum. Factory Defaults— for the std. RS-232 interface are indicated in bold text throughout. PDF 417 Disable/Enable PDF 417 When disabled, the scanner will not read PDF 417 barcodes.
Page 145: Pdf 417
2D Symbologies PDF 417 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 146 2D Symbologies & Advanced Decoding Features PDF 417 — continued PDF 417 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the four hex digits representing the length in hexidec- Alpha-Numeric Pad imal notation.
Page 147 2D Symbologies PDF 417 — continued Minimum Reads This feature specifies the minimum number of consecutive times a PDF 417 label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads...
Page 148: Datamatrix
2D Symbologies & Advanced Decoding Features Datamatrix Disable/Enable Datamatrix When disabled, the scanner will not read Datamatrix barcodes. START / END PROGRAMMING BARCODES Disable Datamatrix Enable Datamatrix Magellan ® 1000i...
Page 149 2D Symbologies Datamatrix — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.
Page 150 2D Symbologies & Advanced Decoding Features Datamatrix — continued Datamatrix Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the four hex digits representing the length in hexidec- Alpha-Numeric Pad imal notation.
Page 151 2D Symbologies Datamatrix — continued Minimum Reads This feature specifies the minimum number of consecutive times a Datamatrix label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads Product Reference Guide...
Page 152: Image Capture
2D Symbologies & Advanced Decoding Features Image Capture This function is ONLY available for scanners having a button. Image capture requires that the scanner use the Standard RS-232 or USB RS- 232 interface ONLY. NOTE The scanner reverts to default reading mode after image capture and trans- fer.
Page 153: Optical And Read Performance Parameters
Chapter A Product Specifications Optical and Read Performance Parameters Parameter Specification Scan Volume 80 cubic inches Scan Pattern 100 lines Scan Rate 1170 Digital Scan Lines/second Minimum Resolution 5 mil 0 ~ 8” Depth of Field (100% UPC Labels) Minimum Print Contrast Ratio Skew (Yaw) ±...
Page 154: Physical Properties
Physical Properties Parameter Specification Dimensions (Scanner only): 66mm x 82mm x 154mm ( 2.6” x 3.23” x 6”) Dimensions (Scanner w/ 97mmx 82mm x 181mm (3.82” x 3.23” x 7.13”) Stand): Weight (Scanner) 9 oz. Weight (Base Station) 15.7 oz. Electrical Parameters Parameter Specification...
Page 155: Standard Cable Pinouts (Primary Interface Cables
Chapter B Cable Pinouts Standard Cable Pinouts (Primary Interface Cables) RS-232 2 CTS 10 Position RJ 4 RTS 5 RXD 6 TXD (Scanner End) Pin 1 8 VCC IN 9 GND IBM Port 5B/9B/17 10 Position RJ 4 DATA - 6 DATA + (Scanner End) Pin 1...
Page 156: Usb-Oem
Cable Pinouts USB-OEM 10 Position RJ 4 D - 6 D + (Scanner End) Pin 1 8 VIN 9 GND USB, USB Keyboard & USB Std. RS-232 10 Position RJ 4 D - 6 D + (Scanner End) Pin 1 8 VBUS_VIN 9 GND Wand Emulation...
Page 157 Chapter C Alpha-Numeric Pad Product Reference Guide...
Page 158 Alpha-Numeric Pad Magellan ® 1400i...
Page 159: Standard Feature Defaults
Appendix D Default Settings Standard Feature Defaults The table immediately below lists the default settings for the standard RS-232 interface. Std. Interface-Specific Page Feature RS-232 Exceptions Setting Double Read Timeout 0.6 Second Label Gone Timeout 200 msec Sleep Mode 10 minutes Power On Alert Enable Good Read: When to...
Page 160 Std. Interface-Specific Page Feature RS-232 Exceptions Setting Obey/Ignore Host Obey Host Commands Commands IBM: Buffers=1 Host Transmission Buffers=2 Buffers Wincor/Nixdorf: Buffers=1 Baud Rate 9600 Baud Data Bits 8 Data Bits 3-10 Stop Bits 1 Stop Bit 3-10 Wincor/Nixdorf: Parity Parity=None 3-10 Parity=Odd Hardware Flow...
Page 161 Standard Feature Defaults Std. Interface-Specific Page Feature RS-232 Exceptions Setting IBM Transmit Labels — IBM: Disable 3-25 in Code 39 Format Wand Emulation: Wand Emulation: Bar/ — 3-27 Bar/Space Polarity Space = High/Low Wand Emulation: — Wand Emulation: Low 3-27 Wand Idle State Wand Emulation: Wand Emulation:...
Page 162 Std. Interface-Specific Page Feature RS-232 Exceptions Setting Label ID IBM: Disable Position: Label ID Before Bar Keyboard Wedge: Code Data Disable UPC-A Label ID UPC-A w/P2 Addon Label ID UPC-A w/P5 Addon Label ID UPC-A w/C128 Addon Label ID Wincor/Nixdorf: UPC-E Label ID ‘C’...
Page 163 Standard Feature Defaults Std. Interface-Specific Page Feature RS-232 Exceptions Setting GTIN w/P5 addon Label ID GTIN w/C128 addon Label ID GS1 DataBar Omnidi- Wincor/Nixdorf: rectional Label ID ‘E’ GS1 DataBar Wincor/Nixdorf: Expanded Label ID ‘E’ Code 39 Label ID Pharmacode 39 Label Wincor/Nixdorf: Code 128 Label ID ‘K’...
Page 164 Std. Interface-Specific Page Feature RS-232 Exceptions Setting In-store Minimum Reads Disable/Enable Enable UPC-E Check Digit Send Check Transmission Digit Exclude Sys- Number System Digit tem Number Expand to UPC-E to Don’t UPC-A Expand Expand UPC-E to Don’t EAN13 Expand UPC-E Minimum Reads Disable/Enable GTIN Disable...
Page 165 Standard Feature Defaults Std. Interface-Specific Page Feature RS-232 Exceptions Setting Optional 5-Digit Disable 5-16 Addons Optional Code 128 Disable 5-16 Add-ons Disable/Enable GS1 DataBar Omnidi- Disable 5-17 rectional GS1 DataBarGS1 DataBar Omnidirec- Disable 5-17 tional 128 Emulation GS1 DataBar Omnidi- rectional Minimum 5-18 Reads...
Page 166 Std. Interface-Specific Page Feature RS-232 Exceptions Setting Code 39 Length 2 5-30 Don’t Code 39 Quiet Zones 5-30 Require Code 39 Stitching Disable 5-31 Code 39 Minimum 5-31 Reads Disable/Enable Phar- Disable 5-32 macode 39 Pharmacode 39 Start/ Don’t 5-32 Stop Characters Transmit Pharmacode 39...
Page 167 Standard Feature Defaults Std. Interface-Specific Page Feature RS-232 Exceptions Setting Interleaved 2 of 5 Disable 5-43 Stitching I 2 of 5 5-44 Minimum Reads Disable/Enable Disable 5-45 Codabar Codabar Check Char- Disable 5-45 acter Verification Codabar Check Char- Enable 5-46 acter Transmit Codabar Length Variable...
Page 168 Std. Interface-Specific Page Feature RS-232 Exceptions Setting MSI/Plessey Check Disable 5-56 Digit Verification MSI/Plessey Check 1-Digit 5-57 Digit Transmit Number of Check 1 Check 5-57 Characters Character MSI/Plessey Length Variable 5-64 Control Length MSI/Plessey Length 1 5-59 MSI/Plessey Length 2 5-59 MSI/Plessey Stitching Disable...
Page 169 Standard Feature Defaults Std. Interface-Specific Page Feature RS-232 Exceptions Setting PDF417 Length 1 PDF417 Length 2 PDF417 Minimum Reads D-11 Product Reference Guide...
Page 170 D-12 Magellan ® 1400i...
Page 171: Keyboard Model Cross Reference
Appendix E Keyboard Function Key Mappings Keyboard Model Cross Reference summarizes the keyboard models, their defined protocol, scancode set, and some unique features. The Table E-1 remaining tables in this chapter provide the function key maps associated with each of the scancode sets. .
Page 172 . Scanset 1 Function Key Map ASCII ASCII code Scancode (hex) ALT right Make E0h 38h ALT right Break E0h B8h ALT left Make ALT left Break CTRL left Make CTRL left Break CTRL right Make E0h 1Dh CTRL right Break E0h 9Dh TAB right RIGHT arrow (inner keypad)
Page 173 Keyboard Model Cross Reference Scanset 3, 102-Key Function Key Map ASCII (hex) ASCII code Scancode ALT right Make ALT right Break F0h 39h ALT left Make ALT left Break F0h 19h CTRL left Make CTRL left Break F0h 11h CTRL right Make CTRL right Break F0h 58h TAB right...
Page 174 . Scanset 3 122-Key Function Key Map ASCII (hex) ASCII code Scancode ALT Right Make ALT Right Break F0h 39h ALT left Make ALT left Break F0h 19h CTRL left (RESET) Make only CTRL left (RESET) Make/Break 11h F0h 11h ONLINE Enter Make only ONLINE Enter Make/Break 58h F0h 58h...
Page 175 Keyboard Model Cross Reference . Japanese DOS Function Key Map ASCII value ASCII code Scancode ALT right Make ALT right Break ALT left Make ALT left Break CTRL left Make CTRL left Break CTRL right Make CTRL right Break TAB right RIGHT arrow (inner keypad) TAB left 3Ch + S...
Page 176 . NEC 9801-Key Function Key Map ASCII value ASCII code Scancode unused CAPS LOCK ON (make) CAPS LOCK OFF (break) CTRL left Make CTRL left Break CTRL-C TAB right RIGHT arrow (inner keypad) TAB left 0Fh + S DELETE INSERT (inner keypad) KATAKANA LOCK ON (Make) KATAKANA LOCK OFF (Break) HOME (inner keypad)
Page 177: Accepting Rs-232 Commands
Chapter F Host Commands Accepting RS-232 Commands The scanner responds to the following RS-232 commands: COMMAND ASCII COMMENT Enable Scanner 0x45 Disable 0x44 Scanner Reset Scanner 0x52 Not On File 0x46 Long series of beeps Indication Beep Good 0x42 Beeps if Good Read Beep is enabled Read Tone Force Good 0x01...
Page 178 NOTES Magellan ® 1400i...
Page 179: Sample Symbols
Chapter G Sample Symbols UPC-A 0 1234567890 Interleaved 2 of 5 1234567890 Code 128 Code 128 EAN-13 9 780330 290951 Code 39 BC321 Codabar A13579B Code 93 123456-9$ Code 2 of 5 123456 Product Reference Guide...
Page 180 Sample Symbols GS1 DataBar Omnidirectional (01)00123456789012 GS1 DataBar Expanded 0100123456789050 Magellan ® 1400i...
Page 181 NOTES Product Reference Guide...
Page 182 NOTES Magellan ® 1400i...
Page 183: Ascii Chart
ASCII Chart ASCII ASCII ASCII ASCII Hex No. Hex No. Hex No. Char. Char. Char. Char. ‘ “ & ’ < >...
Page 184 Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Spain and Portugal Datalogic Scanning India Datalogic Scanning Sarl Sucursal en España Telephone: 91- 22 - 64504739 Telephone: 34 91 746 28 60 india.scanning@datalogic.com spain.scanning@datalogic.com Italy United Kingdom...

Datalogic Magellan 1400i Reference Manual

Quick Links

Related Manuals for Datalogic Magellan 1400i

Summary of Contents for Datalogic Magellan 1400i

Table of Contents
