Summary of Contents for Datalogic MAGELLAN 1000I

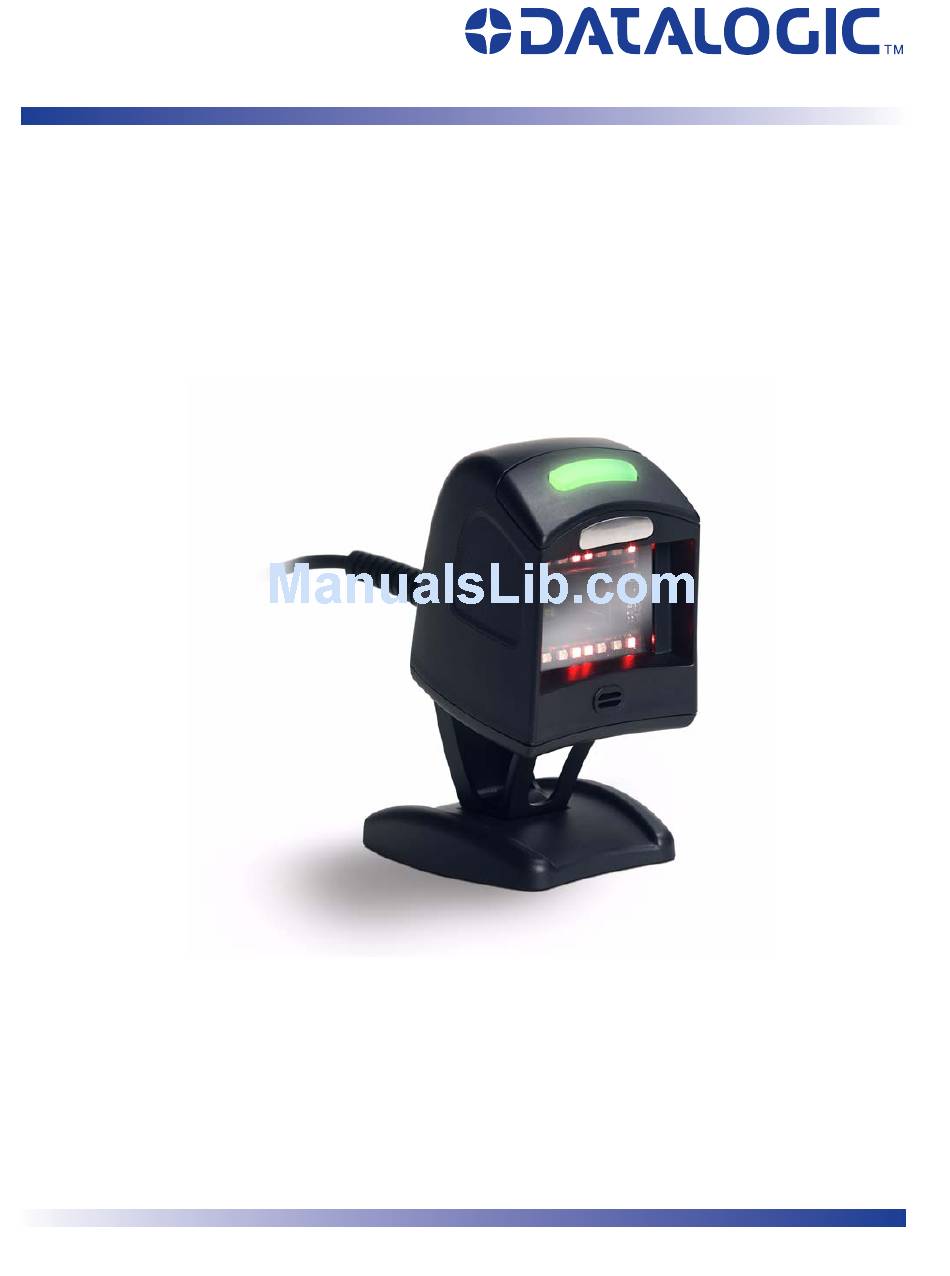

  • Page 1 ® Magellan 1000i Omni-Directional Imaging Scanner Product Reference Guide...
  • Page 2 Datalogic reserves the right to change any specification at any time without prior notice. Datalogic is a registered trademark of Datalogic S.p.A. and the Datalogic logo is a trademark of Datalogic S.p.A. all licensed to Datalogic Scanning, Inc. All other trademarks and trade names referred to herein are property of their respective owners.

  • Page 3: Table Of Contents

    About This Manual ... 1-1 Manual Conventions ... 1-1 Connecting the Scanner ... 1-2 Programming ... 1-3 Using the Programming Bar Codes ... 1-3 Resetting the Standard Product Defaults ... 1-3 LED and Beeper Indicators ... 1-4 Error Codes ... 1-5 Double Read Timeout ...
  • Page 4 Bar/Space Polarity ... 3-27 Wand Idle State ... 3-27 Signal Speed ... 3-28 Transmit Trailing Noise ... 3-28 Transmit Leading Noise ... 3-29 Symbology Conversion ... 3-29 Keyboard Wedge ... 3-30 USB Keyboard ... 3-30 Caps Lock State ... 3-32 Data Editing Overview ...
  • Page 5 Code 39 Full ASCII ...5-25 Length Control ...5-26 Code 39 Length 1, Length 2 Programming Instructions ...5-27 Quiet Zones ...5-27 Code 39 Stitching ...5-28 Minimum Reads ...5-28 Pharmacode 39 ...5-29 Disable/Enable Pharmacode 39 ...5-29 Start/Stop Characters ...5-29 Check Character Transmit ...5-30 Code 128 ...5-31 Disable/Enable Code 128 ...5-31 Transmit Function Characters ...5-31...
  • Page 6 Minimum Reads ... 5-63 Optical and Read Performance Parameters ...A-1 Scanner Dimensions ...A-1 Physical Properties ...A-2 Electrical Parameters ...A-2 Environmental Parameters ...A-2 Other Parameters ...A-2 Standard Cable Pinouts (Primary Interface Cables) ...B-1 RS-232 ...B-1 IBM Port 5B/9B/17 ...B-1 IBM USB ...B-2 USB &...

  • Page 7: About This Manual

    NOTE CAUTION Product Reference Guide Getting Started ® 1000i Omni-Directional Imaging Scanner offers hands-free scanning for small, Notes contain information necessary for prop- erly diagnosing, repairing and operating the scanner. The CAUTION symbol advises you of actions that could damage equipment or property.

  • Page 8: Connecting The Scanner

    Getting Started Connecting the Scanner The scanner kit you ordered to match your interface should provide a compatible cable for your installation. Use the appropriate instructions below to connect the scanner to the terminal, PC or other host device. Upon completing the connection via the appropriate interface instructions below, proceed to Interface Related Features interface type.

  • Page 9: Programming

    IBM cable. Reference Keyboard Wedge Connection — The Keyboard Wedge cable has a ‘Y’ connection from the scanner. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC.

  • Page 10: Led And Beeper Indicators

    The scanner’s beeper sounds and its green LED illuminates to indicate various functions or errors on the scanner. The tables below list these indications. One exception to the behaviors listed in the tables is that the scanner’s functions are programmable, and may or may not be turned on.

  • Page 11: Error Codes

    Error Codes Upon startup, if the scanner flashes its indicator LED or sounds an unexpected series of beep tones (other than normal power-up indications), this means the scanner has not passed its auto- matic Selftest and has entered FRU pulled, the sequence will be repeated. The following table describes the LED flashes/beep codes associated with an error found.
  • Page 12 Getting Started NOTES ® Magellan 1000i...

  • Page 13: Double Read Timeout

    Double Read Timeout The Double Read Timeout feature sets a time limit that determines how much time must pass before reading the same label again (e.g. two identical items in succession). 0.1 Second 0.3 Second 0.5 Second Product Reference Guide General Features PROGRAMMING BARCODES Chapter 2...
  • Page 14 General Features Double Read Timeout — cont. 0.7 Second 0.9 Second PROGRAMMING BARCODES START / END 0.8 Second 1 Second ® Magellan 1000i...

  • Page 15: Label Gone Timeout

    Label Gone Timeout This feature sets the time after the last label segment is seen before the scanner prepares for a new label. START / END Sets the label gone timeout duration using hex values from 000 to 255 in increments of ten milliseconds (10ms or 0.01 seconds). To configure this feature, scan the “START/END”...

  • Page 16: Sleep Mode

    General Features Sleep Mode This feature specifies the amount of time with no bar code reads before the scanner enters sleep mode. 15 Seconds 1 Minute 3 Minutes 5 Minutes PROGRAMMING BARCODES START / END 30 Seconds 2 Minutes 4 Minutes ®...
  • Page 17 Sleep Mode — cont. START / END 7 Minutes 9 Minutes 12 Minutes 30 Minutes Product Reference Guide PROGRAMMING BARCODES Sleep Mode 6 Minutes 8 Minutes 10 Minutes DEFAULT 15 Minutes 1 Hour...

  • Page 18: Led And Beeper Indicators

    General Features LED and Beeper Indicators Power On Alert Disables or enables the indication (a single beep) that the scanner has finished all its power up tests and is now ready for operation. Disable PROGRAMMING BARCODES START / END Enable DEFAULT ®...

  • Page 19: Good Read: When To Indicate

    Good Read: When to Indicate This feature specifies when the scanner will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...

  • Page 20: Good Read Beep Control

    General Features Good Read Beep Control This feature enables/disables the scanner’s ability to beep upon a successful decode of a bar code. Disable Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below.

  • Page 21: Good Read Beep Length

    Good Read Beep Length Specifies the duration of a good read beep. 60msec 100msec 140msec 180msec Product Reference Guide PROGRAMMING BARCODES LED and Beeper Indicators START / END 80msec DEFAULT 120msec 160msec 200msec...

  • Page 22: Good Read Beep Volume

    General Features Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. High DEFAULT 2-10 PROGRAMMING BARCODES START / END Medium ® Magellan 1000i...

  • Page 23: Scanning Features

    Scanning Features Targeted Scanning Mode Upon pressing the button, the scanner will project an aiming pattern to assist in centering over the bar code. Scanning then takes place as soon as the button is released. NOTE Configuration options for Targeted Scanning Mode are: •...

  • Page 24: Target Mode Linger Time

    General Features Target Mode Linger Time Specifies the time duration the scanner remains in the targeted mode of operation after reading a bar code before reverting to Omni-directional Mode. START / END Medium Duration DEFAULT 2-12 PROGRAMMING BARCODES Short Duration Long Duration ®...

  • Page 25: Wake Up Intensity

    Wake Up Intensity This feature indicates the percentage of ambient light change which will trigger the scanner to wake up from Sleep Mode. Lower settings provide greater sensitivity. The seelectable range for this setting is 5% to 15%. Product Reference Guide...
  • Page 26 General Features Wake Up Intensity — cont. 2-14 PROGRAMMING BARCODES START / END ® Magellan 1000i...

  • Page 27: Interface Related Features

    Interface Related Features At the time of this writing, the Scanner supports the interfaces listed in desired interface type from the table, then reference the page number given for the customizable features section associated with each interface. See Wedge interface type (A through Y as listed).
  • Page 28 Interface Related Features Table 3-2. Keyboard Wedge Interface Reference NOTE I/F Type PC/XT w/Alternate Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key Encoding PS/2 25 and 30 w/Alternate Key Encoding PC/XT w/Standard Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...

  • Page 29: Interface Selection

    Interface Selection Interface Selection START / END PROGRAMMING BARCODES RS-232 Standard RS-232 Wincor-Nixdorf IBM 4683 Port 5B IBM 4683 Port 9B IBM 4683 Port 17 IBM USB USB Keyboard Wand Emulation Keyboard Wedge A Product Reference Guide...
  • Page 30 Interface Related Features Interface Selection — cont. START / END Keyboard Wedge C Keyboard Wedge E Keyboard Wedge G ³ 0 0 0 1 3 2 Keyboard Wedge I PROGRAMMING BARCODES Keyboard Wedge B Keyboard Wedge D Keyboard Wedge F Keyboard Wedge H Keyboard Wedge J ®...
  • Page 31 Interface Selection — cont. Keyboard Wedge K Keyboard Wedge M Keyboard Wedge O ³ Keyboard Wedge Q Keyboard Wedge S Product Reference Guide PROGRAMMING BARCODES Keyboard Wedge L Keyboard Wedge N Keyboard Wedge P Keyboard Wedge R Interface Selection START / END...
  • Page 32 Interface Related Features Interface Selection — cont. Keyboard Wedge T Keyboard Wedge V Keyboard Wedge X PROGRAMMING BARCODES Keyboard Wedge U Keyboard Wedge W Keyboard Wedge Y START / END ® Magellan 1000i...

  • Page 33: Interface Features

    Interface Features Obey/Ignore Host Commands When set to ignore host commands, the scanner will ignore all host commands except for the minimum set necessary to keep the interface active and transmit labels For normal operation of the interface, select Obey Host Commands.

  • Page 34: Host Transmission Buffers

    Specifies the number of host transmission(s) that may be buffered. By buffering data from a bar code, the scanner can continue to read a new bar code while the old one is being transmitted to the host. Selecting BUFFERS = 1 means that the first bar code must be transmitted before a new one can be read.

  • Page 35: Rs-232 Interface Features

    RS-232 Interface Features START / END 2400 Baud 9600 Baud DEFAULT 38400 Baud 115200 Baud Product Reference Guide PROGRAMMING BARCODES Interface Features 1200 Baud 4800 Baud 19200 Baud 57600 Baud...
  • Page 36 Interface Related Features RS-232 Interface Features — cont. START / END 8 Data Bits DEFAULT 2 Stop Bits Parity = Even 3-10 PROGRAMMING BARCODES 7 Data Bits 1 Stop Bit DEFAULT Parity = None DEFAULT Parity = Odd ® Magellan 1000i...

  • Page 37: Hardware Flow Control

    The CTS line must be active for the scanner to read and trans- mit data. While the CTS line is inactive, the scanner remains in a host-disabled state; following a successful label transmission, the CTS signal must transition to inactive and then to active to enable scanning for the next label.

  • Page 38: Intercharacter Delay

    Interface Related Features RS-232 Interface Features — cont. Intercharacter Delay This delay is inserted after each data character transmitted. If the transmission speed is too high, the system may not be able to receive all characters. You may need to adjust the delay to make the system work properly.

  • Page 39: Intercharacter Delay - Cont

    Intercharacter Delay — cont. START / END Interchar Delay = 90 msec Software Flow Control Disables/Enables software control using XON/XOFF characters. START / END Enable Software Flow Control Product Reference Guide PROGRAMMING BARCODES Interchar Delay = 80 msec PROGRAMMING BARCODES Disable Software Flow Control Interface Features DEFAULT...

  • Page 40: Host Echo

    If, for example, one of the devices in the chain is a terminal where someone is entering data while another person is simultaneously scanning a bar code requiring transmission to the host, the scanner will wait for the RS-232 channel to be quiet for a specified period of time (set RS-232 Host Echo Quiet Interval data in order to avoid RS-232 transmission conflicts.

  • Page 41: Host Echo Quiet Interval

    Host Echo Quiet Interval This setting specifies the time interval of RS-232 channel inactivity which must transpire before the scanner will break the host echo loop to transmit the bar code data that has just been scanned to the host.

  • Page 42: Signal Voltage: Normal/Ttl

    Interface Related Features Host Echo Quiet Interval — cont. START / END Host Echo Quiet Interval = 90msec Signal Voltage: Normal/TTL Specifies whether the RS-232 interface provides TTL levels on the output pins TxD and RTS. START / END Signal Voltage: TTL 3-16 PROGRAMMING BARCODES Host Echo Quiet Interval = 80msec...

  • Page 43: Rs-232 Invert

    Enables/disables inversion of RS-232 TXD and RXD signals. START / END Enable RS-232 Invert Beep on ASCII BEL Enables/disables ability of scanner to beep (sound a good read tone) on receiving an ASCII BEL (07 hex). START / END Disable Beep on ASCII BEL...

  • Page 44: Beep On Not On File

    Interface Related Features Beep on Not on File Select for the host to beep (or not) when a not-on-file (host command) condition is detected by the host. START / END PROGRAMMING BARCODES Disable Beep on Not On File Enable Beep on Not On File DEFAULT ®...

  • Page 45: Ack Nak Options

    This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Selections for this option are: •...

  • Page 46: Ack Character

    Interface Related Features RS-232 Interface Features — cont. — cont. ACK Character START / END Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits with zeros, as in “005”.

  • Page 47: Retry On Ack Nak Timeout

    DEFAULT ACK NAK Timeout Value START / END This item specifies the time the scanner will wait for an ACK character from the host following a label transmission. 000 = Infinite timeout 001 - 075 = Timeout in 200-millisecond increments To configure this feature, scan the “START/END”...

  • Page 48: Ack Nak Retry Count

    ACK NAK Retry Count START / END This feature sets the number of times for the scanner to retry a label transmission under a retry condition. 000 = No retry 001 - 254 = Retry for the specified number of times 255 = Retry forever To configure this feature, scan the “START/END”...

  • Page 49: Ack Nak Error Handling

    ACK NAK Error Handling This item specifies the method the scanner will use to handle errors detected while waiting to receive the ACK character from the host. Errors include unrecognized host commands and com- munication errors such as parity or framing errors. Choices are:...

  • Page 50: Transmission Failure Indication

    IBM-USB Interface Features IBM-USB Device usage The IBM-USB protocol allows for the scanner to be identified as one of two different types of bar code scanners. Depending on what other scanners you may already have connected to a IBM-USB POS, you may need to change this setting to enable all devices to communicate.

  • Page 51: Ibm

    Interface Features IBM Transmit Labels in Code 39 Format This feature enables/disables scanner's ability to set a symbology identifier for a specified label to Code 39 before transmitting that label data to an IBM host. This applies to: Code 128, Coda- bar and Code 93 for IBM USB;...

  • Page 52: Wand Emulation

    Interface Related Features Wand Emulation Supported Symbologies The Wand Emulation interface will transmit bar code data as a wand device would. This inter- face will transmit the following bar code symbologies: • UPC/EAN • UPC/EAN with addons • Code 39 •...

  • Page 53: Product Reference Guide

    Wand Emulation — cont. Bar/Space Polarity Low/High — Black will be transmitted as a low voltage level (0 to +0.7V) and space as high level (+2.4 to +5.25V). High/Low — Black will be transmitted as a high voltage level (+2.4 to +5.25V) and space as low level (0 to +0.7V).

  • Page 54: Signal Speed

    Interface Related Features Wand Emulation — cont. Signal Speed The speed of the transmission can be set. This selects the width of the minimum narrow bar. 330 microseconds 660 microseconds START / END Signal Speed = 660mS DEFAULT Transmit Trailing Noise The transmission of noise pulses after the label may be enabled or disabled.

  • Page 55: Transmit Leading Noise

    Wand Emulation — cont. Transmit Leading Noise The transmission of noise pulses before the bar code may be enabled or disabled. START / END Enable Leading Noise DEFAULT Symbology Conversion Wand Emulation can convert all bar codes to a single symbology. Choices are: No Conversion Convert to Code 39 Convert to Code 128...

  • Page 56: Keyboard Wedge

    Interface Related Features Keyboard Wedge USB Keyboard As a keyboard interface, the scanner supports most popular PCs and IBM terminals. The instal- lation of the wedge is a fairly simple process that doesn’t require any changes of software or hard- ware.
  • Page 57 Interface Features Keyboard Wedge — cont. START / END PROGRAMMING BARCODES Italy Norway Portugal Spain Sweden Switzerland Japan 106 Key Hungary Czech Product Reference Guide 3-31...

  • Page 58: Caps Lock State

    Interface Related Features Keyboard Wedge — cont. START / END Romania Poland Caps Lock State Specifies the format in which the scanner sends character data. START / END Caps Lock “ON” 3-32 PROGRAMMING BARCODES PROGRAMMING BARCODES Disable Caps Lock Slovakia...
  • Page 59 Keyboard Wedge — cont. Power-On Simulation NOTE All PCs check the keyboard status during the power-on Selftest. It is recommended that you enable this function if you are working without a keyboard installation. It simulates keyboard timing and passes the keyboard status to the PC during power-on. START / END ³...
  • Page 60 Interface Related Features Control Characters Specifies how the scanner transmits ASCII control characters to the host. Choices are: • Disable Control Characters • Enable transmission of control characters to host • Send characters between 00H and 1FH according to a special function-key mapping table.
  • Page 61 Keyboard Wedge — cont. Wedge Quiet Interval NOTE Quiet Interval is the amount of time to look for keyboard activity before the scanner breaks the keyboard connection in order to transmit data to the host. START / END Selectable from 000 (no interval) to 255 in 10 msec increments. To configure this feature, scan the “START/END” bar code above to...
  • Page 62 Interface Related Features Keyboard Wedge — cont. Intercharacter Delay NOTE START / END One-half of the delay specified below is inserted between scancodes within each character. If the transmission speed is too high, the system may not be able to receive all characters. You may need to adjust the delay to make the system work properly. Selectable from 000 to 255 in 10msec increments.

  • Page 63: Data Editing Overview

    Data Editing Overview It is not recommended to use these features with IBM or Wand Emulation interfaces. CAUTION When a bar code is scanned, additional information can be sent to the host computer along with the bar code data. This combination of bar code data and supplementary user-defined data is called a “message string.”...

  • Page 64: Global Prefix/Suffix

    Data Editing • Enter prefixes and suffixes in the order in which you want them to appear on the output. Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/ or as a suffix (in a position following the bar code data) as indicated in Figure 4-2.
  • Page 65 Global Prefix/Suffix Global Prefix/Suffix — cont. START / END PROGRAMMING BARCODES Sets up to 20 characters each from the set of ASCII characters or any hex value from 0 to FF. To configure this feature, scan the “START/END” bar code above to place the unit in Programming Mode, then the “Set Prefix” or “Set Suffix,” followed by the digits from the Alphanumeric table in representing your desired character(s).

  • Page 66: Aim Id

    Data Editing AIM ID AIM (Automatic Identification Manufacturers) label identifiers are assigned from a globally standardized list — as opposed to custom label ID characters you select yourself — and can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...

  • Page 67: Label Id

    This feature provides options for configuring custom Label IDs individu- ally per symbology. If you wish to program the scanner to always include an industry standard label identifier for ALL symbology types, see the previous feature, To configure a Label ID: 1.
  • Page 68 Data Editing Label ID — cont. START / END Label ID Position: Before Bar Code Data DEFAULT Set UPC-A Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex) Set UPC-A w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex) Set UPC-E Label ID Character(s) PROGRAMMING BARCODES Label ID Transmission: Disable...
  • Page 69 Label ID — cont. START / END DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set UPC-E w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set EAN-8 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: FF (4646 hex) Set EAN-8 w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: FF (4646 hex) Set EAN-13 Label ID Character(s)
  • Page 70 Data Editing Label ID — cont. START / END DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set EAN-13 w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set ISBN Label ID Character(s) ³ DEFAULT SETTING FOR THIS FEATURE: IA (4941 hex) Set GTIN Label ID Character(s) ³...
  • Page 71 Label ID — cont. START / END DEFAULT SETTING FOR THIS FEATURE: G8 (4738 hex) Set RSS-14 Label ID Character(s) ³ DEFAULT SETTING FOR THIS FEATURE: RX (5258 hex) Set Code 39 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex) Set Code 128 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: i (69 hex) Product Reference Guide...
  • Page 72 Data Editing Label ID — cont. START / END ³ DEFAULT SETTING FOR THIS FEATURE: % (25 hex) Set Code 93 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: @ (40 hex) Set MSI/Plessey Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: s (73 hex) Set EAN UCC Composite Label ID Character(s) 4-10 PROGRAMMING BARCODES...

  • Page 73: Case Conversion

    Case Conversion This feature can convert scanned bar code data to either all lower case (a through z) or all upper case (A through Z) characters. Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data.

  • Page 74: Character Conversion

    Data Editing Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the charac- ter to convert in a pair is FF, then no conversion is done.

  • Page 75: Upc-A

    The scanner supports the following symbologies (bar code types). Options for each symbology are included in this chapter. ·UPC-A ·UPC-E ·EAN-13 ·EAN-8 ·RSS-14 ·RSS Expanded ·Code 39 Factory Defaults — this section. Reference UPC-A Disable/Enable UPC-A When disabled, the scanner will not read UPC-A bar codes.

  • Page 76: Check Digit Transmission

    Symbologies UPC-A — continued Check Digit Transmission Enable this option to transmit the check digit along with UPC-A bar code data. START / END Send Check Digit DEFAULT Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the sym- bology ID to match those required for EAN-13.

  • Page 77: Number System Transmission

    UPC-A — continued Number System Transmission This feature enables/disables transmission of UPC-A System Number. START / END Enable Number System Transmission DEFAULT UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads...

  • Page 78: Upc-A In-Store Minimum Reads

    Symbologies UPC-A — continued UPC-A In-store Minimum Reads This feature specifies the minimum number of consecutive times an in-store printed label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads PROGRAMMING BARCODES Minimum = 1 Read Minimum = 3 Reads...

  • Page 79: Upc-E

    UPC-E The following options apply to the UPC-E symbology. Disable/Enable UPC-E When disabled, the scanner will not read UPC-E bar codes. START / END Enable UPC-E DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with UPC-E bar code data.

  • Page 80: Number System Digit

    Symbologies UPC-E — continued Number System Digit The Number System Digit (NSD) which is always a zero (0) in the leading position can be optionally included (or not) with scanned bar code data. START / END Include Number System Digit Expand to UPC-E to UPC-A Enables/disables expansion of UPC-E labels to UPC-A.

  • Page 81: Expand Upc-E To Ean13

    UPC-E — continued Expand UPC-E to EAN13 Enables/disables expansion of UPC-E labels to EAN-13. Selecting this feature also changes the symbology ID to match those required for EAN-13. START / END Expand UPC-E to EAN-13 Minimum Reads This feature specifies the minimum number of consecutive times a UPC-E label must be decoded before it is accepted as good read.

  • Page 82: Gtin

    Symbologies GTIN The following options apply to the GTIN label data format. Expand UPC/EAN to GTIN When this feature is enabled, the scanner will translate UPC/EAN labels to the 14 digit GTIN format. START / END Expand to GTIN PROGRAMMING BARCODES Don’t Expand to GTIN...

  • Page 83: Disable/Enable Ean-13

    EAN-13 The following options apply to the EAN-13 symbology. Disable/Enable EAN-13 When disabled, the scanner will not read EAN-13 bar codes. START / END Enable EAN-13 DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with EAN-13 bar code data.

  • Page 84: Ean-13 Flag 1 Character

    Symbologies EAN-13 — continued EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. START / END Transmit EAN-13 Flag 1 Char DEFAULT ISBN When enabled, this feature truncates the leading three digits from labels that contain ISBN (International Standard Book Number) and appends an ISBN check character to the end of the label.

  • Page 85: Minimum Reads

    EAN-13 — continued Minimum Reads This feature specifies the minimum number of consecutive times an EAN-13 label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads Product Reference Guide PROGRAMMING BARCODES Minimum = 1 Read Minimum = 3 Reads...

  • Page 86: Disable/Enable Ean-8

    Symbologies EAN-8 The following options apply to the EAN-8 symbology. Disable/Enable EAN-8 When disabled, the scanner will not read EAN-8 bar codes. START / END Enable EAN-8 DEFAULT Check Digit Transmission Enable this option to transmit the check Digit along with EAN-8 bar code data.

  • Page 87: Minimum Reads

    EAN-8 — continued Expand EAN-8 to EAN-13 — this feature also changes the symbology ID to match those required for EAN-13. START / END Expand to EAN-13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN-8 label must be decoded before it is accepted as good read.

  • Page 88: Enable Ean Two-Label

    Symbologies Enable EAN Two-Label Enables/disables the ability of the scanner to decode EAN two-label pairs. START / END PROGRAMMING BARCODES Disable EAN Two-Label Enable EAN Two-Label ® 5-14 Magellan 1000i...

  • Page 89: Add-Ons

    Add-ons (or supplemental characters) are commonly added to the end of UPC/EAN bar codes. The scanner will read the add-ons if they are enabled and in the field of view. Three add-on types are supported: 2-digit, 5-digit and Code 128 add-ons. Supported options are: None —...
  • Page 90 Symbologies Add-ons — continued START / END Enable Optional 2-Digit Add-ons Enable Optional 5-Digit Add-ons Enable Optional Code 128 Add-ons 5-16 PROGRAMMING BARCODES Disable Optional 2-Digit Add-ons Disable Optional 5-Digit Add-ons Disable Optional Code 128 Add-ons DEFAULT DEFAULT DEFAULT ® Magellan 1000i...

  • Page 91: Disable/Enable Rss-14

    RSS-14 The following options apply to the RSS-14 symbology. Disable/Enable RSS-14 When this feature is disabled, the scanner will not read RSS-14 bar codes. START / END Enable RSS-14 UCC/EAN 128 Emulation When enabled, RSS-14 bar codes will be translated to the UCC/EAN 128 label data format.

  • Page 92: Minimum Reads

    Symbologies RSS-14 — continued Minimum Reads This feature specifies the minimum number of consecutive times an RSS-14 label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads 5-18 PROGRAMMING BARCODES Minimum = 1 Read Minimum = 3 Reads...

  • Page 93: Rss Expanded

    RSS Expanded The following options apply to the RSS Expanded symbology. Disable/Enable RSS Expanded When this feature is disabled, the scanner will not read RSS Expanded bar codes. START / END Enable RSS Expanded UCC/EAN 128 Emulation When enabled, RSS Expanded bar codes will be translated to the UCC/EAN 128 label data for- mat.

  • Page 94: Rss Expanded - Continued

    Length 2 Programming Instructions START / END Fixed Length Decoding 5-20 When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. RSS Expanded Length 1, Length 2 Programming Instructions below.

  • Page 95: Rss Expanded - Continued

    RSS Expanded — continued RSS Expanded Length 1, Length 2 Programming Instructions 1. Scan the START/END bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation. NOTE 4.

  • Page 96: Minimum Reads

    Symbologies RSS Expanded — continued Minimum Reads This feature specifies the minimum number of consecutive times an RSS Expanded label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads 5-22 PROGRAMMING BARCODES Minimum = 1 Read...

  • Page 97: Code 39

    Enable Code 39 DEFAULT Check Character Calculation When enabled, the scanner will calculate the check character of the labels. Turn this option on only when a checksum is present in the Code 39 labels. START / END Enable Check Char Calculation...

  • Page 98: Check Character Transmit

    Symbologies Check Character Transmit Enable this option to transmit the check character with scanned bar code data. START / END Enable Check Char Transmission DEFAULT Start/Stop Characters Enables/disables transmission of Code39 start and stop characters. START / END Transmit Start/Stop Characters 5-24 PROGRAMMING BARCODES Disable Check Char Transmission...

  • Page 99: Code 39 Full Ascii

    Code 39 Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters START / END PROGRAMMING BARCODES Disable Code 39 Full ASCII DEFAULT Enable Code 39 Full ASCII Product Reference Guide 5-25...

  • Page 100: Length Control

    5. Set Length 2 to the second variable length by following the gramming Instructions START / END Fixed Length Decoding 5-26 When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. Code 39 Length 1, Length 2 Programming Instructions below.

  • Page 101: Code 39 Length 1, Length 2 Programming Instructions

    Code 39 Length 1, Length 2 Programming Instructions 1. Scan the START/END bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation. For Code 39 bar codes, all check, data and full ASCII shift characters are included in the length calculations.

  • Page 102: Code 39 Stitching

    Enables/disables stitching for Code 39 labels. When parts of a Code 39 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 103: Pharmacode 39

    Pharmacode 39 The following options apply to the Pharmacode 39 symbology. Disable/Enable Pharmacode 39 When this feature is disabled, the scanner will not read Pharmacode 39 bar codes. START / END Enable Pharmacode 39 Start/Stop Characters Enables or disables transmission of Pharmacode 39 start/stop characters.

  • Page 104: Check Character Transmit

    Symbologies Check Character Transmit Enable this option to transmit the check character with scanned bar code data. START / END PROGRAMMING BARCODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT ® 5-30 Magellan 1000i...

  • Page 105: Code 128

    Code 128 The following options apply to the Code 128 symbology. Disable/Enable Code 128 When this feature is disabled, the scanner will not read Code 128 bar codes. START / END Enable Code 128 DEFAULT Transmit Function Characters Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.

  • Page 106: Length Control

    5. Set Length 2 to the second variable length by following the Programming Instructions START / END Fixed Length Decoding 5-32 When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. Code 128 Length 1, Length 2 Programming Instructions below.

  • Page 107: Code 128 Conversion To Code 39

    Code 128 — continued Code 128 Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation. NOTE 4.

  • Page 108: Code 128 Stitching

    Enables/disables stitching for Code 128 labels. When parts of a Code 128 bar code are pre- sented to the scanner with this feature enabled, the bar code parts will be assembled by the scan- ner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 109: Interleaved 2 Of 5

    The following options apply to the Interleaved 2 of 5 (I 2 of 5) symbology. Disable/Enable Interleaved 2 of 5 When this feature is disabled, the scanner will not read Interleaved 2 of 5 bar codes. START / END Enable Interleaved 2 of 5 Check Digit Calculation When enabled, the scanner will calculate the check digit of the labels.

  • Page 110: Check Digit Transmit

    Symbologies Interleaved 2 of 5 — continued Check Digit Transmit Enable this option to transmit the check digit with scanned bar code data. START / END PROGRAMMING BARCODES Disable Check Digit Calculation DEFAULT Enable Check Digit Calculation ® 5-36 Magellan 1000i...

  • Page 111: Length Control

    START / END Fixed Length Decoding Product Reference Guide When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. Interleaved 2 of 5 Length 1, Length 2 Programming Instructions below.

  • Page 112: Interleaved 2 Of 5 Length 1, Length 2 Programming Instructions

    Symbologies Interleaved 2 of 5 — continued Interleaved 2 of 5 Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation NOTE 4.

  • Page 113: Interleaved 2 Of 5 — Continued

    Enables/disables stitching for Interleaved 2 of 5 labels. When parts of an Interleaved 2 of 5 bar code are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 114: Minimum Reads

    Symbologies Interleaved 2 of 5 — continued Minimum Reads This feature specifies the minimum number of consecutive times an Interleaved 2 of 5 label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads 5-40 PROGRAMMING BARCODES...

  • Page 115: Codabar

    Codabar The following options apply to the Codabar symbology. Disable/Enable Codabar When this feature is disabled, the scanner will not read Codabar bar codes. START / END Enable Codabar Check Character Verification When enabled, the scanner will verify the check character of the labels.

  • Page 116: Check Character Transmit

    Symbologies Check Character Transmit Enable this option to transmit the check character with scanned bar code data. START / END PROGRAMMING BARCODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT ® 5-42 Magellan 1000i...

  • Page 117: Length Control

    Programming Instructions START / END Fixed Length Decoding Product Reference Guide When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. Codabar Length 1, Length 2 Programming Instructions below.

  • Page 118: Codabar Length 1, Length 2 Programming Instructions

    Symbologies Codabar — continued Codabar Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation. NOTE 4.

  • Page 119: Start/Stop Character Type

    Codabar — continued Start/Stop Character Type Codabar has four pairs of Start/Stop patterns. Select one pair to match your application. START / END Start/Stop Type: ABCD/ABCD Start/Stop Type: abcd/abcd DEFAULT Start/Stop Character Transmission The transmission of start and end characters of Codabar is selected below. START / END Enable Start/Stop Char Transmission DEFAULT...

  • Page 120: Start/Stop Character Match

    Enables/disables stitching for Codabar labels. When parts of a Codabar label are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s soft- ware, and the data will be decoded if all bar code proofing requirements are met.

  • Page 121: Minimum Reads

    Codabar — continued Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as a good read. START / END Minimum = 2 Reads Minimum = 4 Reads Product Reference Guide PROGRAMMING BARCODES Minimum = 1 Read Minimum = 3 Reads...

  • Page 122: Code 93

    Symbologies Code 93 The following options apply to the Code 93 symbology. Disable/Enable Code 93 When this feature is disabled, the scanner will not read Code 93 bar codes. START / END Enable Code 93 5-48 PROGRAMMING BARCODES Disable Code 93 DEFAULT ®...

  • Page 123: Length Control

    Instructions START / END Fixed Length Decoding Product Reference Guide When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. Code 93 Length 1, Length 2 Programming Instructions below.

  • Page 124: Code 93 Length 1, Length 2 Programming Instructions

    Symbologies Code 93 — continued Code 93 Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation. NOTE 4.

  • Page 125: Code 93 Stitching

    Enables/disables stitching for Code 93 bar codes. When parts of a Code 93 label are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 126: Msi/Plessey

    Symbologies MSI/Plessey The following options apply to the MSI/Plessey symbology. Disable/Enable MSI/Plessey When this feature is disabled, the scanner will not read MSI/Plessey bar codes. START / END Enable MSI/Plessey Check Digit Verification This feature specifies whether one or two check digits are to be calculated and verified.

  • Page 127: Check Digit Transmit

    MSI/Plessey — continued Check Digit Transmit When this option is enabled, the scanner will transmit one-digit or two-digit check digits, depending upon the setting for check digit verification. START / END Enable Check Digit Transmission DEFAULT Number of Check Characters...

  • Page 128: Length Control

    5. Set Length 2 to the second variable length by following the Programming Instructions START / END Fixed Length Decoding 5-54 When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. MSI/Plessey Length 1, Length 2 Programming Instructions below.

  • Page 129: Msi/Plessey Length 1, Length 2 Programming Instructions

    MSI/Plessey — continued MSI/Plessey Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation. NOTE 4.

  • Page 130: Msi/Plessey Stitching

    Enables/disables stitching for MSI/Plessey bar codes. When parts of an MSI/Plessey label are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 131: Minimum Reads

    MSI/Plessey — continued Minimum Reads This feature specifies the minimum number of consecutive times an MSI/Plessey label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads Product Reference Guide PROGRAMMING BARCODES Minimum = 1 Read Minimum = 3 Reads...

  • Page 132: Standard 2 Of 5

    The following options apply to the Standard 2 of 5 symbology. Disable/Enable Standard 2 of 5 When this feature is disabled, the scanner will not read Standard 2 of 5 bar codes. START / END Enable Std 2 of 5 Check Digit Verification When enabled, the scanner will verify the check digit of the labels.

  • Page 133: Check Digit Transmit

    Standard 2 of 5 Standard 2 of 5 — continued Check Digit Transmit When this option is enabled, the scanner will transmit the check digit. START / END PROGRAMMING BARCODES Disable Check Digit Transmission Enable Check Digit Transmission DEFAULT Product Reference Guide...

  • Page 134: Length Control

    2 Programming Instructions START / END Fixed Length Decoding 5-60 When fixed length decoding is enabled, the scanner will decode a When variable length decoding is enabled, the scanner will below. Standard 2 of 5 Length 1, Length 2 Programming Instructions below.

  • Page 135: Standard 2 Of 5 Length 1, Length 2 Programming Instructions

    Standard 2 of 5 — continued Standard 2 of 5 Length 1, Length 2 Programming Instructions 1. Scan the START bar code. 2. Scan either the Set Length 1 or Set Length 2 bar code. 3. Turn to Appendix C, Alpha-Numeric Pad ing the length in decimal notation.

  • Page 136: Standard 2 Of 5 Stitching

    Enables/disables stitching for Standard 2 of 5 bar codes. When parts of a Standard 2 of 5 label are presented to the scanner with this feature enabled, the bar code parts will be assembled by the scanner’s software, and the data will be decoded if all bar code proofing requirements are met.

  • Page 137: Product Reference Guide I-Iii

    Standard 2 of 5 — continued Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as good read. START / END Minimum = 2 Reads Minimum = 4 Reads Product Reference Guide PROGRAMMING BARCODES...
  • Page 138 Symbologies NOTES ® 5-64 Magellan 1000i...

  • Page 139: Optical And Read Performance Parameters

    Scan Pattern Scan Rate Minimum Resolution Depth of Field (100% UPC Labels) Minimum Print Contrast Ratio Skew (Yaw) Pitch Roll Scanner Dimensions 139.58mm 5.5" 97.84mm Product Reference Guide Product Specifications Specification 70 cubic inches 100 lines 1,100 digital scan lines 5 mil 0 - 6”...

  • Page 140: Physical Properties

    Physical Properties Parameter Dimensions (Scanner only): Dimensions (Scanner w/Base Station): Weight (Scanner) Weight (Base Station) Electrical Parameters Parameter Operating Voltage Input Current Operating (idle) Operating (label read) Environmental Parameters Parameter Mechanical Shock Contaminants Water and Dust Temperature Ranges: Operating Storage...

  • Page 141: Standard Cable Pinouts (Primary Interface Cables

    6 TXD Pin 1 8 VCC IN 9 GND IBM Port 5B/9B/17 4 DATA - 6 DATA + Pin 1 8 VCC_IN 9 GND Product Reference Guide Appendix B Cable Pinouts 10 Position RJ (Scanner End) 10 Position RJ (Scanner End)

  • Page 142: Ibm Usb

    9 GND Keyboard Wedge 2 KB_DATA 3 AT_CLK 4 KB_CLK 6 AT_DATA Pin 1 8 VCC_IN 9 GND 10 Position RJ (Scanner End) 10 Position RJ (Scanner End) 10 Position RJ (Scanner End) 10 Position RJ (Scanner End) ® Magellan 1000i...
  • Page 143 Appendix C Alpha-Numeric Pad Product Reference Guide...
  • Page 144 Alpha-Numeric Pad ® Magellan 1000i...

  • Page 145: Defaults By Symbology

    Defaults by Symbology The following is a partial list of key settings for each symbology type. Code Type UPC-A UPC-E EAN-13 EAN-8 RSS-14 RSS Expanded Code 39 PharmaCode 39 Code 128 Interleaved 2 of 5 Codabar Code 93 MSI/Plessey Standard 2 of 5 Interface Default Exceptions The factory default settings indicated in the programming sections (in bold text) reflect factory configuration for the RS-232 standard interface.

  • Page 146: Ibm Interfaces

    IBM Interfaces IBM Interfaces include IBM-USB, IBM Port 9B, IBM Port5B and IBM Port17. IBM Interface Type Number of Host Transmit Buffers Label I.D. Transmission Suffix Characters RS-232 Wincor/Nixdorf Interface Type Number of Host Transmit Buffers RS-232 Parity RS-232 Hardware Control UPC-E Check Character Conversion UCC/EAN-128 Label ID Code 39 Label ID...

  • Page 147: Wand Emulation

    Wand Emulation Interface Type Code 39 Start/Stop Character Transmission Keyboards Keyboard interfaces include USB Keyboard and Keyboard Wedge A-Y. Keyboard Wedge Interface Type Label ID Transmission Product Reference Guide Parameter Default Setting Wand Emulation Enable Parameter Default Setting USB Keyboard Disable Interface Default Exceptions...
  • Page 148 NOTES ® Magellan 1000i...

  • Page 149: Keyboard Model Cross Reference

    Keyboard Function Key Keyboard Model Cross Reference summarizes the keyboard models, their defined protocol, scancode set, and some unique features. The Table E-1 remaining tables in this chapter provide the function key maps associated with each of the scancode sets. Table E-1.
  • Page 150 Table E-2. Scanset 1 Function Key Map ASCII ASCII code (hex) Table E-3. Scanset 2 Function Key Map ASCII ASCII code (hex) ALT right Make ALT right Break ALT left Make ALT left Break CTRL left Make CTRL left Break CTRL right Make CTRL right Break TAB right...
  • Page 151 Table E-4 Scanset 3, 102-Key Function Key Map ASCII (hex) Product Reference Guide ASCII code ALT right Make ALT right Break ALT left Make ALT left Break CTRL left Make CTRL left Break CTRL right Make CTRL right Break TAB right RIGHT arrow (inner keypad) TAB left Enter (inner keypad)
  • Page 152 Table E-5. Scanset 3 122-Key Function Key Map ASCII (hex) ASCII code ALT Right Make ALT Right Break ALT left Make ALT left Break CTRL left (RESET) Make only CTRL left (RESET) Make/Break ONLINE Enter Make only ONLINE Enter Make/Break TAB right RIGHT arrow (inner keypad) TAB left...
  • Page 153 Table E-6. Japanese DOS Function Key Map ASCII value Product Reference Guide ASCII code ALT right Make ALT right Break ALT left Make ALT left Break CTRL left Make CTRL left Break CTRL right Make CTRL right Break TAB right RIGHT arrow (inner keypad) TAB left Enter (right keypad)
  • Page 154 Table E-7. NEC 9801-Key Function Key Map ASCII value ASCII code unused CAPS LOCK ON (make) CAPS LOCK OFF (break) CTRL left Make CTRL left Break CTRL-C TAB right RIGHT arrow (inner keypad) TAB left DELETE INSERT (inner keypad) KATAKANA LOCK ON (Make) KATAKANA LOCK OFF (Break) HOME (inner keypad) LEFT arrow (inner keypad)

  • Page 155: Accepting Rs-232 Commands

    Status request a. Call Tech Support for information. If one of the above commands is received, the scanner will perform the steps indicated for the command. Host commands for other interfaces are also available. Contact Tech Support for more details.
  • Page 156 NOTES ® Magellan 1000i...
  • Page 157 UPC-A 0 1234567890 Code 128 Code 128 Code 39 BC321 Code 93 123456-9$ Product Reference Guide Appendix G Sample Symbols Interleaved 2 of 5 1234567890 EAN-13 9 780330 290951 Codabar A13579B Code 2 of 5 123456...
  • Page 158 Sample Symbols RSS-14 (01)00123456789012 RSS Expanded 0100123456789050 ® Magellan 1000i...

  • Page 159: Ascii Chart

    ASCII Chart ASCII ASCII Hex No. Hex No. Char. Char. “ & ’ < > ASCII ASCII Hex No. Char. Char. ‘...
  • Page 160 Datalogic Scanning, Inc Miami, Florida, USA Telephone: (305) 591-3222 Fax: (305) 591-3007 Spain and Portugal Datalogic Scanning Sarl Sucursal en España Madrid, Spain Telephone: 34 91 746 28 60 Fax: 34 91 742 35 33 United Kingdom Datalogic Scanning LTD...

Table of Contents
