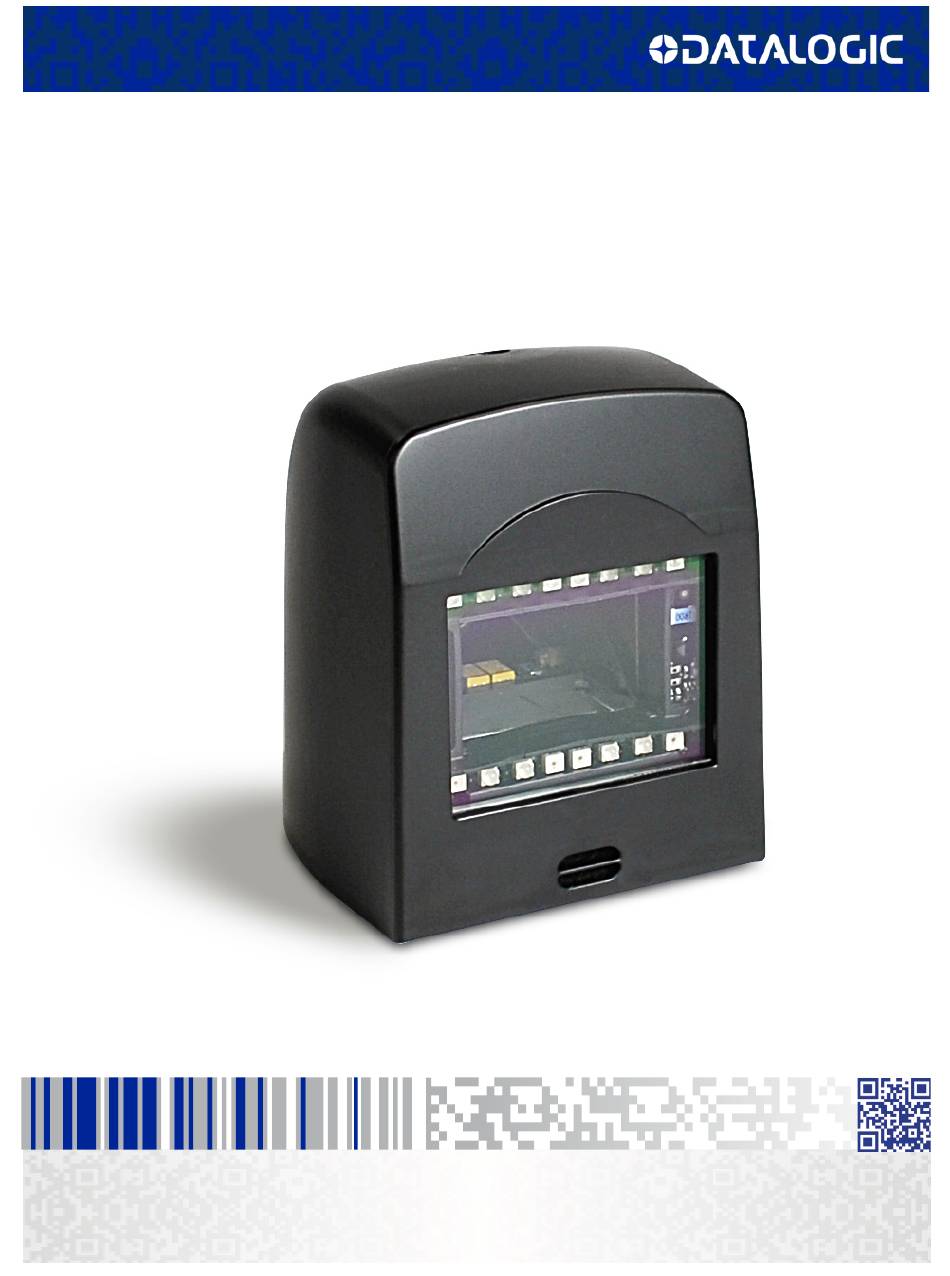

Page 1: Integration Manual
™ Magellan 1100i OEM Presentation Omnidirectional Bar Code Reader Integration Manual... - Page 2 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic S.p.A. and/or its affiliates ("Datalogic"...
-
Page 3: Table Of Contents
Chapter 1. INTRODUCTION ..........................1 Overview ................................1 Unpacking the Scanner ..........................2 Scanner Care ..............................2 Technical Support ............................2 Datalogic Website Support ........................2 Reseller Technical Support ........................2 Telephone Technical Support ........................2 Chapter 2. MOUNTING THE SCANNER ....................... 1 General Considerations ..........................1 Mounting .................................1 Mounting the Scanner Standalone ......................2... - Page 4 NOTES Magellan™ 1100i OEM...
-
Page 5: Chapter 1. Introduction
Chapter 1 Introduction This document gives instruction, mechanical details, and design considerations to integrate the Magellan 1100i OEM model (designated as “scanner” or “OEM scanner” in this manual) specifically into equipment-integrated scanning appli- cations. Overview The OEM scanner is a compact, decoded, omni-directional imaging scanner for... -
Page 6: Unpacking The Scanner
Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information. -
Page 7: Chapter 2. Mounting The Scanner
Chapter 2 Mounting the Scanner This section describes how to design the mounting for optimum scanner per- formance. General Considerations A typical system uses the scanner mounted inside a host enclosure, with an opening for the scanning pattern to exit and read bar codes. The opening should be the size of the scanner window at a minimum, but only exposing as much of the scanner as necessary. -
Page 8: Mounting The Scanner Standalone
Mounting the Scanner Standalone The OEM scanner is not intended for use in a standalone application. This model is intended to be integrated inside a host enclosure. Standard Magellan 1100i models should be used when a standalone application is required. Cable Routing The mounting design should also take into consideration the clearances needed for the interface cable. -
Page 9: Design Of The Scanner Opening
Second, the scanner must be positioned so that the scan volume and illumina- tion light will cover the entire bar code. The scan volume is shown in Figure The combination of the Scan Volume and the illumination light is called the Field of View. -
Page 10: Integrating The Scanner Behind A Window
Integrating the Scanner Behind a Window It is not recommended to place any type of additional window between the scanner and the bar code to be read. The addition of a host enclosure window will significantly degrade scanner performance. This is due to the additional CAUTION optical reflective surfaces that will cause interference with the imaging tech- nology. -
Page 11: Appendix A. Technical Specifications
Appendix A Technical Specifications Optical and Read Performance Parameters Parameter Specification Scan Volume 1147 cm / 70 in Scan Pattern 136 scan lines Scan Rate 1760 Digital Scan Lines/second Minimum Resolution 5 mil Depth of Field Code Size Depth of Field (100% UPC Labels) 5 mil 25.4 - 57.2mm / 1.0 - 2.25”... -
Page 12: Environmental Parameters
Environmental Parameters Parameter Specification Mechanical Shock Multi 1.0m drops Contaminants Water and Dust IP52 Temperature Ranges: Operating 32 F to +122 F (0 C to +50 C) Storage -104 F to +158 F (-40 C to + 70C) Ambient Light Indoor 0 - 6000 lux Ambient Light Outdoor 0 - 86,100 lux... -
Page 13: Appendix B. Mechanical Specifications
Appendix B Mechanical Specifications Physical Properties Parameter Specification 86.4 mm x 71.1 mm x 66.0 mm Dimensions ( 3.4” x 2.8” x 2.6”) Weight ~ 198 g / 7.0 oz. Scanner Dimensions Integration Manual... -
Page 14: Clearance Required For Integration
Clearance Required for Integration Magellan™ 1100i OEM... - Page 16 Data- logic S.p.A. and/or its affiliates. • Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.
