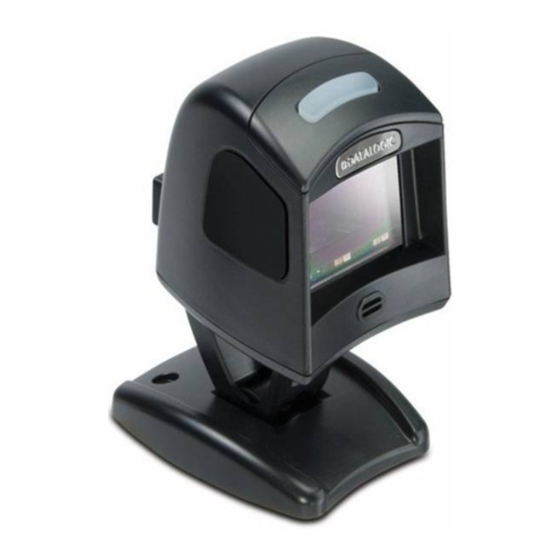

On-counter presentation omnidirectional bar code reader
Hide thumbs Also See for MAGELLAN 1000i:
Table of Contents

Advertisement

Quick Links

See also: Quick Reference Manual
Magellan
1000i
TM
On-Counter Presentation Omnidirectional Bar Code Reader
Product Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Datalogic MAGELLAN 1000i

Summary of Contents for Datalogic MAGELLAN 1000i

  • Page 1 Magellan 1000i On-Counter Presentation Omnidirectional Bar Code Reader Product Reference Guide...
  • Page 2 An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic Scan- ning, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic Scanning”). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.

  • Page 3: Table Of Contents

    Table of Contents About This Manual ....................... 1-1 Manual Conventions ....................... 1-1 Connecting the Scanner ....................... 1-2 Programming ........................1-3 Using the Programming Barcodes ..................1-3 Resetting the Standard Product Defaults ................1-3 LED and Beeper Indicators ....................1-4 Error Codes ........................1-5 Double Read Timeout ......................
  • Page 4 Wand Idle State ..................3-27 Signal Speed .................... 3-28 Transmit Trailing Noise ................3-28 Transmit Leading Noise ................3-29 Symbology Conversion ................3-29 Keyboard Wedge ......................3-30 USB Keyboard ......................3-30 Caps Lock State ..................3-32 Data Editing Overview ......................4-1 Please Keep In Mind...
  • Page 5 Start/Stop Characters ....................5-27 Code 39 Full ASCII .......................5-28 Length Control ......................5-29 Code 39 Length 1, Length 2 Programming Instructions ............5-30 Quiet Zones .........................5-30 Code 39 Stitching ......................5-31 Minimum Reads ......................5-31 Pharmacode 39 ........................5-32 Disable/Enable Pharmacode 39 ..................5-32 Start/Stop Characters ....................5-32 Check Character Transmit ....................5-33 Code 128 ..........................5-34 Disable/Enable Code 128 ....................5-34...
  • Page 6 Minimum Reads ......................5-67 2D Symbologies ........................6-2 PDF 417 ........................6-2 Disable/Enable PDF 417 ................6-2 Length Control ................... 6-3 PDF 417 Length 1, Length 2 Programming Instructions ........6-4 Minimum Reads ..................6-5 Datamatrix ........................6-6 Disable/Enable Datamatrix ................6-6 Length Control ...................

  • Page 7: About This Manual

    Chapter 1 Getting Started ® The Magellan 1000i Omni-Directional Imaging Scanner offers hands-free scanning for small, easily handled items and handheld scanning for bulkier items. Its aggressive imaging perfor- mance and intuitive operation reduces user training and speeds checkout for better customer service.

  • Page 8: Connecting The Scanner

    Getting Started Connecting the Scanner The scanner kit you ordered to match your interface should provide a compatible cable for your installation. Use the appropriate instructions below to connect the scanner to the terminal, PC or other host device. Upon completing the connection via the appropriate interface instructions below, proceed to section of this manual and scan the barcode to select the correct Interface Related Features interface type.

  • Page 9: Programming

    Programming Wand Emulation Connection — Connect the scanner to the appropriated port on the ter- minal/PC using the correct cable for the interface type you ordered. Reference Figure 2 IBM Connection — Connect the scanner to the IBM port on the terminal/PC using the cor- rect IBM cable.

  • Page 10: Led And Beeper Indicators

    Getting Started LED and Beeper Indicators The scanner’s beeper sounds and its green LED illuminates to indicate various functions or errors on the scanner. The tables below list these indications. One exception to the behaviors listed in the tables is that the scanner’s functions are programmable, and may or may not be turned on.

  • Page 11: Error Codes

    Error Codes Error Codes Upon startup, if the scanner flashes its indicator LED or sounds an unexpected series of beep tones (other than normal power-up indications), this means the scanner has not passed its auto- matic Selftest and has entered FRU isolation mode.
  • Page 12 Getting Started NOTES Magellan ® 1000i...

  • Page 13: Double Read Timeout

    Chapter 2 General Features Double Read Timeout The Double Read Timeout feature sets a time limit that determines how much time must pass before reading the same label again (e.g. two identical items in succession). START / END PROGRAMMING BARCODES 0.1 Second 0.2 Second 0.3 Second...
  • Page 14 General Features Double Read Timeout — cont. START / END PROGRAMMING BARCODES 0.7 Second 0.8 Second 0.9 Second 1 Second ® Magellan 1000i...

  • Page 15: Label Gone Timeout

    Label Gone Timeout Label Gone Timeout This feature sets the time after the last label segment is seen before the scanner prepares for a new label. START / END PROGRAMMING BARCODES Sets the label gone timeout duration using hex values from 000 to 255 in increments of ten milliseconds (10ms or 0.01 seconds). To configure this feature, scan the “START/END”...

  • Page 16: Sleep Mode

    General Features Sleep Mode This feature specifies the amount of time with no barcode reads before the scanner enters sleep mode. START / END PROGRAMMING BARCODES 15 Seconds 30 Seconds 1 Minute 2 Minutes 3 Minutes 4 Minutes 5 Minutes ®...
  • Page 17 Sleep Mode Sleep Mode — cont. START / END PROGRAMMING BARCODES 6 Minutes 7 Minutes 8 Minutes 9 Minutes 10 Minutes DEFAULT 12 Minutes 15 Minutes 30 Minutes 1 Hour Product Reference Guide...

  • Page 18: Led And Beeper Indicators

    General Features LED and Beeper Indicators Power On Alert Disables or enables the indication (a single beep) that the scanner has finished all its power up tests and is now ready for operation. START / END PROGRAMMING BARCODES Disable Enable DEFAULT ®...

  • Page 19: Good Read: When To Indicate

    LED and Beeper Indicators Good Read: When to Indicate This feature specifies when the scanner will provide indication (beep and/or flash its green LED) upon successfully reading a barcode. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...

  • Page 20: Good Read Beep Control

    General Features Good Read Beep Control This feature enables/disables the scanner’s ability to beep upon a successful decode of a barcode. START / END PROGRAMMING BARCODES Disable Enable DEFAULT Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below.

  • Page 21: Good Read Beep Length

    LED and Beeper Indicators Good Read Beep Length Specifies the duration of a good read beep. START / END PROGRAMMING BARCODES 60msec 80msec DEFAULT 100msec 120msec 140msec 160msec 180msec 200msec Product Reference Guide...

  • Page 22: Good Read Beep Volume

    General Features Good Read Beep Volume Selects the beeper volume (loudness) upon a good read beep. There are three selectable volume levels. START / END PROGRAMMING BARCODES Medium High DEFAULT 2-10 ® Magellan 1000i...

  • Page 23: Scanning Features

    Scanning Features Scanning Features Targeted Scanning Mode Upon pressing the button, the scanner will project an aiming pattern to assist in centering over the barcode. Scanning then takes place as soon as the button is released. When add-ons are enabled and a barcode is being read while in Targeted Mode, position the pointer at or near the end of the base label to ensure the scanner will read both the base and add-on label.

  • Page 24: Target Mode Linger Time

    General Features Target Mode Linger Time Specifies the time duration the scanner remains in the targeted mode of operation after reading a barcode before reverting to Omni-directional Mode. START / END PROGRAMMING BARCODES Short Duration Medium Duration DEFAULT Long Duration 2-12 ®...

  • Page 25: Wake Up Intensity

    Scanning Features Wake Up Intensity This feature indicates the percentage of ambient light change which will trigger the scanner to wake up from Sleep Mode. Lower settings provide greater sensitivity. The seelectable range for this setting is 5% to 15%. START / END PROGRAMMING BARCODES DEFAULT...
  • Page 26 General Features Wake Up Intensity — cont. START / END PROGRAMMING BARCODES 2-14 ® Magellan 1000i...

  • Page 27: Interface Related Features

    Chapter 3 Interface Related Features At the time of this writing, the Scanner supports the interfaces listed in . Select the Table 3-1 desired interface type from the table, then reference the page number given for the customizable features section associated with each interface. See for a description of each Keyboard Table 3-2 Wedge interface type (A through Y as listed).
  • Page 28 Interface Related Features Table 3-2. Keyboard Wedge Interface Reference I/F Type PCs Supported PC/XT w/Alternate Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key Encoding PS/2 25 and 30 w/Alternate Key Encoding PC/XT w/Standard Key Encoding AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...

  • Page 29: Interface Selection

    Interface Selection Interface Selection START / END PROGRAMMING BARCODES RS-232 Standard RS-232 Wincor-Nixdorf IBM 4683 Port 5B IBM 4683 Port 9B IBM 4683 Port 17 USB-OEM USB Keyboard Wand Emulation USB COM Product Reference Guide...
  • Page 30 Interface Related Features Interface Selection — cont. START / END PROGRAMMING BARCODES Keyboard Wedge A Keyboard Wedge B Keyboard Wedge C Keyboard Wedge D Keyboard Wedge E Keyboard Wedge F Keyboard Wedge G Keyboard Wedge H ³ 0 0 0 1 3 2 Keyboard Wedge I Keyboard Wedge J Magellan...
  • Page 31 Interface Selection Interface Selection — cont. START / END PROGRAMMING BARCODES Keyboard Wedge K Keyboard Wedge L Keyboard Wedge M Keyboard Wedge N Keyboard Wedge O Keyboard Wedge P ³ Keyboard Wedge Q Keyboard Wedge R ³ Keyboard Wedge S Product Reference Guide...
  • Page 32 Interface Related Features Interface Selection — cont. START / END PROGRAMMING BARCODES Keyboard Wedge T Keyboard Wedge U Keyboard Wedge V Keyboard Wedge W Keyboard Wedge X Keyboard Wedge Y Magellan ® 1000i...

  • Page 33: Interface Features

    Interface Features Interface Features Obey/Ignore Host Commands When set to ignore host commands, the scanner will ignore all host commands except for the minimum set necessary to keep the interface active and transmit labels For normal operation of the interface, select Obey Host Commands. START / END PROGRAMMING BARCODES Obey Host Commands...

  • Page 34: Host Transmission Buffers

    Interface Related Features Interface Features — cont. Host Transmission Buffers Specifies the number of host transmission(s) that may be buffered. By buffering data from a bar- code, the scanner can continue to read a new barcode while the old one is being transmitted to the host.

  • Page 35: Rs-232 Interface Features

    Interface Features RS-232 Interface Features START / END PROGRAMMING BARCODES 1200 Baud 2400 Baud 4800 Baud 9600 Baud DEFAULT 19200 Baud ³ 38400 Baud 57600 Baud 115200 Baud Product Reference Guide...
  • Page 36 Interface Related Features RS-232 Interface Features — cont. START / END PROGRAMMING BARCODES 7 Data Bits 8 Data Bits DEFAULT 1 Stop Bit DEFAULT 2 Stop Bits Parity = None DEFAULT Parity = Even Parity = Odd 3-10 Magellan ® 1000i...

  • Page 37: Hardware Flow Control

    Interface Features RS-232 Interface Features — cont. Hardware Flow Control Disable Hardware Control— The scanner transmits to the host regardless of any activity on the CTS line. Enable CTS Flow Control— The CTS signal controls transmission of data to the host. Enable CTS Scan Control—...

  • Page 38: Intercharacter Delay

    Interface Related Features RS-232 Interface Features — cont. Intercharacter Delay This delay is inserted after each data character transmitted. If the transmission speed is too high, the system may not be able to receive all characters. You may need to adjust the delay to make the system work properly.

  • Page 39: Software Flow Control

    Interface Features Intercharacter Delay — cont. START / END PROGRAMMING BARCODES Interchar Delay = 80 msec Interchar Delay = 90 msec Software Flow Control Disables/Enables software control using XON/XOFF characters. START / END PROGRAMMING BARCODES Disable Software Flow Control DEFAULT Enable Software Flow Control 3-13 Product Reference Guide...

  • Page 40: Host Echo

    Interface Related Features RS-232 Interface Features — cont. Host Echo When enabled, this feature passes all data through the scanner to the host as it comes in. This feature is used for applications where “daisy chaining” of RS-232 devices onto the same cable is necessary.

  • Page 41: Host Echo Quiet Interval

    Interface Features RS-232 Interface Features — cont. Host Echo Quiet Interval This setting specifies the time interval of RS-232 channel inactivity which must transpire before the scanner will break the host echo loop to transmit the barcode data that has just been scanned to the host.

  • Page 42: Signal Voltage: Normal/Ttl

    Interface Related Features Host Echo Quiet Interval — cont. START / END PROGRAMMING BARCODES Host Echo Quiet Interval = 80msec Host Echo Quiet Interval = 90msec Host Echo Quiet Interval = 100msec Signal Voltage: Normal/TTL Specifies whether the RS-232 interface provides TTL levels on the output pins TxD and RTS. START / END PROGRAMMING BARCODES Signal Voltage: Normal RS-232...

  • Page 43: Rs-232 Invert

    Interface Features RS-232 Invert Enables/disables inversion of RS-232 TXD and RXD signals. START / END PROGRAMMING BARCODES Disable RS-232 Invert DEFAULT Enable RS-232 Invert Beep on ASCII BEL Enables/disables ability of scanner to beep (sound a good read tone) on receiving an ASCII BEL (07 hex).

  • Page 44: Beep On Not On File

    Interface Related Features Beep on Not on File Select for the host to beep (or not) when a not-on-file (host command) condition is detected by the host. START / END PROGRAMMING BARCODES Disable Beep on Not On File Enable Beep on Not On File DEFAULT 3-18 Magellan...

  • Page 45: Ack Nak Options

    Interface Features ACK NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Selections for this option are: •...

  • Page 46: Ack Character

    Interface Related Features RS-232 Interface Features — cont. — cont. ACK Character START / END PROGRAMMING BARCODES Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits with zeros, as in “005”.

  • Page 47: Retry On Ack Nak Timeout

    Interface Features RS-232 Interface Features — cont. Retry on ACK NAK Timeout Enables/disables retry after the configurable ACK NAK Timeout Value (set in the following fea- ture) has expired. START / END PROGRAMMING BARCODES Disable Retry on ACK NAK Timeout Enable Retry on ACK NAK Timeout DEFAULT ACK NAK Timeout Value...

  • Page 48: Ack Nak Retry Count

    Interface Related Features RS-232 Interface Features — cont. ACK NAK Retry Count START / END PROGRAMMING BARCODES This feature sets the number of times for the scanner to retry a label transmission under a retry condition. 000 = No retry 001 - 254 = Retry for the specified number of times 255 = Retry forever To configure this feature, scan the “START/END”...

  • Page 49: Ack Nak Error Handling

    Interface Features RS-232 Interface Features — cont. ACK NAK Error Handling This item specifies the method the scanner will use to handle errors detected while waiting to receive the ACK character from the host. Errors include unrecognized host commands and com- munication errors such as parity or framing errors.

  • Page 50: Transmission Failure Indication

    Interface Related Features RS-232 Interface Features — cont. Transmission Failure Indication Enables/disables bad-label indication upon transmission failure. START / END PROGRAMMING BARCODES Disable Transmission Error Indication Enable Transmission Error Indication DEFAULT USB-OEM Interface Features USB-OEM Device usage The USB-OEM protocol allows for the scanner to be identified as one of two different types of barcode scanners.

  • Page 51: Ibm

    Interface Features IBM Transmit Labels in Code 39 Format This feature enables/disables scanner's ability to set a symbology identifier for a specified label to Code 39 before transmitting that label data to an IBM host. This applies to: Code 128, Codabar and Code 93 for USB-OEM;...

  • Page 52: Wand Emulation

    Interface Related Features Wand Emulation Supported Symbologies The Wand Emulation interface will transmit barcode data as a wand device would. This inter- face will transmit the following barcode symbologies: • UPC/EAN • UPC/EAN with addons • Code 39 • Full ASCII Code 39 •...

  • Page 53: Bar/Space Polarity

    Interface Features Wand Emulation — cont. Bar/Space Polarity Low/High — Black will be transmitted as a low voltage level (0 to +0.7V) and space as high level (+2.4 to +5.25V). High/Low — Black will be transmitted as a high voltage level (+2.4 to +5.25V) and space as low level (0 to +0.7V).

  • Page 54: Signal Speed

    Interface Related Features Wand Emulation — cont. Signal Speed The speed of the transmission can be set. This selects the width of the minimum narrow bar. 330 microseconds 660 microseconds START / END PROGRAMMING BARCODES Signal Speed = 330mS Signal Speed = 660mS DEFAULT Transmit Trailing Noise The transmission of noise pulses after the label may be enabled or disabled.

  • Page 55: Transmit Leading Noise

    Interface Features Wand Emulation — cont. Transmit Leading Noise The transmission of noise pulses before the barcode may be enabled or disabled. START / END PROGRAMMING BARCODES Disable Leading Noise Enable Leading Noise DEFAULT Symbology Conversion Wand Emulation can convert all barcodes to a single symbology. Choices are: No Conversion Convert to Code 39 Convert to Code 128...

  • Page 56: Keyboard Wedge

    Interface Related Features Keyboard Wedge USB Keyboard As a keyboard interface, the scanner supports most popular PCs and IBM terminals. The instal- lation of the wedge is a fairly simple process that doesn’t require any changes of software or hard- ware.
  • Page 57 Interface Features Keyboard Wedge — cont. START / END PROGRAMMING BARCODES Italy Norway Portugal Spain Sweden Switzerland Japan 106 Key Hungary Czech 3-31 Product Reference Guide...

  • Page 58: Caps Lock State

    Interface Related Features Keyboard Wedge — cont. START / END PROGRAMMING BARCODES Slovakia ³ Romania Croatia Poland Caps Lock State Specifies the format in which the scanner sends character data. START / END PROGRAMMING BARCODES Disable Caps Lock DEFAULT Caps Lock “ON” Shift Lock “ON”...
  • Page 59 Interface Features Keyboard Wedge — cont. Power-On Simulation This feature does not apply to the USB Keyboard interface. NOTE All PCs check the keyboard status during the power-on Selftest. It is recommended that you enable this function if you are working without a keyboard installation. It simulates keyboard timing and passes the keyboard status to the PC during power-on.
  • Page 60 Interface Related Features Control Characters Specifies how the scanner transmits ASCII control characters to the host. Choices are: • Disable Control Characters • Enable transmission of control characters to host • Send characters between 00H and 1FH according to a special function-key mapping table.
  • Page 61 Interface Features Keyboard Wedge — cont. Wedge Quiet Interval This feature does not apply to the USB Keyboard interface. NOTE Quiet Interval is the amount of time to look for keyboard activity before the scanner breaks the keyboard connection in order to transmit data to the host. START / END PROGRAMMING BARCODES Selectable from 000 (no interval) to 255 in 10 msec increments.
  • Page 62 PC, please ensure you have already copied the DLS_EUG_CDC_ACM.inf file pro- vided by Datalogic to your PC and the reader’s interface is set to USB COM. 1. When you first plug the reader into the PC, Windows will bring up the “Found New Hardware Wizard.”...

  • Page 63: Data Editing Overview

    Chapter 4 Data Editing Data Editing Overview It is not recommended to use these features with IBM or Wand Emulation interfaces. CAUTION When a barcode is scanned, additional information can be sent to the host computer along with the barcode data. This combination of barcode data and supplementary user-defined data is called a “message string.”...

  • Page 64: Global Prefix/Suffix

    Data Editing Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the barcode data) and/ or as a suffix (in a position following the barcode data) as indicated in Figure 4-2 Figure 4-2. Prefix and Suffix Positions OR...
  • Page 65 Global Prefix/Suffix Global Prefix/Suffix — cont. START / END PROGRAMMING BARCODES Sets up to 20 characters each from the set of ASCII characters or any hex value from 0 to FF. To configure this feature, scan the “START/END” barcode above to place the unit in Programming Mode, then the “Set Prefix” or “Set Suffix,” followed by the digits from the Alphanumeric table in representing your desired character(s).

  • Page 66: Aim Id

    Data Editing AIM ID AIM (Automatic Identification Manufacturers) label identifiers are assigned from a globally standardized list — as opposed to custom label ID characters you select yourself — and can be included with scanned barcode data. AIM label identifiers consist of three characters as follows: •...

  • Page 67: Label Id

    Label ID Label ID A Label ID is a customizable code of up to two ASCII characters (00-FF), used to identify a bar- code (symbology) type. See , for a listing for common symbologies. It Appendix D, Default Settings can be appended previous to or following the transmitted barcode data depending upon how this option is enabled.
  • Page 68 Data Editing Label ID — cont. START / END PROGRAMMING BARCODES Label ID Transmission: Disable Label ID Position: Before Barcode Data DEFAULT Label ID Position: After Barcode Data Set UPC-A Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex) Set UPC-A w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: A (41 hex) Set UPC-A w/P5 Addon Label ID Character(s)
  • Page 69 Label ID Label ID — cont. START / END PROGRAMMING BARCODES Set UPC-E w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set UPC-E w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set UPC-E w/C128 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: E (45 hex) Set EAN-8 Label ID Character(s)
  • Page 70 Data Editing Label ID — cont. START / END PROGRAMMING BARCODES Set EAN-13 w/P2 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set EAN-13 w/P5 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set EAN-13 w/C128 Addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: F (46 hex) Set ISBN Label ID Character(s)
  • Page 71 Label ID Label ID — cont. START / END PROGRAMMING BARCODES Set GTIN w/C128 addon Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: G8 (4738 hex) Set GS1 Omnidirectional Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: R4 (5234 hex) Set GS1 Expanded Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: RX (5258 hex) Set Code GS1 DataBar Limited Label ID Character(s)
  • Page 72 Data Editing 4-10 Magellan ® 1000i...
  • Page 73 Label ID Label ID — cont. START / END PROGRAMMING BARCODES Set Codabar Label ID Character(s) ³ DEFAULT SETTING FOR THIS FEATURE: % (25 hex) Set Code 93 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: & (26 hex) Set Code 11 Label ID Character(s) DEFAULT SETTING FOR THIS FEATURE: @ (40 hex) Set MSI/Plessey Label ID Character(s) ³...

  • Page 74: Case Conversion

    Data Editing Case Conversion This feature can convert scanned barcode data to either all lower case (a through z) or all upper case (A through Z) characters. Case conversion affects ONLY scanned barcode data, and does not affect Label ID, Prefix, Suffix, or other appended data.

  • Page 75: Character Conversion

    Character Conversion Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the charac- ter to convert in a pair is FF, then no conversion is done.
  • Page 76 Data Editing 4-14 Magellan ® 1000i...

  • Page 77: Upc-A

    Chapter 5 Symbologies The scanner supports the following symbologies (barcode types). Options for each symbology are included in this chapter. • UPC-A • Pharmacode 39 • UPC-E • Code 128 • EAN-13 • Interleaved 2 of 5 • EAN-8 • Codabar •...

  • Page 78: Check Digit Transmission

    Symbologies UPC-A — continued Check Digit Transmission Enable this option to transmit the check digit along with UPC-A barcode data. START / END PROGRAMMING BARCODES Don’t Send Check Digit ³ Send Check Digit DEFAULT Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the sym- bology ID to match those required for EAN-13.

  • Page 79: Number System Transmission

    UPC-A UPC-A — continued Number System Transmission This feature enables/disables transmission of UPC-A System Number. START / END PROGRAMMING BARCODES Disable Number System Transmission Enable Number System Transmission DEFAULT UPC-A Minimum Reads This feature specifies the minimum number of consecutive times a UPC-A label must be decoded before it is accepted as good read.

  • Page 80: Upc-A In-Store Minimum Reads

    Symbologies UPC-A — continued UPC-A In-store Minimum Reads This feature specifies the minimum number of consecutive times an in-store printed label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads...

  • Page 81: Upc-E

    UPC-E UPC-E The following options apply to the UPC-E symbology. Disable/Enable UPC-E When disabled, the scanner will not read UPC-E barcodes. START / END PROGRAMMING BARCODES Disable UPC-E Enable UPC-E DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with UPC-E barcode data. START / END PROGRAMMING BARCODES Don’t Send Check Digit...

  • Page 82: Number System Digit

    Symbologies UPC-E — continued Number System Digit The Number System Digit (NSD) which is always a zero (0) in the leading position can be optionally included (or not) with scanned barcode data. START / END PROGRAMMING BARCODES Exclude Number System Digit DEFAULT Include Number System Digit ³...

  • Page 83: Expand Upc-E To Ean13

    UPC-E UPC-E — continued Expand UPC-E to EAN13 Enables/disables expansion of UPC-E labels to EAN-13. Selecting this feature also changes the symbology ID to match those required for EAN-13. START / END PROGRAMMING BARCODES Don’t Expand UPC-E to EAN-13 DEFAULT Expand UPC-E to EAN-13 Minimum Reads This feature specifies the minimum number of consecutive times a UPC-E label must be...

  • Page 84: Gtin

    Symbologies GTIN The following options apply to the GTIN label data format. Expand UPC/EAN to GTIN When this feature is enabled, the scanner will translate UPC/EAN labels to the 14 digit GTIN format. START / END PROGRAMMING BARCODES Don’t Expand to GTIN DEFAULT Expand to GTIN Magellan...

  • Page 85: Disable/Enable Ean-13

    EAN-13 EAN-13 The following options apply to the EAN-13 symbology. Disable/Enable EAN-13 When disabled, the scanner will not read EAN-13 barcodes. START / END PROGRAMMING BARCODES Disable EAN-13 Enable EAN-13 DEFAULT Check Digit Transmission Enable this option to transmit the check digit along with EAN-13 barcode data. START / END PROGRAMMING BARCODES Don’t Send Check Digit...

  • Page 86: Ean-13 Flag 1 Character

    Symbologies EAN-13 — continued EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. START / END PROGRAMMING BARCODES Don’t Transmit EAN-13 Flag 1 Char Transmit EAN-13 Flag 1 Char DEFAULT ISBN When enabled, this feature truncates the leading three digits from labels that contain ISBN (International Standard Book Number) and appends an ISBN check character to the end of the label.

  • Page 87: Minimum Reads

    EAN-13 EAN-13 — continued Minimum Reads This feature specifies the minimum number of consecutive times an EAN-13 label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads ³...

  • Page 88: Disable/Enable Ean-8

    Symbologies EAN-8 The following options apply to the EAN-8 symbology. Disable/Enable EAN-8 When disabled, the scanner will not read EAN-8 barcodes. START / END PROGRAMMING BARCODES Disable EAN-8 Enable EAN-8 DEFAULT Check Digit Transmission Enable this option to transmit the check Digit along with EAN-8 barcode data. START / END PROGRAMMING BARCODES Don’t Send Check Digit...

  • Page 89: Minimum Reads

    EAN-8 EAN-8 — continued Expand EAN-8 to EAN-13— Expands EAN-8 data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. START / END PROGRAMMING BARCODES Don’t Expand to EAN-13 DEFAULT Expand to EAN-13 Minimum Reads This feature specifies the minimum number of consecutive times an EAN-8 label must be...

  • Page 90: Enable Ean Two-Label

    Symbologies Enable EAN Two-Label Enables/disables the ability of the scanner to decode EAN two-label pairs. START / END PROGRAMMING BARCODES Disable EAN Two-Label Enable EAN Two-Label 5-14 Magellan ® 1000i...

  • Page 91: Add-Ons

    Add-ons Add-ons Add-ons (or supplemental characters) are commonly added to the end of UPC/EAN barcodes. The scanner will read the add-ons if they are enabled and in the field of view. Three add-on types are supported: 2-digit, 5-digit and Code 128 add-ons. Supported options are: None—...
  • Page 92 Symbologies Add-ons — continued START / END PROGRAMMING BARCODES Disable Optional 2-Digit Add-ons DEFAULT Enable Optional 2-Digit Add-ons Disable Optional 5-Digit Add-ons DEFAULT Enable Optional 5-Digit Add-ons ³ 0 1 1 0 1 Disable Optional Code 128 Add-ons DEFAULT Enable Optional Code 128 Add-ons 5-16 Magellan ®...

  • Page 93: Gs1 Databar Omnidirectional / Stacked Omnidirectional

    GS1 DataBar Omnidirectional / Stacked Omnidirectional GS1 DataBar Omnidirectional / Stacked Omnidirectional The following options apply to the GS1 DataBar Omnidirectional symbology. Disable/Enable GS1 DataBar Omnidirectional When this feature is disabled, the scanner will not read GS1 DataBar Omnidirectional barcodes. START / END PROGRAMMING BARCODES Disable GS1 DataBar Omnidirectional...

  • Page 94: Minimum Reads

    Symbologies GS1 DataBar Omnidirectional / Stacked Omnidirectional — continued Minimum Reads This feature specifies the minimum number of consecutive times an GS1 DataBar Omnidirec- tional label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads...

  • Page 95: Gs1 Databar Expanded / Expanded Stacked

    GS1 DataBar Expanded / Expanded Stacked GS1 DataBar Expanded / Expanded Stacked The following options apply to the GS1 DataBar Expanded symbology. Disable/Enable GS1 DataBar Expanded When this feature is disabled, the scanner will not read GS1 DataBar Expanded barcodes. START / END PROGRAMMING BARCODES Disable GS1 DataBar Expanded...

  • Page 96: Length Control

    Symbologies GS1 DataBar Expanded / Expanded Stacked — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 97: Gs1 Databar Expanded Length 1, Length 2 Programming Instructions

    GS1 DataBar Expanded / Expanded Stacked GS1 DataBar Expanded / Expanded Stacked — continued GS1 DataBar Expanded Length 1, Length 2 Programming Instructions 1. Scan the START/END barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3.

  • Page 98: Minimum Reads

    Symbologies GS1 DataBar Expanded / Expanded Stacked — continued Minimum Reads This feature specifies the minimum number of consecutive times an GS1 DataBar Expanded label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads...

  • Page 99: Coupon Read Control

    GS1 DataBar Expanded / Expanded Stacked GS1 DataBar Expanded / Expanded Stacked — continued Coupon Read Control This feature controls coupon reading. START / END PROGRAMMING BARCODES Disable coupon filtering Enable UPCA coupon decoding Disable GS1 DataBar coupon decoding DEFAULT Enable GS1 DataBar coupon decoding Disable UPCA coupon decoding 5-23...

  • Page 100: Gs1 Databar Limited

    Symbologies GS1 DataBar Limited The following options apply to the GS1 DataBar Limited symbology. Disable/Enable GS1 DataBar Limited When this feature is disabled, the scanner will not read GS1 DataBar Limited barcodes. START / END PROGRAMMING BARCODES Disable GS1 DataBar Limited DEFAULT Enable GS1 DataBar Limited GS1-128 Emulation...

  • Page 101: Minimum Reads

    GS1 DataBar Limited GS1 DataBar Limited — continued Minimum Reads This feature specifies the minimum number of consecutive times an GS1 DataBar Limited label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads...

  • Page 102: Code 39

    Symbologies Code 39 The following options apply to the Code 39 symbology. Disable/Enable Code 39 When this feature is disabled, the scanner will not read Code 39 barcodes. START / END PROGRAMMING BARCODES Disable Code 39 Enable Code 39 DEFAULT Check Character Calculation When enabled, the scanner will calculate the check character of the labels.

  • Page 103: Check Character Transmit

    Code 39 Check Character Transmit Enable this option to transmit the check character with scanned barcode data. START / END PROGRAMMING BARCODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT Start/Stop Characters Enables/disables transmission of Code39 start and stop characters. START / END PROGRAMMING BARCODES Don’t Transmit Start/Stop Characters...

  • Page 104: Code 39 Full Ascii

    Symbologies Code 39 Full ASCII Enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters START / END PROGRAMMING BARCODES Disable Code 39 Full ASCII DEFAULT Enable Code 39 Full ASCII 5-28 Magellan ® 1000i...

  • Page 105: Length Control

    Code 39 Code 39 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 106: Code 39 Length 1, Length 2 Programming Instructions

    Symbologies Code 39 Length 1, Length 2 Programming Instructions 1. Scan the START/END barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.

  • Page 107: Code 39 Stitching

    Code 39 Code 39 — continued Code 39 Stitching Enables/disables stitching for Code 39 labels. When parts of a Code 39 barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s soft- ware, and the data will be decoded if all barcode proofing requirements are met.

  • Page 108: Pharmacode 39

    Symbologies Pharmacode 39 The following options apply to the Pharmacode 39 symbology. Disable/Enable Pharmacode 39 When this feature is disabled, the scanner will not read Pharmacode 39 barcodes. START / END PROGRAMMING BARCODES Disable Pharmacode 39 DEFAULT Enable Pharmacode 39 Start/Stop Characters Enables or disables transmission of Pharmacode 39 start/stop characters.

  • Page 109: Check Character Transmit

    Pharmacode 39 Check Character Transmit Enable this option to transmit the check character with scanned barcode data. START / END PROGRAMMING BARCODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT 5-33 Product Reference Guide...

  • Page 110: Code 128

    Symbologies Code 128 The following options apply to the Code 128 symbology. Disable/Enable Code 128 When this feature is disabled, the scanner will not read Code 128 barcodes. START / END PROGRAMMING BARCODES Disable Code 128 Enable Code 128 DEFAULT Disable/Enable EAN 128 When this feature is disabled, the scanner will not read EAN 128 barcodes.

  • Page 111: Transmit Function Characters

    Code 128 Code 128 — continued Transmit Function Characters Enables/disables transmission of Code128 function characters 1, 2, 3, and 4. Function codes are transmitted as follows: • FNC1 = 80 hex • FNC2 = 81 hex • FNC3 = 82 hex •...

  • Page 112: Length Control

    Symbologies Code 128 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 113: Code 128 Length 1, Length 2 Programming Instructions

    Code 128 Code 128 — continued Code 128 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.

  • Page 114: Code 128 Stitching

    Symbologies Code 128 — continued Code 128 Stitching Enables/disables stitching for Code 128 labels. When parts of a Code 128 barcode are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met. START / END PROGRAMMING BARCODES Disable Code 128 Stitching...

  • Page 115: Interleaved 2 Of 5

    Interleaved 2 of 5 Interleaved 2 of 5 The following options apply to the Interleaved 2 of 5 (I 2 of 5) symbology. Disable/Enable Interleaved 2 of 5 When this feature is disabled, the scanner will not read Interleaved 2 of 5 barcodes. START / END PROGRAMMING BARCODES Disable Interleaved 2 of 5...

  • Page 116: Check Digit Transmit

    Symbologies Interleaved 2 of 5 — continued Check Digit Transmit Enable this option to transmit the check digit with scanned barcode data. START / END PROGRAMMING BARCODES Disable Check Digit Calculation DEFAULT Enable Check Digit Calculation 5-40 Magellan ® 1000i...

  • Page 117: Length Control

    Interleaved 2 of 5 Interleaved 2 of 5 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 118: Interleaved 2 Of 5 Length 1, Length 2 Programming Instructions

    Symbologies Interleaved 2 of 5 — continued Interleaved 2 of 5 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation For Interleaved 2 of 5 barcodes, lengths must be...

  • Page 119: Interleaved 2 Of 5 Stitching

    Interleaved 2 of 5 Interleaved 2 of 5 — continued Interleaved 2 of 5 Stitching Enables/disables stitching for Interleaved 2 of 5 labels. When parts of an Interleaved 2 of 5 bar- code are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met.

  • Page 120: Minimum Reads

    Symbologies Interleaved 2 of 5 — continued Minimum Reads This feature specifies the minimum number of consecutive times an Interleaved 2 of 5 label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads...

  • Page 121: Codabar

    Codabar Codabar The following options apply to the Codabar symbology. Disable/Enable Codabar When this feature is disabled, the scanner will not read Codabar barcodes. START / END PROGRAMMING BARCODES Disable Codabar DEFAULT Enable Codabar Check Character Verification When enabled, the scanner will verify the check character of the labels. START / END PROGRAMMING BARCODES Disable Check Char Verification...

  • Page 122: Check Character Transmit

    Symbologies Check Character Transmit Enable this option to transmit the check character with scanned barcode data. START / END PROGRAMMING BARCODES Disable Check Char Transmission Enable Check Char Transmission DEFAULT 5-46 Magellan ® 1000i...

  • Page 123: Length Control

    Codabar Codabar — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 124: Codabar Length 1, Length 2 Programming Instructions

    Symbologies Codabar — continued Codabar Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.

  • Page 125: Start/Stop Character Type

    Codabar Codabar — continued Start/Stop Character Type Codabar has four pairs of Start/Stop patterns. Select one pair to match your application. START / END PROGRAMMING BARCODES Start/Stop Type: ABCD/TN*E Start/Stop Type: ABCD/ABCD Start/Stop Type: abcd/tn*e Start/Stop Type: abcd/abcd DEFAULT Start/Stop Character Transmission The transmission of start and end characters of Codabar is selected below.

  • Page 126: Start/Stop Character Match

    Symbologies Start/Stop Character Match This feature enables/disables the requirement that start and stop characters match START / END PROGRAMMING BARCODES Disable Start/Stop Char Match DEFAULT Enable Start/Stop Char Match Codabar Stitching Enables/disables stitching for Codabar labels. When parts of a Codabar label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s soft- ware, and the data will be decoded if all barcode proofing requirements are met.

  • Page 127: Minimum Reads

    Codabar Codabar — continued Minimum Reads This feature specifies the minimum number of consecutive times a Codabar label must be decoded before it is accepted as a good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads 5-51...

  • Page 128: Code 93

    Symbologies Code 93 The following options apply to the Code 93 symbology. Disable/Enable Code 93 When this feature is disabled, the scanner will not read Code 93 barcodes. START / END PROGRAMMING BARCODES Disable Code 93 DEFAULT Enable Code 93 5-52 Magellan ®...

  • Page 129: Length Control

    Code 93 Code 93 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 130: Code 93 Length 1, Length 2 Programming Instructions

    Symbologies Code 93 — continued Code 93 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.

  • Page 131: Code 93 Stitching

    Code 93 Code 93 — continued Code 93 Stitching Enables/disables stitching for Code 93 barcodes. When parts of a Code 93 label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s soft- ware, and the data will be decoded if all barcode proofing requirements are met.

  • Page 132: Msi/Plessey

    Symbologies MSI/Plessey The following options apply to the MSI/Plessey symbology. Disable/Enable MSI/Plessey When this feature is disabled, the scanner will not read MSI/Plessey barcodes. START / END PROGRAMMING BARCODES Disable MSI/Plessey DEFAULT Enable MSI/Plessey Check Digit Verification This feature specifies whether one or two check digits are to be calculated and verified. START / END PROGRAMMING BARCODES Disable Check Digit Verification...

  • Page 133: Check Digit Transmit

    MSI/Plessey MSI/Plessey — continued Check Digit Transmit When this option is enabled, the scanner will transmit one-digit or two-digit check digits, depending upon the setting for check digit verification. START / END PROGRAMMING BARCODES Disable Check Digit Transmission Enable Check Digit Transmission DEFAULT Number of Check Characters Specifies number of MSI/Plessey check characters to be calculated and verified...

  • Page 134: Length Control

    Symbologies MSI/Plessey — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 135: Msi/Plessey Length 1, Length 2 Programming Instructions

    MSI/Plessey MSI/Plessey — continued MSI/Plessey Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.

  • Page 136: Msi/Plessey Stitching

    Symbologies MSI/Plessey — continued MSI/Plessey Stitching Enables/disables stitching for MSI/Plessey barcodes. When parts of an MSI/Plessey label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met. Only functions when is enabled.

  • Page 137: Minimum Reads

    MSI/Plessey MSI/Plessey — continued Minimum Reads This feature specifies the minimum number of consecutive times an MSI/Plessey label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads 5-61...

  • Page 138: Standard 2 Of 5

    Symbologies Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Disable/Enable Standard 2 of 5 When this feature is disabled, the scanner will not read Standard 2 of 5 barcodes. START / END PROGRAMMING BARCODES Disable Std 2 of 5 DEFAULT Enable Std 2 of 5...

  • Page 139: Check Digit Transmit

    Standard 2 of 5 Standard 2 of 5 — continued Check Digit Transmit When this option is enabled, the scanner will transmit the check digit. START / END PROGRAMMING BARCODES Disable Check Digit Transmission Enable Check Digit Transmission DEFAULT 5-63 Product Reference Guide...

  • Page 140: Length Control

    Symbologies Standard 2 of 5 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 141: Standard 2 Of 5 Length 1, Length 2 Programming Instructions

    Standard 2 of 5 Standard 2 of 5 — continued Standard 2 of 5 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the three digits (zero padded) represent- Appendix C, Alpha-Numeric Pad ing the length in decimal notation.

  • Page 142: Standard 2 Of 5 Stitching

    Symbologies Standard 2 of 5 — continued Standard 2 of 5 Stitching Enables/disables stitching for Standard 2 of 5 barcodes. When parts of a Standard 2 of 5 label are presented to the scanner with this feature enabled, the barcode parts will be assembled by the scanner’s software, and the data will be decoded if all barcode proofing requirements are met.

  • Page 143: Product Reference Guide I-Iii

    Standard 2 of 5 Standard 2 of 5 — continued Minimum Reads This feature specifies the minimum number of consecutive times a Standard 2 of 5 label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read DEFAULT...
  • Page 144 Symbologies 5-68 Magellan ® 1000i...
  • Page 145 2D Symbologies & Advanced Decoding Features The features in this section are available ONLY for models with 2D features activated. NOTE Product Reference Guide...

  • Page 146: 2D Symbologies

    2D Symbologies & Advanced Decoding Features 2D Symbologies The scanner supports the following 2D symbologies (barcode types): PDF 417 Datamatrix Options for each symbology are included in this addendum. Factory Defaults— for the std. RS-232 interface are indicated in bold text throughout. PDF 417 Disable/Enable PDF 417 When disabled, the scanner will not read PDF 417 barcodes.

  • Page 147: Length Control

    2D Symbologies PDF 417 — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 148: Pdf 417 Length 1, Length 2 Programming Instructions

    2D Symbologies & Advanced Decoding Features PDF 417 — continued PDF 417 Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the four hex digits representing the length in hexidec- Alpha-Numeric Pad imal notation.

  • Page 149: Minimum Reads

    2D Symbologies PDF 417 — continued Minimum Reads This feature specifies the minimum number of consecutive times a PDF 417 label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads...

  • Page 150: Datamatrix

    2D Symbologies & Advanced Decoding Features Datamatrix Disable/Enable Datamatrix When disabled, the scanner will not read Datamatrix barcodes. START / END PROGRAMMING BARCODES Disable Datamatrix Enable Datamatrix Magellan ® 1000i...

  • Page 151: Length Control

    2D Symbologies Datamatrix — continued Length Control Fixed Length Decoding— When fixed length decoding is enabled, the scanner will decode a barcode if the label length matches one of the configurable fixed lengths. Variable Length Decoding— When variable length decoding is enabled, the scanner will decode a barcode if the label length falls in the range of the configurable minimum and maxi- mum length.

  • Page 152: Datamatrix Length 1, Length 2 Programming Instructions

    2D Symbologies & Advanced Decoding Features Datamatrix — continued Datamatrix Length 1, Length 2 Programming Instructions 1. Scan the START barcode. 2. Scan either the Set Length 1 or Set Length 2 barcode. 3. Turn to and scan the four hex digits representing the length in hexidec- Alpha-Numeric Pad imal notation.

  • Page 153: Minimum Reads

    2D Symbologies Datamatrix — continued Minimum Reads This feature specifies the minimum number of consecutive times a Datamatrix label must be decoded before it is accepted as good read. START / END PROGRAMMING BARCODES Minimum = 1 Read Minimum = 2 Reads Minimum = 3 Reads Minimum = 4 Reads Product Reference Guide...

  • Page 154: Image Capture

    2D Symbologies & Advanced Decoding Features Image Capture This function is ONLY available for scanners having a button. Image capture requires that the scanner use the Standard RS-232 or USB COM interface ONLY. NOTE The scanner reverts to default reading mode after image capture and trans- fer.

  • Page 155: Product Specifications

    Chapter A Product Specifications Optical and Read Performance Parameters Parameter Specification Scan Volume 70 cubic inches Scan Pattern 100 lines Scan Rate 1,100 digital scan lines Minimum Resolution 5 mil 0 - 6” Depth of Field (100% UPC Labels) Minimum Print Contrast Ratio Skew (Yaw) ±...

  • Page 156: Physical Properties

    Physical Properties Parameter Specification Dimensions (Scanner only): 3.3” x2.8” x3.7” Dimensions (Scanner w/Base 5.5” x2.9” x3.8” Station): Weight (Scanner) 7.0 oz. Weight (Base Station) 6.6 oz. Electrical Parameters Parameter Specification (Two Models) Operating Voltage 5V unit = 5.0V ± 5% 12V unit = 7-12V Input Current Operating (idle)

  • Page 157: Standard Cable Pinouts (Primary Interface Cables

    Chapter B Cable Pinouts Standard Cable Pinouts (Primary Interface Cables) RS-232 2 CTS 10 Position RJ 4 RTS 5 RXD 6 TXD (Scanner End) Pin 1 8 VCC IN 9 GND IBM Port 5B/9B/17 10 Position RJ 4 DATA - 6 DATA + (Scanner End) Pin 1...

  • Page 158: Usb-Oem

    Cable Pinouts USB-OEM 10 Position RJ 4 D - 6 D + (Scanner End) Pin 1 8 VIN 9 GND USB, USB Keyboard & USB COM 10 Position RJ 4 D - 6 D + (Scanner End) Pin 1 8 VBUS_VIN 9 GND Wand Emulation 10 Position RJ...
  • Page 159 Chapter C Alpha-Numeric Pad Product Reference Guide...
  • Page 160 Alpha-Numeric Pad Magellan ® 1000i...

  • Page 161: Default Settings

    Appendix D Default Settings Defaults by Symbology The following is a partial list of key settings for each symbology type. Checksum Checksum Read Label Code Type Verification Transmission Enable Enable Enable ✓ ✓ ✓ UPC-A ✓ ✓ ✓ UPC-E ✓ ✓...

  • Page 162: Interface Default Exceptions

    Interface Default Exceptions The factory default settings indicated in the programming sections (in bold text) reflect factory configuration for the RS-232 standard interface. The following tables list default exceptions by interface for the remaining available interfaces. IBM Interfaces IBM Interfaces include USB-OEM, IBM Port 9B, IBM Port5B and IBM Port17. Parameter Default Setting IBM Interface Type...

  • Page 163: Rs-232 Wincor/Nixdorf

    Interface Default Exceptions Interface Default Exceptions — continued RS-232 Wincor/Nixdorf Parameter Default Setting Interface Type RS-232-WN Number of Host Transmit Buffers One Buffer RS-232 Parity RS-232 Hardware Control CTS Flow Control UPC-E Check Character Conversion Disabled UCC/EAN-128 Label ID ‘P’ Code 39 Label ID ‘M’...

  • Page 164: Wand Emulation

    Interface Default Exceptions — continued Wand Emulation Parameter Default Setting Interface Type Wand Emulation Code 39 Start/Stop Character Transmission Enable Keyboards Keyboard interfaces include USB Keyboard and Keyboard Wedge A-Y. Parameter Default Setting Keyboard Wedge Interface Type USB Keyboard Label ID Transmission Disable Magellan ®...

  • Page 165: Keyboard Model Cross Reference

    Appendix E Keyboard Function Key Mappings Keyboard Model Cross Reference summarizes the keyboard models, their defined protocol, scancode set, and some unique features. The Table E-1 remaining tables in this chapter provide the function key maps associated with each of the scancode sets. Table E-1.
  • Page 166 Table E-2. Scanset 1 Function Key Map ASCII ASCII code Scancode (hex) ALT right Make E0h 38h ALT right Break E0h B8h ALT left Make ALT left Break CTRL left Make CTRL left Break CTRL right Make E0h 1Dh CTRL right Break E0h 9Dh TAB right RIGHT arrow (inner keypad)
  • Page 167 Keyboard Model Cross Reference Table E-4 Scanset 3, 102-Key Function Key Map ASCII (hex) ASCII code Scancode ALT right Make ALT right Break F0h 39h ALT left Make ALT left Break F0h 19h CTRL left Make CTRL left Break F0h 11h CTRL right Make CTRL right Break F0h 58h...
  • Page 168 Table E-5. Scanset 3 122-Key Function Key Map ASCII (hex) ASCII code Scancode ALT Right Make ALT Right Break F0h 39h ALT left Make ALT left Break F0h 19h CTRL left (RESET) Make only CTRL left (RESET) Make/Break 11h F0h 11h ONLINE Enter Make only ONLINE Enter Make/Break 58h F0h 58h...
  • Page 169 Keyboard Model Cross Reference Table E-6. Japanese DOS Function Key Map ASCII value ASCII code Scancode ALT right Make ALT right Break ALT left Make ALT left Break CTRL left Make CTRL left Break CTRL right Make CTRL right Break TAB right RIGHT arrow (inner keypad) TAB left...
  • Page 170 Table E-7. NEC 9801-Key Function Key Map ASCII value ASCII code Scancode unused CAPS LOCK ON (make) CAPS LOCK OFF (break) CTRL left Make CTRL left Break CTRL-C TAB right RIGHT arrow (inner keypad) TAB left 0Fh + S DELETE INSERT (inner keypad) KATAKANA LOCK ON (Make) KATAKANA LOCK OFF (Break)

  • Page 171: Accepting Rs-232 Commands

    Chapter F Host Commands Accepting RS-232 Commands The scanner responds to the following RS-232 commands: COMMAND ASCII COMMENT Enable Scanner 0x45 Disable 0x44 Scanner Reset Scanner 0x52 Not On File 0x46 Long series of beeps Indication Beep Good 0x42 Beeps if Good Read Beep is enabled Read Tone Force Good 0x01...
  • Page 172 NOTES Magellan ® 1000i...

  • Page 173: Sample Symbols

    Chapter G Sample Symbols UPC-A 0 1234567890 Interleaved 2 of 5 1234567890 Code 128 Code 128 EAN-13 9 780330 290951 Code 39 BC321 Codabar A13579B Code 93 123456-9$ Code 2 of 5 123456 Product Reference Guide...
  • Page 174 Sample Symbols GS1 DataBar Omni- (01)00123456789012 GS1 DataBar Expanded 0100123456789050 Magellan ® 1000i...

  • Page 175: Ascii Chart

    ASCII Chart ASCII ASCII ASCII ASCII Hex No. Hex No. Hex No. Char. Char. Char. Char. ‘ “ & ’ < >...
  • Page 176 Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Spain and Portugal Datalogic Scanning India Datalogic Scanning Sarl Sucursal en España Telephone: 91- 22 - 64504739 Telephone: 34 91 746 28 60 india.scanning@datalogic.com spain.scanning@datalogic.com Italy United Kingdom...

Table of Contents
