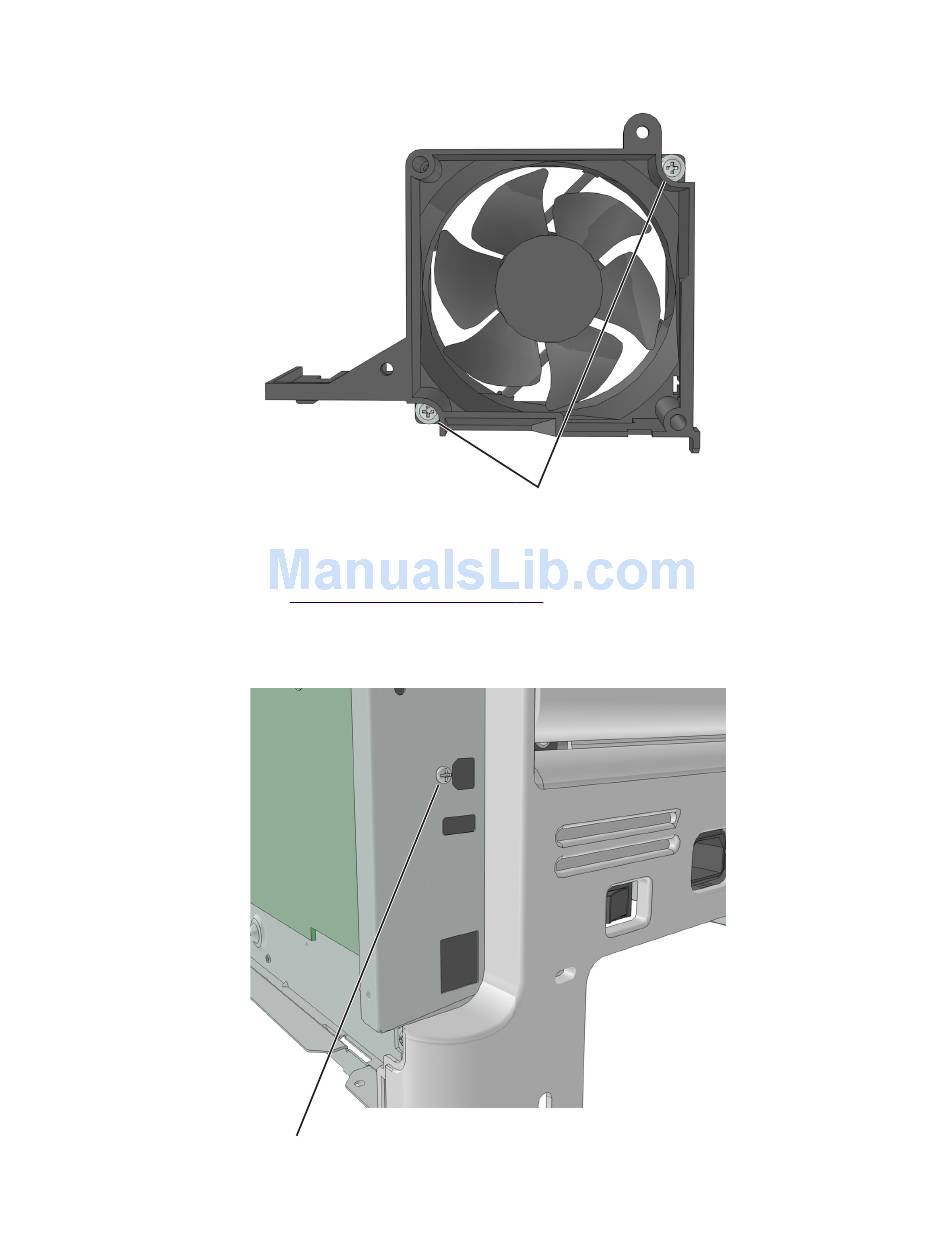

Remove the two screws (B) securing the fan to the fan mount.
Controller board removal
1
Remove the right cover. See
2
Disconnect all cables from the controller board.
3
Remove the three screws (A) from the rear side of the printer.
"Right cover removal" on page
A
Repair information
180
B
178.
4514
